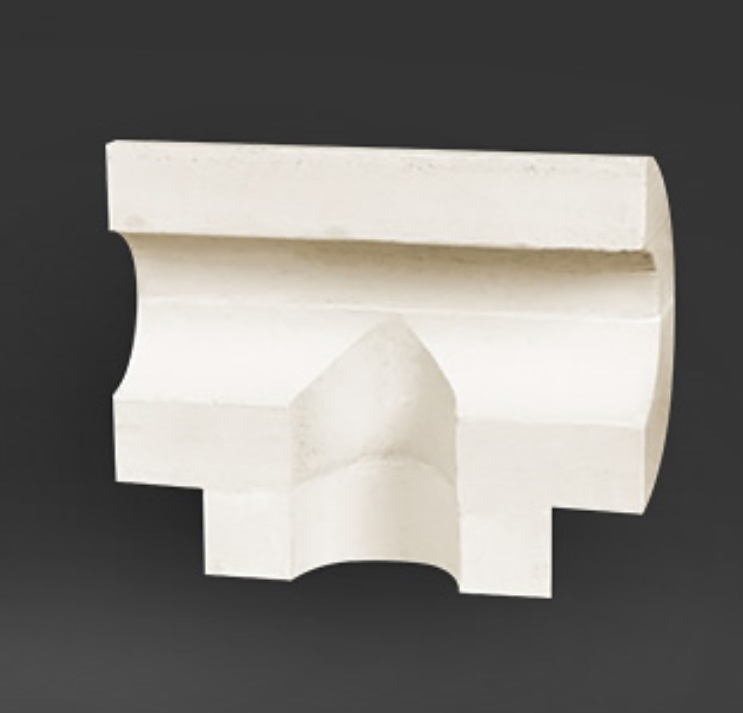

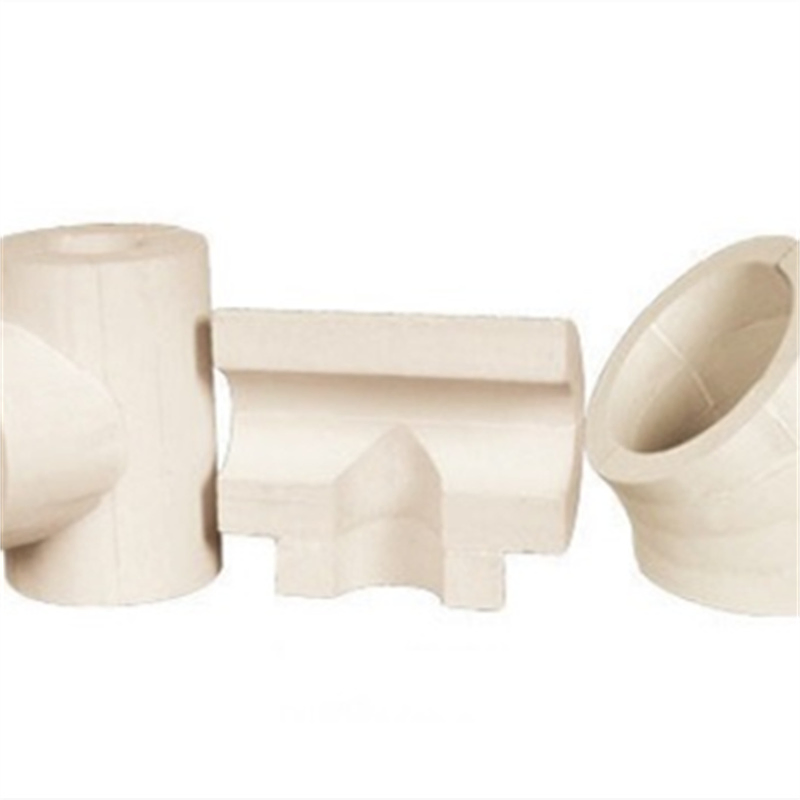

High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
1 / 5
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c
High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c

High Temperature Refractory Calcium Silicate Pipe Cover 1000c & 1100c

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
MR-CS-220
Material
Inorganic Siliceous & Calcareous
Feature
Highly Stretchable, Thermal Shock Resistance
Inner Diameter
13-1524mm
Thickness
30-100mm
Length
600mm
Max Temperature
1000℃
Apparent Density
≤170 Kg/M3
Surface Treatment
Waterproof Fireproof
Refractoriness
1100° C to 1430° C
📘 Product Description
High-performance calcium silicate 220 is composed of inorganic siliceous and calcareous materials, treated through high-temperature and high-pressure hydrothermal reactions. This ISO9001 certified product demonstrates excellent performance up to 650ºC. Its primary advantage is the superior protection it offers to pipelines due to its exceptionally low chloride ion content. Advanced production technology has optimized its thermal conductivity to approximately 0.049.

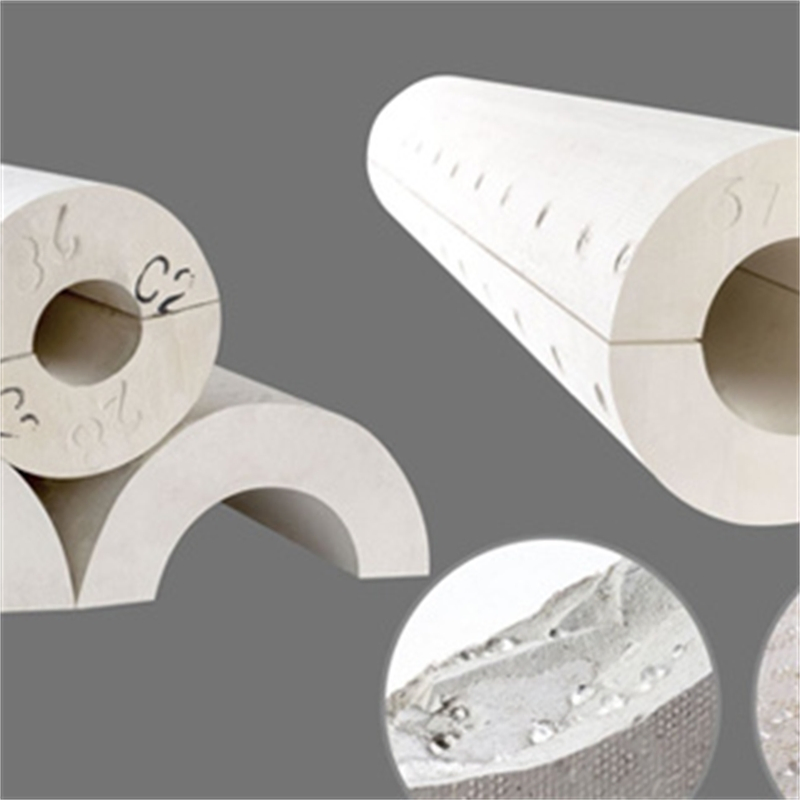

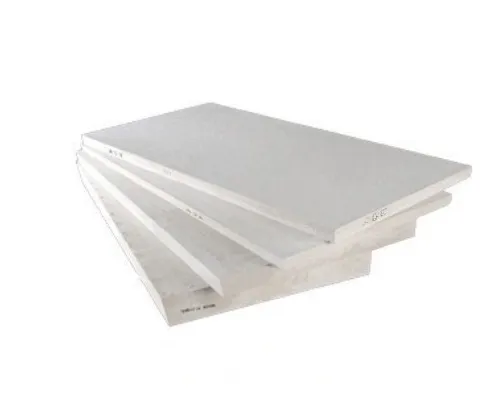

Refractory Calcium Silicate Pipe 1

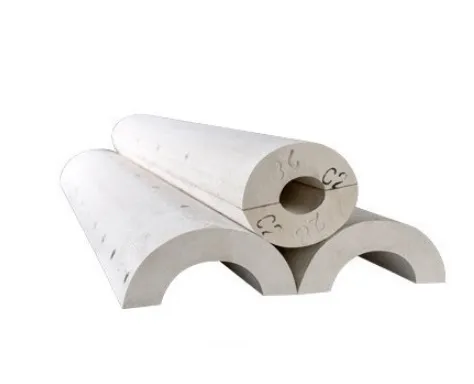

Refractory Calcium Silicate Pipe 2

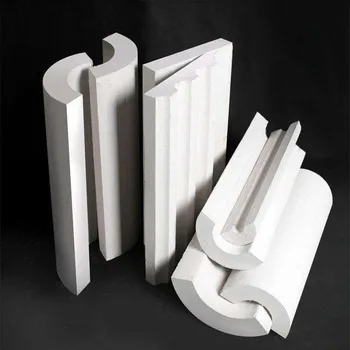

Calcium Silicate Board 1

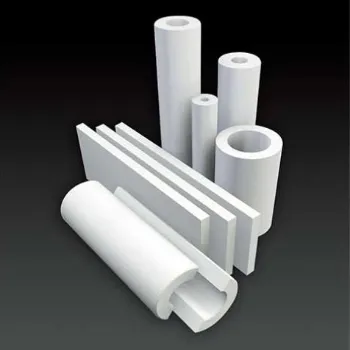

Calcium Silicate Board 2

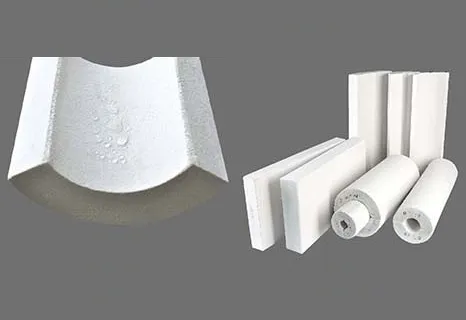

Pipe Insulation Close-up 1

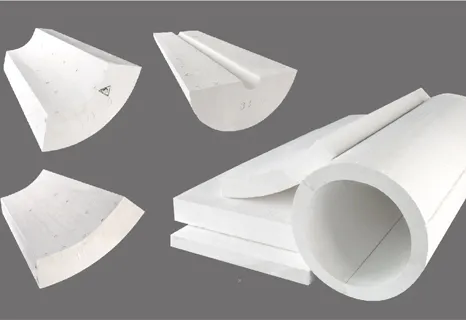

Pipe Insulation Close-up 2
⚙️ Product Parameters
Description Calcium Silicate Insulation Board / Pipe (650ºC)
Density (kg/m³)230±10%250±10%
Modules of Rupture (MPa)≥0.30≥0.45
Compressive Strength (MPa)≥0.50≥0.60
Thermal Conductivity (100ºC)≤0.057≤0.062
Chemical CompositionSiO2 (37-42%), CaO (29-34%), Al2O3 (10-12%)
Description High-Temp Insulation Board (1000ºC)
Density (kg/m³)230±10%250±10%270±10%
Compressive Strength (MPa)≥0.75≥0.85≥0.95
Thermal Conductivity (400ºC)≤0.091≤0.096≤0.103
Permanent Linear Shrinkage1000ºC x16h ≤ 2.0%
✅ Our Advantages
Advantages Overview
  • High Durability: Withstands continuous heat load at high temperatures.
  • Thermal Stability: Non-deformation within the designated temperature range.
  • Efficiency: Unmatched adiabatic performance via low thermal conductivity.
  • Strength: Lightweight yet possesses the highest strength among hard insulation products.
  • Safety & Hygiene: Asbestos-free, sulfur-free, and chlorine-free; non-toxic.
  • Workability: Easy to cut and shape using ordinary carpentry tools.
  • Water Resistance: Maintains integrity after drying if exposed to water.
🏗️ Applications
Commonly utilized in insulation projects involving tanks, pipeline systems, vessels, and cryogenic ships. It serves industries such as petroleum, chemical processing, refrigeration, shipbuilding, and residential construction. It is suitable for severe environments, including cryogenic, underground, outdoor, and chemically active zones.

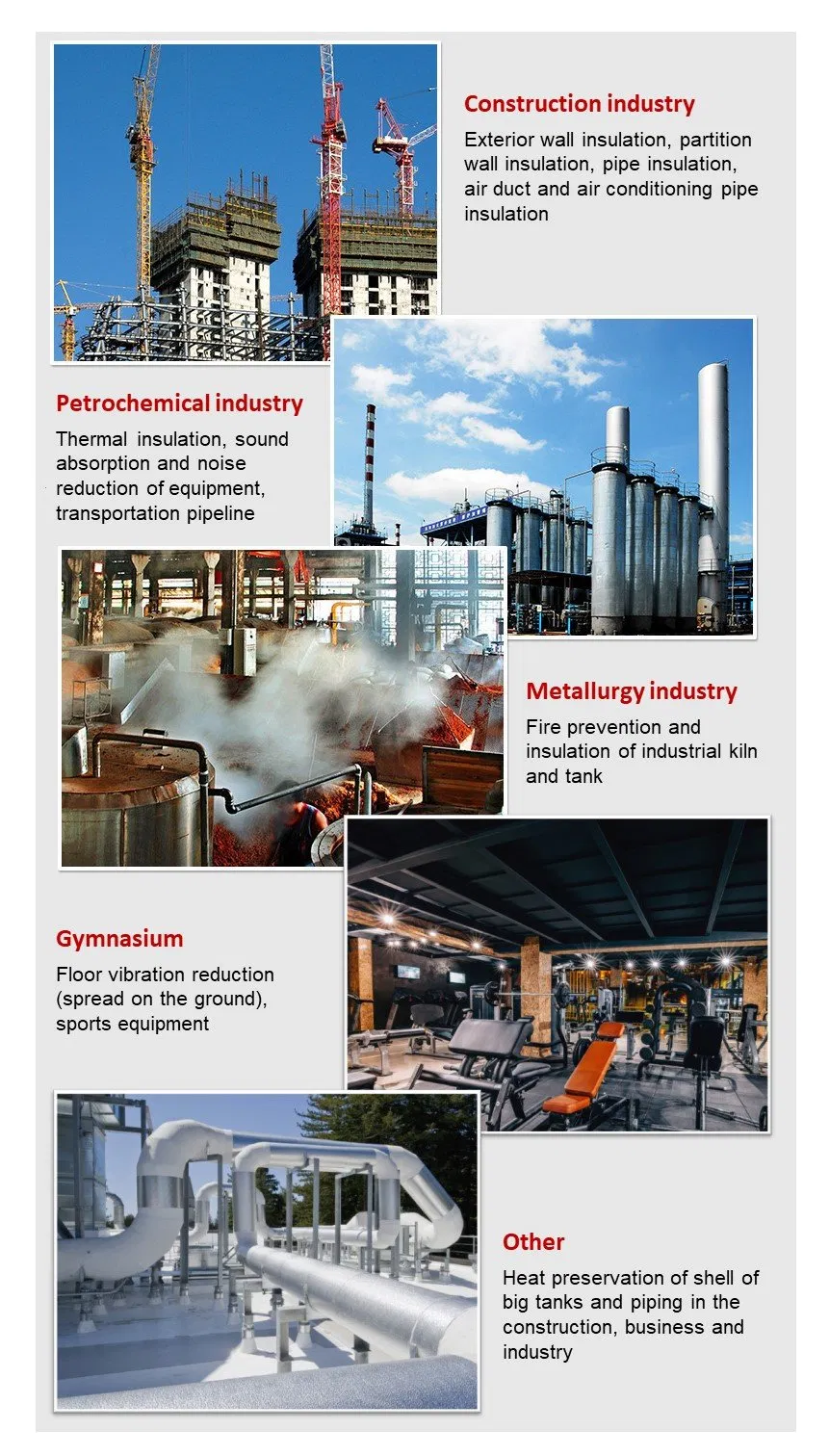

Application Scenarios
📦 Packaging & Workshop
Packaging Details
Certificates

PROJECTS & WORKSHOP

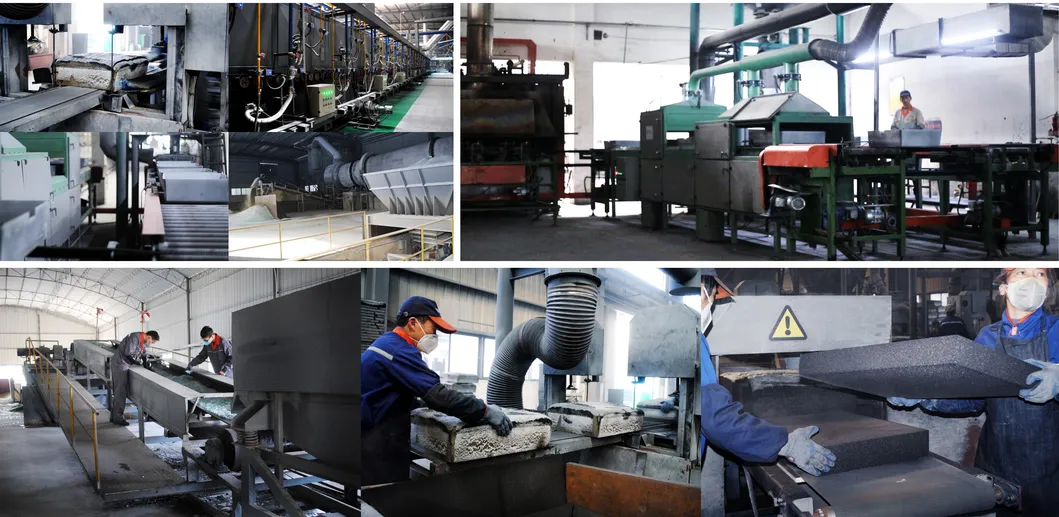

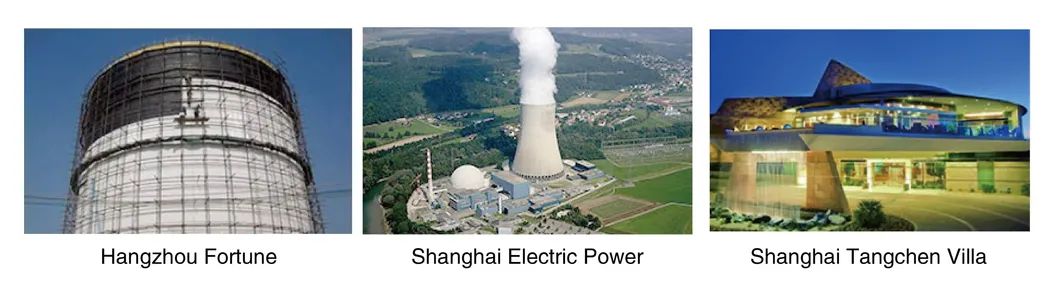

Project Display Production Workshop
❓ Frequently Asked Questions
What is the maximum service temperature for these products?
Depending on the specific grade, the products can handle continuous temperatures from 650°C up to a maximum of 1000°C.
Does the insulation material contain asbestos?
No, the material is completely asbestos-free, as well as free from sulfur and chlorine, making it safe and hygienic for use in various industries.
Can the material be used in outdoor or wet environments?
Yes, it features a waterproof and fireproof surface treatment. While it should be protected from prolonged saturation, it retains its properties after drying.
What are the primary industrial applications?
It is widely used for insulating pipelines, tanks, vessels, and equipment in the petroleum, chemical, shipbuilding, and refrigeration sectors.
How is the product usually packaged for transport?
The standard packaging includes durable cartons or plastic wrapping to ensure the integrity of the boards and pipes during transit.
Is the material easy to install on-site?
Yes, the product is lightweight and can be easily cut or shaped using ordinary carpentry tools, facilitating quick and precise installation.
