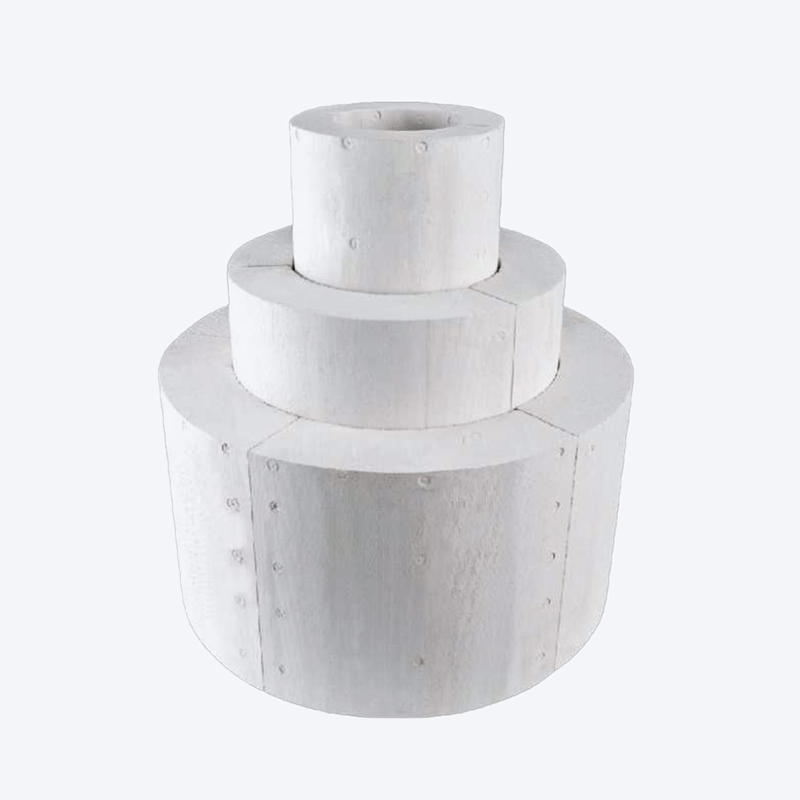

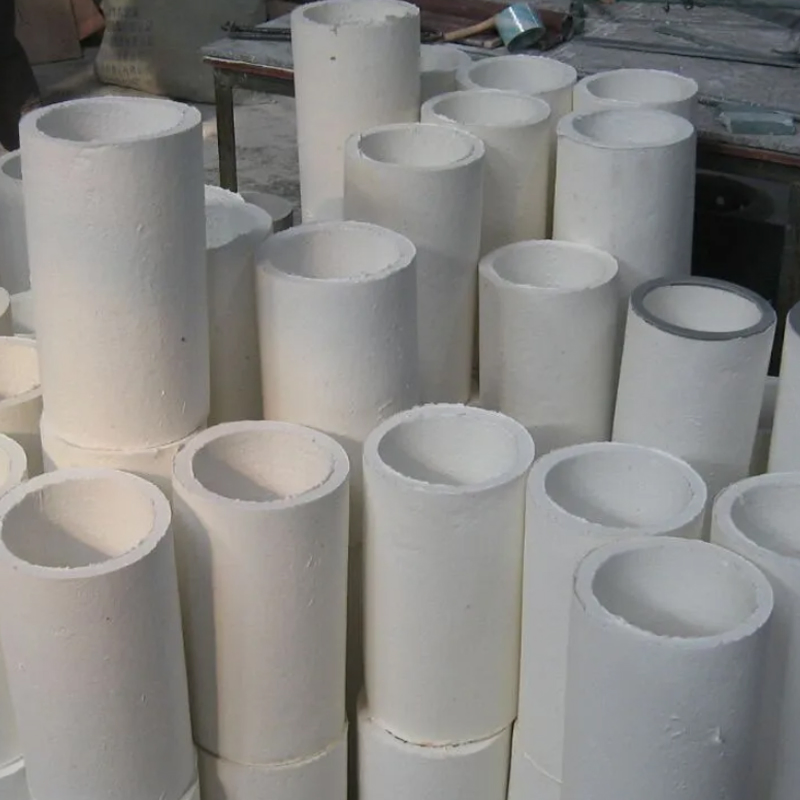

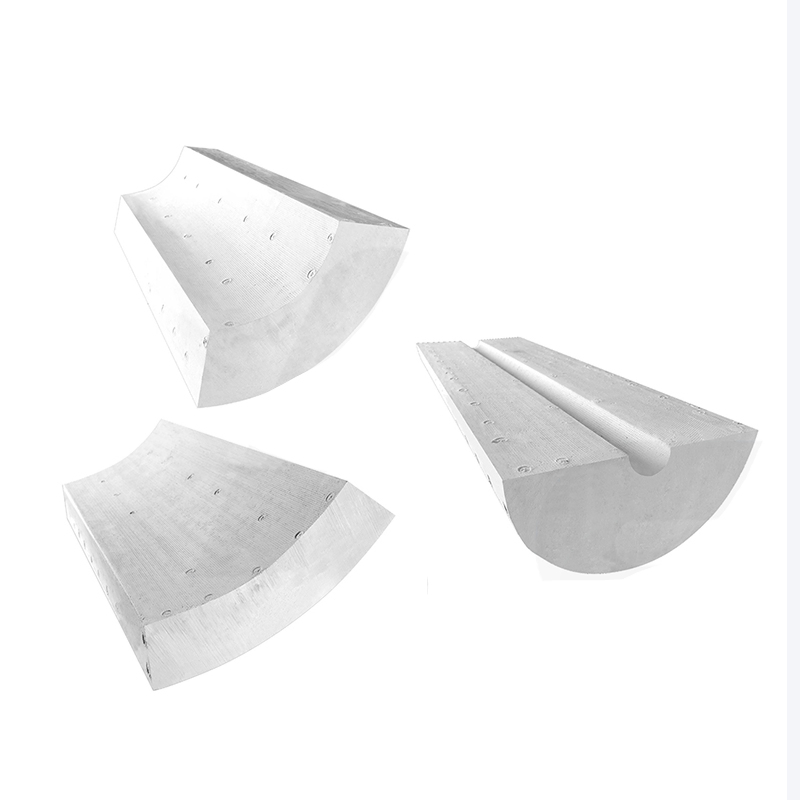

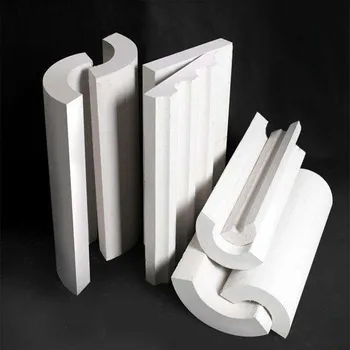

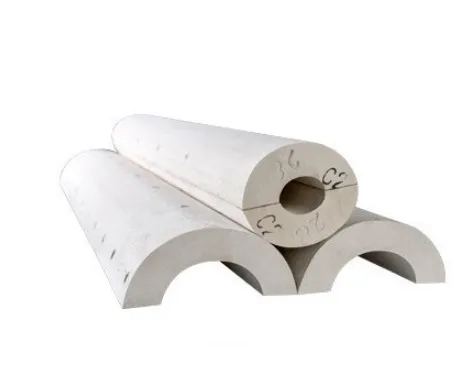

High-Performance Calcium Silicate 220 is manufactured using inorganic siliceous and calcareous materials, treated through specialized high-temperature and high-pressure hydrothermal reactions. This ISO9001 certified product offers exceptional performance up to 650ºC.
The core advantage is its superior pipeline protection due to ultra-low chloride ion content. Advanced production technology has optimized thermal conductivity from 0.065 to 0.049 W/m·K.

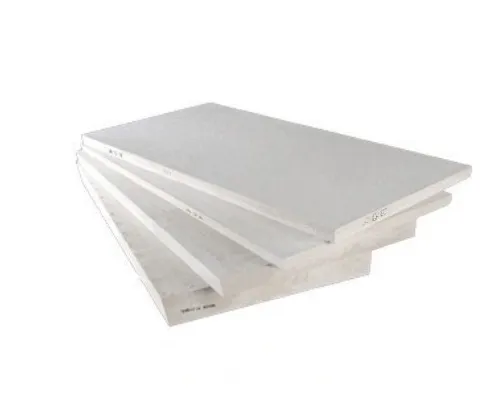

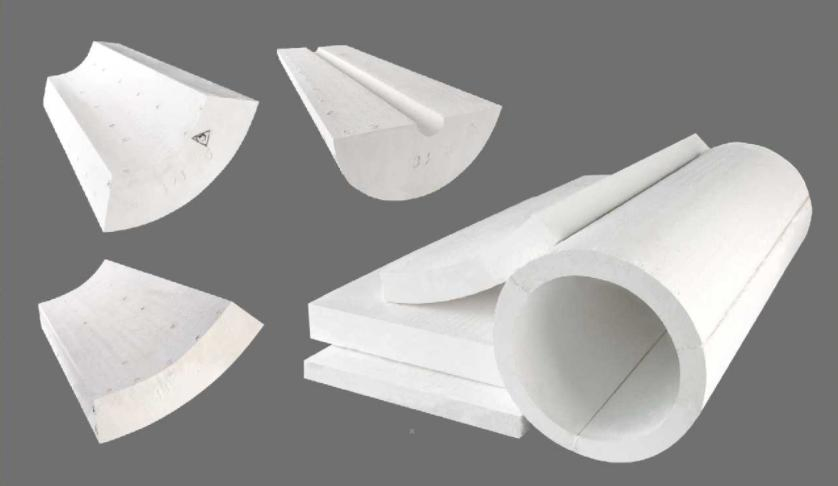

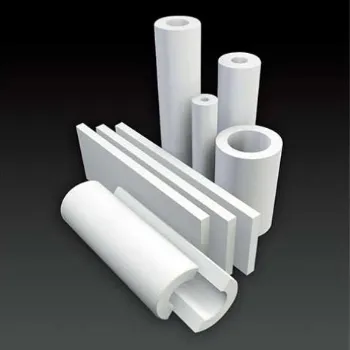

| Description | Calcium Silicate Insulation Board / Pipe | |
|---|---|---|
| Maximum Use Temperature (ºC) | 650 | |
| Density (kg/m³) | 230±10% | 250±10% |
| Modules of Rupture (MPa) | ≥0.30 | ≥0.45 |
| Compressive Strength (MPa) | ≥0.50 | ≥0.60 |
| Thermal Conductivity 100ºC (W/m·K) | ≤0.057 | ≤0.062 |
| Thermal Conductivity 400ºC (W/m·K) | ≤0.098 | ≤0.109 |
| High Temp Description | High-Temperature Insulation Board | ||
|---|---|---|---|
| Maximum Use Temperature (ºC) | 1000 | ||
| Density (kg/m³) | 230±10% | 250±10% | 270±10% |
| Compressive Strength (MPa) | ≥0.75 | ≥0.85 | ≥0.95 |
| Thermal Conductivity 600ºC (W/m·K) | ≤0.132 | ≤0.136 | ≤0.138 |

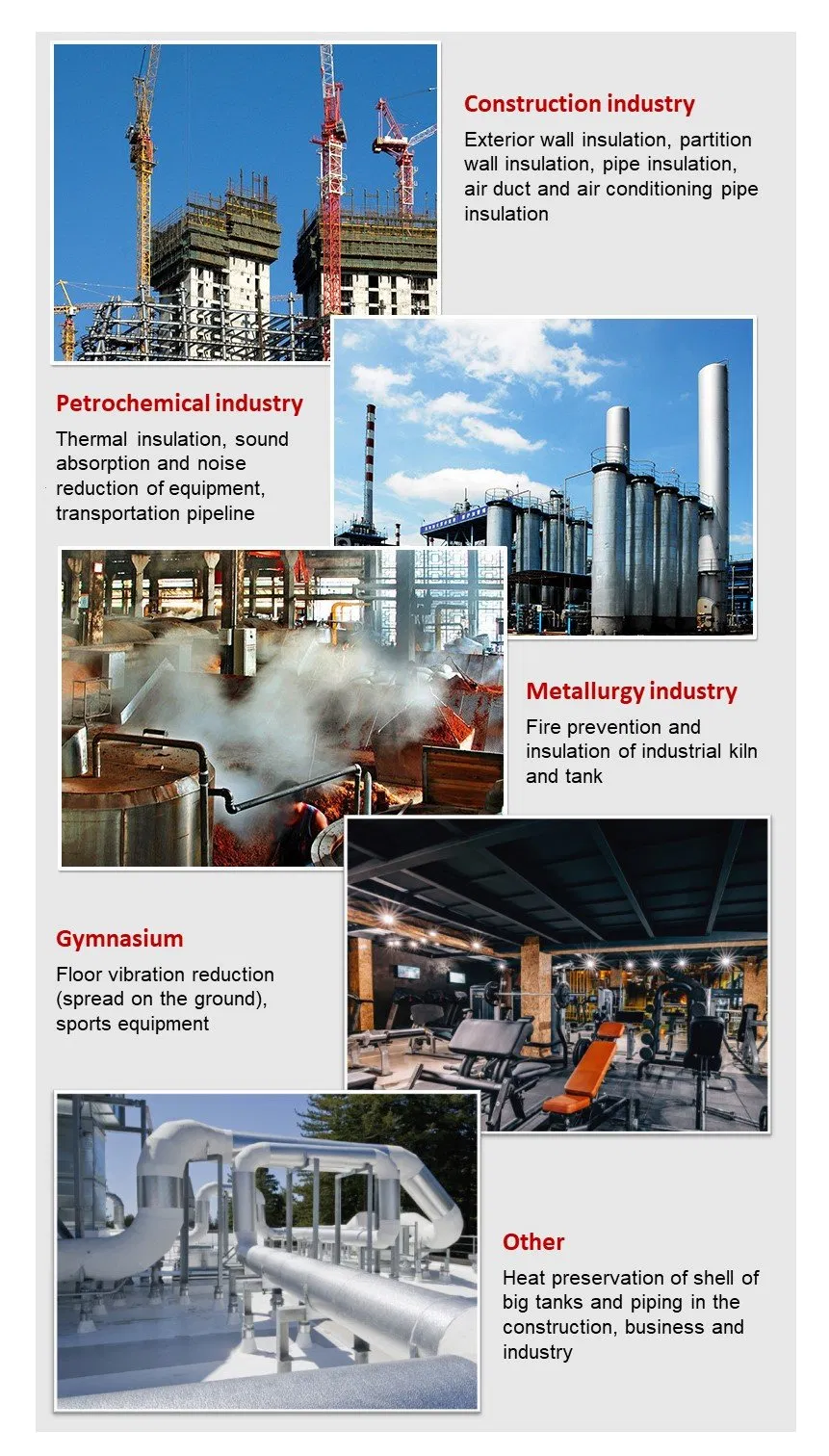

Ideal for insulation projects including: tank bases, pipelines, vessels, cryogenic ships, and equipment in petroleum, chemical, refrigeration, and shipbuilding industries. Suitable for severe environments: hot/cold temperatures, underground, outdoors, and chemical exposure.
