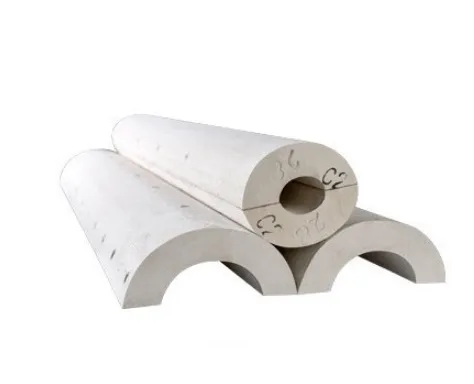

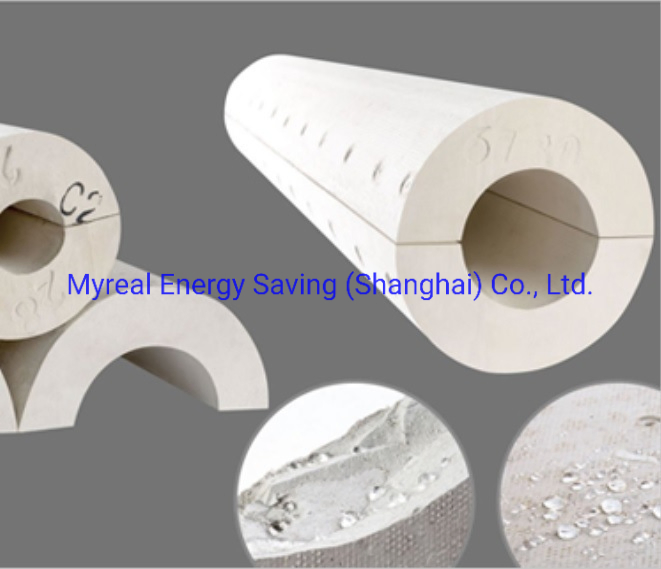

This calcium silicate 220 insulation is composed of inorganic siliceous and calcareous materials, treated through specialized high-temperature and high-pressure hydrothermal reactions. The product holds ISO9001 certification and demonstrates exceptional performance at temperatures up to 650ºC. A key advantage is its superior protection for pipelines, facilitated by ultra-low chloride ion content. Ongoing technological refinements have successfully reduced thermal conductivity to approximately 0.049.

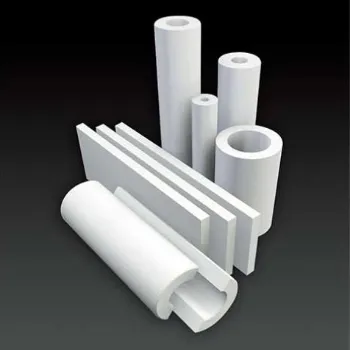

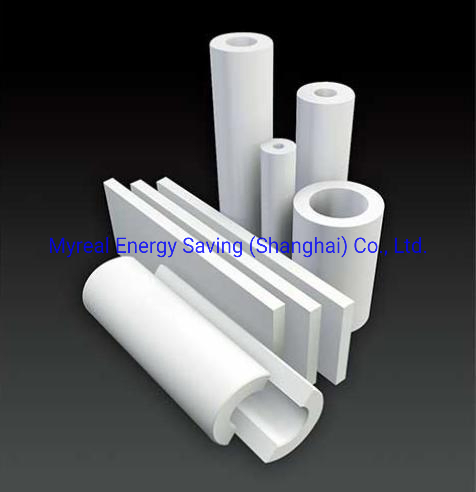

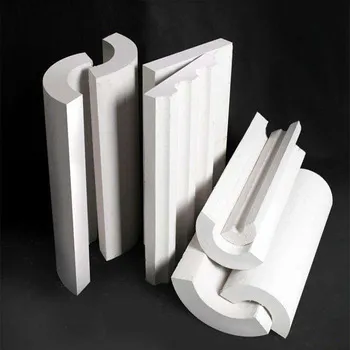

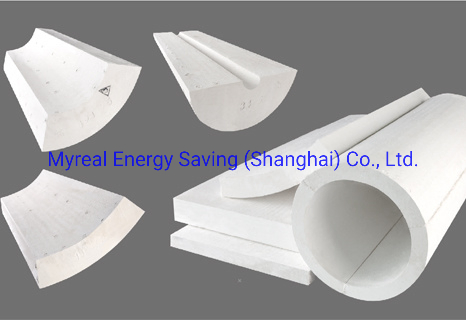

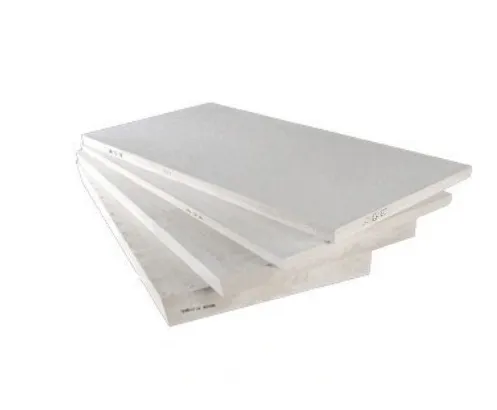

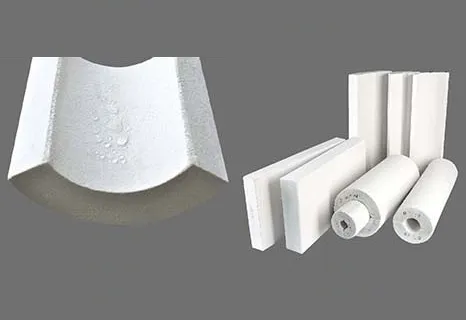

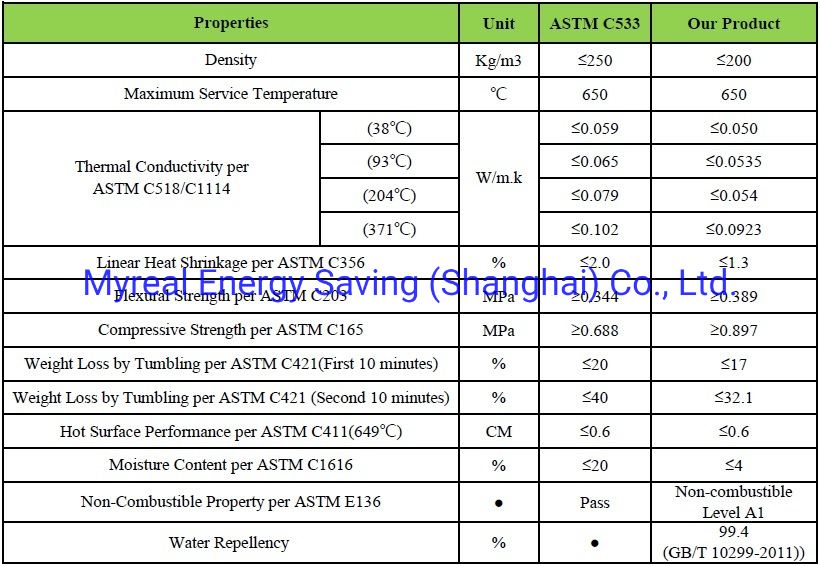

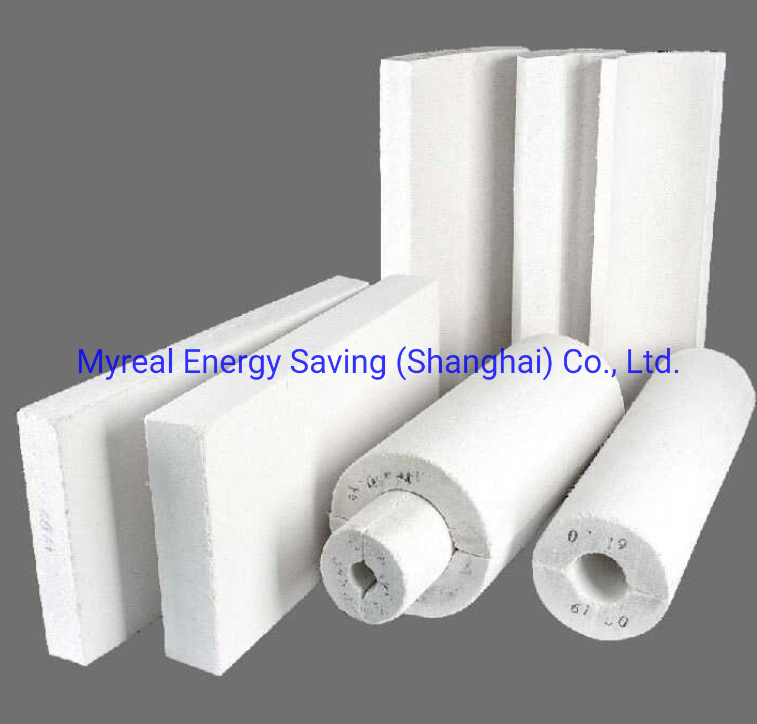

| Description | CALCIUM SILICATE INSULATION BOARD / PIPE | |
|---|---|---|
| Maximum Use Temperature (ºC) | 650 | |
| Color | White | |
| Density (kg/m³) | 230±10% | 250±10% |
| Modules of Rupture (MPa) | ≥0.30 | ≥0.45 |
| Compressive Strength (MPa) | ≥0.50 | ≥0.60 |
| Thermal Conductivity (100ºC) | ≤0.057 | ≤0.062 |
| Description | CALCIUM SILICATE INSULATION BOARD (High Temp) | ||
|---|---|---|---|
| Maximum Use Temperature (ºC) | 1000 | ||
| Density (kg/m³) | 230±10% | 250±10% | 270±10% |
| Compressive Strength (MPa) | ≥0.75 | ≥0.85 | ≥0.95 |
| Thermal Conductivity (400ºC) | ≤0.091 | ≤0.096 | ≤0.103 |

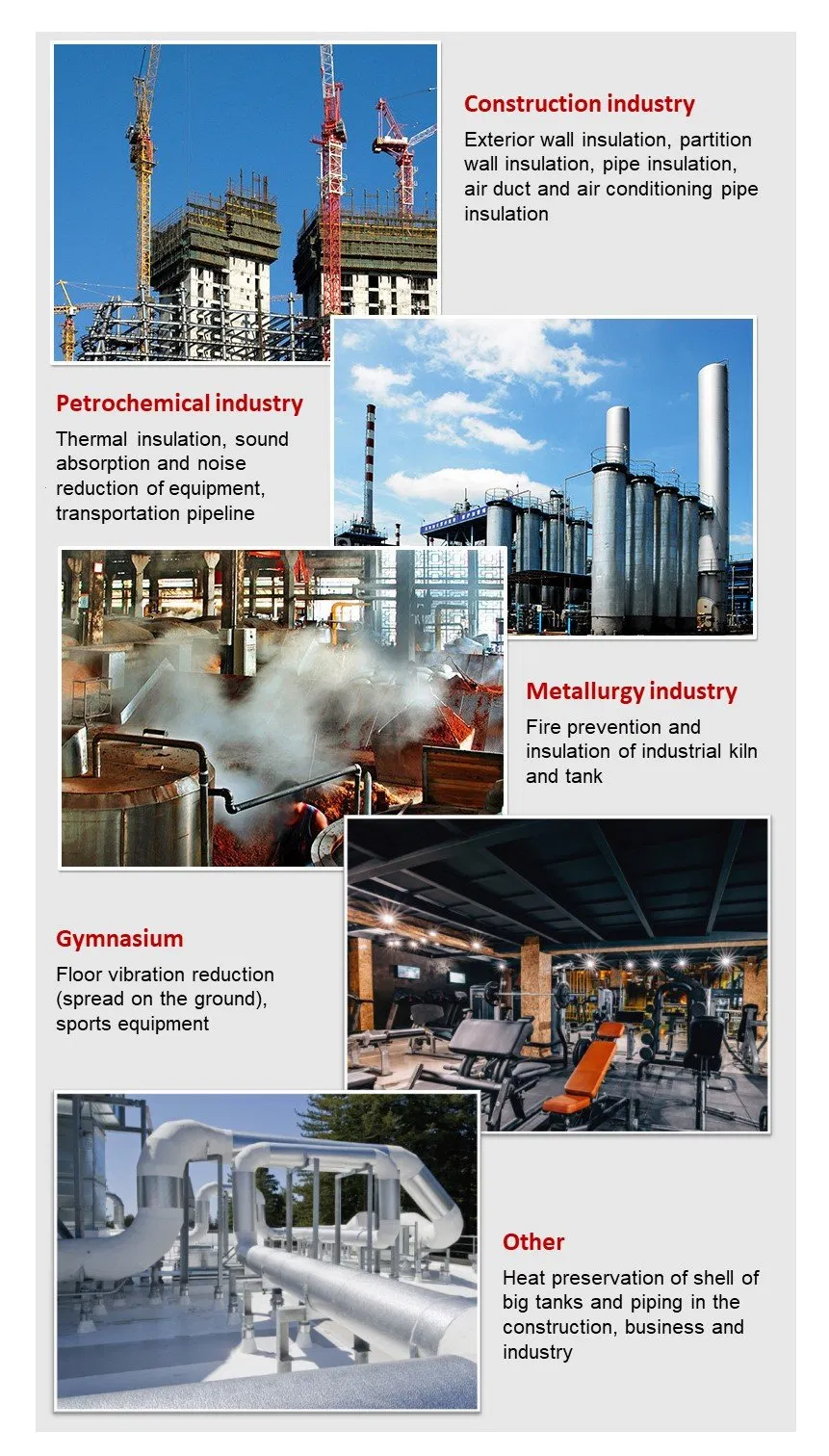

This material is extensively used in insulation projects for tanks, pipeline systems, vessels, and cryogenic equipment. It serves critical needs in the petroleum, chemical processing, refrigeration, shipbuilding, and defense industries. It is particularly effective in severe environments including sub-zero/hot temperatures, underground installations, and flammable or chemically active zones.
