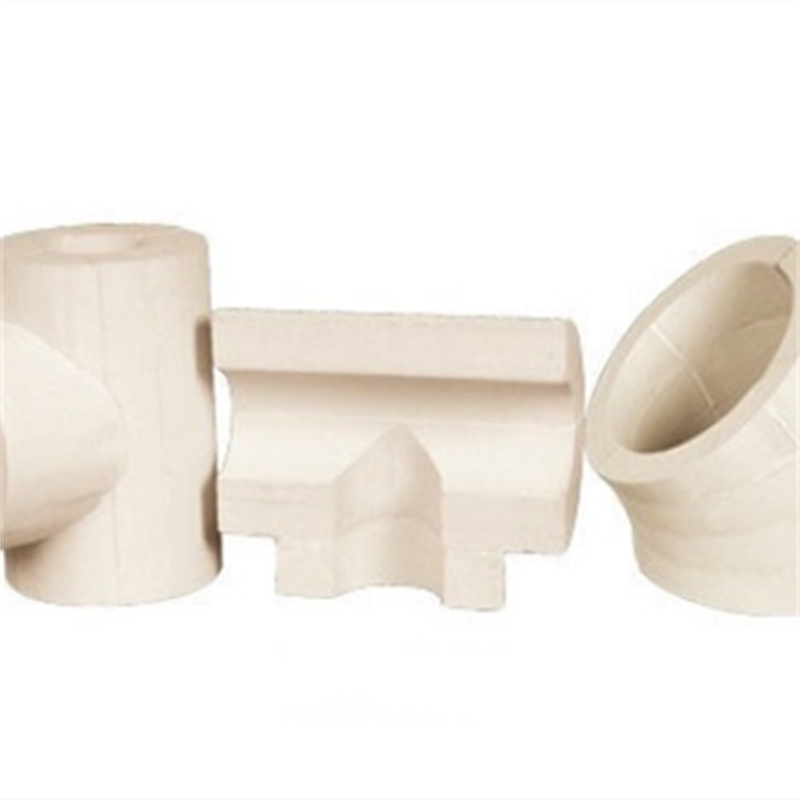

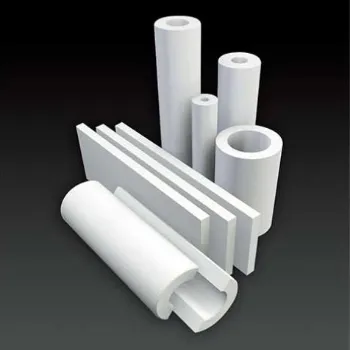

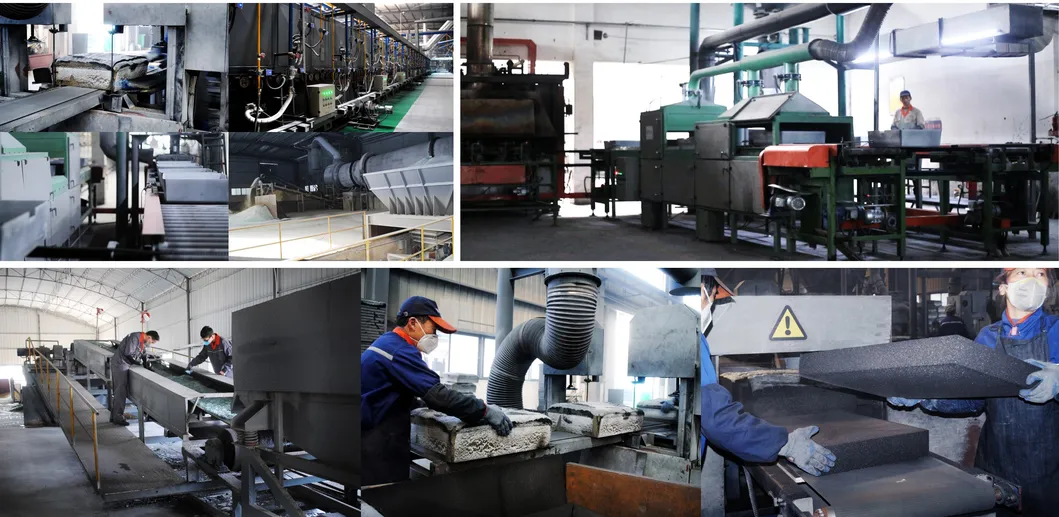

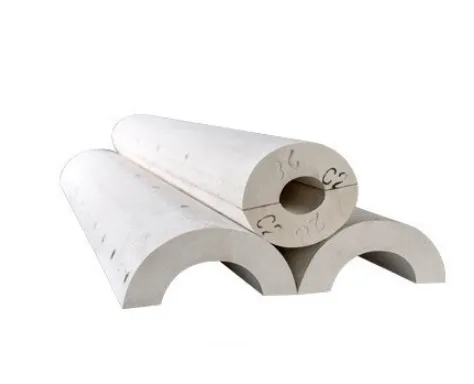

This calcium silicate 220 insulation is manufactured using inorganic siliceous and calcareous materials, treated through advanced high-temperature and high-pressure hydrothermal reactions. The product is ISO9001 certified and demonstrates exceptional performance at temperatures up to 650ºC.
One of its most significant advantages is the superior protection it offers to pipelines due to its ultra-low chloride ion content. Through continuous technological improvement, the thermal conductivity has been optimized from 0.065 to 0.049.

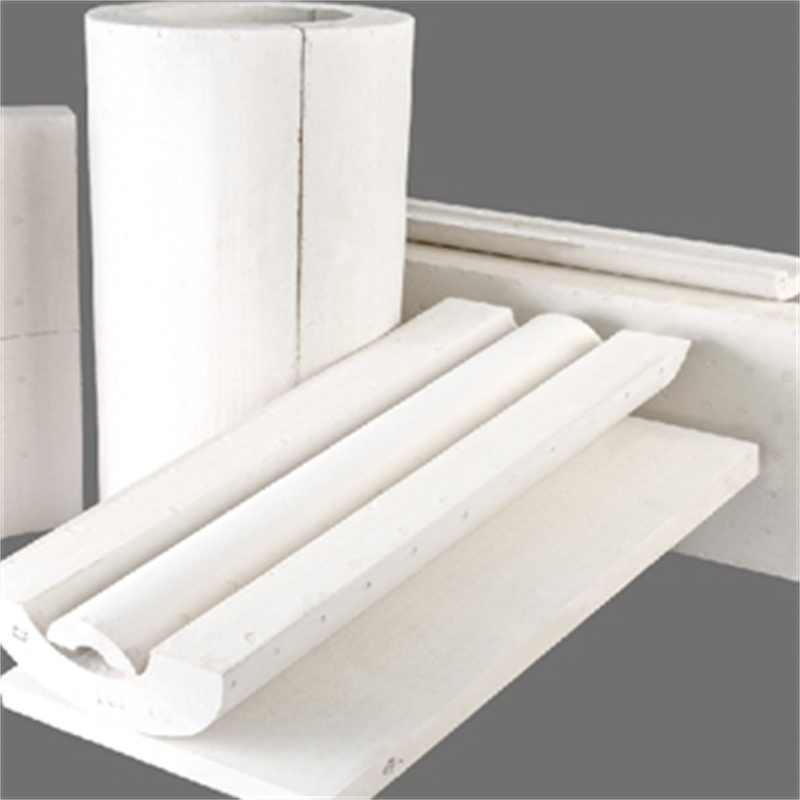

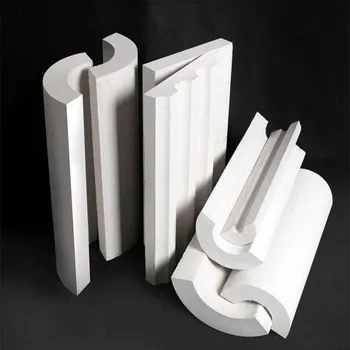

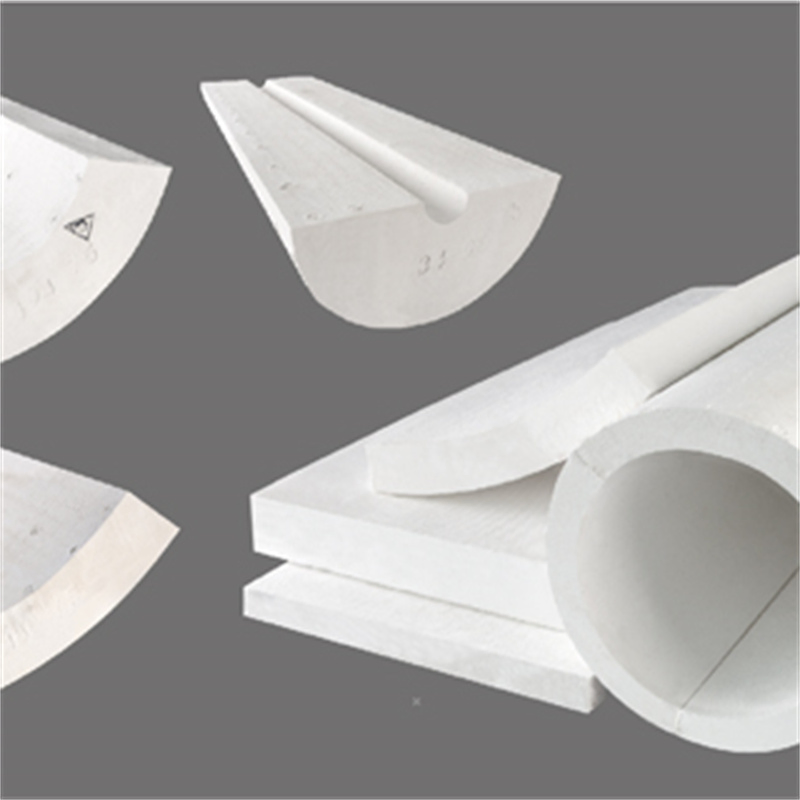

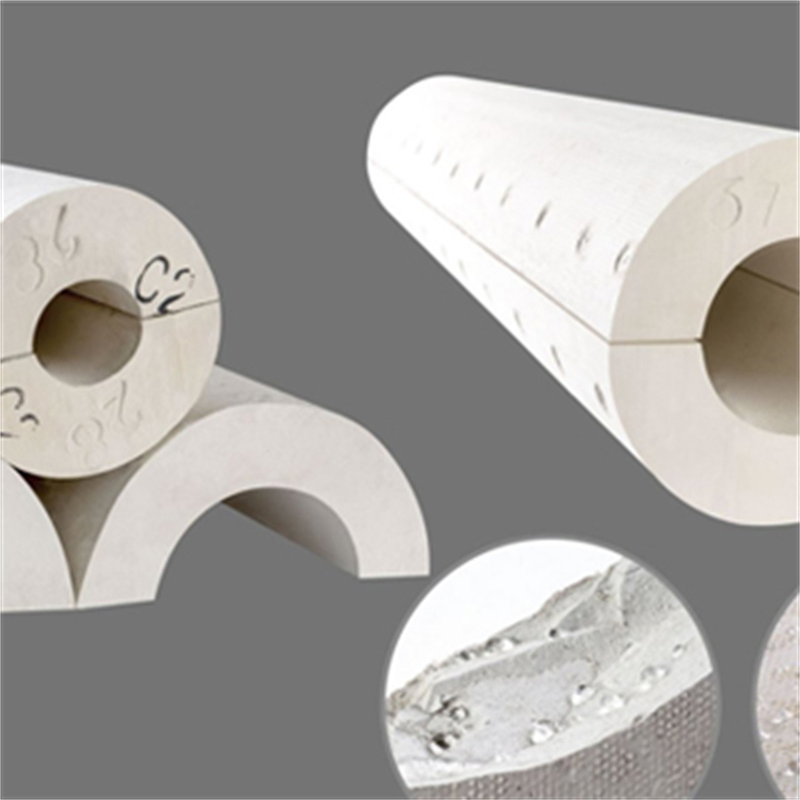

| Description | Calcium Silicate Insulation Board / Pipe (650ºC) | |
|---|---|---|
| Maximum Use Temperature | 650ºC | |
| Density (kg/m³) | 230±10% | 250±10% |
| Modules of Rupture (MPa) | ≥0.30 | ≥0.45 |
| Compressive Strength (MPa) | ≥0.50 | ≥0.60 |
| Thermal Conductivity (100ºC) | ≤0.057 | ≤0.062 |
| Thermal Conductivity (400ºC) | ≤0.098 | ≤0.109 |

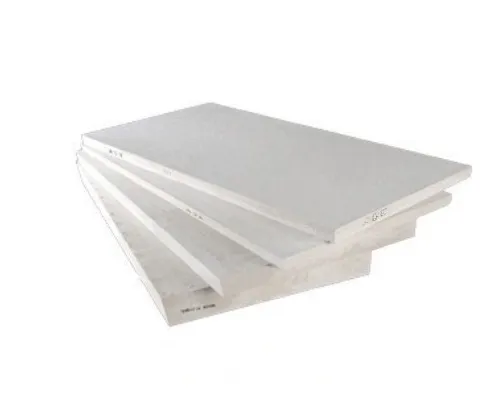

| Description | Calcium Silicate Insulation Board (1000ºC) | ||
|---|---|---|---|
| Maximum Use Temperature | 1000ºC | ||
| Chemical Composition (SiO2) | 46-48% | ||
| Density (kg/m³) | 230±10% | 250±10% | 270±10% |
| Compressive Strength (MPa) | ≥0.75 | ≥0.85 | ≥0.95 |
| Thermal Conductivity (600ºC) | ≤0.132 | ≤0.136 | ≤0.138 |

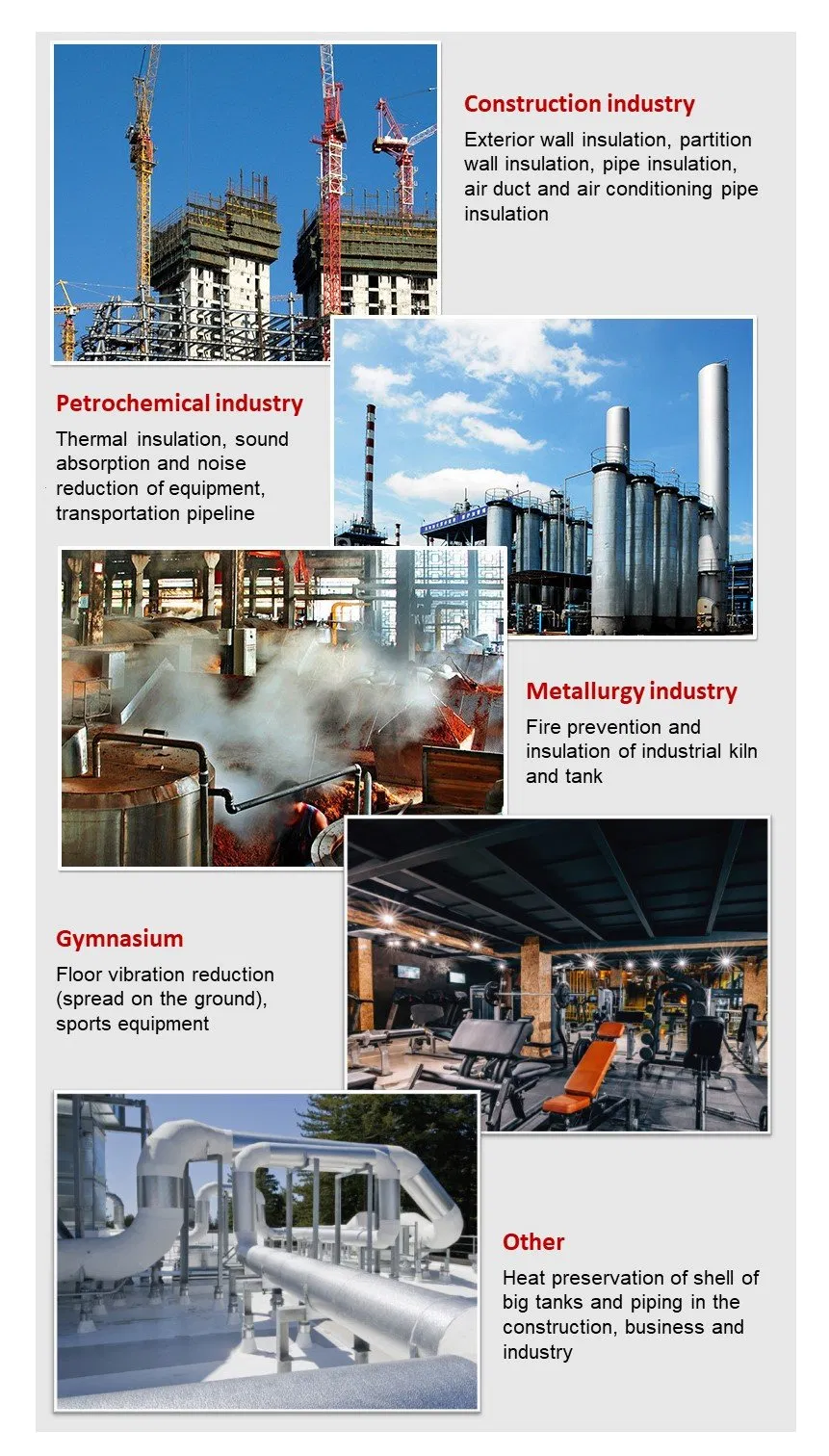

Commonly applied in insulation projects for tanks, pipeline systems, vessels, cryogenic ships, and industrial equipment. It serves sectors including petroleum, chemical processing, refrigeration, shipbuilding, and residential construction. Suitable for extreme conditions: cryogenics, high heat, underground, outdoor, and chemically active environments.
A: We offer different grades of calcium silicate insulation, with maximum use temperatures ranging from 650°C to 1000°C.
A: Yes, it is non-toxic and strictly excludes harmful substances such as asbestos, sulfur, and chlorine, ensuring safety and hygiene.
A: It features an extremely low chloride ion content, which provides excellent protection against corrosion for the pipelines it insulates.

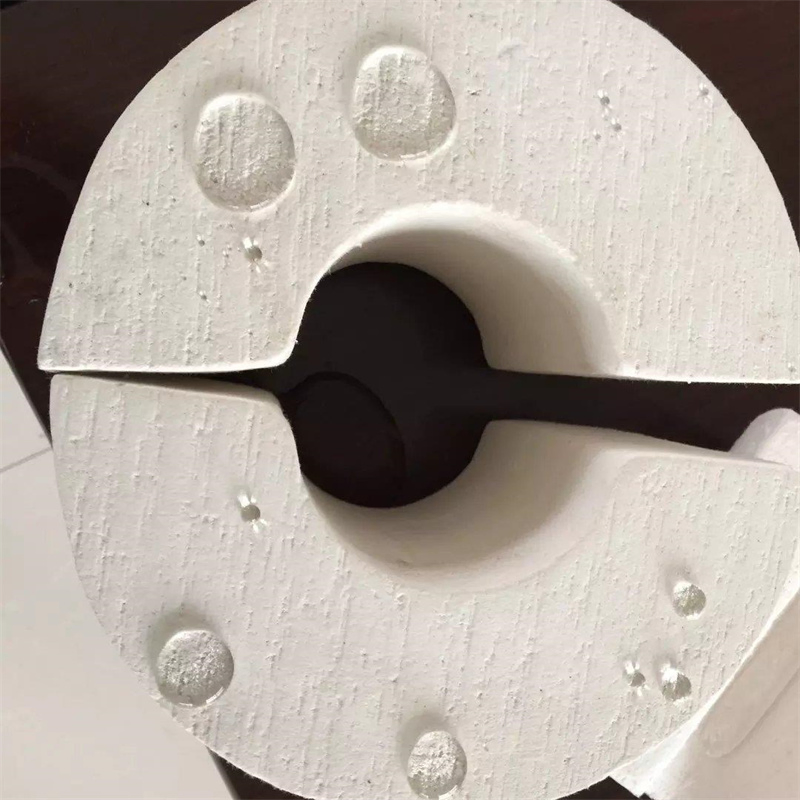

A: Yes, it is suitable for outdoor and wet conditions. While it should be protected from standing water, it retains its functional properties after drying.
A: Absolutely. It is lightweight and can be easily cut or shaped using ordinary carpenter's tools, making the installation process efficient.
A: It is widely used in petroleum, chemical processing, refrigeration, shipbuilding, and industrial power generation projects.
