Ampy Pipe
1 / 5

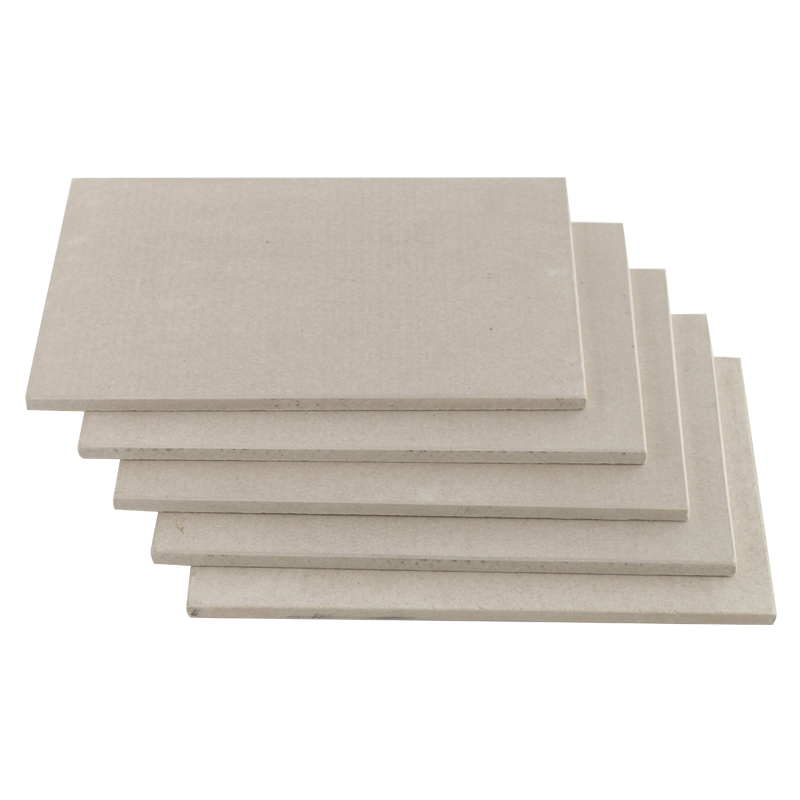

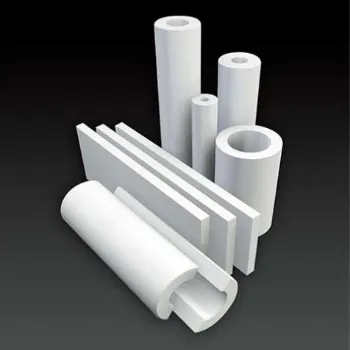

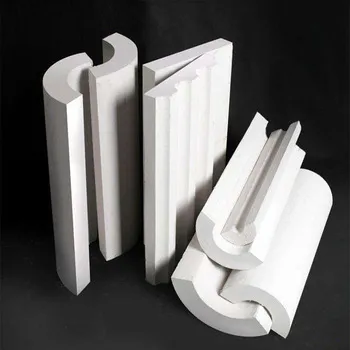

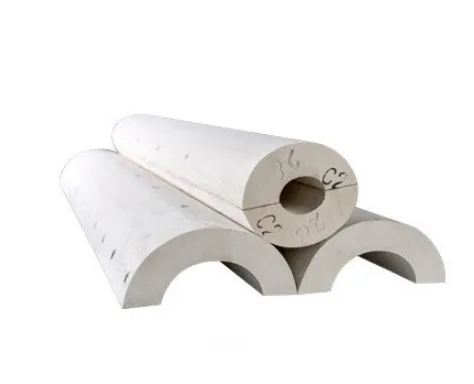

Calcium silicate 220 is composed of inorganic siliceous and calcareous materials, treated through advanced high-temperature and high-pressure hydrothermal reactions. It offers exceptional performance at temperatures up to 650ºC and carries ISO9001 certification. A significant advantage is its superior protection for pipelines due to its extremely low chloride ion content. Continuous technical improvements have reduced thermal conductivity from 0.065 to 0.049.
| Description | Calcium Silicate Insulation (650ºC Grade) | |
|---|---|---|
| Maximum Use Temperature (ºC) | 650 | |
| Density (kg/m³) | 230±10% | 250±10% |
| Modules of Rupture (MPa) | ≥0.30 | ≥0.45 |
| Compressive Strength (MPa) | ≥0.50 | ≥0.60 |
| Linear Shrinkage (650ºC x 16h) | ≤2.0% | |
| Thermal Conductivity (100ºC) | ≤0.057 | ≤0.062 |

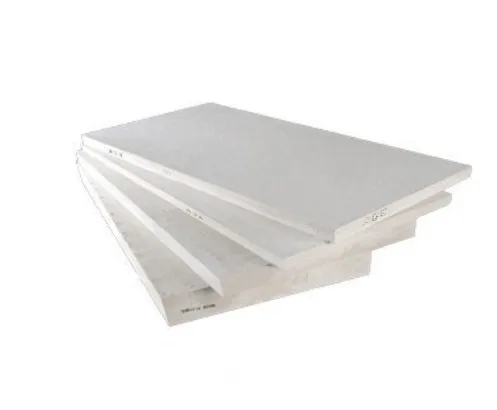

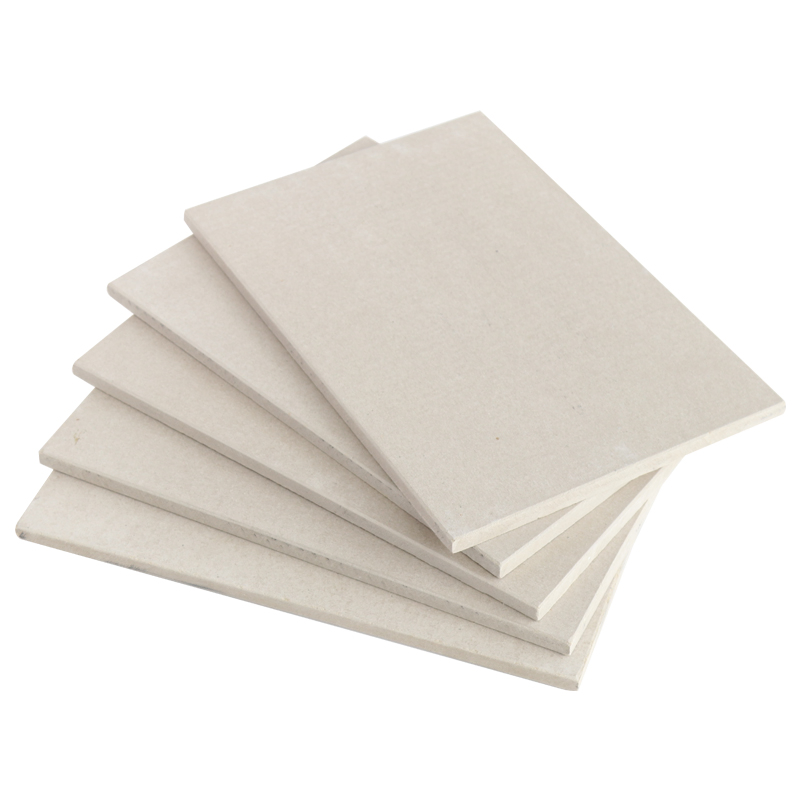

| Description | Calcium Silicate Board (1000ºC Grade) | ||
|---|---|---|---|
| Maximum Use Temperature (ºC) | 1000 | ||
| Chemical Composition (SiO2/CaO) | 46-48% / 39-41% | ||
| Density (kg/m³) | 230±10% | 250±10% | 270±10% |
| Thermal Conductivity (400ºC) | ≤0.091 | ≤0.096 | ≤0.103 |

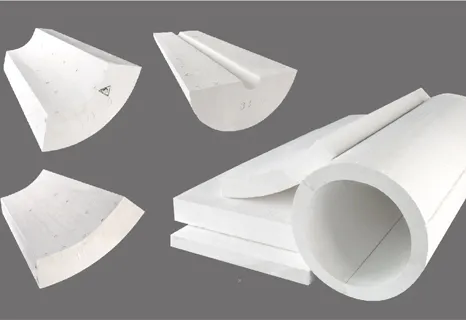

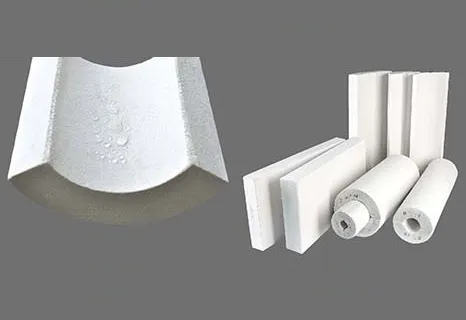

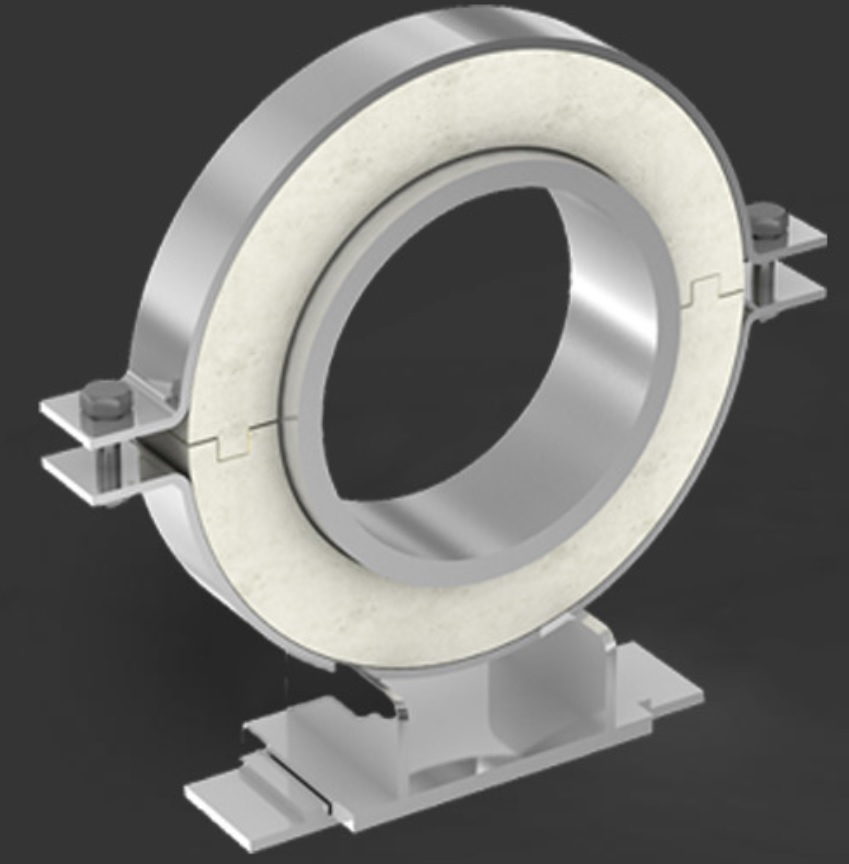

This material is widely utilized in insulation projects involving tanks, pipeline systems, vessels, and cryogenic equipment. It serves critical industries such as petroleum, chemical processing, refrigeration, shipbuilding, and residential construction. Its robustness allows for use in severe environments, including underground, outdoor, flammable, and chemically active sites.
A: Depending on the specific grade, the product can withstand maximum temperatures between 650°C and 1000°C.
A: Yes, it is completely asbestos-free, sulfur-free, and chlorine-free, making it safe for both handling and hygiene standards.
A: Yes, it is suitable for underground and outdoor environments. Even if it gets wet, it can be used normally after drying.
A: Its super-low chloride ion content provides excellent anti-corrosive protection for metal pipelines while offering superior thermal insulation.
A: Yes, the product has excellent workability and can be easily cut or shaped using standard carpentry tools.
