Ampy Pipe
1 / 5

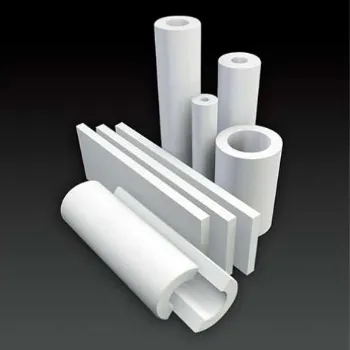

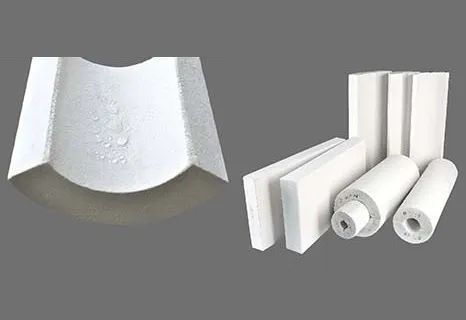

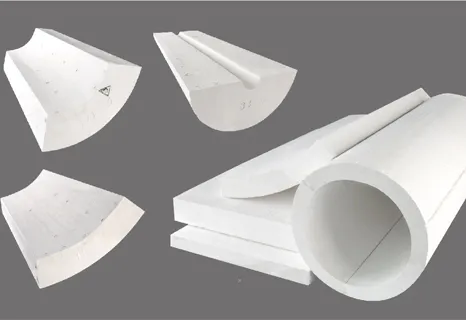

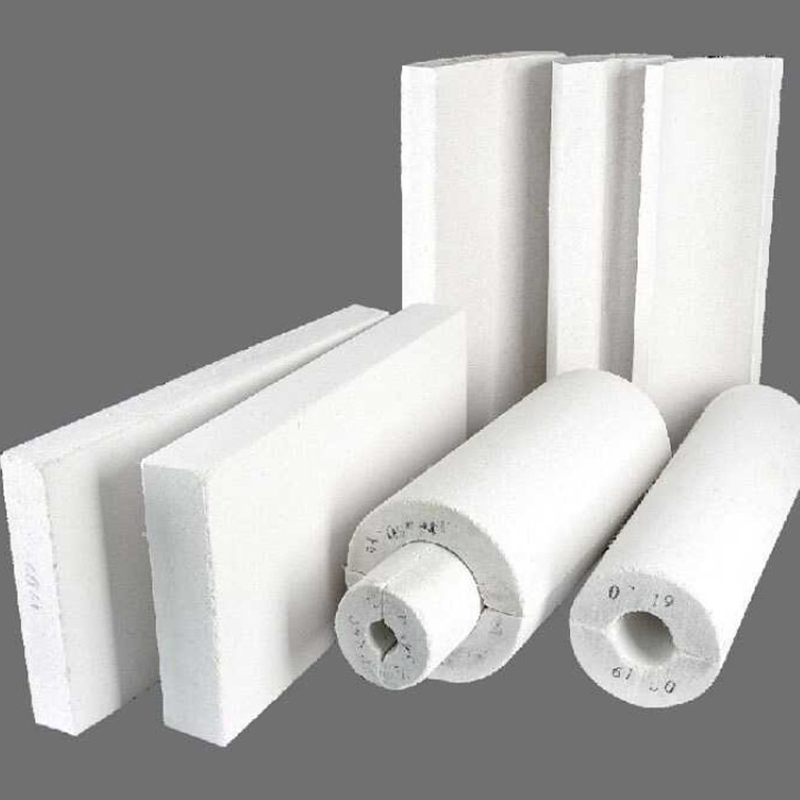

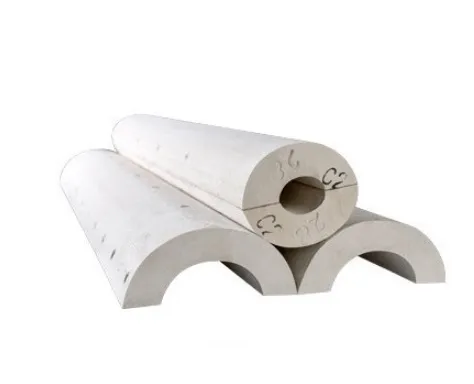

| Description | Calcium Silicate Insulation Board / Pipe | |
|---|---|---|
| Maximum Use Temperature (ºC) | 650 | |
| Chemical Composition: SiO2 / CaO | 37-42% / 29-34% | |
| Density (kg/m³) | 230±10% | 250±10% |
| Modules of Rupture (MPa) | ≥0.30 | ≥0.45 |
| Compressive Strength (MPa) | ≥0.50 | ≥0.60 |
| Thermal Conductivity 100ºC (W/m·K) | ≤0.057 | ≤0.062 |
| Thermal Conductivity 400ºC (W/m·K) | ≤0.098 | ≤0.109 |

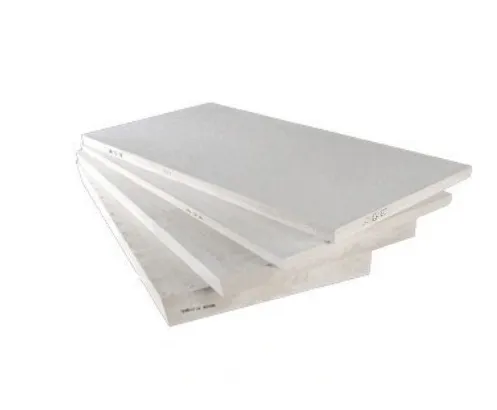

| Description | High-Temp Calcium Silicate Insulation Board | ||
|---|---|---|---|
| Maximum Use Temperature (ºC) | 1000 | ||
| Chemical Composition: SiO2 / CaO | 46-48% / 39-41% | ||
| Density (kg/m³) | 230±10% | 250±10% | 270±10% |
| Compressive Strength (MPa) | ≥0.75 | ≥0.85 | ≥0.95 |
| Thermal Conductivity 600ºC (W/m·K) | ≤0.132 | ≤0.136 | ≤0.138 |

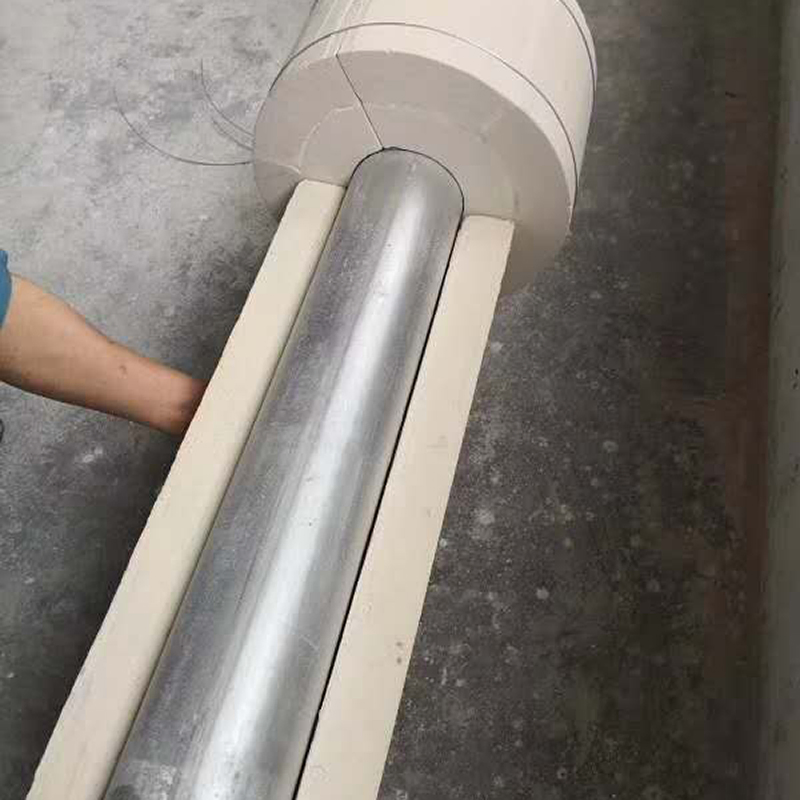

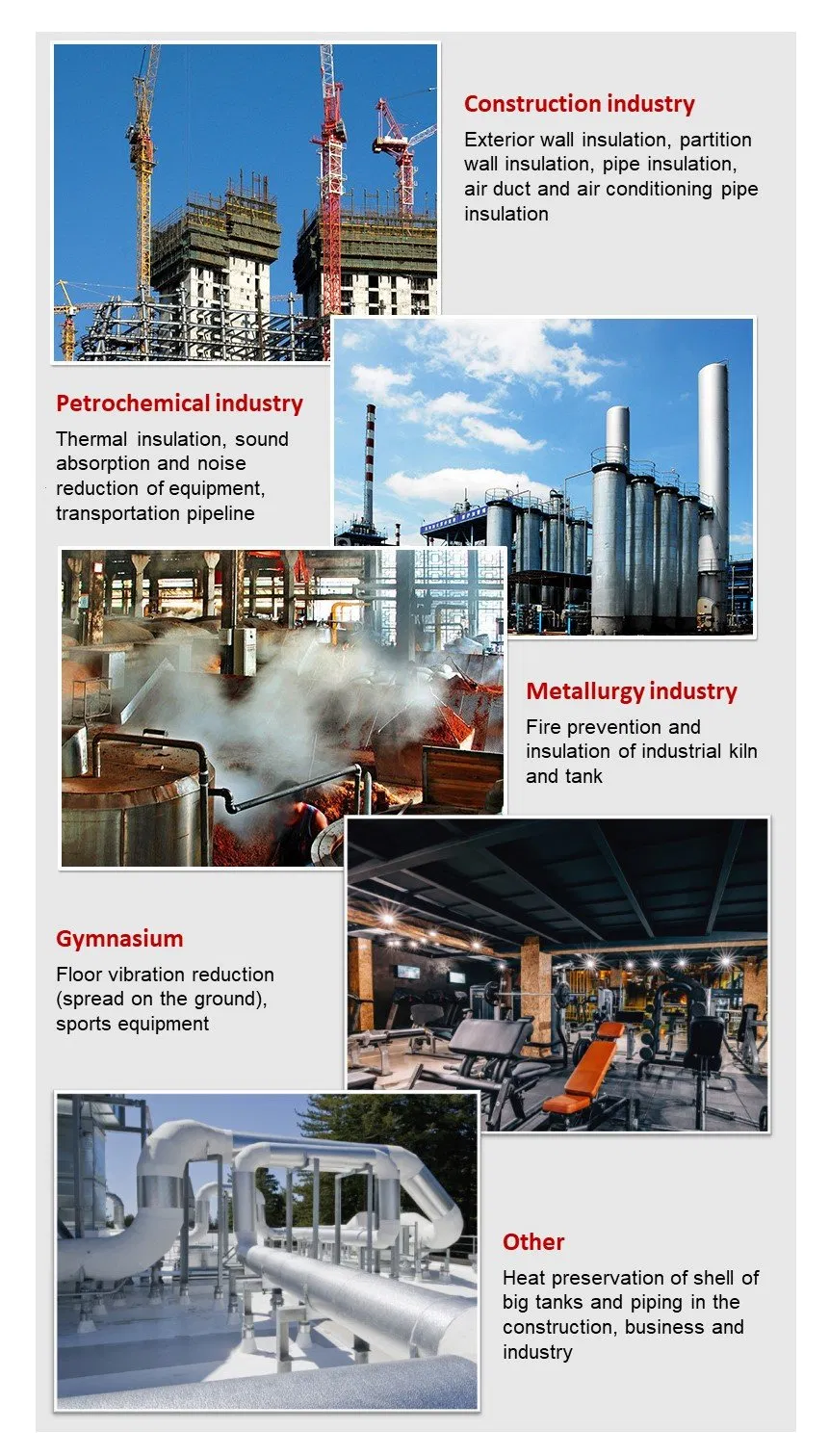

Widely utilized in insulation projects for tanks, pipeline systems, vessels, and cryogenic equipment across petroleum, chemical, refrigeration, shipbuilding, and construction industries. It performs reliably in severe environments including hot, cold, underground, and chemical exposure areas.
