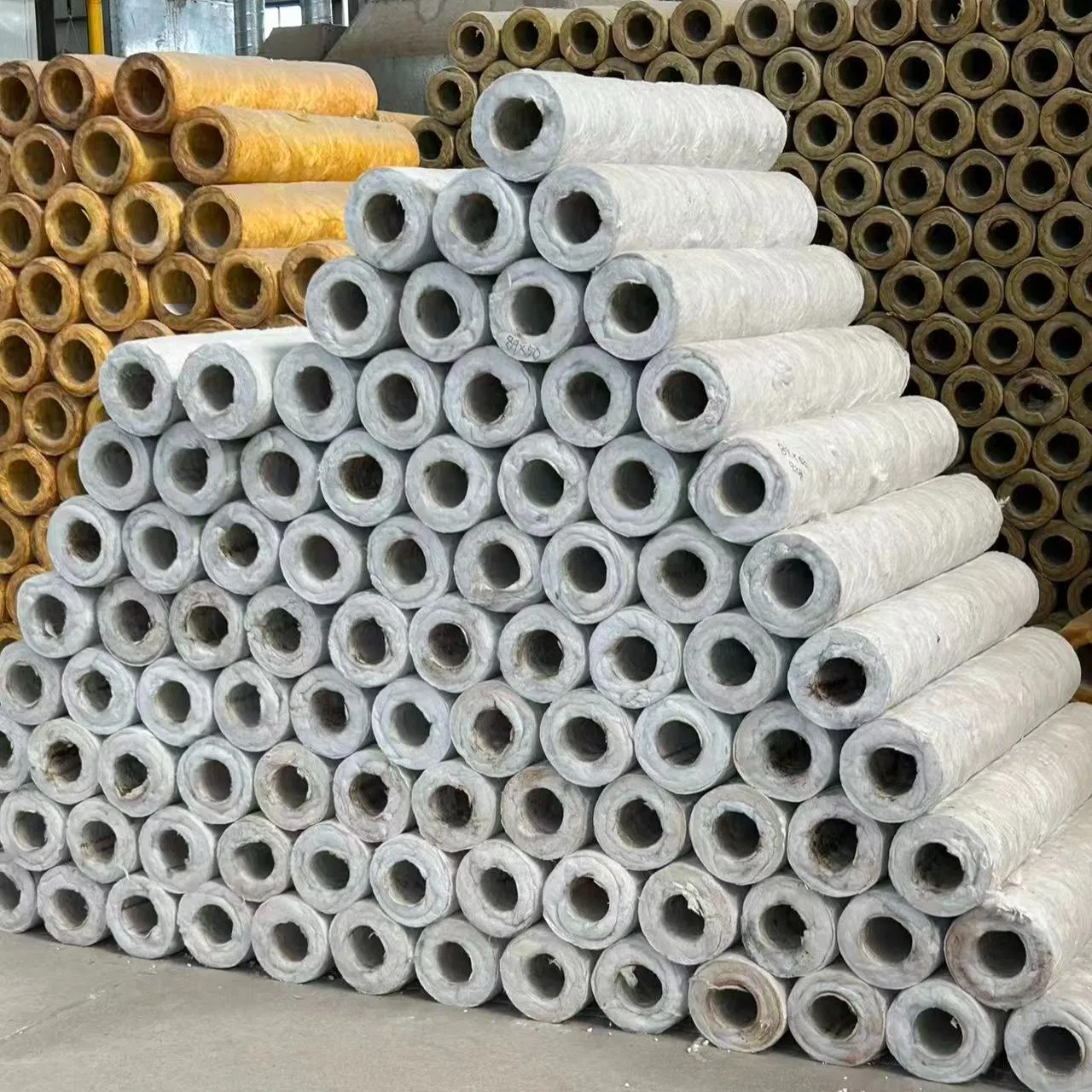

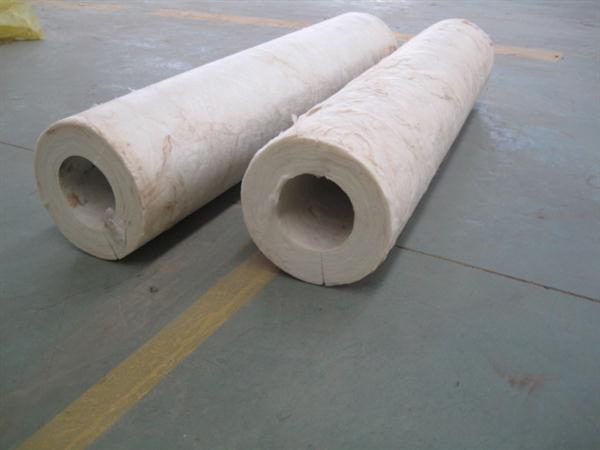

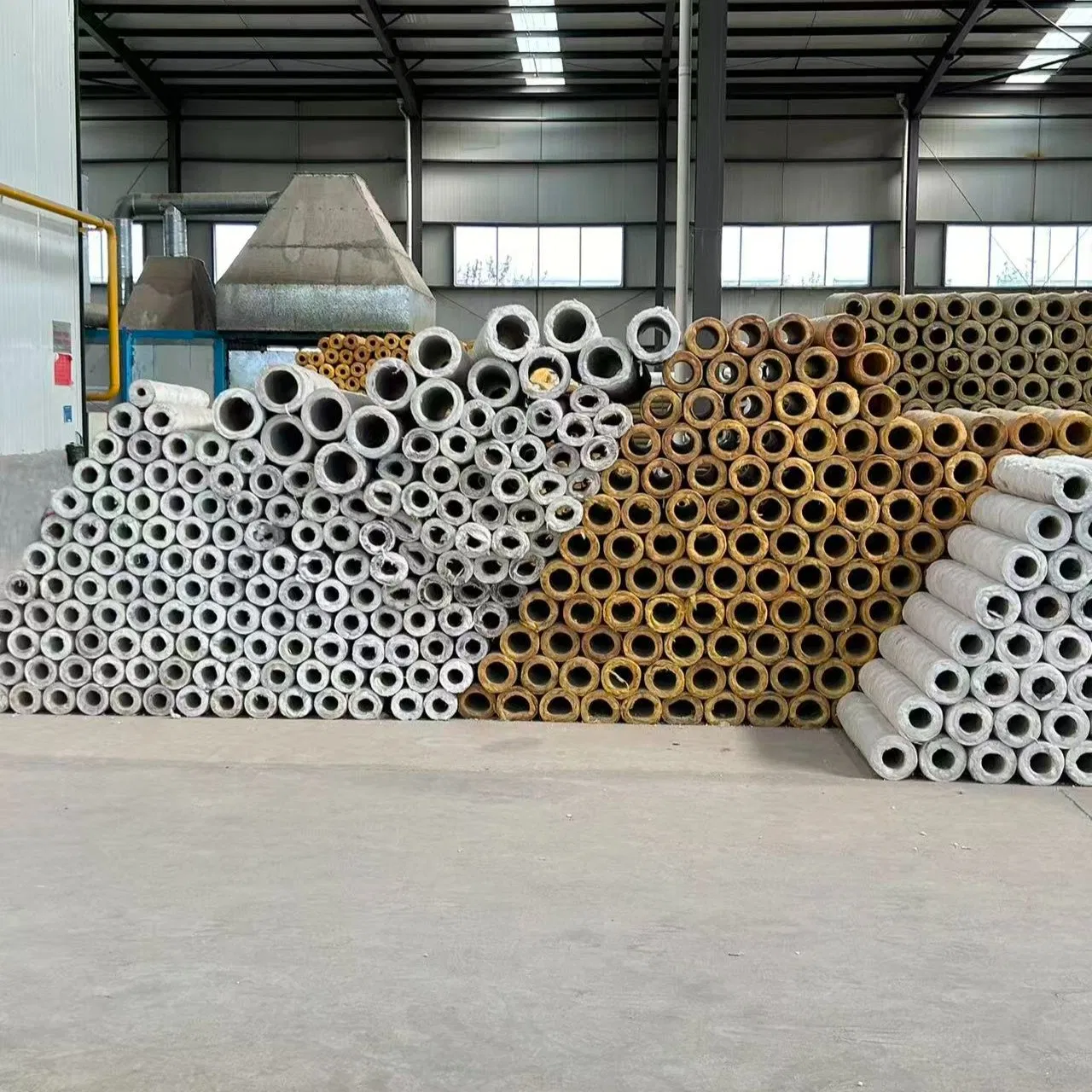

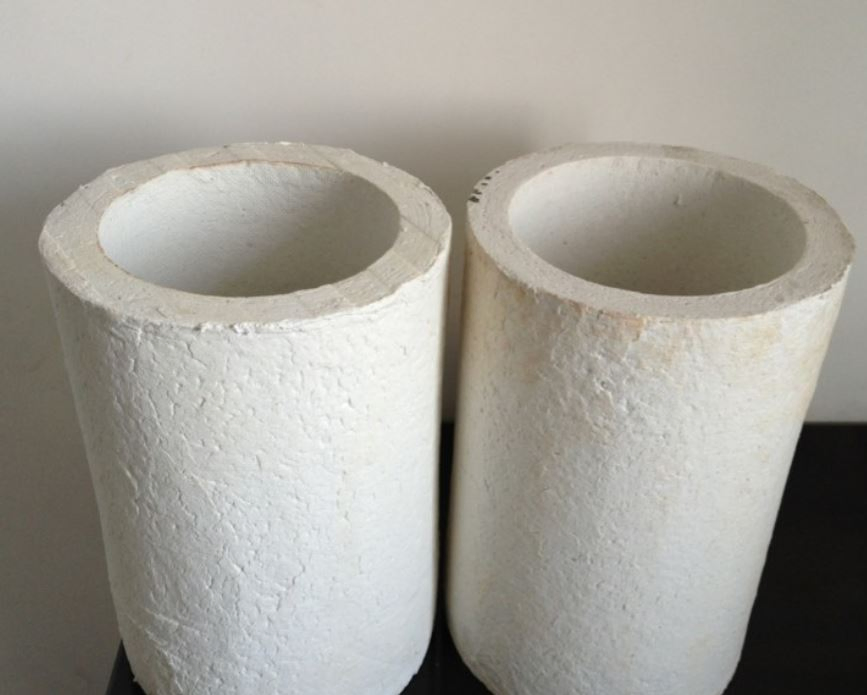

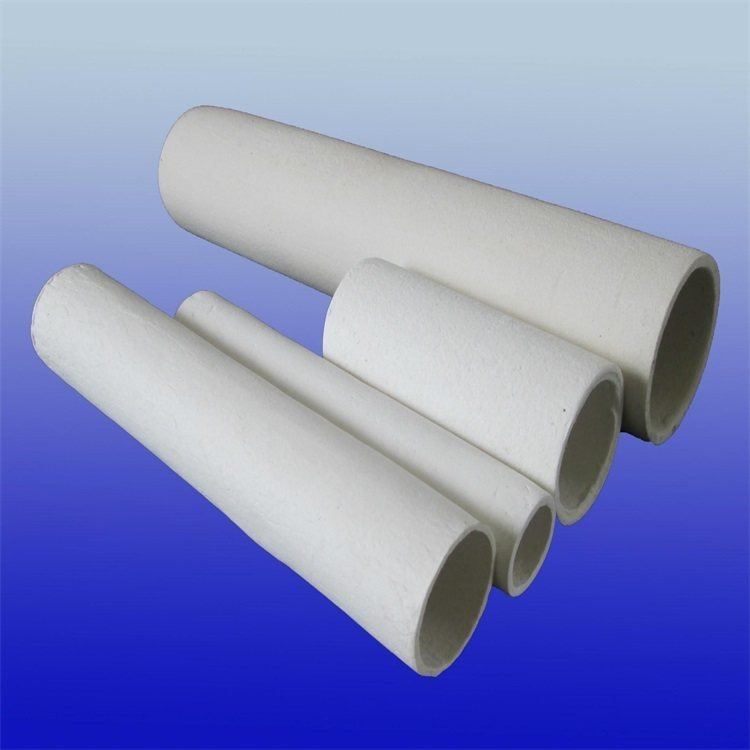

Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
1 / 5
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation
Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation

Dong Tang Calcium Aluminum Silicate High-Temperature Ceramic Fiber Pipe Insulation

Customization: Available
After-sales Service: Online Technical Support
Application Scenarios: Industry
Send Inquiry

Product Description

🛈 Basic Information
Material
Aluminum Silicate Fiber
Application
Refractory
Dimensions
COM, Std, HP, Ha
Working Temp
1000-1260 ℃
Thermal Conductivity
0.085-0.18
Color
White
Size
Customizable
Feature
High Temperature Resistance
Inner Diameter
φ18-529mm
Wall Thickness
30mm-150mm
Length
1000mm
HS Code
6806101000
📋 Product Description

Ceramic fiber pipe is designed according to user requirements, utilizing loose cotton through wet vacuum suction molding. These units are dried and can be manufactured in various specifications, models, and calcination levels to meet diverse industrial performance needs. Due to excellent production equipment and stable raw material sourcing, each product serves as both a high-performance thermal solution and a precision-crafted component.

Key Features

  • Smooth surface finish
  • Low impurity levels with consistent bulk density and thickness
  • Excellent mechanical and structural strength
  • Low thermal conductivity
  • Minimal shrinkage during use
  • Resistant to airspeed erosion

Main Applications

  • Heat insulation for electro-thermal equipment, steel, and metallurgy
  • Thermal insulation materials for modern construction
  • Back-up lining for high-temperature industrial furnaces
🖼️ Detailed Photos

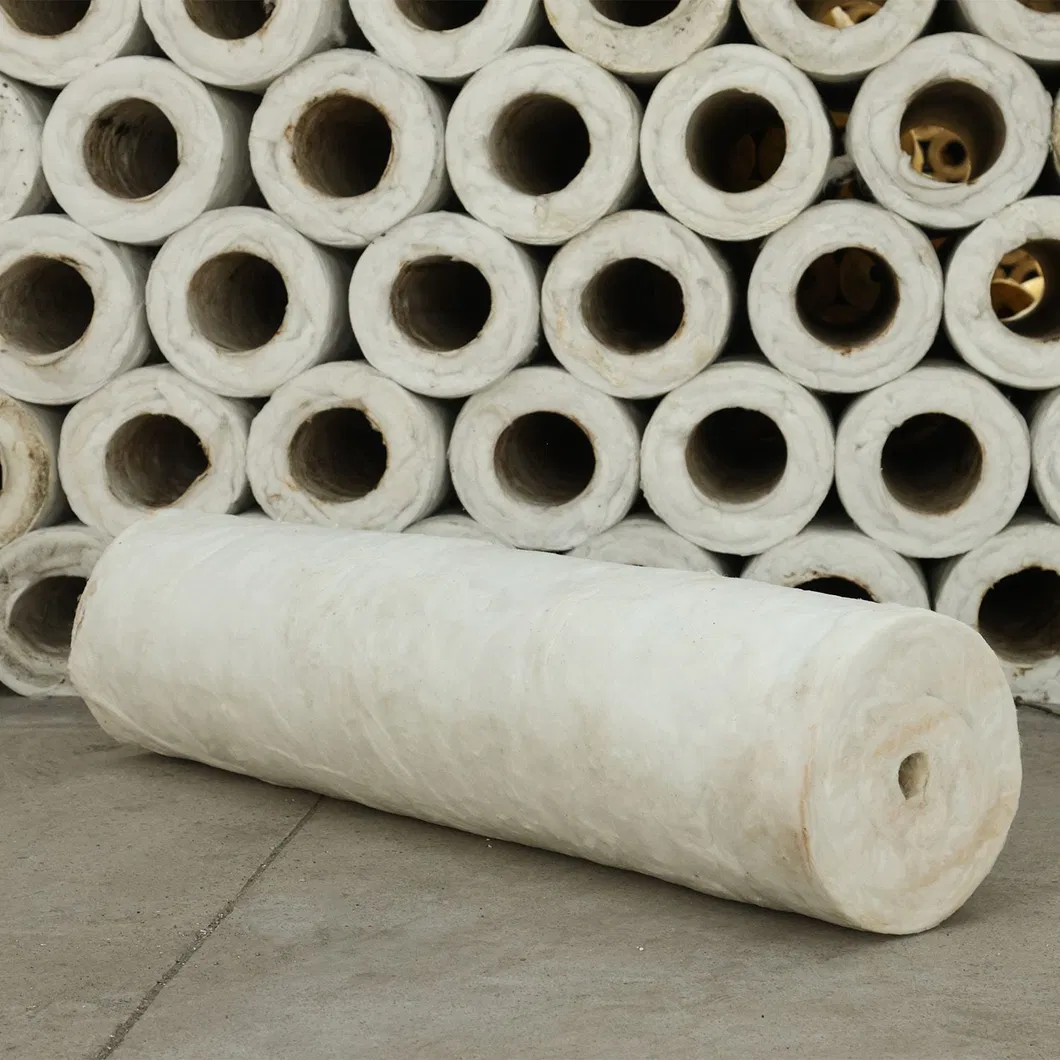

Ceramic Fiber Pipe Insulation 1

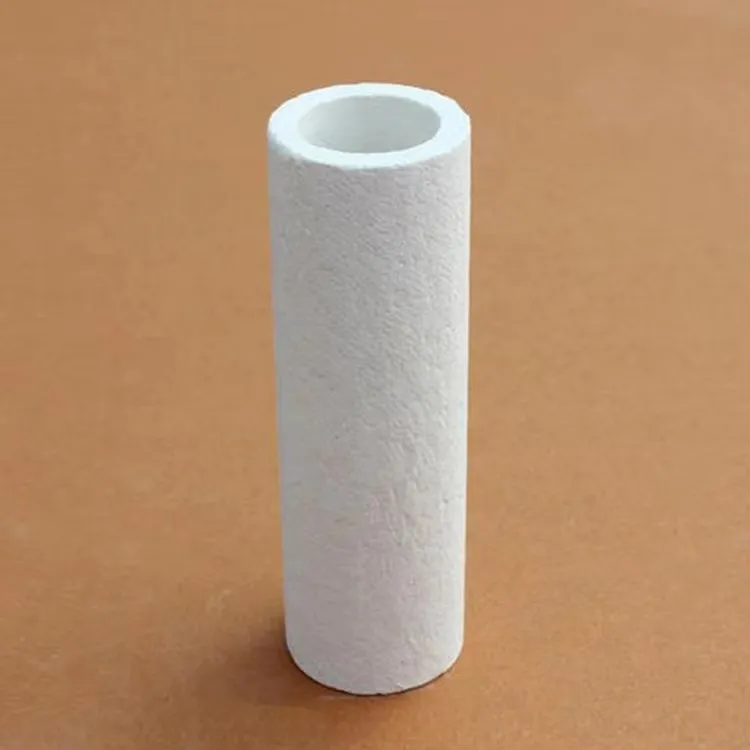

Ceramic Fiber Pipe Insulation 2

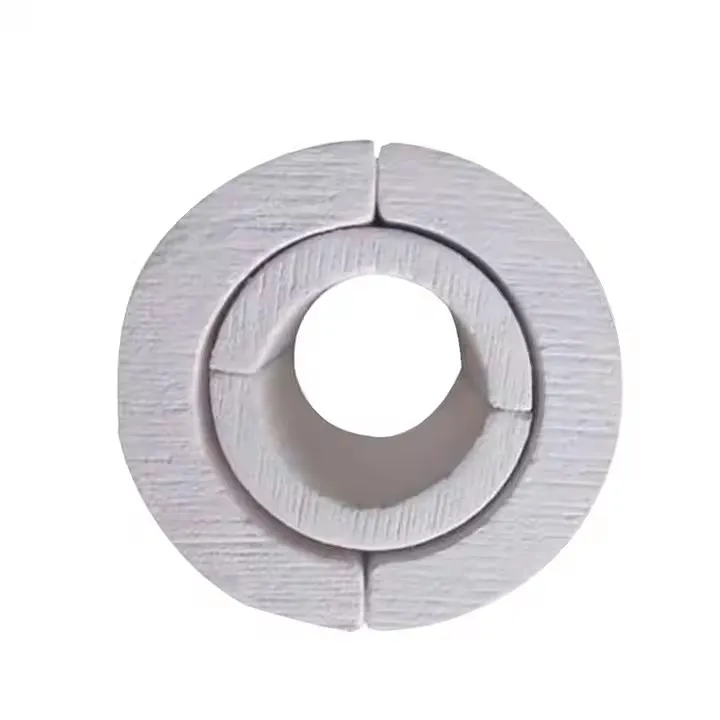

Ceramic Fiber Pipe Insulation 3
⚙️ Product Parameters
Descriptions COM STD HP HA
Classification Temp (°C) 1260 1260 1300 1400
Operating Temp (°C) 1000 1000 1150 1260
Density (kg/m³) 260-320 260-320 260-320 260-320
Thermal Conductivity (400°C) 0.085 0.085 0.085 0.085
Al2O3 (%) 44-45 45 47-49 52-55
Al2O3 + SiO2 (%) 96 97 99 99
📦 Packaging & Certifications
Packaging and Shipping
Product Certifications
❓ Frequently Asked Questions
Why should we choose your ceramic fiber products?
We offer a professional technical team with over 36 years of experience in thermal insulation. We provide high-quality products, competitive pricing, and a comprehensive after-sales service system.
Are you a manufacturer or a trading company?
We are a dedicated manufacturer. This allows us to provide high-quality refractory products at the best prices while ensuring direct technical support and service.
How do you ensure the quality of the products?
We maintain a complete QC system for every production stage, monitoring both chemical composition and physical properties. All goods are tested post-production, and quality certificates are provided.
What is the typical lead time for an order?
Lead times depend on the order volume and customization requirements. Generally, standard products are shipped within 7-15 days after payment confirmation.
Can the fiber pipes be customized to specific sizes?
Yes, we offer fully customizable dimensions, including inner diameter, wall thickness, and length, to match your specific industrial application needs.
What payment methods do you accept?
We accept various payment methods including T/T and other standard international trade terms. Proforma invoices with bank details are provided for all official orders.
