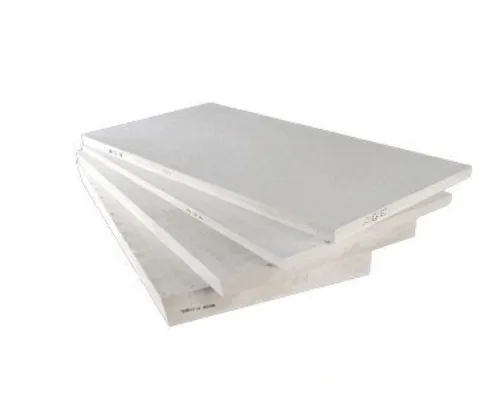

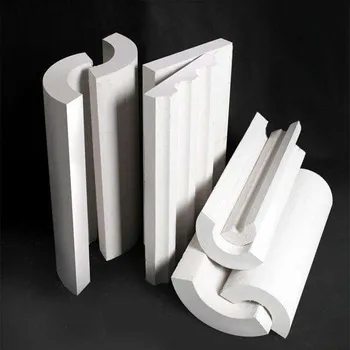

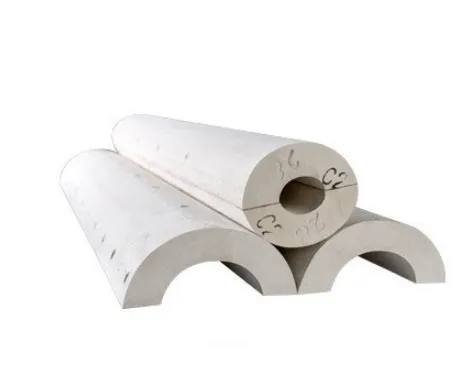

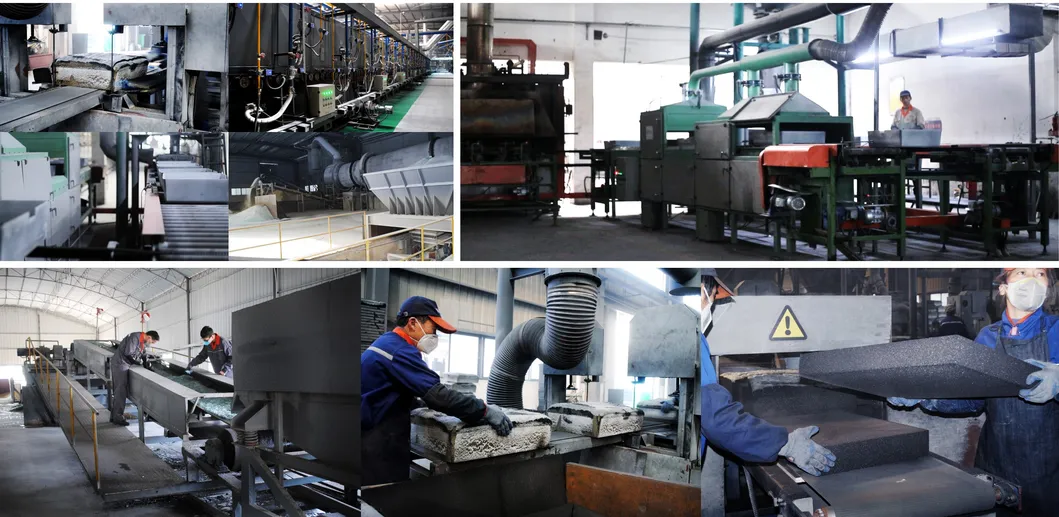

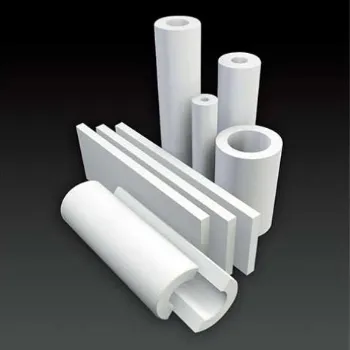

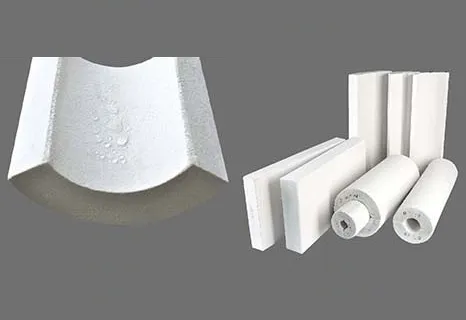

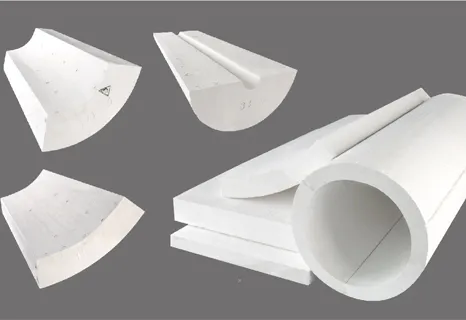

Calcium silicate 220 is produced using inorganic siliceous and calcareous materials, treated through high-temperature and high-pressure hydrothermal reactions. This product has achieved ISO9001 certification and demonstrates excellent performance at temperatures up to 650ºC.
A key advantage of this insulation is its super-low chloride ion content, providing superior protection to pipelines. Technological improvements have successfully reduced the thermal conductivity from 0.065 to 0.049.
| Description | Calcium Silicate Insulation (650ºC) | |
|---|---|---|
| Max Use Temperature | 650ºC | |
| Chemical Composition | SiO2 (37-42%), CaO (29-34%), Al2O3 (10-12%) | |
| Density (kg/m³) | 230±10% | 250±10% |
| Modulus of Rupture (MPa) | ≥0.30 | ≥0.45 |
| Compressive Strength (MPa) | ≥0.50 | ≥0.60 |
| Thermal Conductivity (100ºC) | ≤0.057 | ≤0.062 |
| Description | Calcium Silicate Insulation (1000ºC) | ||
|---|---|---|---|
| Max Use Temperature | 1000ºC | ||
| SiO2 (%) | 46-48% | ||
| Density (kg/m³) | 230±10% | 250±10% | 270±10% |
| Compressive Strength (MPa) | ≥0.75 | ≥0.85 | ≥0.95 |
| Thermal Conductivity (400ºC) | ≤0.091 | ≤0.096 | ≤0.103 |

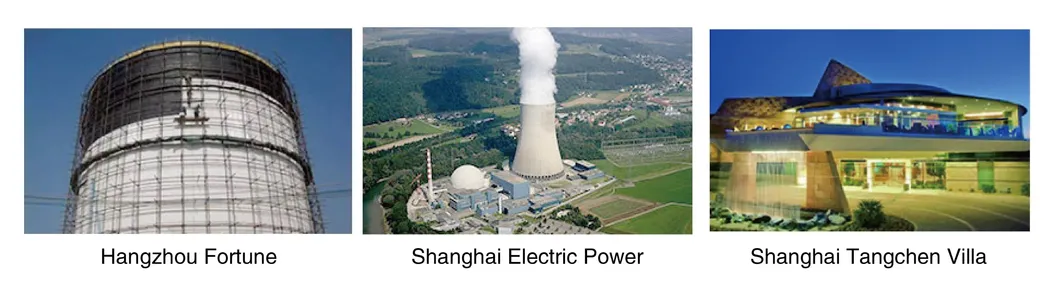

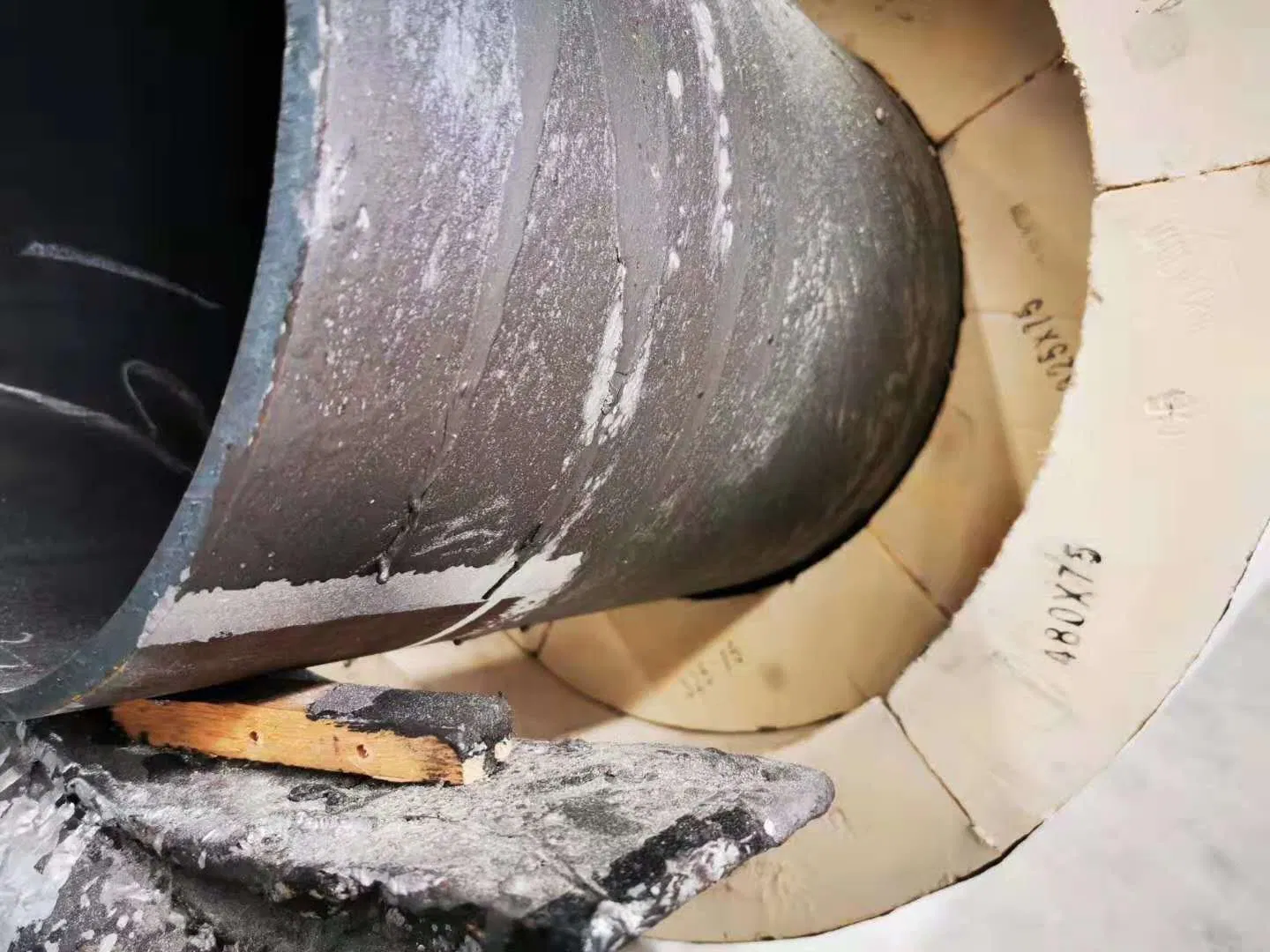

Commonly applied in insulation projects including tanks, tank bases, pipelines, vessels, cryogenic ships, and equipment. It is widely used in petroleum, chemical, refrigeration, shipbuilding, and residential construction industries. Suitable for severe environments: cryogenic, hot, underground, outdoor, and flammable areas.
