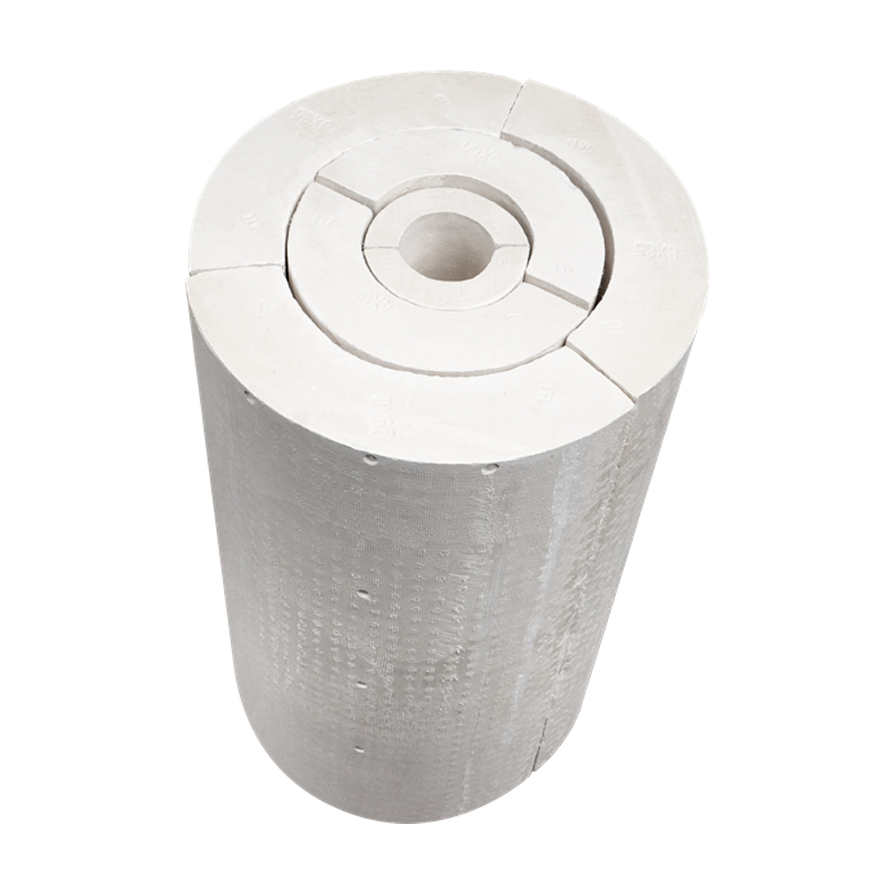

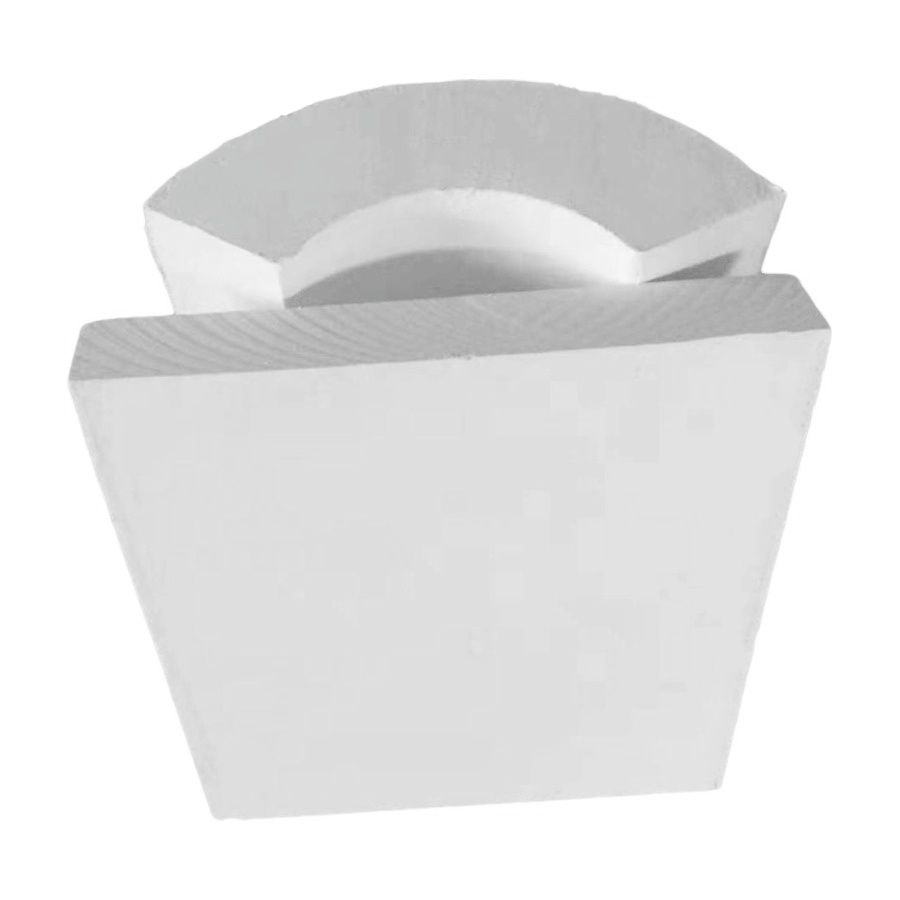

Light Weight and High Strength Density Low Thermal Conductivity Waterproof Section Calcium Silicate Supports Tube Pipe Blocks for Insulation Pipe Equipment

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
LAUREL-S-02
Shape
Pipe
Type
Silica Fiber Products
Item
Calcium Silicate Pipe
Temperature
650ºC-1000ºC
Density
230kg/M3±10%
Color
White
Materials
Calcium Silicate
Flexural Strength
≥0.03MPa
Compressive Strength
≥0.50MPa
Application
High Temperature Industries
Linear Shrinkage
≤ 2
Product Description

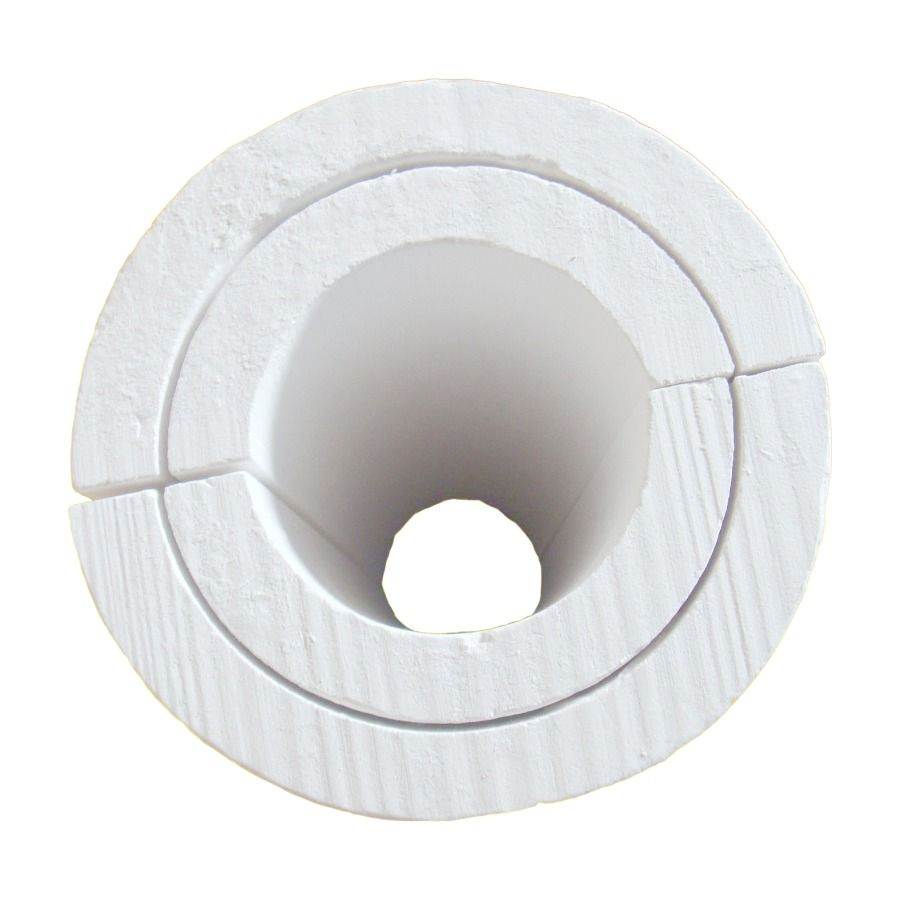

Calcium Silicate Pipe Insulation
Calcium silicate pipe's main materials are SIO2, CAO and reinforcing fiber, with light bulk weight, low thermal conductivity and high compressive strength character. It is mainly used in steam pipeline insulation, oil pipelines, tank insulation and other insulation pipe equipment.
Bulk Density: 230(±10%) Kg/m3
Compressive Strength: ≥0.50 Mpa
Key Features:
- Good Durability
- High Strength
- Low Thermal Conductivity
Function: Refractory & Insulation & Fireproof

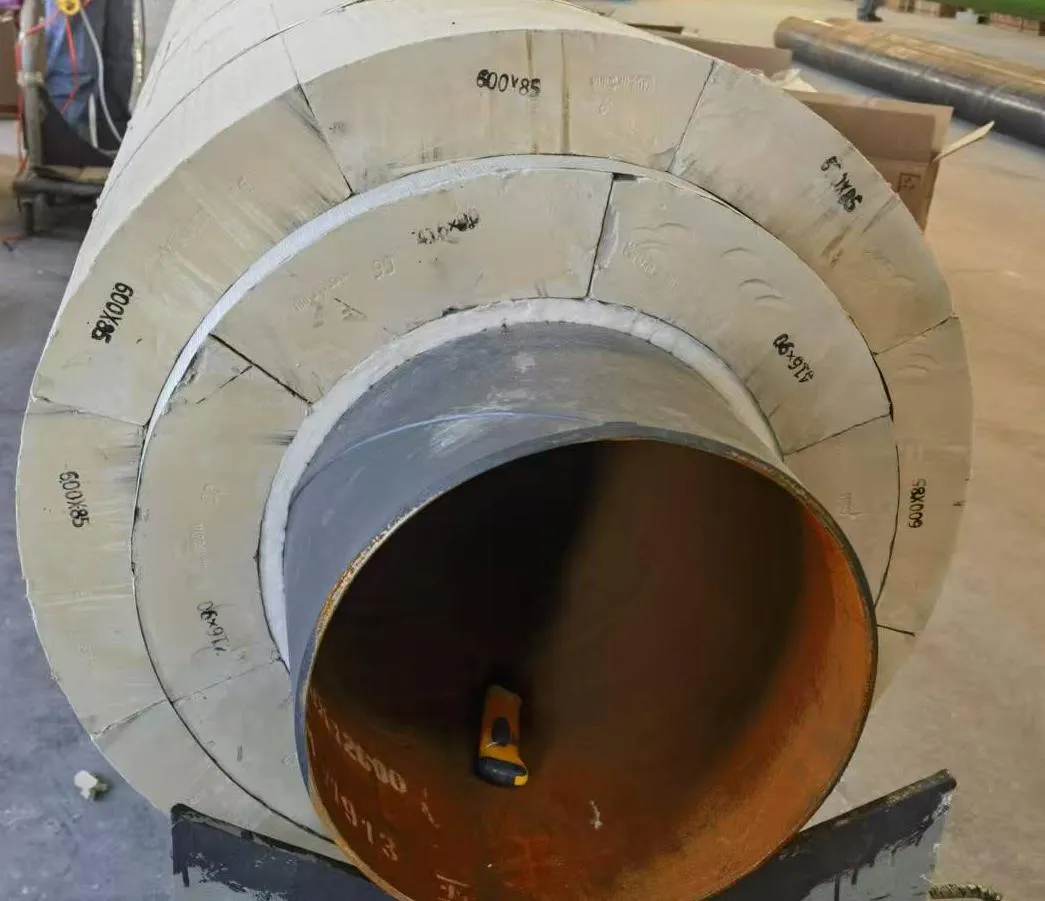

Pipe Details
Product Parameters
Parameter Header
  • Light weight and high strength
  • Low thermal conductivity
  • Good durability
  • Easy construction
  • Excellent thermal stability

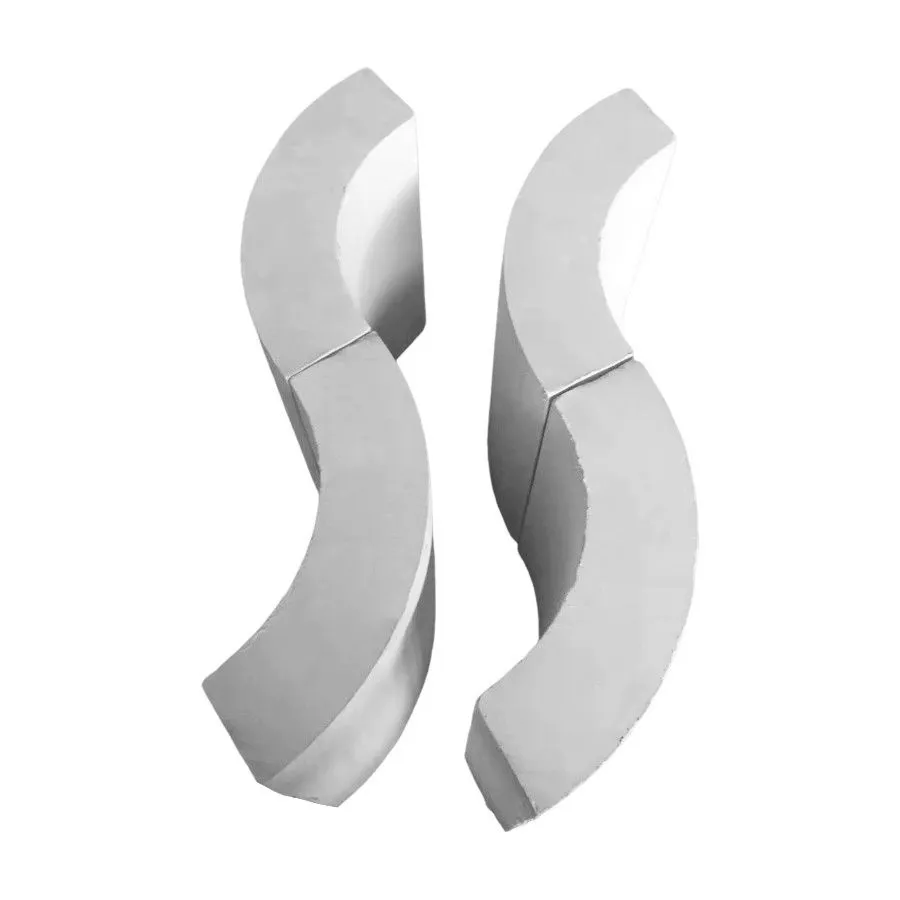

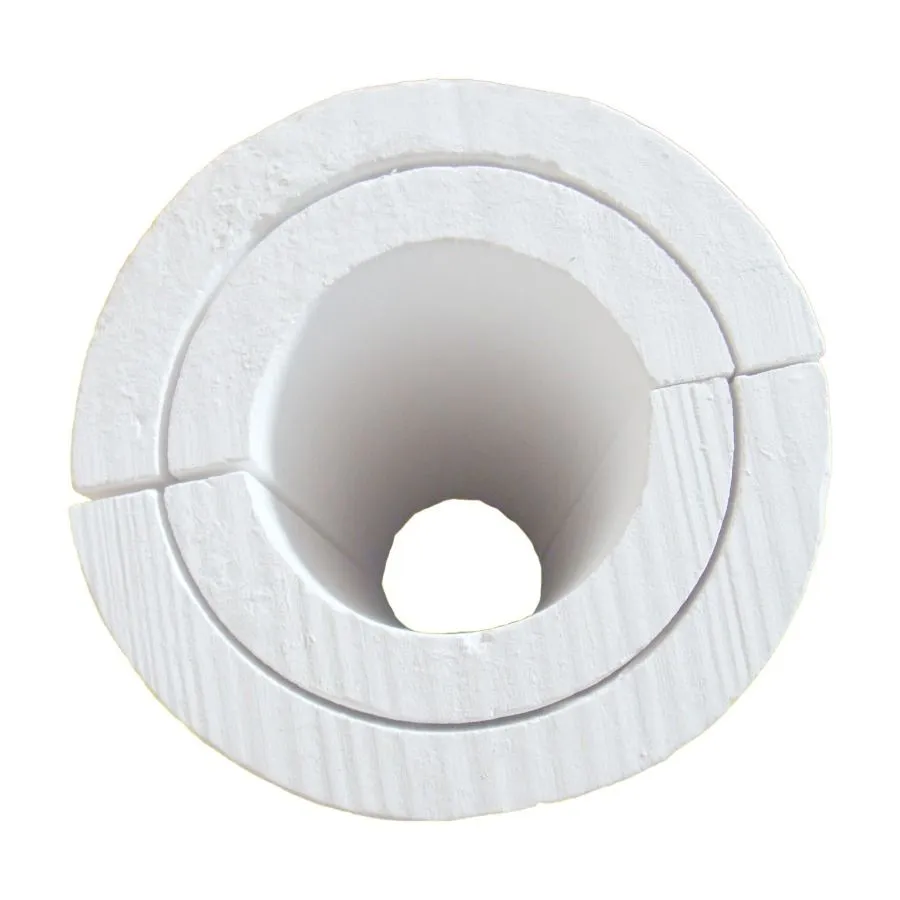

Product View 1 Product View 2
Specification Sheet
Item Unit Calcium silicate pipe 650ºC
Bulk DensityKg/m3230(±10%)
Compressive StrengthMpa≥0.50
Thermal ConductivityW/m.k0.062
Max service temperatureºC650
Linear Shrinkage%≤2(650ºC,3 hrs)
Flexural StrengthMPa≥0.03
Applications
Applications Overview
  • Cement rotary thermal insulation
  • Chemical pipeline
  • Oil pipelines
  • Steel pipe insulation
  • Duct heat insulation
Installation Example
Industry Capabilities

Professionally engaged in the research, development, and sales of all types of refractory and insulation materials. Materials include alumina series bricks, magnesia series bricks, corundum series bricks, mullite bricks, and alusite bricks. Insulation materials include ceramic fiber products, calcium silicate products, insulating brick, and rock wool insulation for the metallurgy, glass, ceramics, petrochemical, machinery, steel, cement, lime, construction, and other industries.

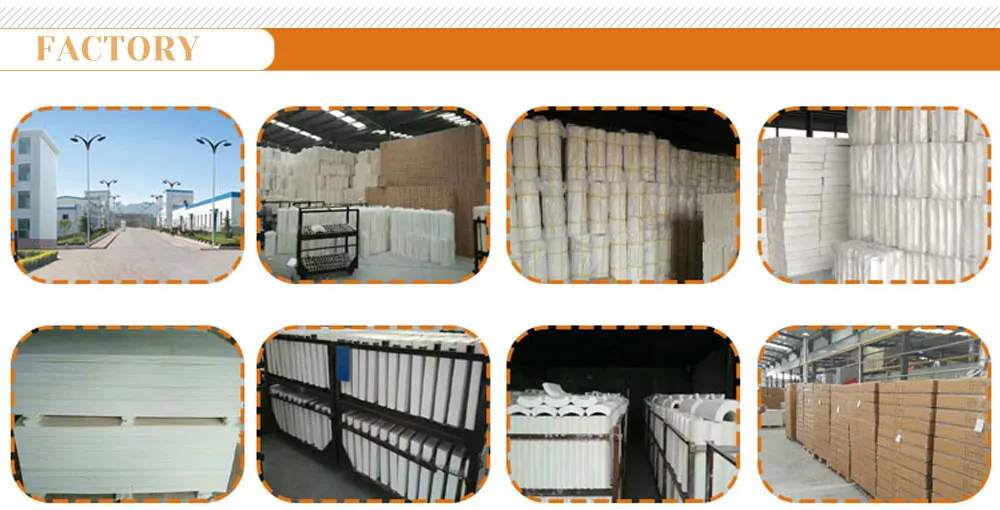

Factory Overview
Material Testing
Global Supply

Providing a global one-stop purchasing platform for refractory and insulation materials to offer professional advice, qualified products and good service, helping to make energy-saving easier. Materials have been exported to over 50 countries including Europe, South America, North America, Africa, Oceania, and Southeast Asia.

Project Case 1 Project Case 2 Project Case 3
Frequently Asked Questions
Q1: What are the primary materials used in these insulation pipes? A1: The main materials are SIO2 (silicon dioxide), CAO (calcium oxide), and reinforcing fibers.
Q2: What is the maximum temperature limit for the calcium silicate pipe? A2: Depending on the specific grade, the pipe can handle temperatures ranging from 650ºC up to 1000ºC.
Q3: How does the material perform in terms of thermal conductivity? A3: It features very low thermal conductivity (approx. 0.062 W/m.k), making it an excellent choice for thermal insulation in high-temperature pipelines.
Q4: In which industries is this insulation typically applied? A4: It is widely used in the chemical, oil, steel, and cement industries for pipeline and tank insulation.
Q5: What are the mechanical strengths of the product? A5: It has a compressive strength of ≥0.50 Mpa and a flexural strength of ≥0.03 MPa, ensuring durability during and after installation.
Q6: Is the material easy to work with during construction? A6: Yes, it is lightweight and designed for easy construction and high stability under extreme thermal conditions.
