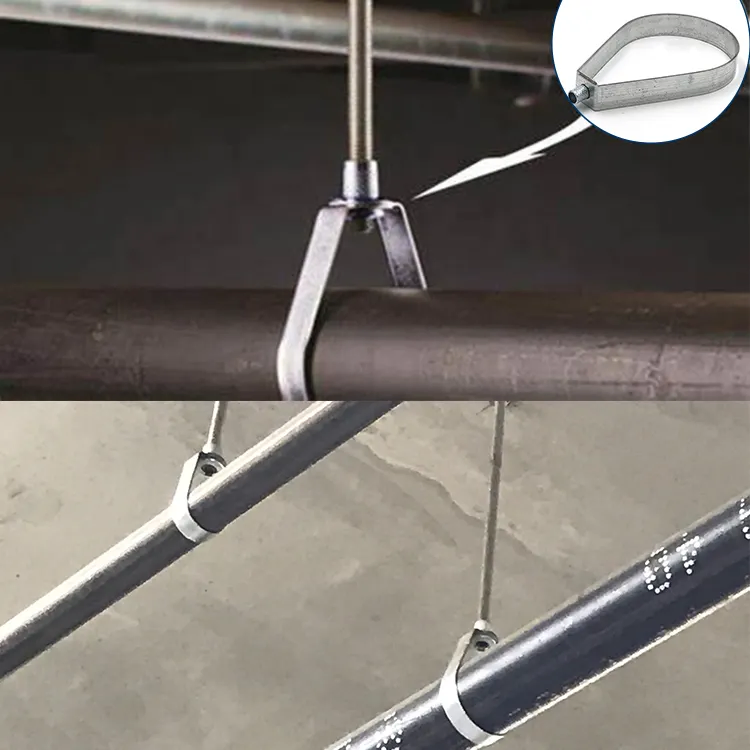

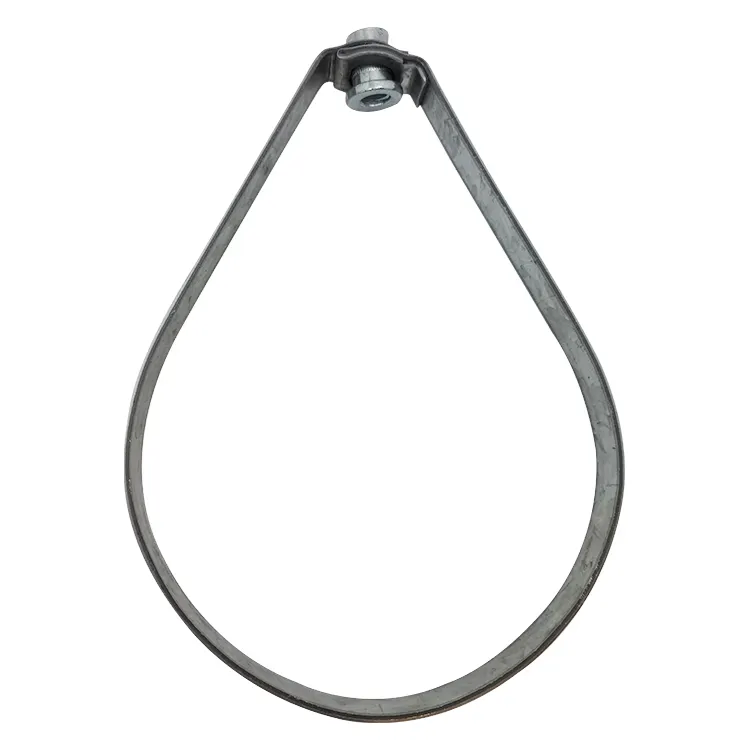

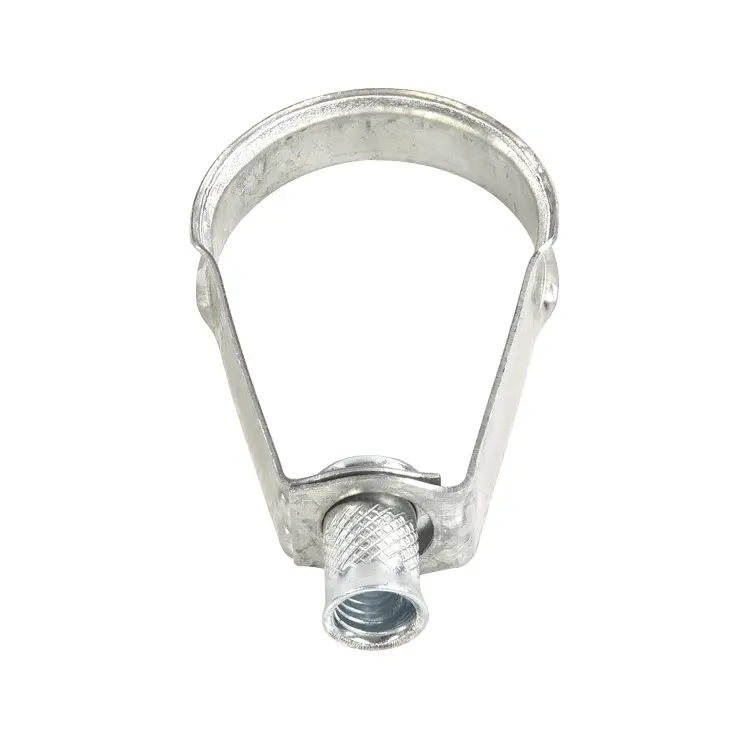

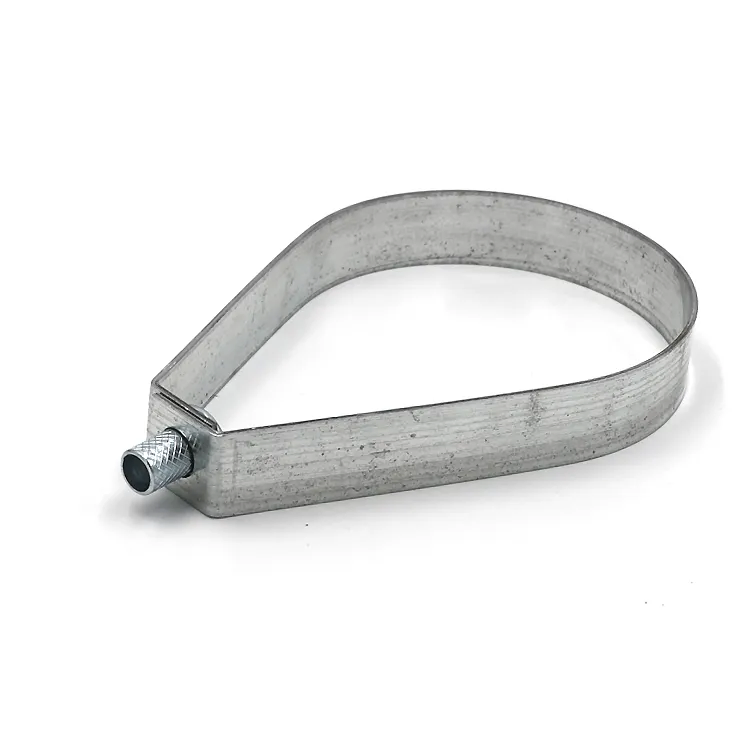

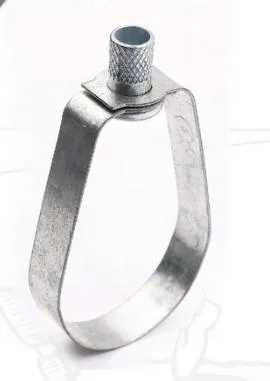

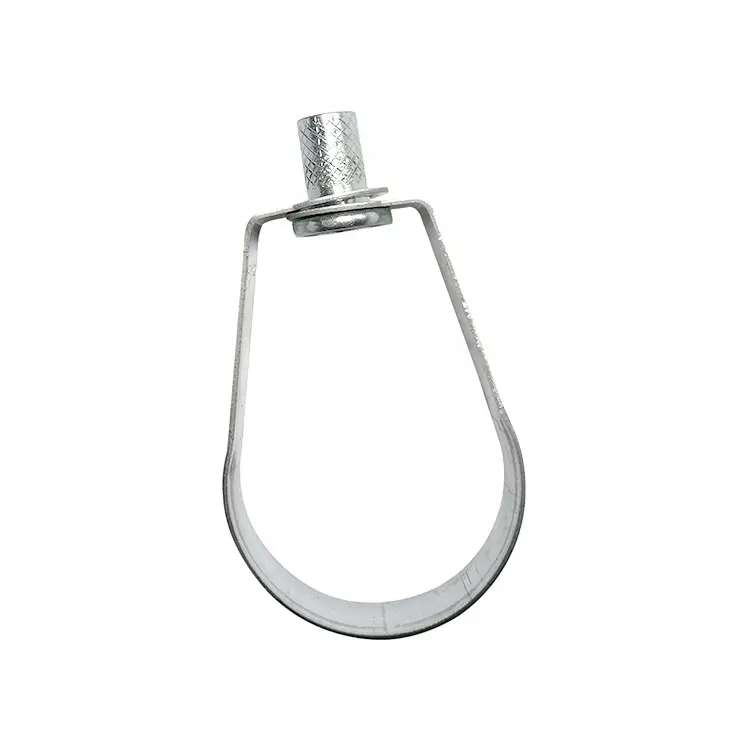

Product Name: Sprinkler Clevis Pipe Hanger for Ventilation Pipe
Description: Galvanized spray pipe clip Ring Hanger for ventilation pipe
Keywords: Ventilation Pipe Hanger, Sprinkler Pipe Support, Swivel Clevis Pipe Hanger, Galvanized Pipe Clamp Fitting, Sprinkler Swivel Hanger, Sanitary Pipe Fitting, Stainless Steel Pipe Support, Hex Bolt Connector, Tube Fitting Clamp, Steel Pipe Hanger, Ring Fitting Clamp, Hose Clamp Connector, Pipe Hangers and Supports, Pipe Support Hangers, Swivel Ring Hanger, Sanitary Fittings Pipe Hanger, Stainless Steel Pipe Clamp, Galvanized Pipe Hanger Clamp, Band Hangers for Pipes, Conduit Pipe Hangers, Swivel Ring Pipe Hanger, Sprinkler Clevis Hanger, Ventilation Hanger Clamp, Tube Fitting Clamps, Stainless Steel Pipe Supports
| Material | Finished | LOGO | Size | Thickness |
|---|---|---|---|---|
| Carbon Steel | Galvanized/zinc plated, HGD, Copper plated | Customized, UL & FM approval available | from 1/2" to 8" | 1.1mm, 1.5mm, 2.5mm etc |

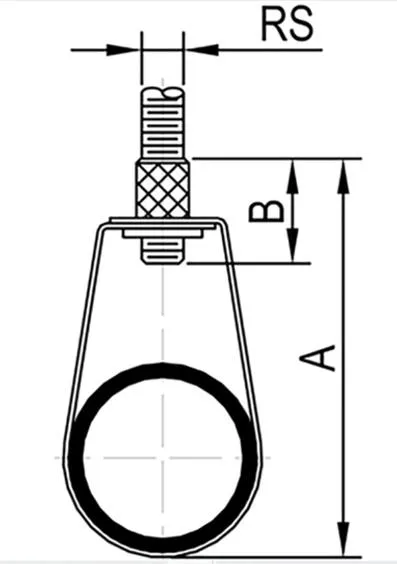

| Pipe Size (inch) | A(mm) | B(mm) | CxE(mm) | Nut | ФD(mm) |
|---|---|---|---|---|---|
| 1/2 | 41.50 | 54.50 | 16X1.2 | 3/8 | 21.7 |
| 3/4 | 45.34 | 60.50 | 16X1.2 | 3/8 | 27.2 |
| 1 | 47.73 | 64.16 | 16X1.2 | 3/8 | 34.0 |
| 1-1/4 | 54.31 | 70.74 | 16X1.2 | 3/8 | 42.7 |
| 1-1/2 | 57.58 | 74.01 | 16X1.2 | 3/8 | 48.6 |
| 2 | 66.16 | 82.59 | 16X1.2 | 3/8 | 60.5 |
| 2-1/2 | 88.69 | 104.5 | 22X1.5 | 3/8 | 76.3 |
| 3 | 96.12 | 112.5 | 22X1.5 | 3/8 | 89.1 |
| 4 | 110.7 | 126.9 | 22X1.5 | 3/8 | 114 |
| 6 | 154.1 | 173.2 | 19X2 | 1/2 | 165.2 |
| 8 | 192.4 | 211.5 | 19X2.5 | 1/2 | 216.3 |

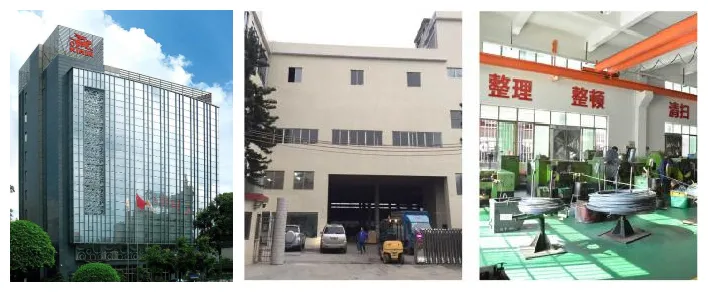

With over 14 years of experience in the fasteners industry, we pride ourselves on flexibility, strong customer service focus, and commitment to satisfaction. Our wide range of products serves various industries, with a primary focus on construction.
