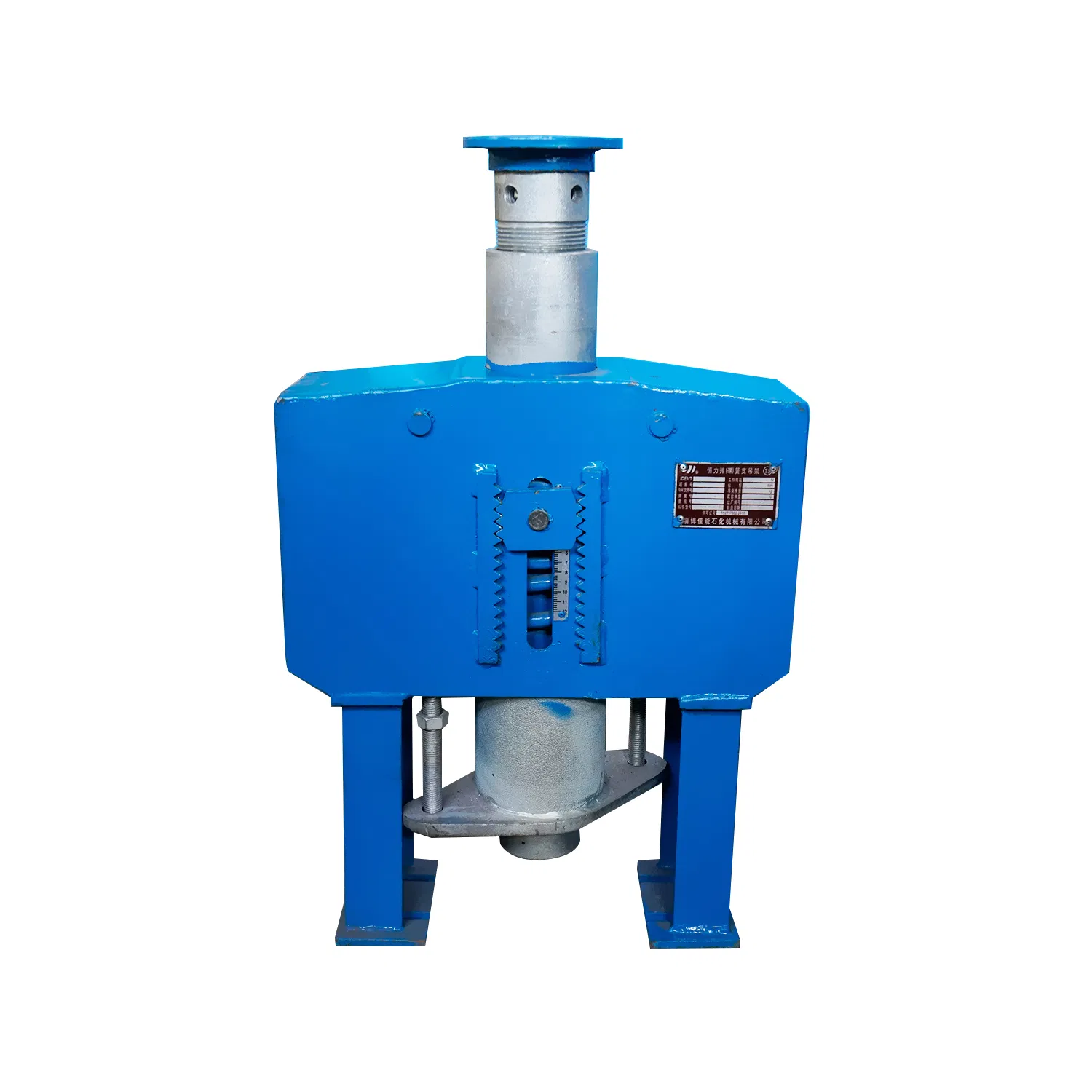

Spring Support and Hanger for Chemical, LNG Industry

1 / 5

Spring Support and Hanger for Chemical, LNG Industry

Customization:	Available
Temperature Classification:	Medium Temperature Piping
MPa Classfication:	High Pressure Piping

Send Inquiry

Product Description

Basic Information

Model NO.

JN-SS02

Material

Carbon Steel

Standard

ASME

Diameter

273mm

Medium

Liquid

Cross-Section Shape

Rectangular

Connection Type

Welding

HS Code

8479899990

Product Details

Spring supports and hangers are generally used in places where displacement stress needs to be reduced, such as power station boiler body, suspended parts of steam, water, smoke duct and burner of power plant, as well as petrochemical equipment and other places where displacement stress needs to be reduced.

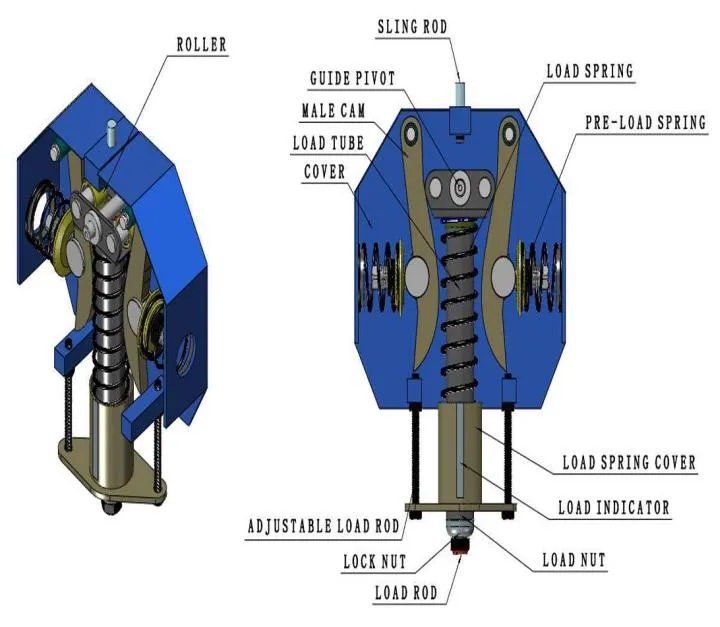

Composition of Variable Spring Hanger: The variable spring hanger is mainly composed of cylindrical spiral spring, displacement indicator board, shell and elastic nut. Variable spring support hanger according to the different installation methods, divided into seven types:

Type A Upper thread suspension type

Type B Single ear suspension type

Type C Binaural suspension

Type D On adjusting shelving type

Type E Under adjustment shelving type

Type F Support shelving type

Type G Parallel suspension type

Product Advantages

Five travel ranges from 0 to 400 mm / 0 to 15.75 in, load group C to load group 9.
Torque-free load application by covering the load and symmetry axis.
Favourable power-weight ratios for reduced installation loads.
Modular system simplifies selection (load groups and travel ranges).
Readily adaptable to the installation situation due to suitable designs and standardised accessories.
Secure connection of load chains due to load- and connection-compatible modular components.

Frequently Asked Questions

What are the primary applications for spring supports and hangers?

They are mainly used in power stations, petrochemical equipment, and smoke ducts to reduce displacement stress in boilers and suspended piping systems.

What materials are these supports made from?

These units are constructed using high-quality Carbon Steel to ensure durability and strength under industrial conditions.

How many installation types are available for the variable spring hanger?

There are seven distinct installation types, ranging from Type A to Type G, including suspension, shelving, and parallel types to fit various mounting needs.

What is the travel range of these spring hangers?

They offer five travel ranges, providing a displacement capability from 0 mm up to 400 mm (0 to 15.75 inches).

Does the design simplify the selection process?

Yes, the modular system with standardized load groups and travel ranges simplifies the selection and ensures compatibility with various installation scenarios.

What standards do these products follow?

The products are manufactured according to ASME standards, ensuring high quality and international compliance for industrial use.
