Rigid / Etaslic /Constant Hangers for Pipe System in Oil, Gas, Power Plant

📊 Basic Information

Model NO.	JN-SS15	HS Code	8419500090
Specification	As customer's request	Production Capacity	50,000 Pieces/Year

⚙️ Technical Specifications

Model Description	Vertical constant load spring hanger and support	Technics	Casting or Forging
Connection	Welding	Shape	Equal
Load Range	500-400,000N	Displacement Range	50-500mm
Temperature Range	-20°C ~ +200°C	Specification	ISO/GB
Transport Package	Wooden Box/Case/ Pallet	HS Code (Pipe Support)	7308900000

📝 Product Overview

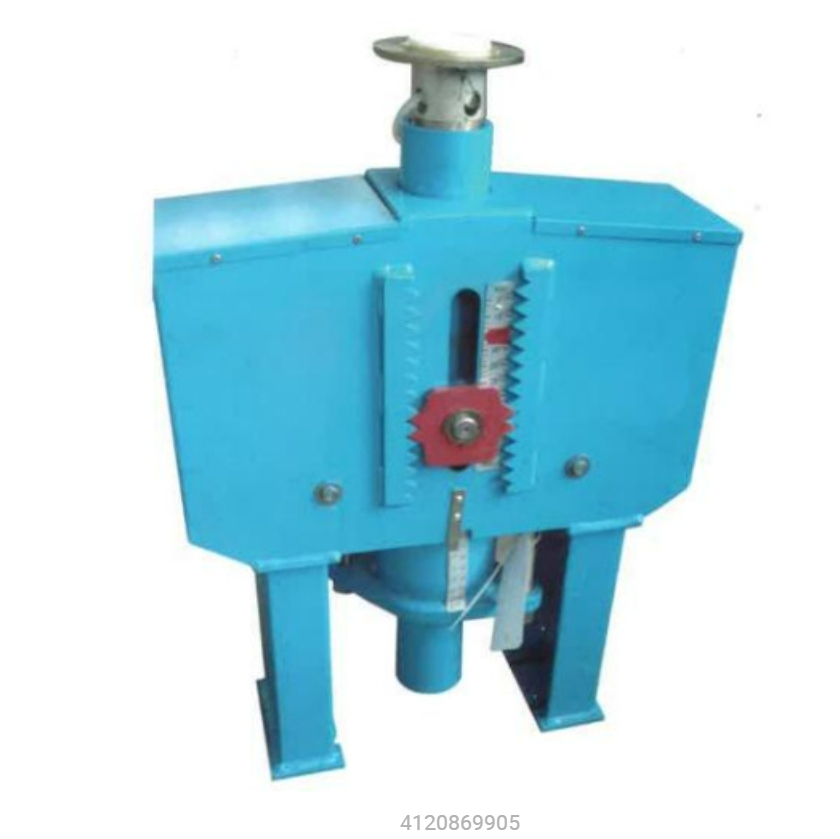

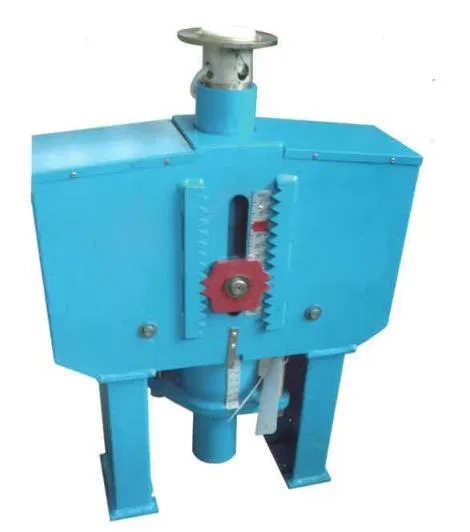

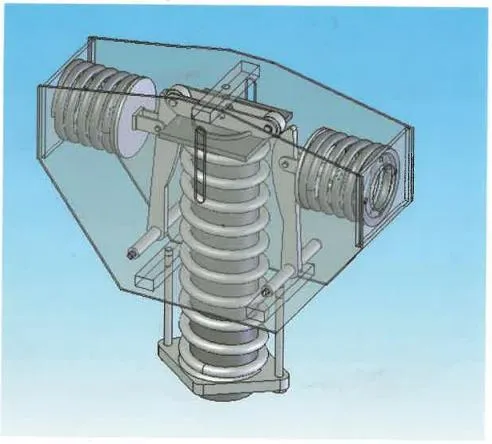

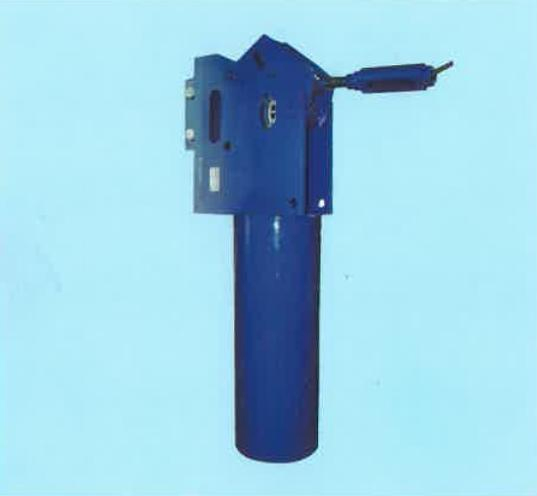

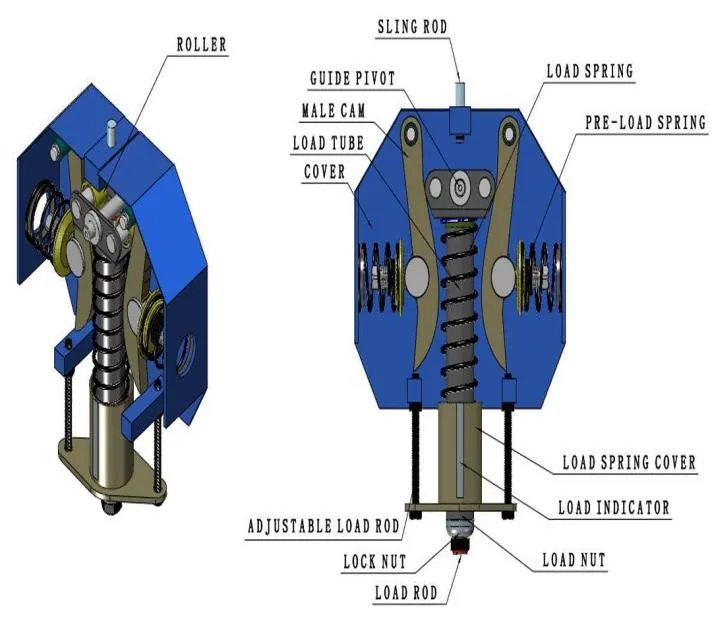

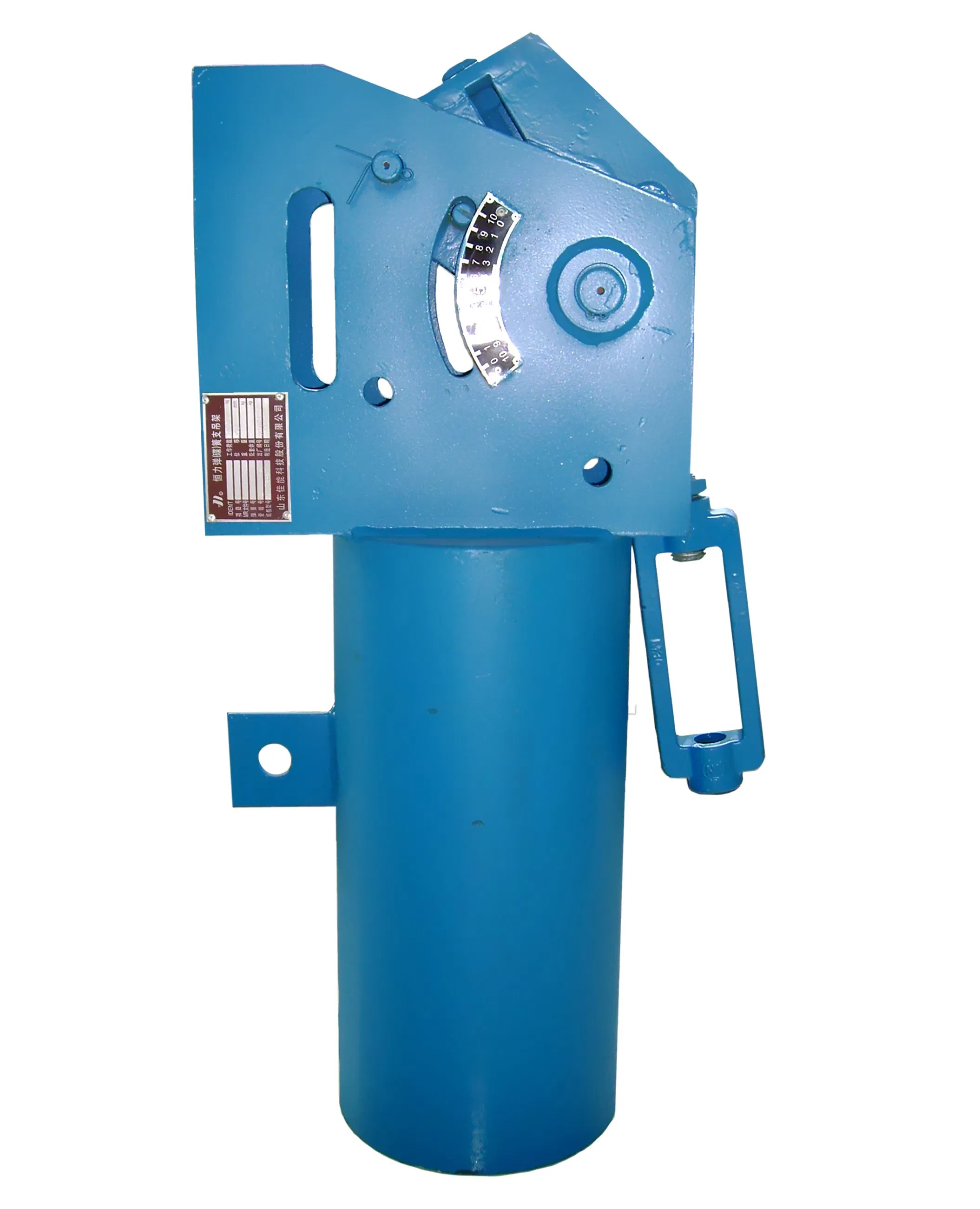

CONSTANT TYPE SPRING SUPPORTS: The Constant Type Spring Supports (Constant Supports) provide a constant supporting force through the total travel of the support. The simplified construction, together with the compression spring working in conjunction with a bell crank lever, achieves a mathematically perfect counter-balancing of spring and load moments about the main pivot point.

Constant Load Spring Supports are typically used when large vertical movements are present in critical piping to avoid the transfer of residual stresses to other process piping systems.

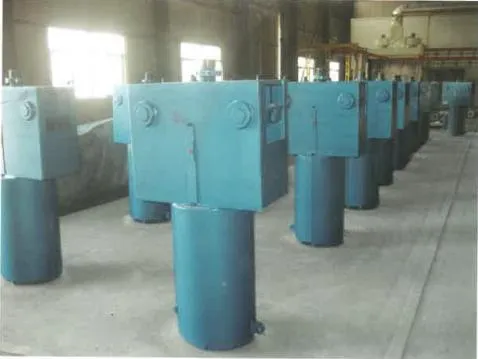

🖼️ Product Display

🔗 Composition & Types

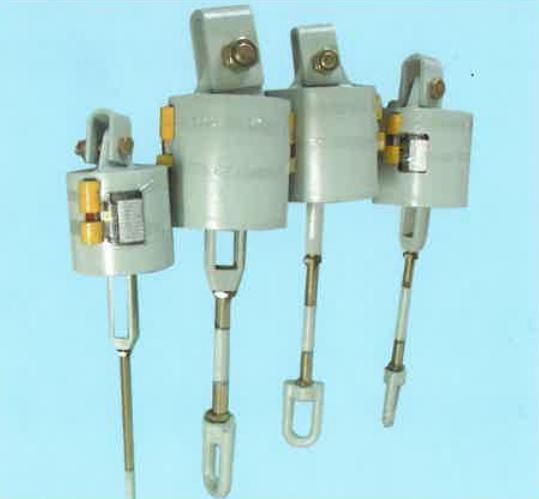

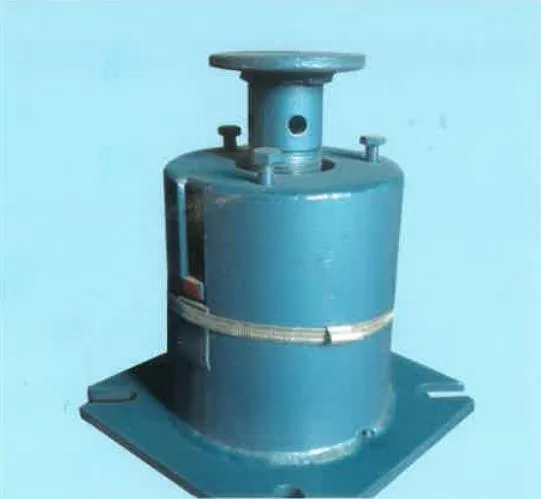

Variable spring hangers are mainly composed of cylindrical spiral springs, displacement indicator boards, shells, and elastic nuts. Based on installation methods, they are categorized into seven distinct types:

Type A: Upper thread suspension
Type B: Single ear suspension
Type C: Binaural suspension
Type D: On adjusting shelving type
Type E: Under adjustment shelving type
Type F: Support shelving type
Type G: Parallel suspension

✅ Key Advantages

✔ Five travel ranges from 0 to 400 mm / 0 to 15.75 in.

✔ Torque-free load application via symmetry axis covering.

✔ Favourable power-weight ratios for reduced installation loads.

✔ Modular system simplifies selection of load groups.

✔ Readily adaptable to various installation situations.

✔ Secure connection of load chains with compatible components.

❓ Frequently Asked Questions

What is the primary function of a Constant Type Spring Support?

It provides a constant supporting force through the entire travel range to counter-balance spring and load moments, preventing stress transfer in critical piping systems.

What travel ranges are supported by these hangers?

We provide five travel ranges, spanning from 0 mm up to 400 mm (0 to 15.75 inches).

In what environments can these supports operate?

They are designed for professional industrial environments with a temperature resistance range from -20°C to +200°C.

What is the maximum load capacity available?

The supports cover a wide load spectrum, ranging from 500N to as high as 400,000N.

Are there different installation configurations?

Yes, there are seven standard types (A through G) including suspension, shelving, and adjustment types to fit various architectural requirements.

What standards do these products follow?

Our products are manufactured in accordance with ISO and GB specifications to ensure global compatibility and safety.
