Pear Hanger Hose Clamp / Pipe Hanger / Spray Pipe Clip Ring Hanger / Swivel Band Hanger / Sprinkler Pipe Clamp Without Rubber

Customization:	Available
Material:	Carbon Steel
Type:	Round Head

Send Inquiry

Product Description

📋 Overview - Basic Info

Connection

Hinged Bolts

Head Style

Round

Standard

DIN, ANSI, GB, JIS, BSW

Application

Chemical Industry, Environmental, Building, Construction

Finish

Blue-White Zinc Plated

Keyword

Band Hangers for Pipe Fittings

Type

Swivel Ring Hanger / Pipe Fitting Hanger

Certificate

ISO9001

Specification

1/2" - 8"

Production Capacity

10 million PCS / Month

🛠️ Product Description

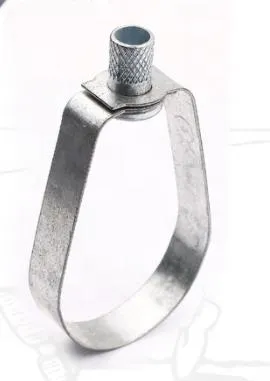

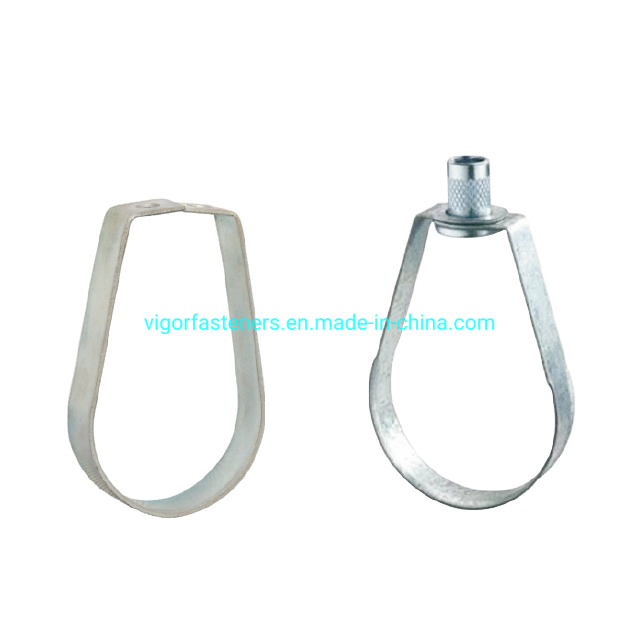

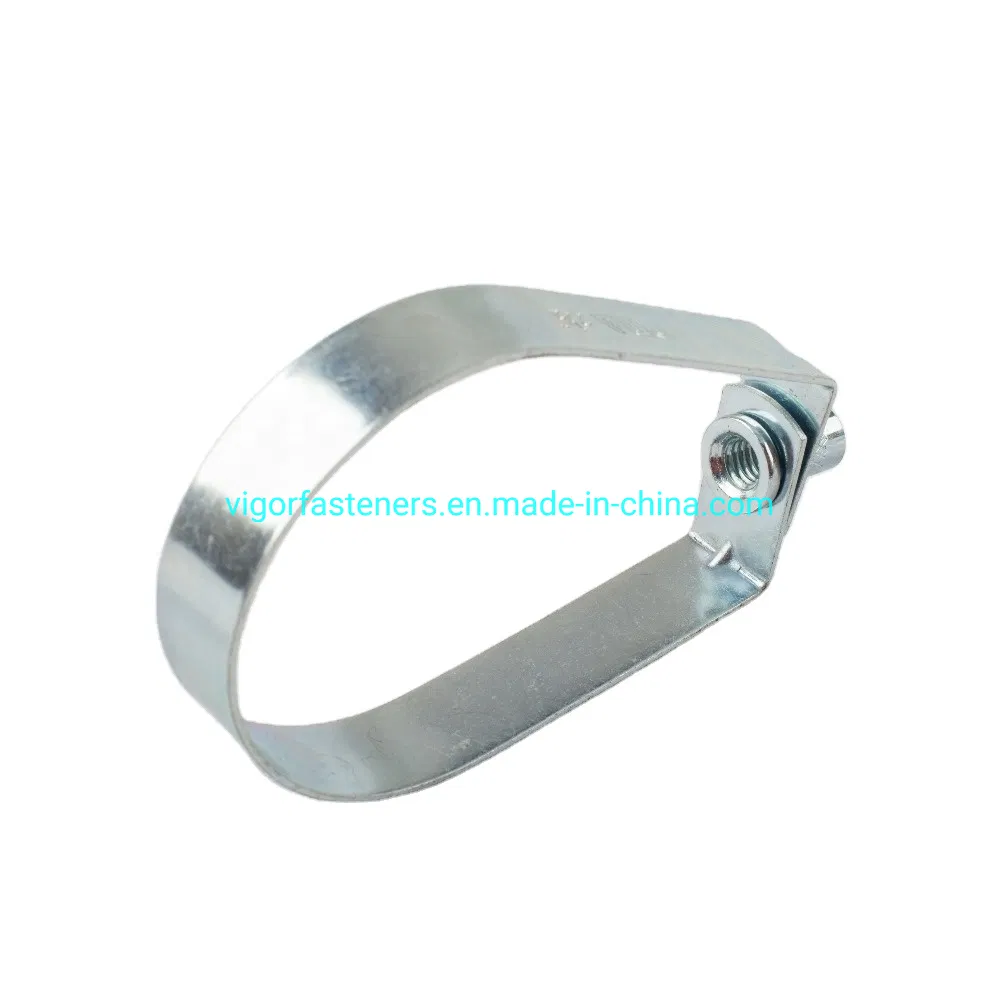

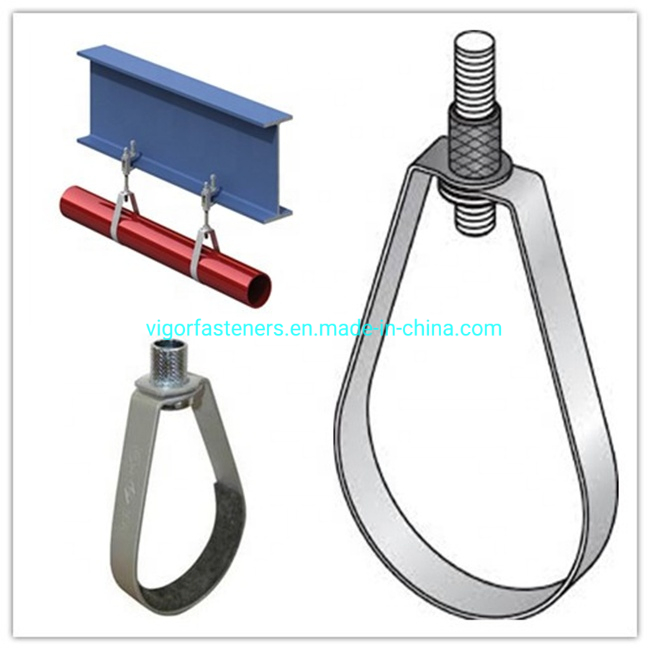

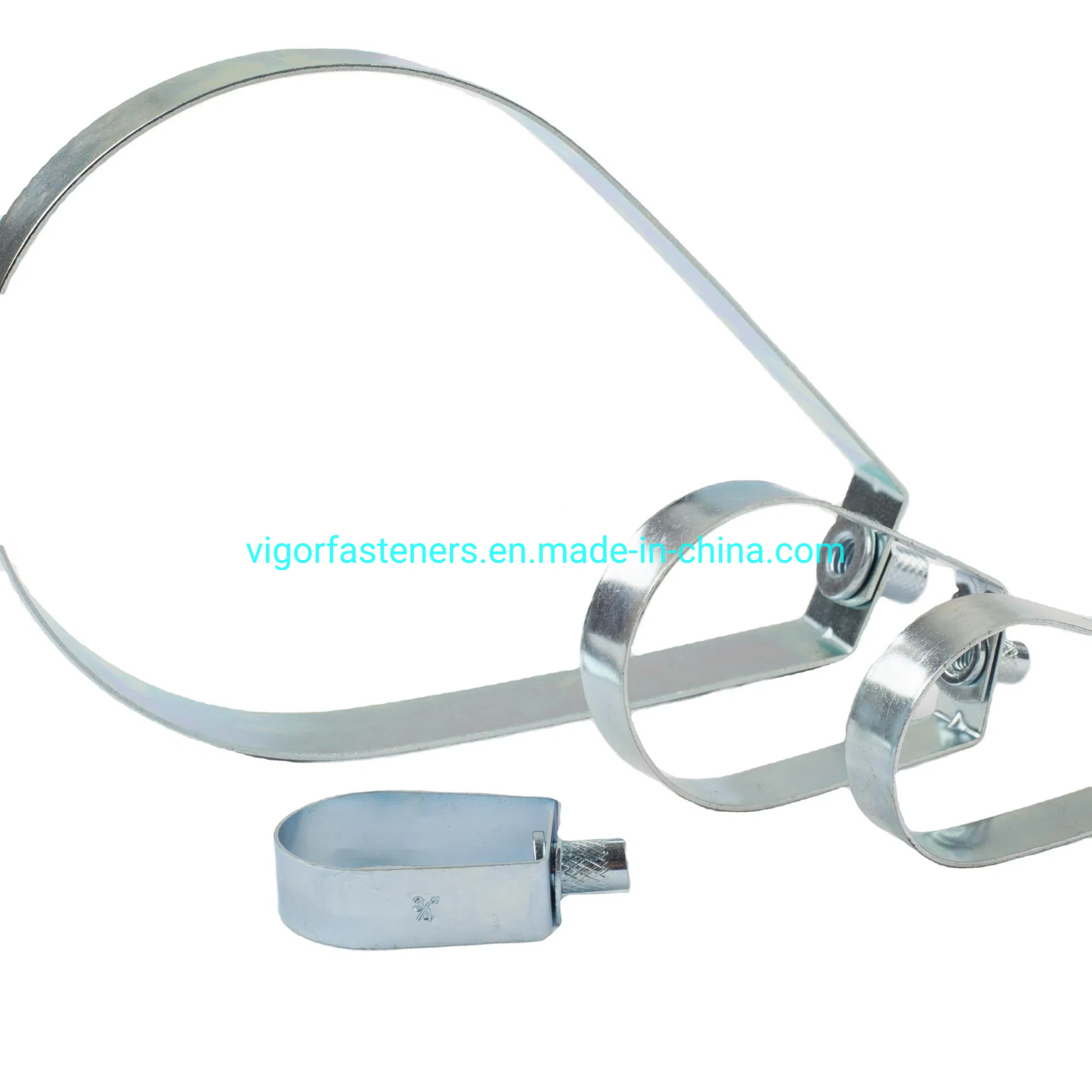

Description: Pear Hanger Hose Clamp / Pipe Hanger / Spray Pipe Clip Ring Hanger / Swivel Band Hanger / Sprinkler Pipe Clamp without Rubber.

Material	Carbon Steel
Finished	Galvanized / Zinc Plated, HDG, Copper Plated, Chrome, Nickel
LOGO	Customized, UL & FM approval markings available upon authorization
Size Range	From 1/2" to 8"
Thickness	1.1mm, 1.5mm, 2.5mm etc.
Usage	Suitable for all pipe connections including flanged, threaded, grooved, and welded pipe fittings.

📊 Product Parameters

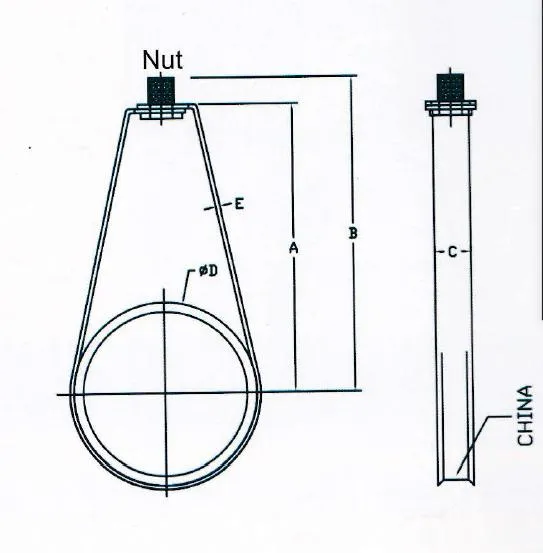

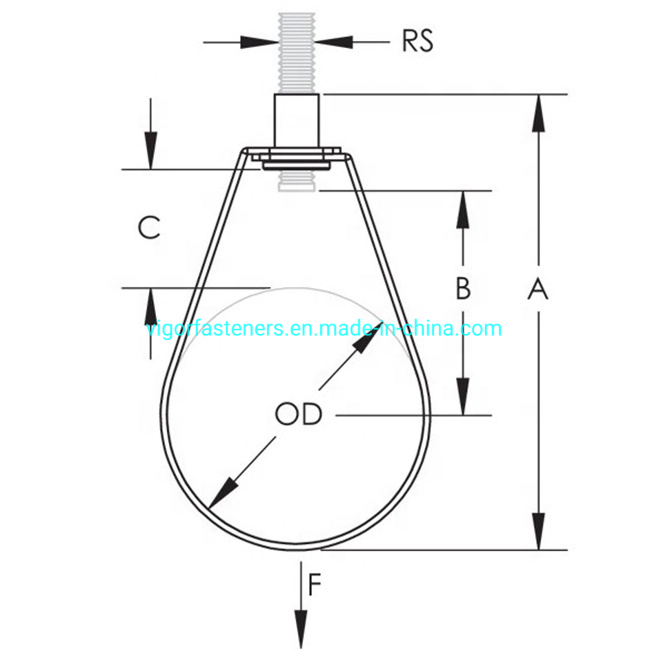

Pipe Size (inch)	A (mm)	B (mm)	CxE (mm)	Nut	ФD (mm)
1/2	41.50	54.50	16X1.2	3/8	21.7
3/4	45.34	60.50	16X1.2	3/8	27.2
1	47.73	64.16	16X1.2	3/8	34.0
1-1/4	54.31	70.74	16X1.2	3/8	42.7
1-1/2	57.58	74.01	16X1.2	3/8	48.6
2	66.16	82.59	16X1.2	3/8	60.5
2-1/2	88.69	104.5	22X1.5	3/8	76.3
3	96.12	112.5	22X1.5	3/8	89.1
4	110.7	126.9	22X1.5	3/8	114
6	154.1	173.2	19X2	1/2	165.2
8	192.4	211.5	19X2.5	1/2	216.3

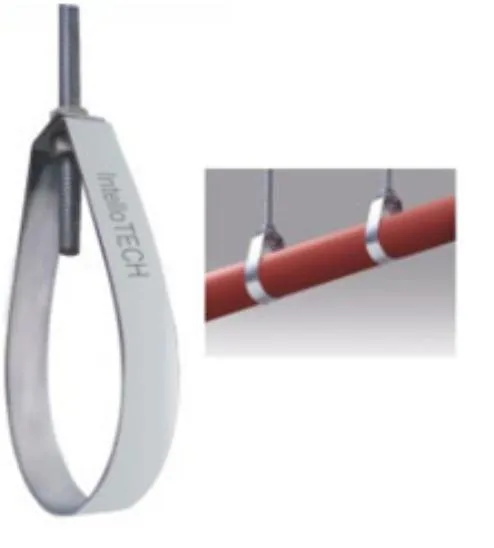

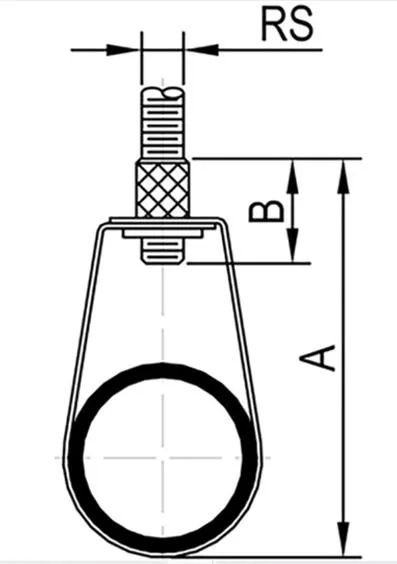

🔧 Installation Instructions

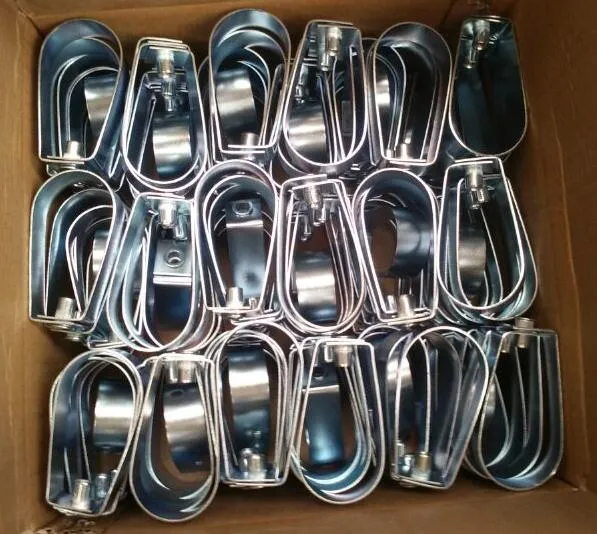

📦 Package Details

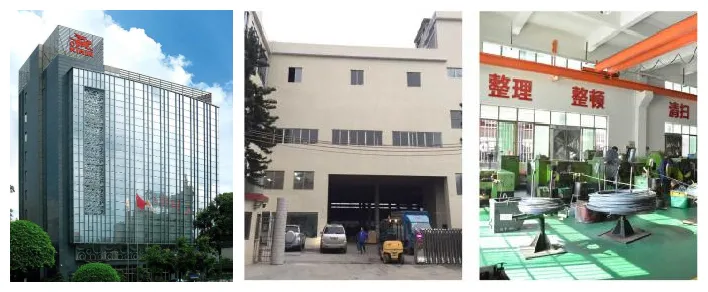

🏢 Company Profile

We are a company with flexibility and a strong focus on customer service and satisfaction in the fasteners industry. With more than 14 years of experience, we provide professional services and high-quality products.

Our bolts and screws are utilized across many sectors, particularly in the construction industry. Our professional knowledge allows us to grow alongside our business partners by offering specialized technical support.

Main Products: Drop-in Anchors, Hex Bolt Sleeve Anchors, Chemical Anchors, Wedge Anchors, Nylon Anchors, Swivel Band Hangers, Hex Socket Set Screws, Driver Bits, and various hand tools.

⭐ Our Advantages

✔ Sub-supplier for major European, American, and Asian brands.

✔ 14 years of specialized experience in the fastener manufacturing industry.

✔ Two production factories with a monthly capacity of 1,000 tons for socket screws and 500 tons for anchor bolts.

✔ Fast delivery cycles with a 7-day fulfillment target for urgent orders.

✔ Strict quality control with 10 dedicated QC colleagues on the production lines.

✔ Full OEM service availability based on customer specifications.

❓ Frequently Asked Questions

Q1: What materials are used for the Pear Hangers?

Our pear hangers are primarily manufactured from high-quality Carbon Steel, ensuring strength and durability for industrial applications.

Q2: What size range do you offer for pipe hangers?

We provide a comprehensive size range from 1/2" up to 8" to accommodate various piping requirements.

Q3: What surface finishes are available for corrosion protection?

We offer multiple finishes including Zinc Plated (Blue-White), Hot DIP Galvanized (HDG), Copper Plated, Chrome, and Nickel plating.

Q4: Can I get customized logos or certifications on the products?

Yes, we provide OEM services and can apply customized logos. We can also include UL and FM approval markings if the customer provides the authorized certificate.

Q5: What is your production capacity for these fasteners?

Our facility has a massive production capacity of 10 million pieces per month, allowing us to handle large-scale international orders efficiently.
