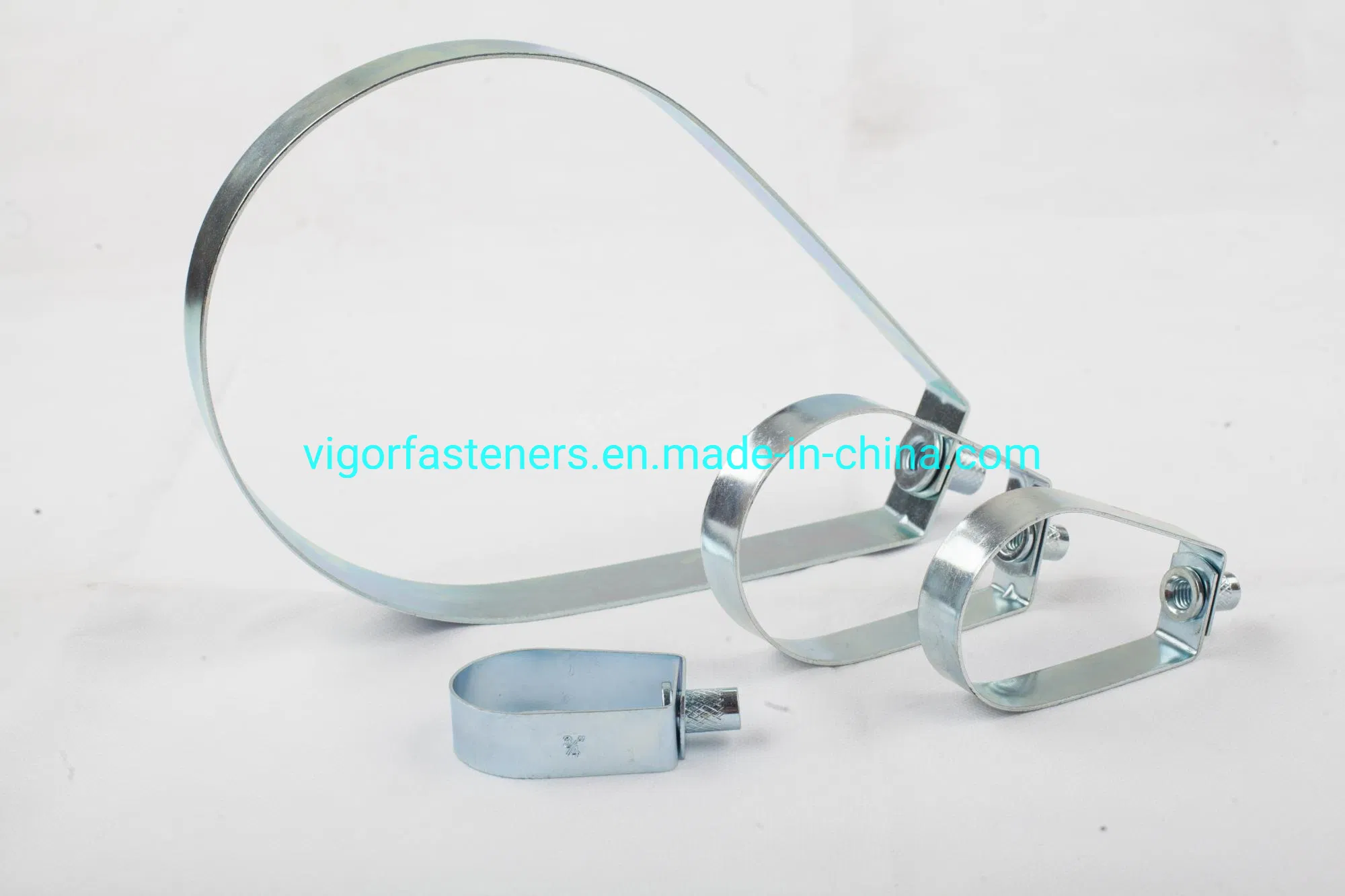

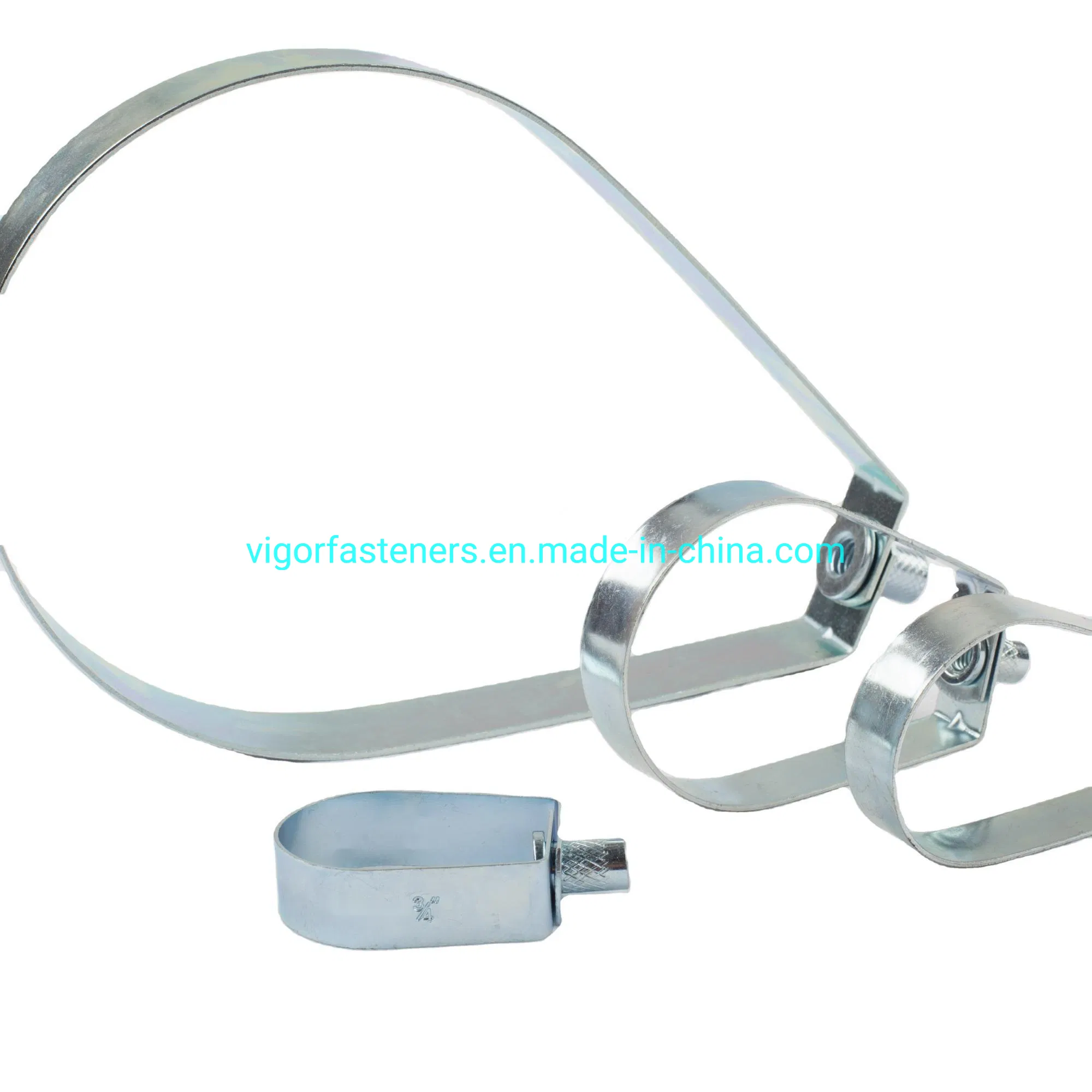

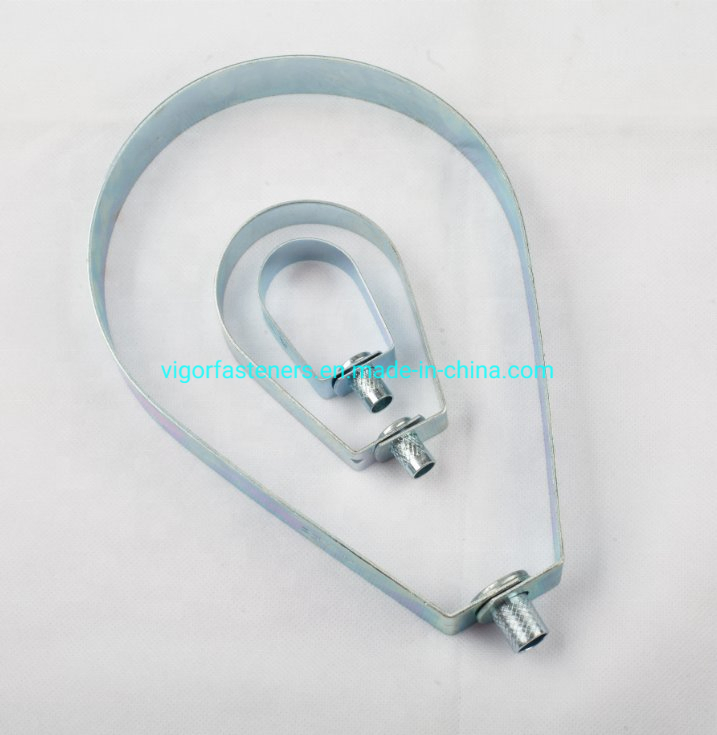

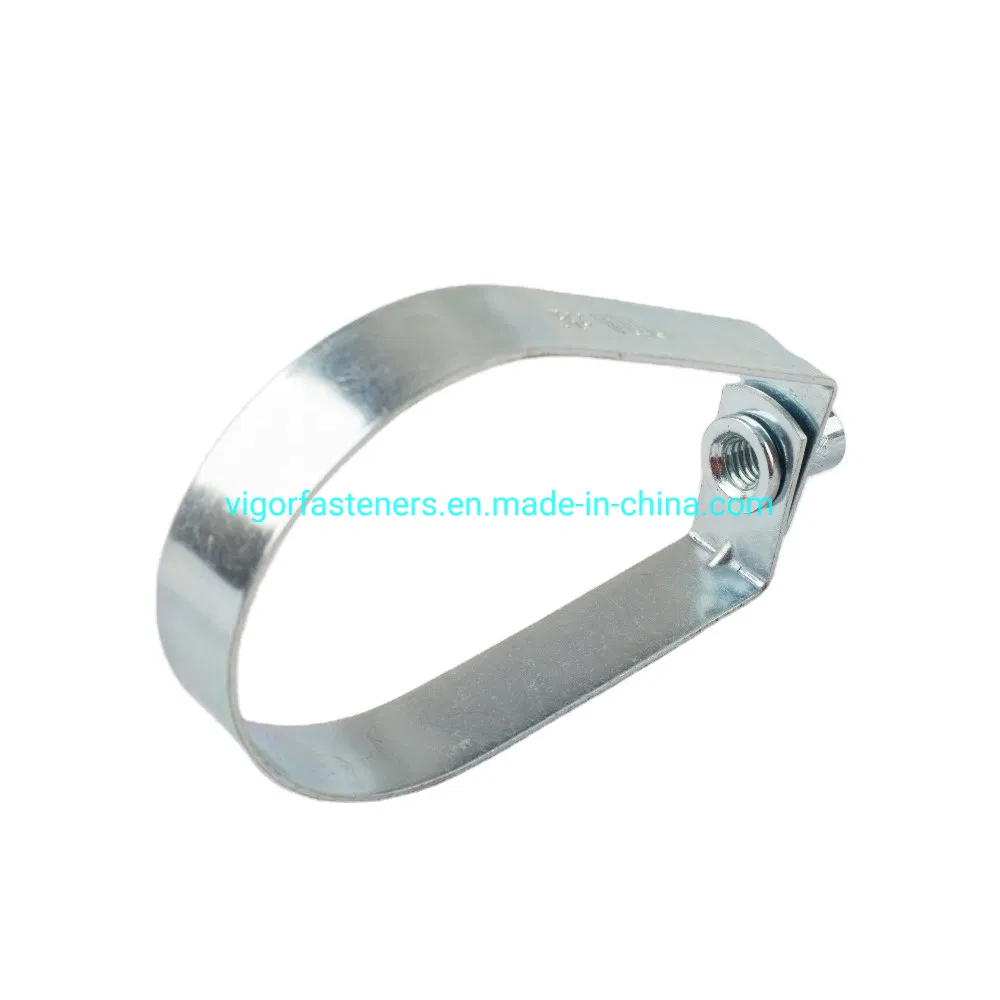

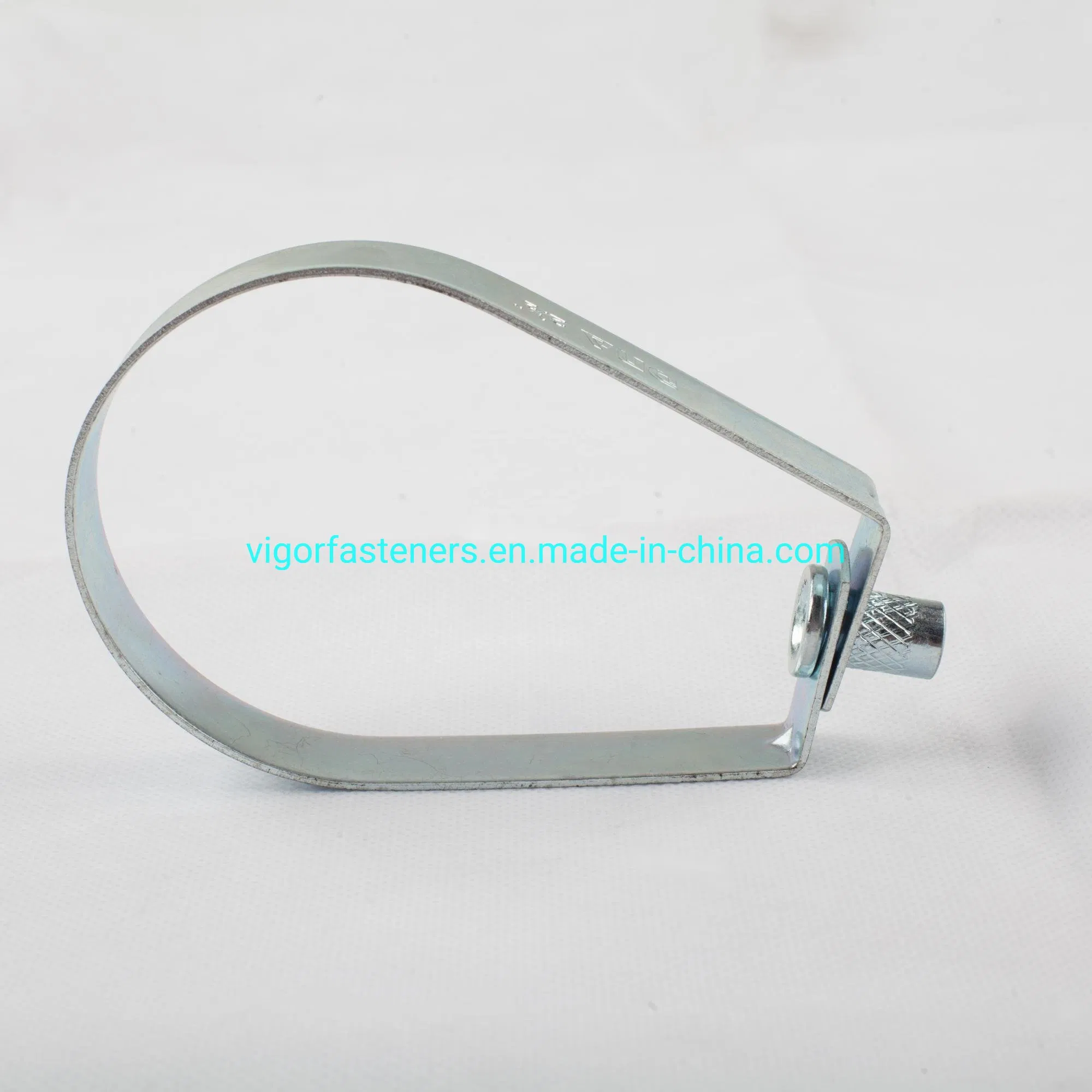

High Quality Galvanized Sprinkler Pipe Clamp / Pipe Hanger / Spray Pipe Clip Ring Hanger / Swivel Band Hanger

1 / 5

High Quality Galvanized Sprinkler Pipe Clamp / Pipe Hanger / Spray Pipe Clip Ring Hanger / Swivel Band Hanger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Connection

Hinged Bolts

Head Style

Round

Standard

DIN, ANSI, GB, JIS, BSW

Application

Chemical, Environmental, Building, Construction

Finish

Blue-White Zinc Plated

Material

Carbon Steel

Size Range

1/2" - 8"

Certificate

ISO9001

Product Description

Description: High Quality Galvanized Sprinkler Pipe Clamp / Pipe Hanger / Spray Pipe Clip Ring Hanger / Swivel Band Hanger. Suitable for all different pipe connections include flanged, threaded, grooved and welded pipe and fittings.

Feature	Details
Material	Carbon Steel
Finished	Galvanized/zinc plated, HGD, Copper plated, Chrome, Nickel
LOGO	Customized, UL & FM approval available upon request
Thickness	1.1mm, 1.5mm, 2.5mm etc.

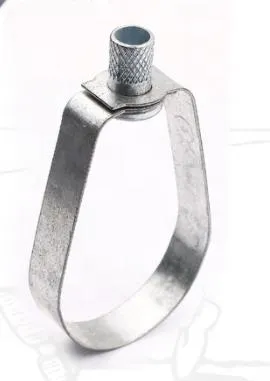

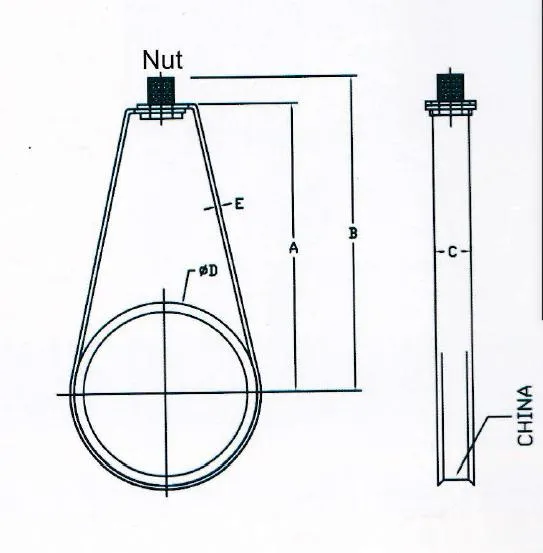

Technical Parameters

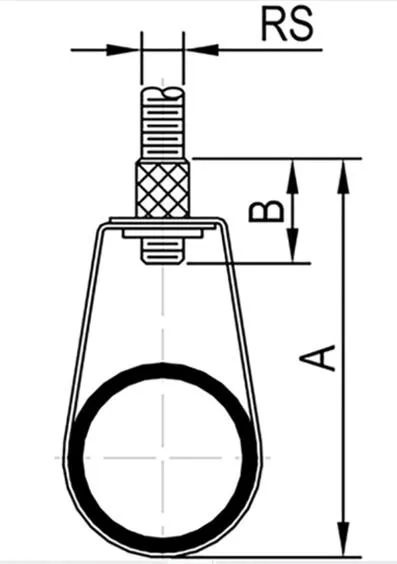

Pipe Size (inch)	A(mm)	B(mm)	CxE(mm)	Nut	ФD(mm)
1/2	41.50	54.50	16X1.2	3/8	21.7
3/4	45.34	60.50	16X1.2	3/8	27.2
1	47.73	64.16	16X1.2	3/8	34.0
1-1/4	54.31	70.74	16X1.2	3/8	42.7
1-1/2	57.58	74.01	16X1.2	3/8	48.6
2	66.16	82.59	16X1.2	3/8	60.5
2-1/2	88.69	104.5	22X1.5	3/8	76.3
3	96.12	112.5	22X1.5	3/8	89.1
4	110.7	126.9	22X1.5	3/8	114
5	135.7	145.5	19X2	1/2	139.8
6	154.1	173.2	19X2	1/2	165.2
8	192.4	211.5	19X2.5	1/2	216.3

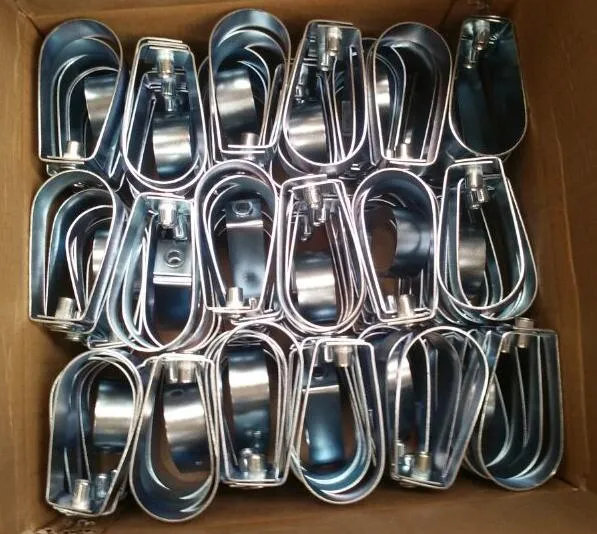

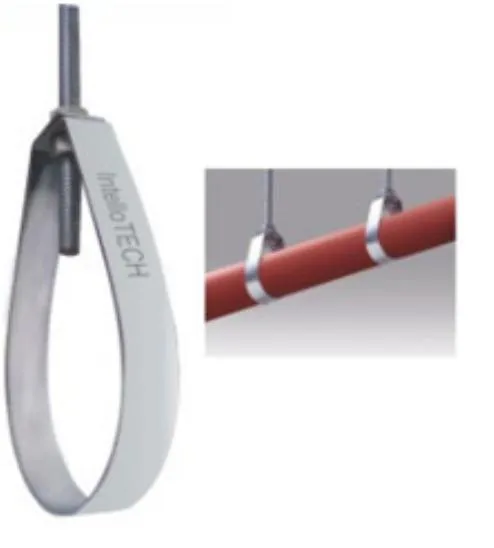

Installation & Packaging

Our Advantages

With more than 15 years' experience in the fasteners industry, we provide professional services and products including Drop-in Anchors, Sleeve Anchors, Chemical Anchors, Swivel Band Hangers, and various socket screws. Our products are widely used in construction and automotive industries.

Sub-supplier for European, American, and Asian major brands.
14 years of professional manufacturing experience.

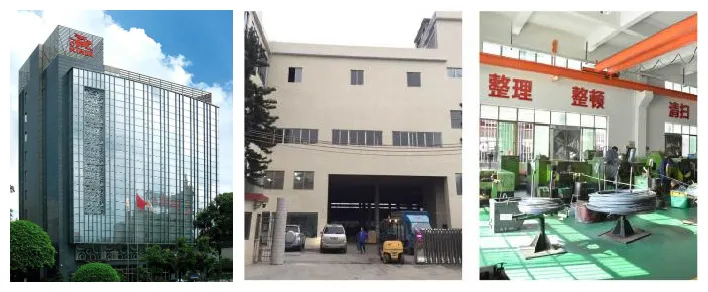

Two production factories ensuring stable supply.
Monthly capacity: 1000 tons for socket screws, 500 tons for anchor bolts.
Fast delivery: standard items ready within 7 days.
Strict quality control with 10 dedicated QC specialists on production lines.
Comprehensive OEM service upon request.

Frequently Asked Questions

What materials are the pipe hangers made of?

Our swivel band hangers are primarily manufactured from high-quality Carbon Steel, ensuring strength and durability for industrial applications.

What size range do you offer for sprinkler pipe clamps?

We offer a wide range of sizes from 1/2" up to 8" to accommodate various piping requirements.

What surface treatments are available?

Available finishes include Blue-White Zinc Plated, Hot DIP Galvanized (HDG), Copper plated, Chrome, and Nickel plating.

What is the typical lead time for an order?

For quantities between 1 - 1000 pieces, the lead time is approximately 7 days. Larger orders are subject to negotiation.

Can you provide customized logos or certifications?

Yes, we provide OEM services and can apply customized logos. We can also provide UL & FM markings if the customer provides the authorized certificate.

Which industries are your products suitable for?

Our hangers and fasteners are ideal for the chemical industry, environmental projects, building construction, and general infrastructure piping.
