Basic Information
Cross-Section Shape
Rectangular
Transport Package
Sea Worth Package
Production Capacity
50000 Pieces/Year
Product Description
Spring supports and hangers are generally used in places where displacement stress needs to be reduced, such as power station boiler body, suspended parts of steam, water, smoke duct and burner of power plant, as well as petrochemical equipment and other places where displacement stress needs to be reduced.

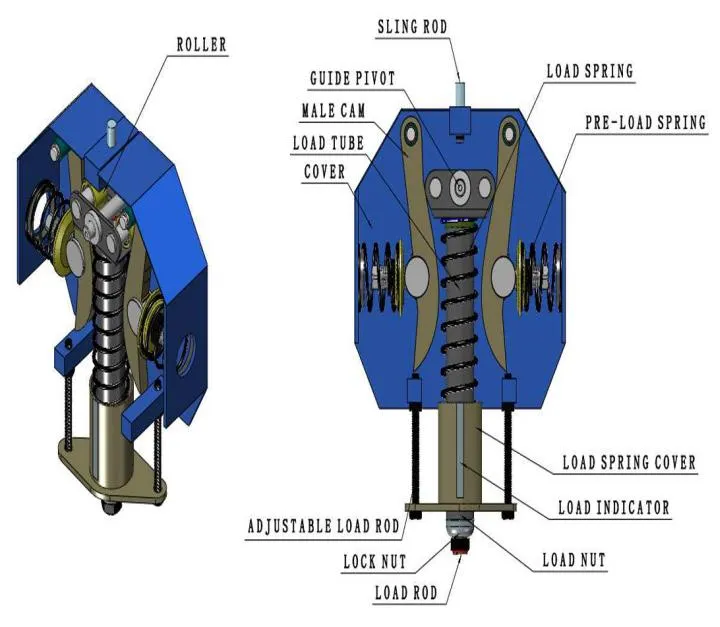

Composition of Variable Spring Hanger: The variable spring hanger is mainly composed of cylindrical spiral spring, displacement indicator board, shell and elastic nut. Variable spring support hangers are divided into seven types according to different installation methods:
Type A: Upper thread suspension
Type B: Single ear suspension
Type C: Binaural suspension
Type D: Adjusting shelving
Type E: Under adjustment shelving
Type F: Support shelving
Type G: Parallel suspension
Key Advantages
- Five travel ranges from 0 to 400 mm / 0 to 15.75 in, load group C to load group 9.
- Torque-free load application by covering the load and symmetry axis.
- Favourable power-weight ratios for reduced installation loads.
- Modular system simplifies selection (load groups and travel ranges).
- Readily adaptable to the installation situation due to suitable designs and standardised accessories.
- Secure connection of load chains due to load- and connection-compatible modular components.
Frequently Asked Questions
Where are spring supports and hangers typically used?
They are primarily used in power station boiler bodies, steam/water/smoke ducts, burners, and petrochemical equipment where displacement stress reduction is essential.
What are the main components of a variable spring hanger?
A standard variable spring hanger consists of a cylindrical spiral spring, a displacement indicator board, an outer shell, and an elastic nut.
How many installation types are available for these hangers?
There are seven distinct installation types, categorized from Type A to Type G, including suspension, shelving, and parallel types to suit various structural needs.
What is the maximum travel range for these supports?
Our spring supports offer five travel ranges, spanning from 0 mm up to 400 mm (0 to 15.75 inches).
What standards are the products manufactured to?
The products are manufactured according to ASME standards, ensuring high quality and safety for industrial applications.
Can the specifications be customized?
Yes, the specifications for these spring hangers and supports can be fully customized to meet specific project requirements and installation environments.
