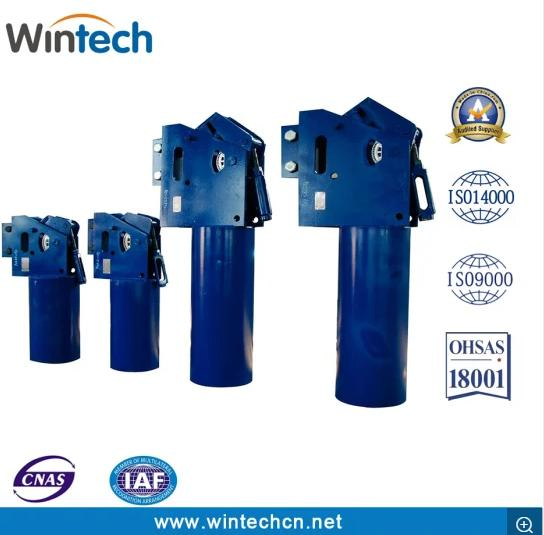

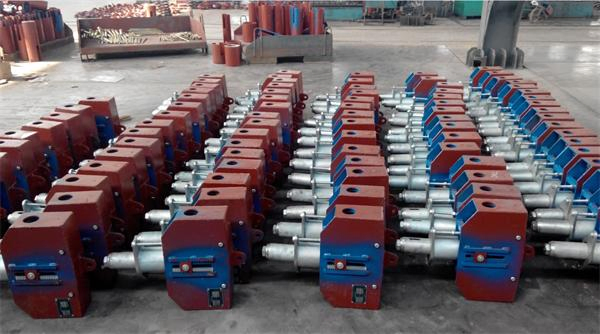

Constant Force Spring Support for Oil and Gas Pipeline

1 / 4

Constant Force Spring Support for Oil and Gas Pipeline

Customization:	Available
After-sales Service:	Online Technical Service
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Type:

Stainless Steel Heating Equipment

Certification:

ISO, ASME

Structure:

Vertical Type

Warranty Period:

One Year

Application:

Oil Refinery, Petroleum, Chemical Industry

Load Range:

500-400000n

Displacement:

50-500mm

Temperature:

-20~200℃

Capacity:

200,000 Kgs Per Month

Production:

600 sets/Year

Product Details

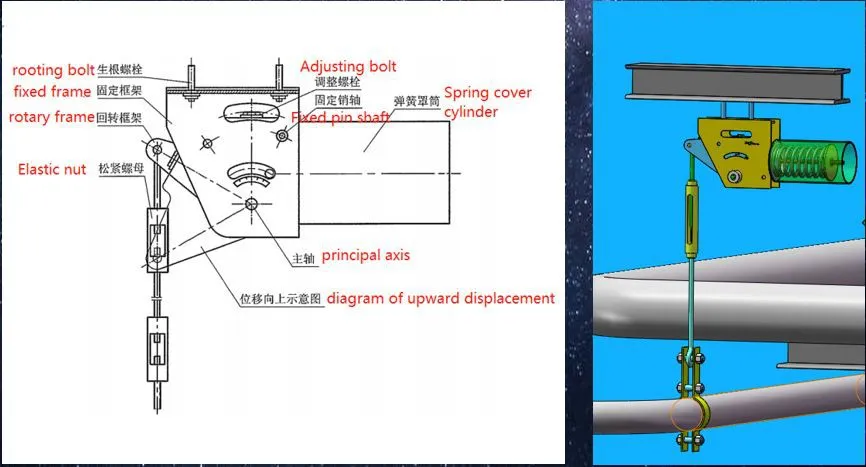

Structural Drawing of Constant Force Spring Support and Hanger

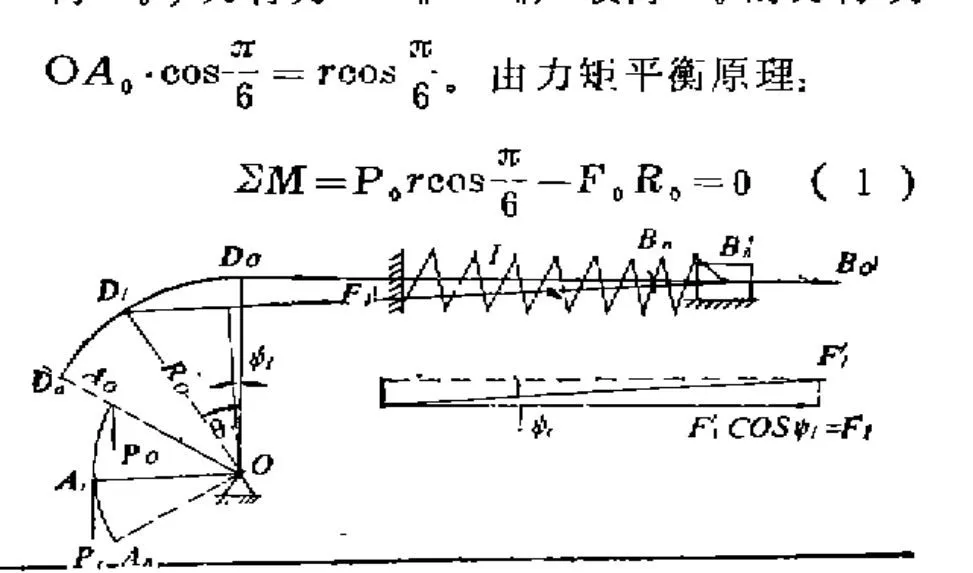

Moment Balance Principle

Parameters and Performance Indexes

Standard Load: The load during operation of supports and suspended pipes during design.
Cold Position (Blue Arrow): Position of the pipe in installation state.
Hot Position (Red Arrow): Position of the pipe in working state.
Displacement Direction: Upward "s", Downward "X".

Constancy & Load Deviation

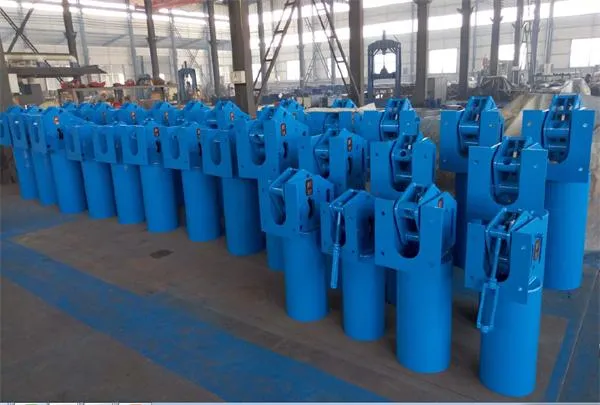

Installation Guidelines

Installation and positioning are carried out according to displacement direction and working load. Markings include blue arrows for installation and red arrows for working load. Locate pins should be removed after hydraulic testing is qualified.

Professional Service

Pre-sales Customization

We provide specialized product customization based on specific requests including spare parts, tank materials, output capacity, and pump specifications.

After-sales Support

One-year free warranty and life-long maintenance.
Operation and maintenance video guides.
Professional worker training assistance.
Daily online technical support.

Packaging & Delivery

Frequently Asked Questions

1. Are you a factory or a trading company? We are one of the largest heating furnace manufacturers in China, specializing in high-quality equipment.

2. Can we visit the factory before placing orders? Yes, we warmly welcome all customers to visit our production facilities.

3. What information is needed for an inquiry? Please provide working conditions, medium, temperature, pressure, material requirements, and dimensions.

4. What is the Minimum Order Quantity (MOQ)? We accept loose quantity orders, trial orders, and mixed orders to suit your project needs.

5. How is quality control handled? Quality is our priority. We perform strict testing before delivery and hold ISO9001 and ISO14001 certifications.

6. What is the standard warranty period for the equipment? We provide a comprehensive one-year free warranty followed by life-long maintenance services.
