ASME Standard Variable/Constant Spring Support and Hanger for Piping Fitting

Customization:	Available
Type:	Springtyo
Delivery:	60 Days

📊

Basic Info

Model NO.

JN-PS02

Design Standard

ASME

Application Field

Oil, Gas, LNG, Metallurgy, Refinery, Power Plant

Displacement

60-400mm

Load

123-364320n

Style

PA/Pb/PC/Pd

Displacement Direction

Up/Down

Constant Rate

≤3%

Load Difference

≤5%

Transport Package

Wooden Pallet, Customized

HS Code

790890

Production Capacity

800 Sets / Year

📦

Packaging & Delivery

Package Size

1300.00cm * 700.00cm * 500.00cm

Package Gross Weight

35.000kg

📝

Product Description

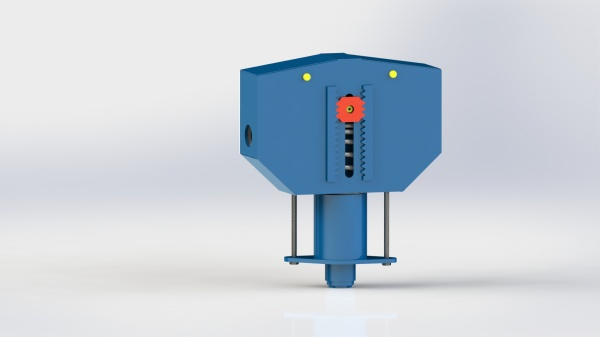

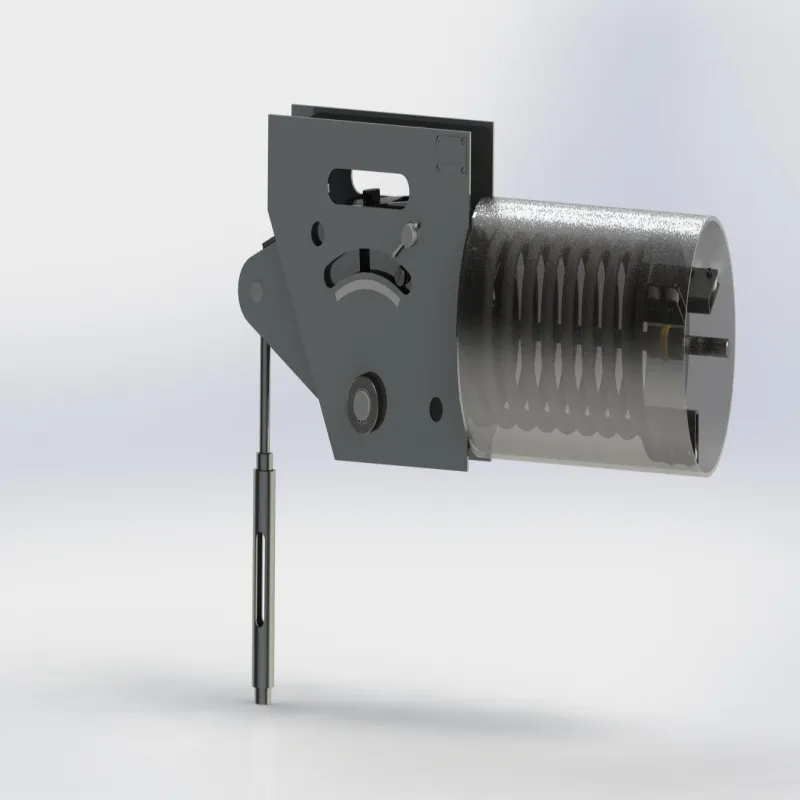

Constant Force Pipe Spring Support and Hanger

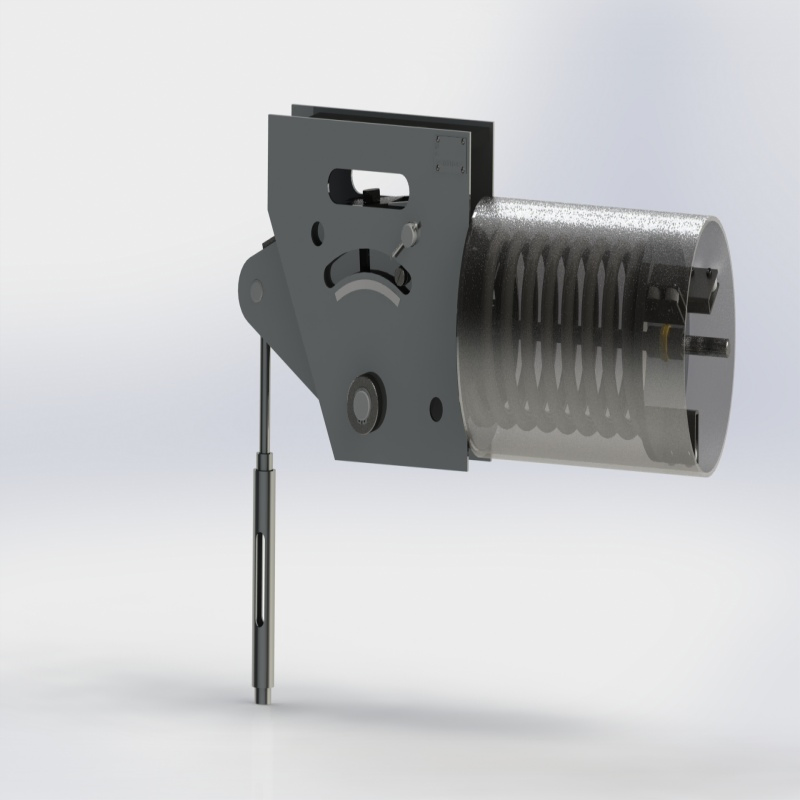

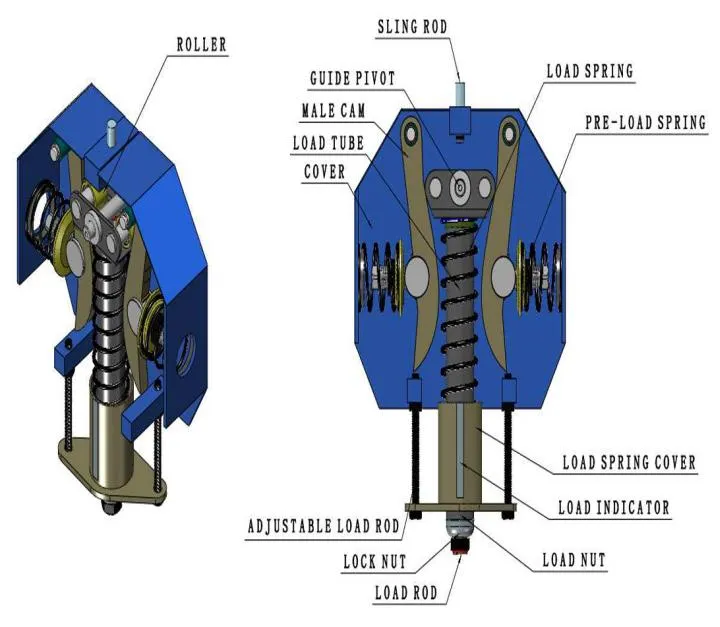

The Constant Force Spring Supports (Constant Supports) provide a constant supporting force through the total travel of the support. The simplified construction, together with the compression spring working in conjunction with a bell crank lever, achieves a mathematically perfect counter-balancing of spring and load moments about the main pivot point.

Constant Load Spring Supports are typically used when large vertical movements are present in critical piping to avoid the transfer of residual stresses to other process piping systems.

Model No.	Vertical constant force spring hanger	Technics	Casting or Forging
Connection	Welding	Shape	Equal
Load Range	500-400000N	Displacement Range	50-500mm
Temperature Range	-20°C~ +200°C	Specification	ISO/GB
Transport Package	Wooden Box/Case/ Pallet	HS Code	8402900000

🖼️

Product Display

⚙️

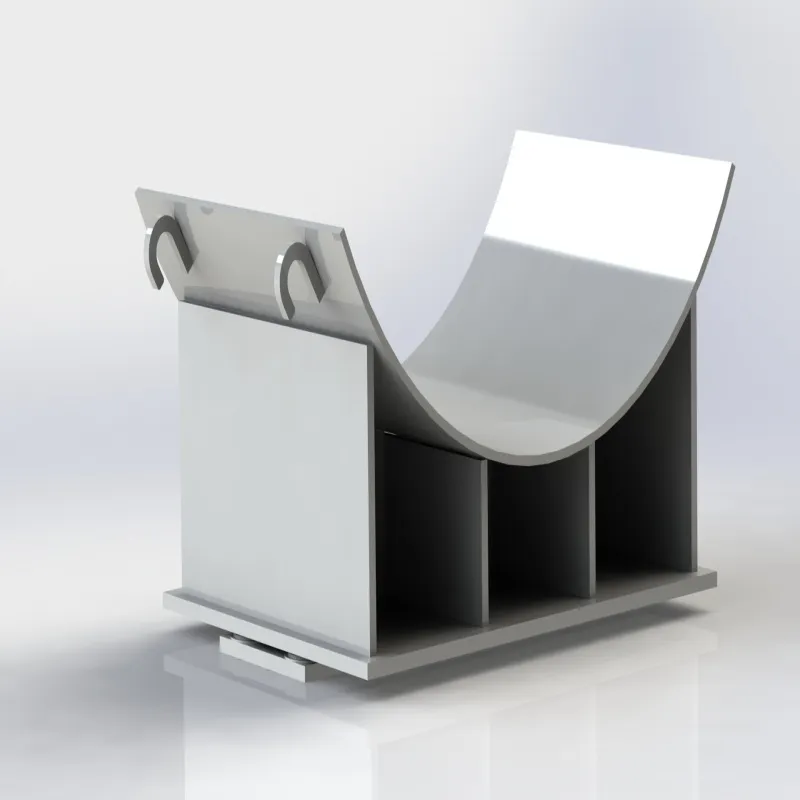

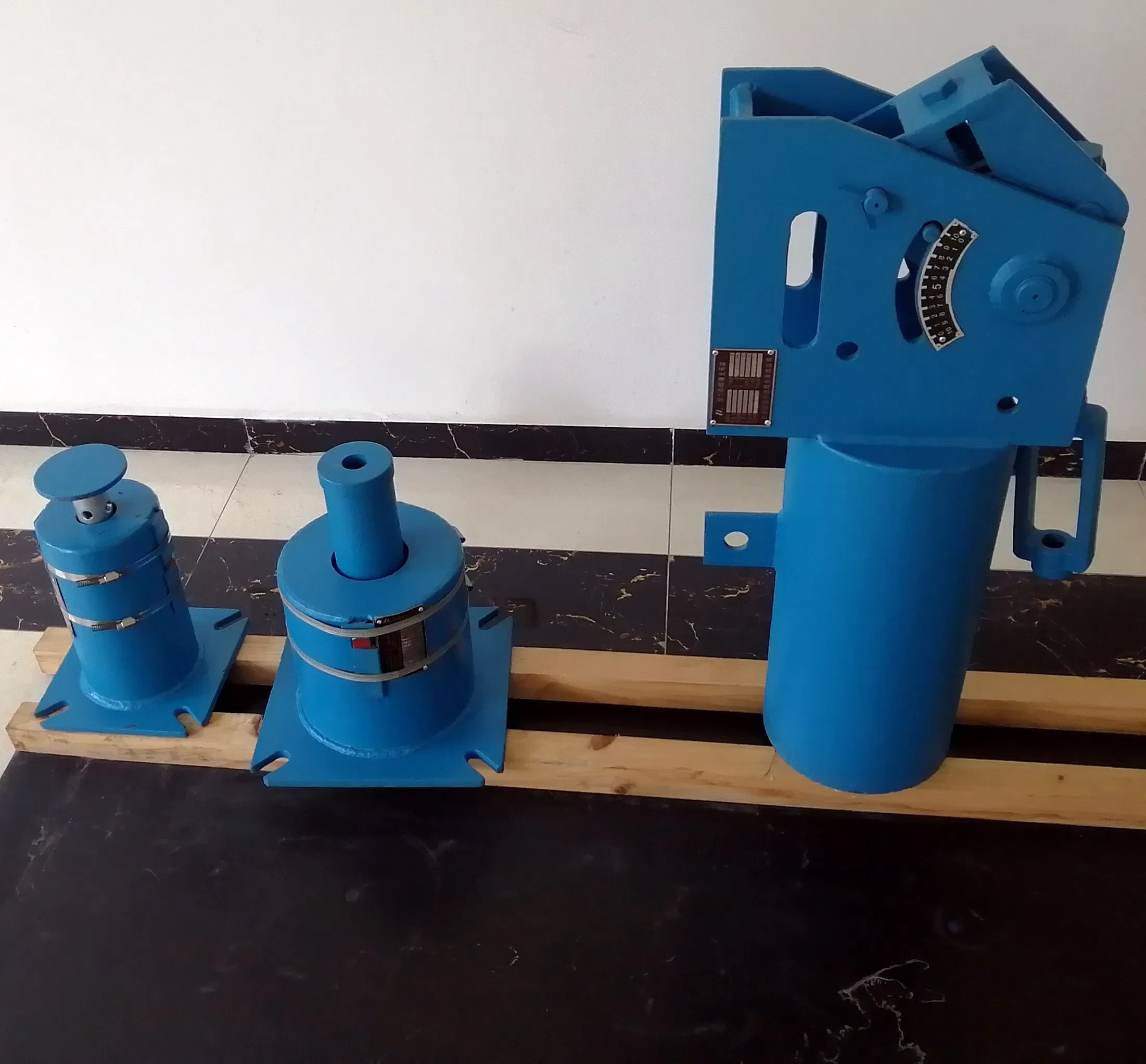

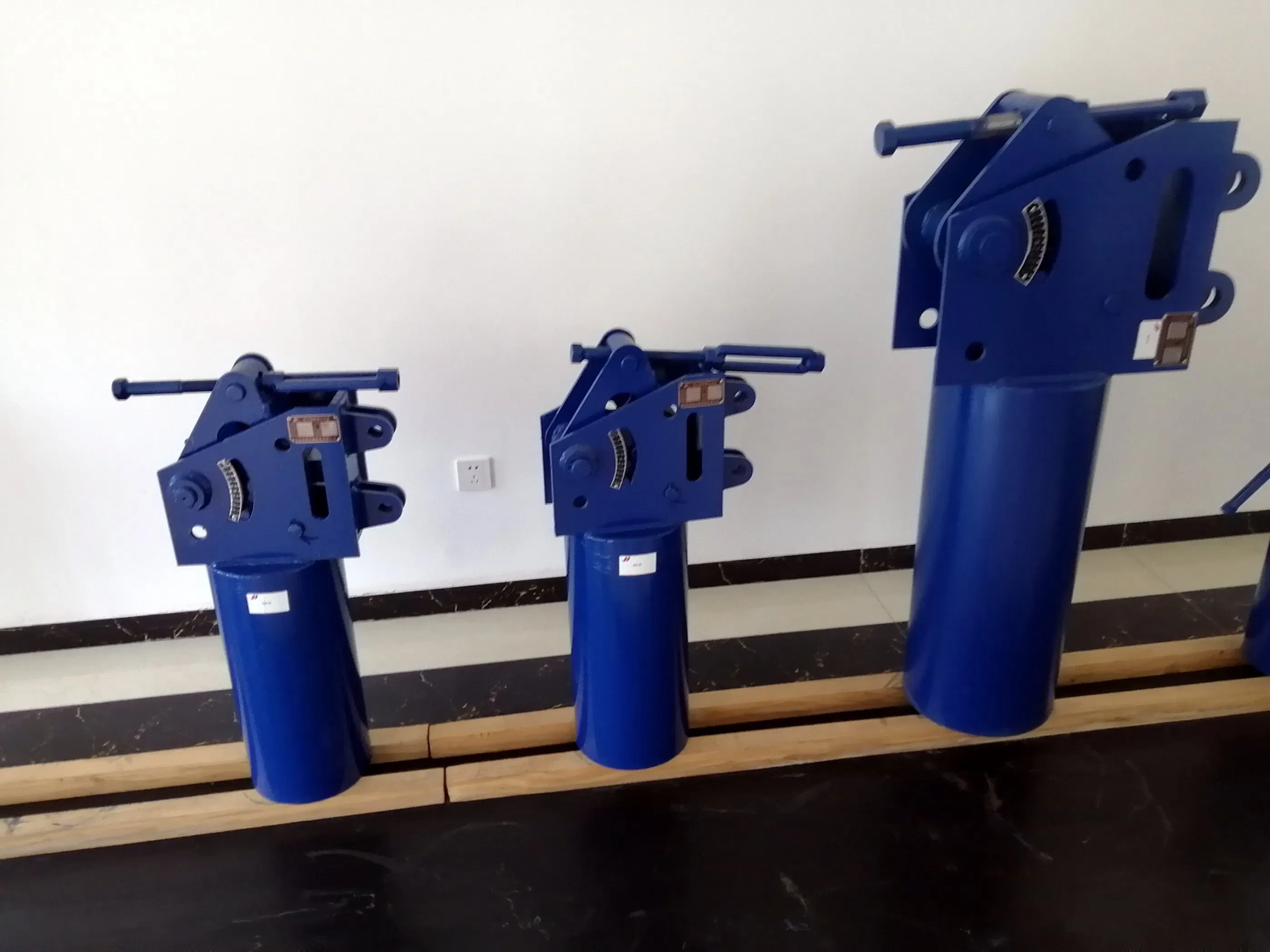

Composition & Installation Types

Composition of Variable Spring Hanger: mainly composed of cylindrical spiral spring, displacement indicator board, shell and elastic nut.

Type A: Upper thread suspension

Type B: Single ear suspension

Type C: Binaural suspension

Type D: Adjusting shelving

Type E: Under adjustment shelving

Type F: Support shelving

Type G: Parallel suspension

🚀

Key Advantages

✔ Five travel ranges from 0 to 400 mm / 0 to 15.75 in, load group C to load group 9.

✔ Torque-free load application by covering the load and symmetry axis.

✔ Favourable power-weight ratios for reduced installation loads.

✔ Modular system simplifies selection (load groups and travel ranges).

✔ Readily adaptable to installation situations due to standardised accessories.

✔ Secure connection of load chains due to load-compatible modular components.

❓

Frequently Asked Questions

What is the main function of a Constant Force Spring Support?

The primary function is to provide a constant supporting force throughout the full range of vertical movement in a piping system, preventing the transfer of stresses to other components.

What standards do these hangers comply with?

Our spring supports and hangers are designed and manufactured in accordance with ASME standards and ISO/GB specifications.

In which industries are these spring supports commonly used?

They are widely applied in Oil, Gas, LNG facilities, Metallurgy, Refineries, and Power Plants where critical piping systems are present.

What is the available displacement range for the JN-PS02 model?

The displacement range is typically between 60mm and 400mm, though custom requirements can be accommodated.

What temperature range can these supports withstand?

They are designed to operate effectively in temperatures ranging from -20°C to +200°C.

What are the load variations for these hangers?

The constant rate is maintained within ≤3%, and the load difference is kept within ≤5% to ensure stability and safety.
