304 Stainless Steel Single Ear Pinch Hose Clamps

1 / 5

304 Stainless Steel Single Ear Pinch Hose Clamps

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

hose clamp

Standard

DIN, ANSI, GB, JIS, Bsw, ISO

Condition

New

Product Name

Single Ear Stepless Hose Clamp

Band Width

5mm, 7mm

Band Thickness

0.5mm, 0.6mm

Technics

Casting

Package

Carton and Pallet

Specification

6-7mm to 19.4-22.6mm

HS Code

7602000010

Capacity

250,000 Pieces Per Month

304 Stainless Steel Single Ear Pinch Hose Clamps

This stainless steel Stepless one-ear hose clamp is designed for professional clamping of hoses. The unique dimple or indentation on the clamp ear significantly increases clamping force for a more secure hold. Featuring a mechanical interlock, this clamp ensures it remains securely closed while providing superior corrosion resistance compared to traditional spot-welds.

The ear visibly deforms when clamped correctly, offering immediate assurance of proper installation. Constructed entirely from high-grade stainless steel, it is engineered to resist scaling and corrosion, making it ideal for food processing, commercial fishing, and automotive industries where exposure to salt water or corrosive elements is common.

Key Features & Advantages

⚙️

360° Stepless Design: No protrusions or gaps in the inner ring, ensuring uniform compression.

📏

Narrowband Design: Provides a more concentrated sealing pressure for leak-proof performance.

✨

Polished Edges: Smoothly finished edges prevent accidental damage to the hose during installation.

🌀

Cochlear Design: Ensures continuous clamping even during extreme temperature fluctuations or vibrations.

🛡️

Corrosion Resistant: Mechanical interlock design outlasts spot-welded alternatives in harsh environments.

Applications

These professional-grade clamps are perfect for: Indoor hot water pipes, air conditioning systems, petrochemical transport pipelines, automotive fuel lines, and beverage dispensing equipment.

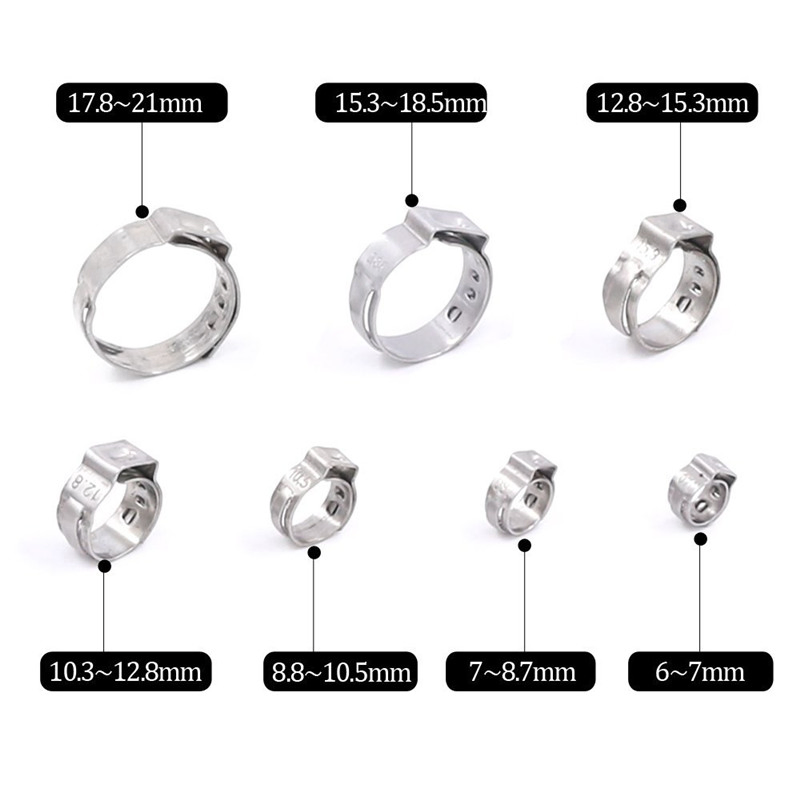

Specifications Table

Size (mm)	Thickness * Width (mm)
6.0-7.0	0.5 * 5
7.0-8.7
7.8-9.5
8.8-10.5
9.4-11.9	0.6 * 7
10.3-12.8
11.5-14.0
12.8-15.3
14.1-16.6
15.0-17.5
16.0-19.2
17.8-21.0
19.4-22.6

Frequently Asked Questions

What does "Stepless" mean in a hose clamp?

Stepless means the inner circumference of the clamp is a continuous circle without any gaps or steps. This ensures a 360-degree uniform seal around the hose, preventing leaks in high-pressure applications.

Why is 304 Stainless Steel used for these clamps?

304 Stainless Steel offers excellent corrosion resistance and durability. it is suitable for various environments, including those involving moisture, chemicals, and mild salt exposure.

Are single ear hose clamps reusable?

Typically, single ear pinch clamps are designed for permanent installation. Once the "ear" is crimped, it cannot be loosened and reused without compromising the integrity of the clamp.

How do I know if the clamp is installed correctly?

A properly installed clamp will show a visible deformation of the "ear." The ear should be crimped down using professional pincers to ensure the mechanical interlock is fully engaged.

What is the advantage of the "cochlear" design?

The cochlear design allows the clamp to maintain a constant tension even when the hose expands or contracts due to temperature changes or mechanical vibrations.

Can these clamps be used in saltwater environments?

Yes, the 304 stainless steel construction and mechanical interlock make them highly resistant to corrosion, making them suitable for commercial fishing and marine applications.
