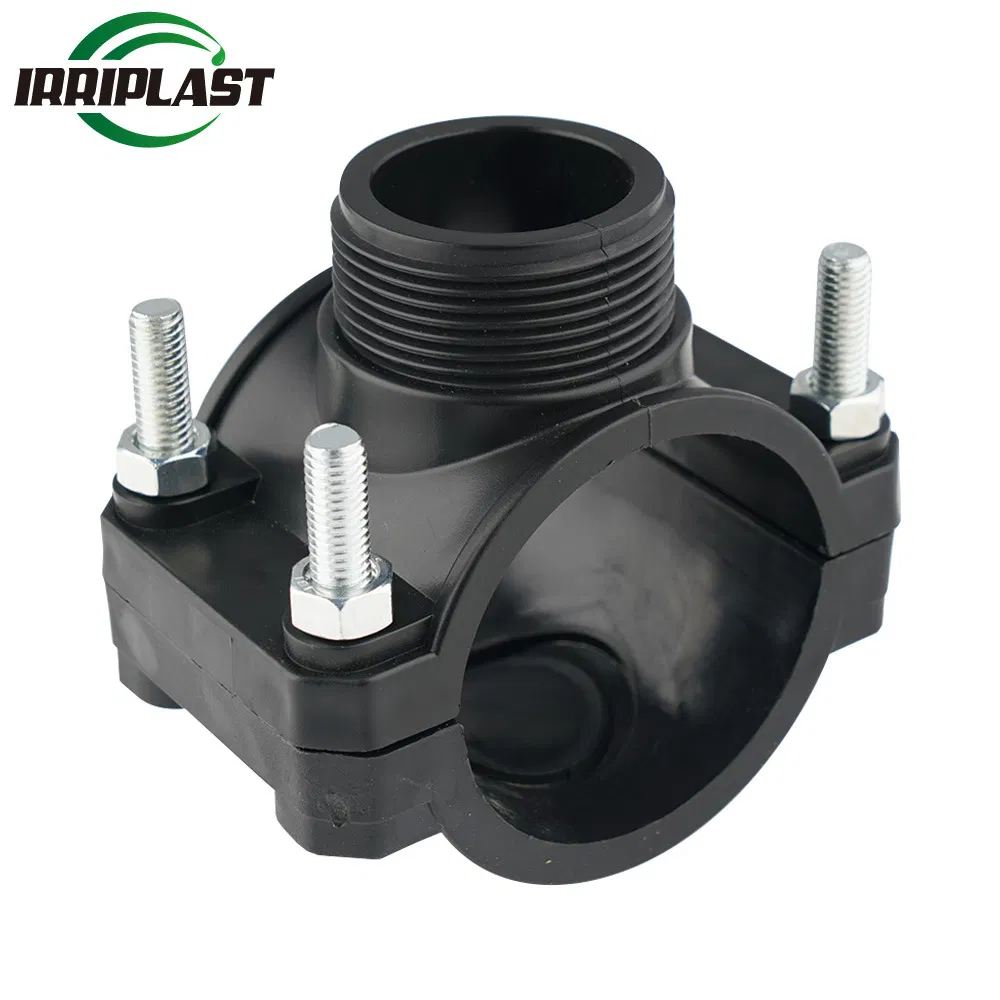

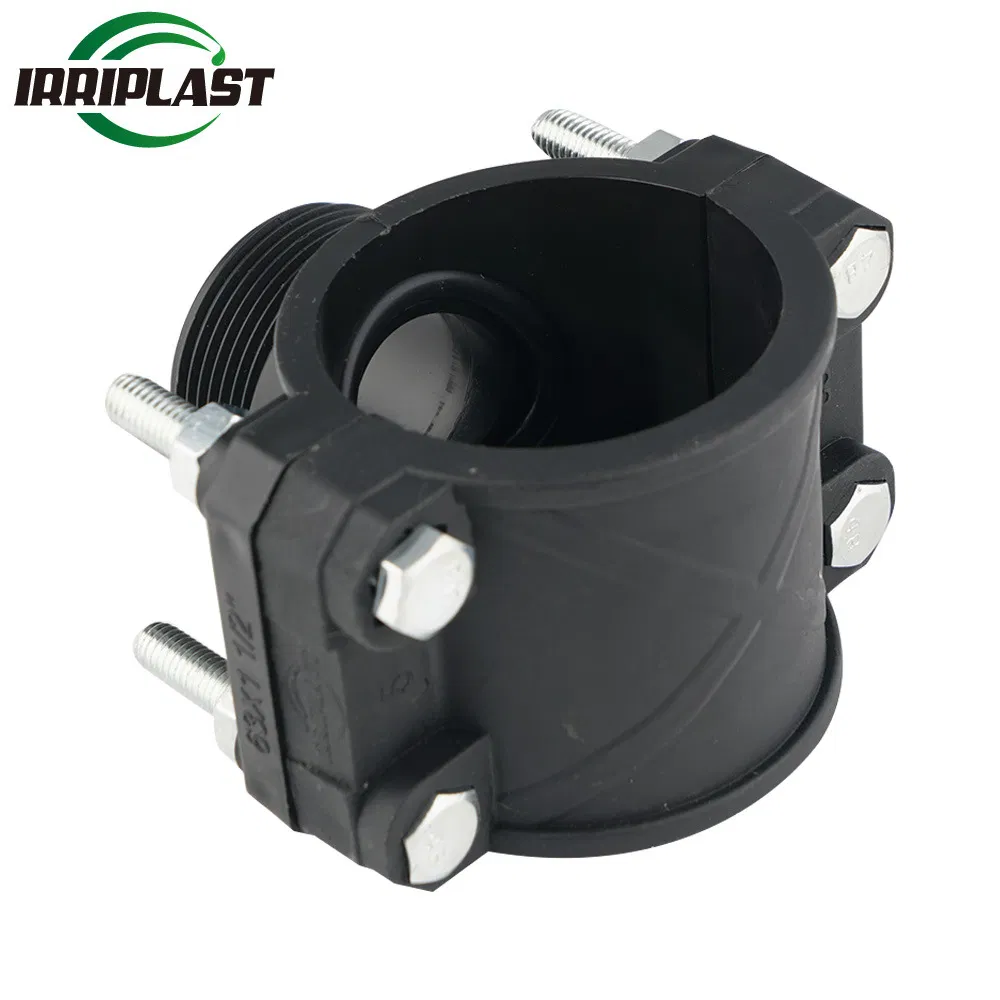

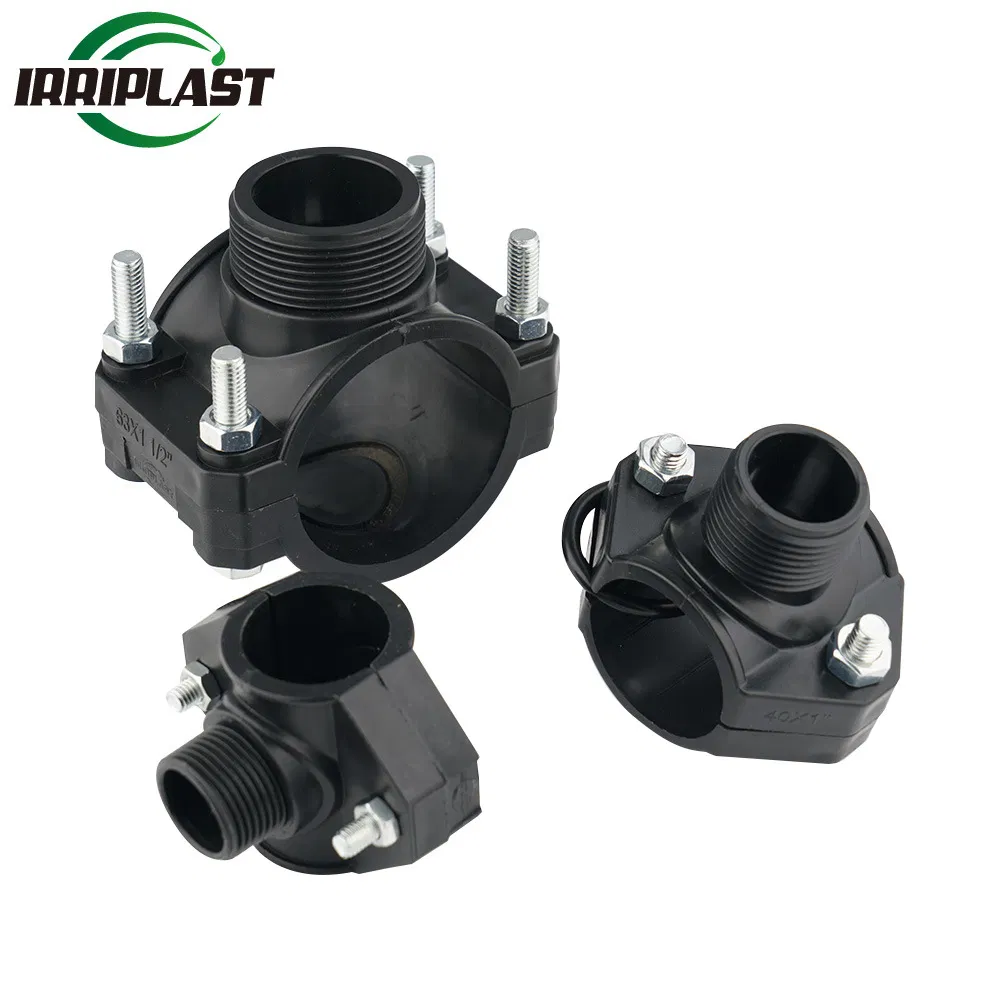

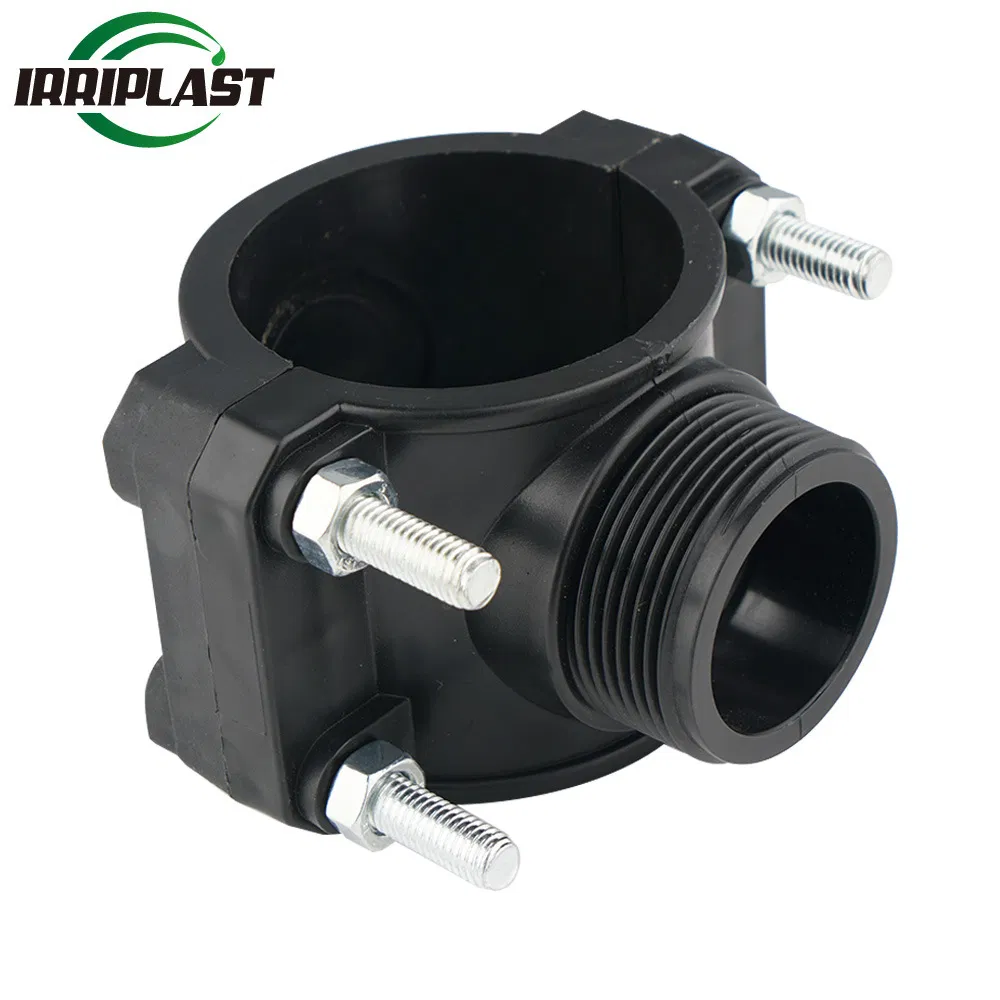

Wholesale Supplier Quick Connect Pipe HDPE Clamp Saddles Plastic Male Saddle
The clamp saddle line is manufactured from high-quality raw materials offering excellent resistance to impact. Designed for side outputs on Polyethylene pipes (PE), these saddles are available in various sizes (Item 4001/4002/4003/4004) with single or double outputs. They support coupling diameters from 20mm to 315mm with threaded outputs (1/2" to 2"), equipped with 2 or 4 bolts depending on the diameter.

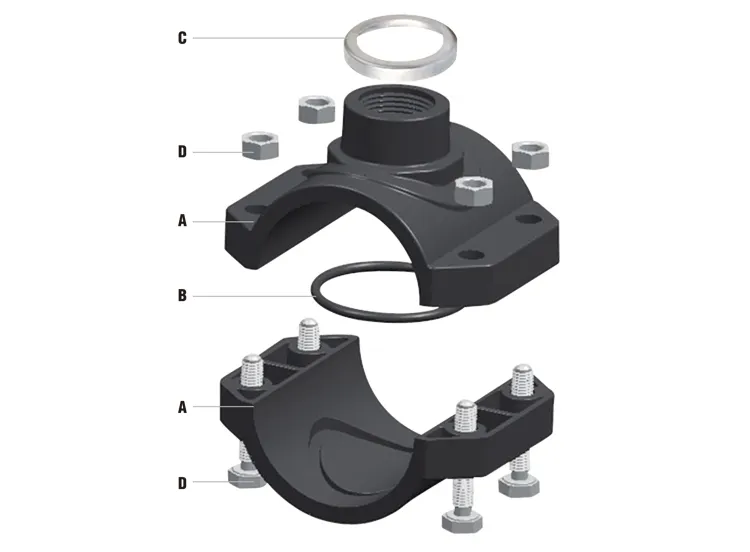

| Parts | Material |
|---|---|
| Body and cover (A) | Black mastered polypropylene copolymer, high UV stabilization |
| Gasket (B) | Acrylonitrile elastomeric Rubber (NBR) |
| Reinforcing ring (C) | Metal ring for female threaded from 1/2'' to 2'' |
| Bolts (D) | Chromium-plated galvanized steel screws and nuts |

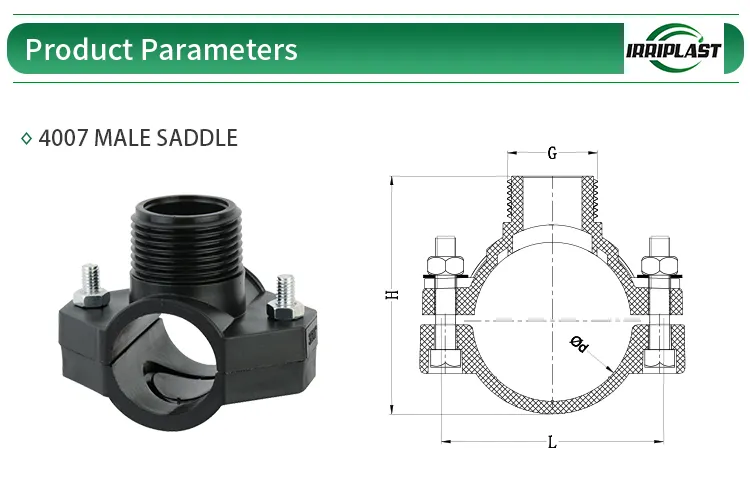

| Description | Code | Size | Weight (g/pc) | PCS/BAG | PCS/CTN | Bolts & Nuts | Carton Size |
|---|---|---|---|---|---|---|---|
| Male Saddle | 4007 | 32*1/2 | 61 | 15 | 240 | 2 | 48*38*38cm |
| 4007 | 32*3/4 | 60 | 15 | 240 | 2 | 48*38*38cm | |
| 4007 | 40*1 | 100 | 10 | 200 | 2 | 48*38*38cm | |
| 4007 | 63*11/2 | 204 | 4 | 96 | 4 | 48*38*38cm | |
| 4007 | 110*2 | 365 | 1 | 48 | 4 | 48*38*38cm |

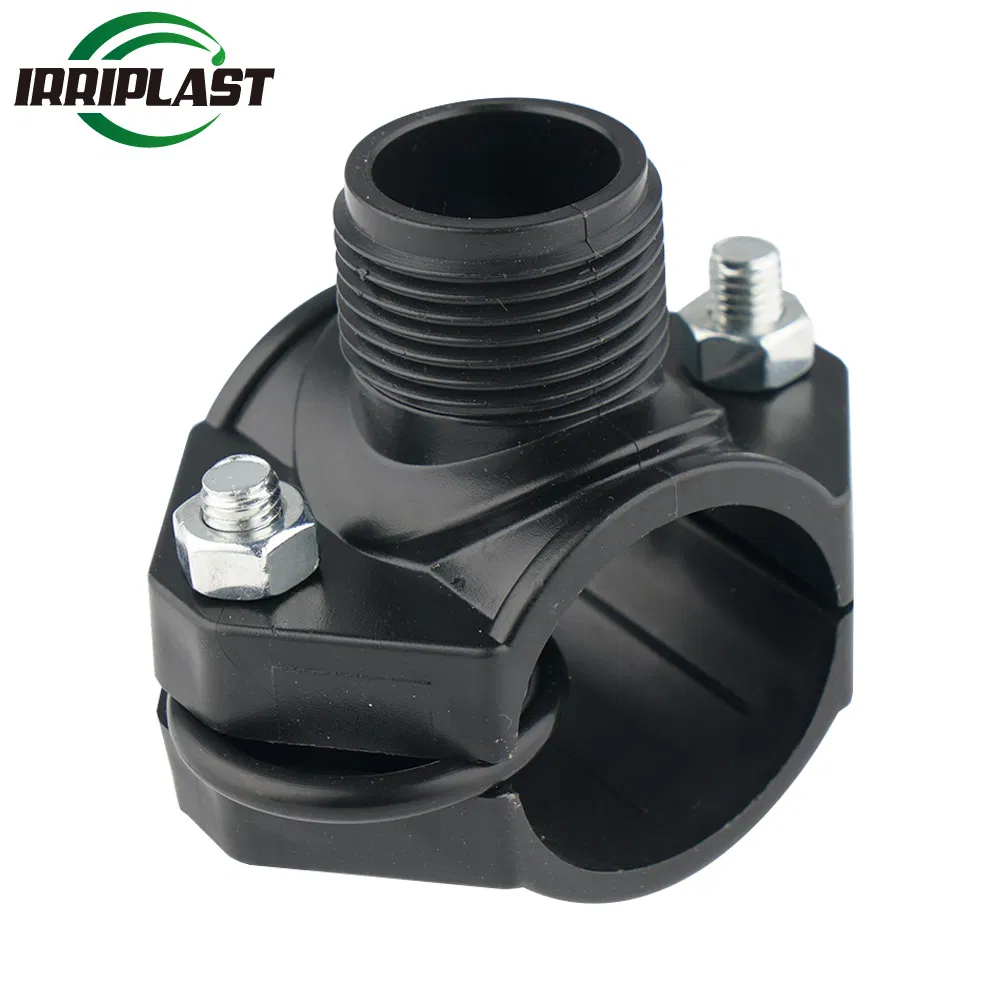

Sanitary Prescription: Suitable for conveying food fluids as materials conform to international standards.
Working Pressure: Maximum working pressure from 4 to 16 bar at 20 ºC.

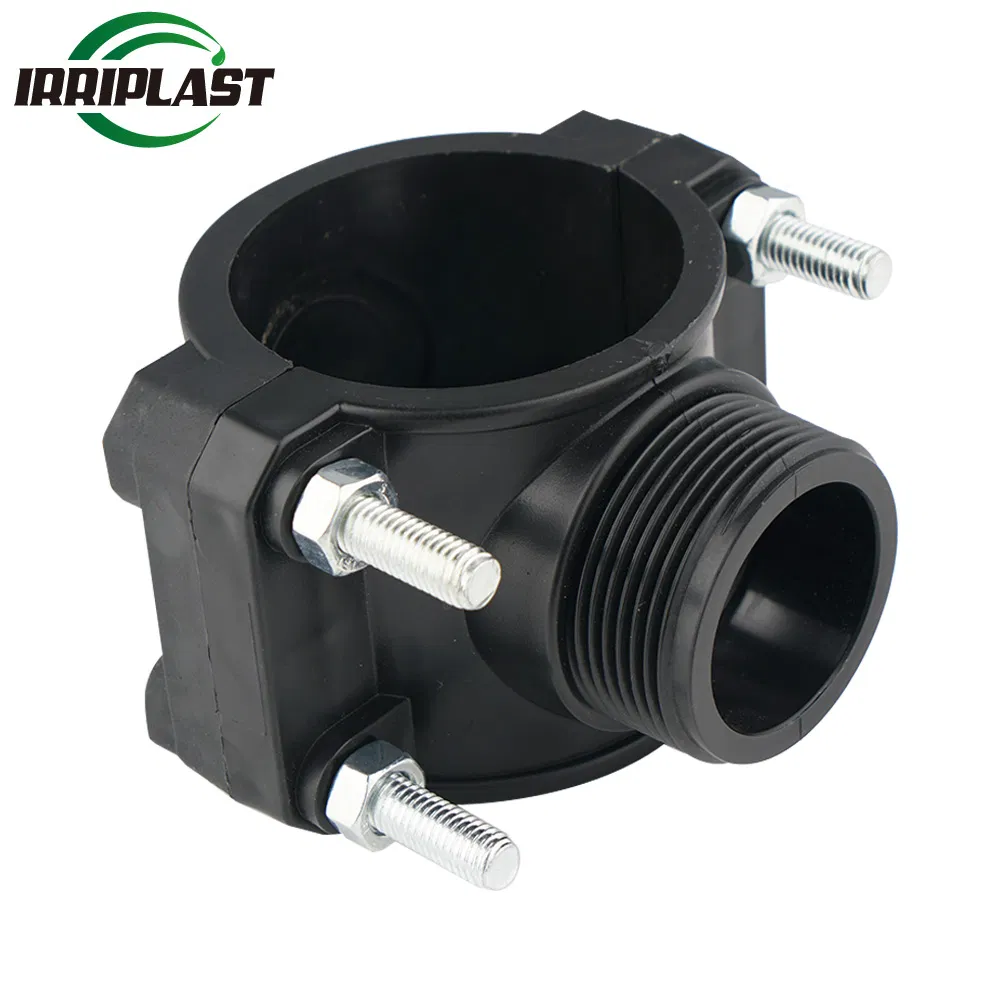

Reference Standards: Pipes (UNI7990, DIN8074, UNI EN12201), Threads (UNI ISO7/1, ANSI ASME B1-20.1), International (ISO 13460).
Applications: Structure Engineering, Water Supply Systems, Agriculture Irrigation.

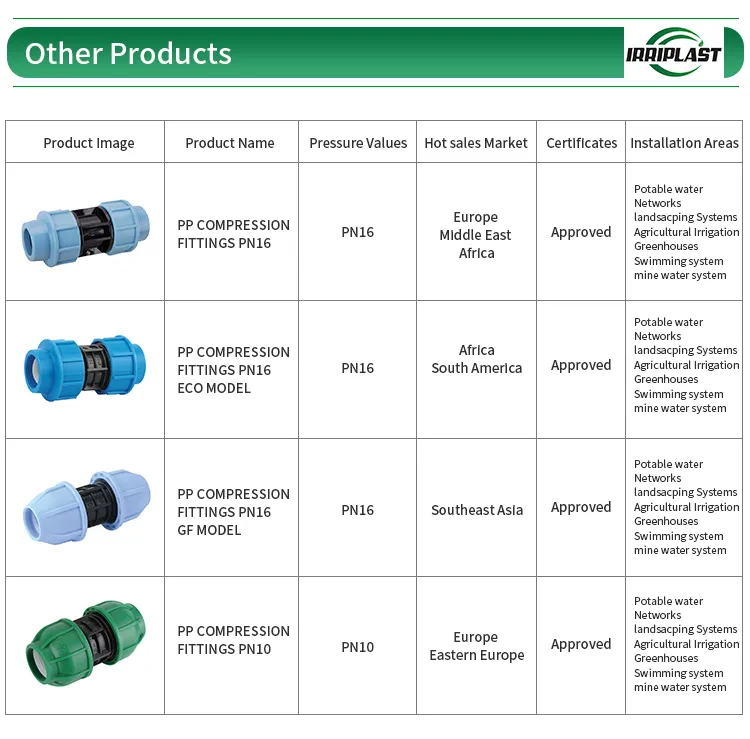

| PPR Pipe & Fittings | PP Union Ball Valves |
