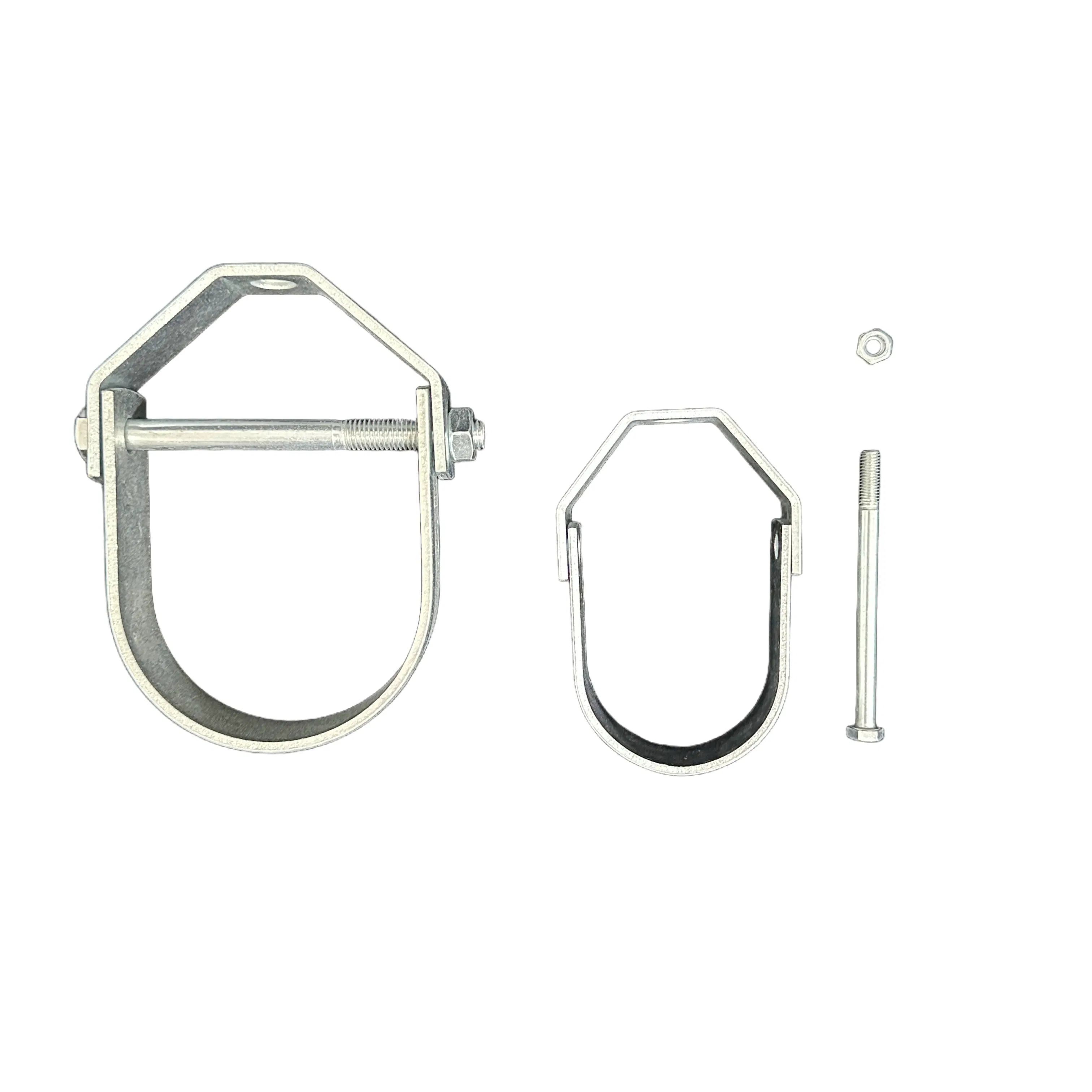

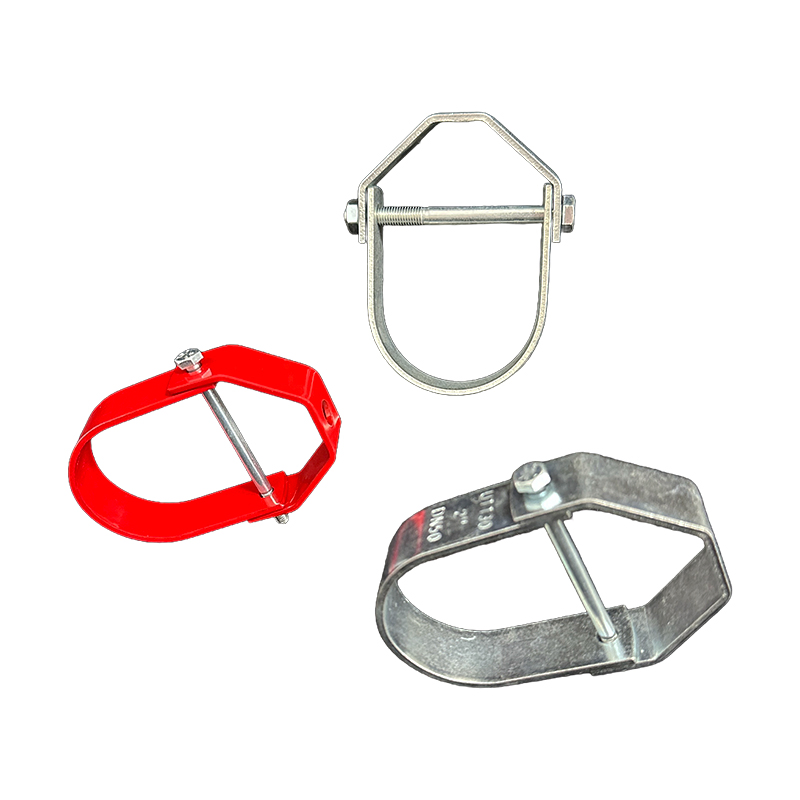

The product features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools or fasteners.

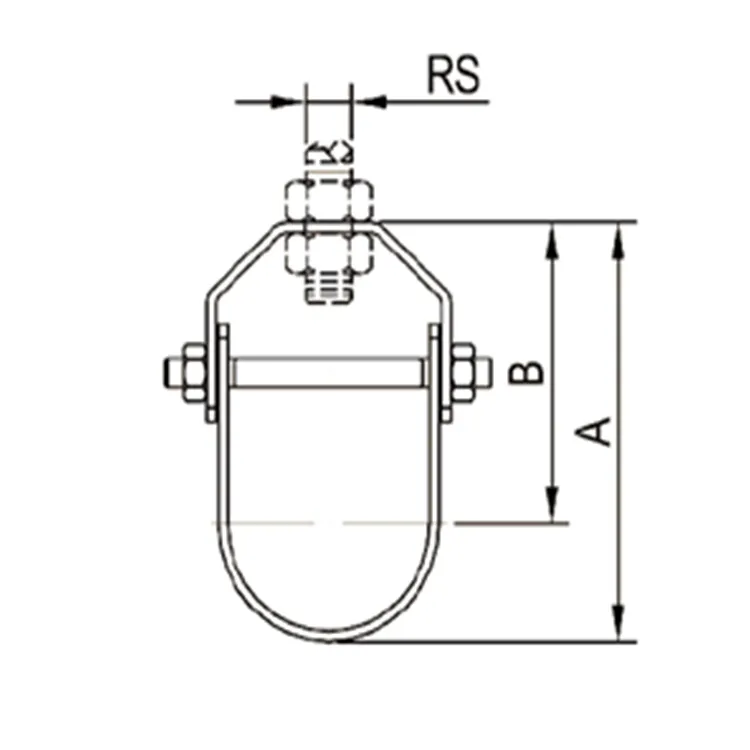

| Size (in/mm) | B (in/mm) | C (in/mm) | D (in/mm) | W (in/mm) | Max Load (lbs/KN) |
|---|---|---|---|---|---|
| 1/2" (DN15) | 1.57 / 39.4 | 1/4" / M6 | 1/2" / 21.3 | 0.87 / 22 | 750 / 3.34 |
| 1" (DN25) | 1.62 / 40.6 | 1/4" / M6 | 1" / 33.4 | 0.87 / 22 | 750 / 3.34 |
| 2" (DN50) | 2.13 / 53.5 | 1/4" / M6 | 2" / 60.3 | 0.98 / 25 | 750 / 3.34 |
| 4" (DN100) | 3.31 / 83.2 | 1/2" / M12 | 4" / 114.3 | 1.18 / 30 | 1500 / 6.67 |
| 8" (DN200) | 5.64 / 141.6 | 5/8" / M16 | 8" / 219.1 | 1.57 / 40 | 4050 / 18.02 |
| 12" (DN300) | 6.14 / 154 | 3/4" / M20 | 12" / 323.9 | 1.97 / 50 | 7900 / 35.14 |

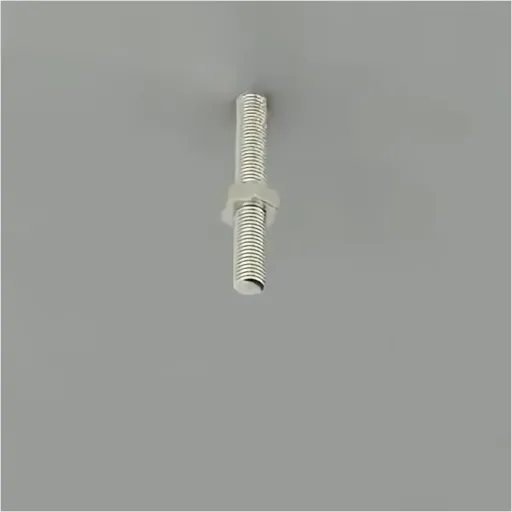

Secure the screw to the mounting base surface (e.g., ceiling), then install the nut onto the screw.

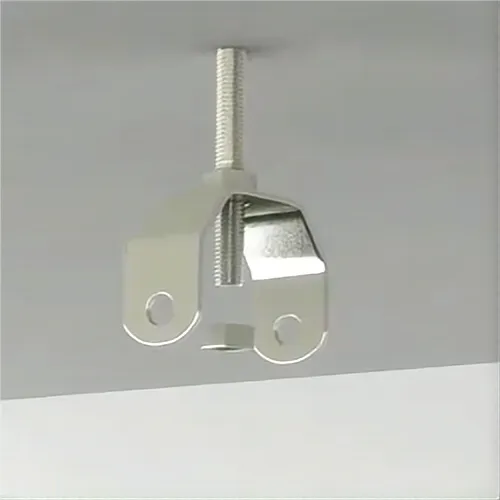

Install the main part of the clevis hanger onto the screw, and initially fix it using the nut.

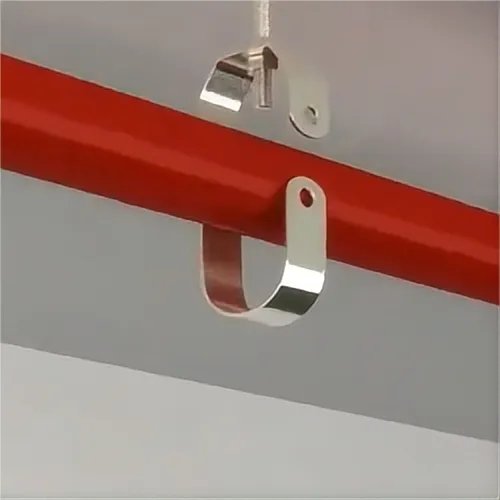

Adjust the hanger to align with the pipe. Place the pipe into the slot of the clevis hanger.

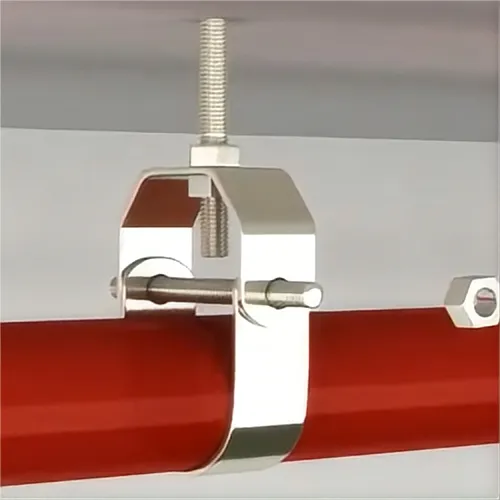

Install U-shaped clamps and fasteners to lock the entire device, ensuring a firm connection to the pipeline.
Our products pass UL and FM industry certification standards, ensuring safety and compliance.

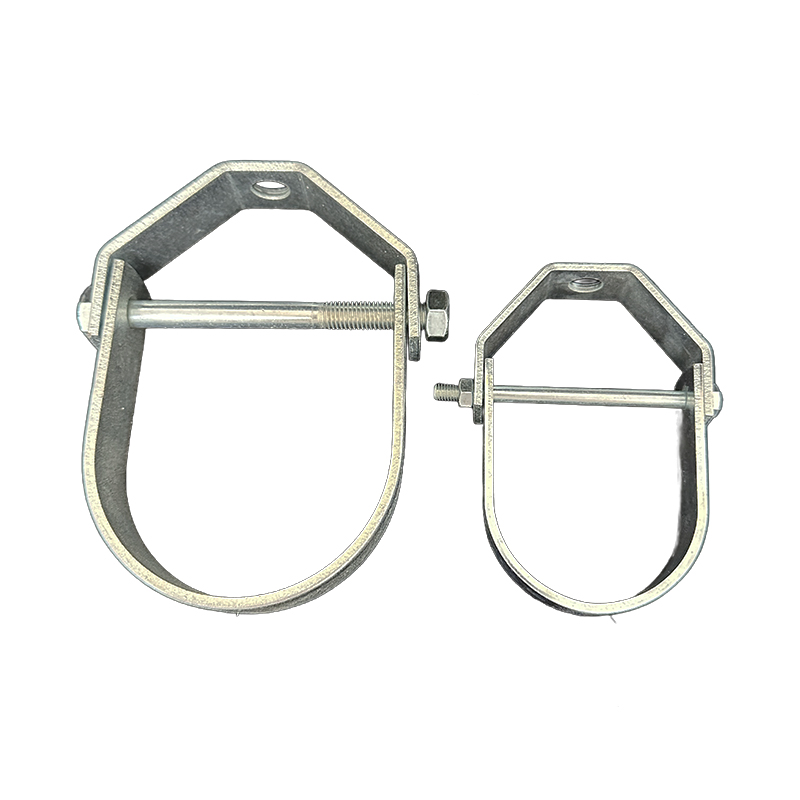

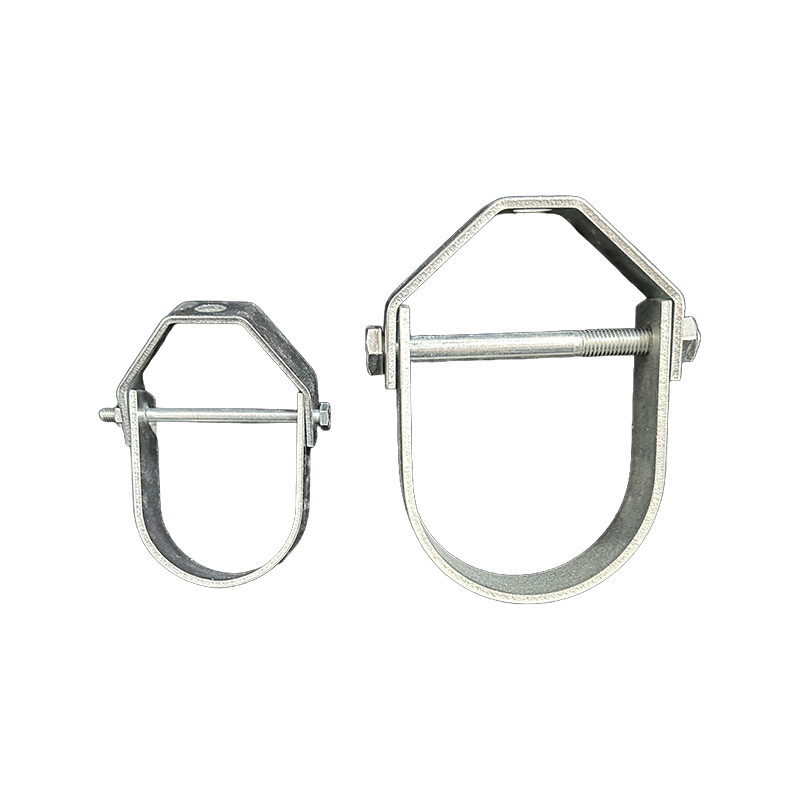

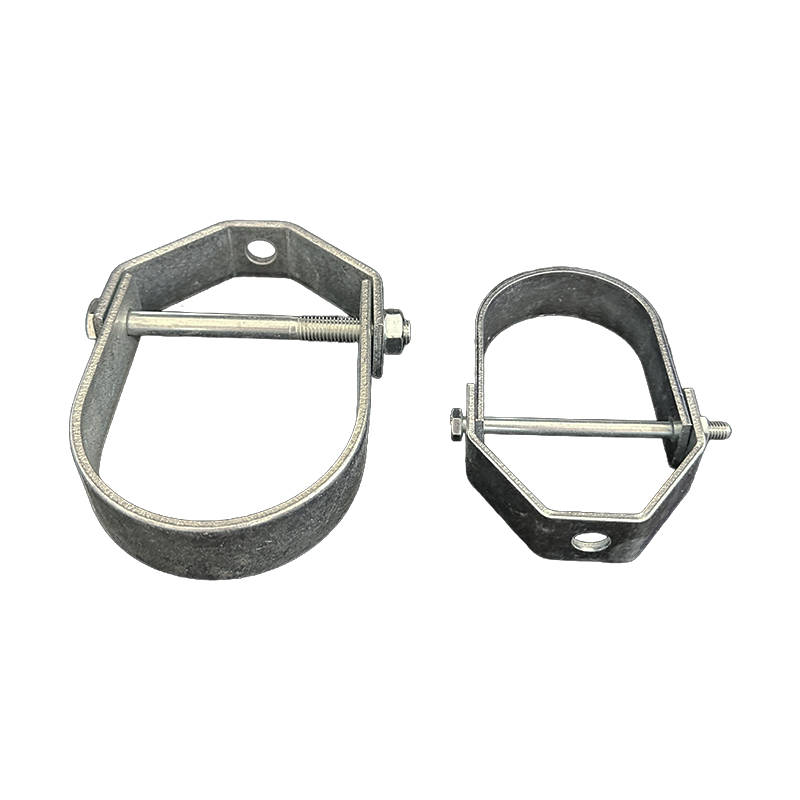

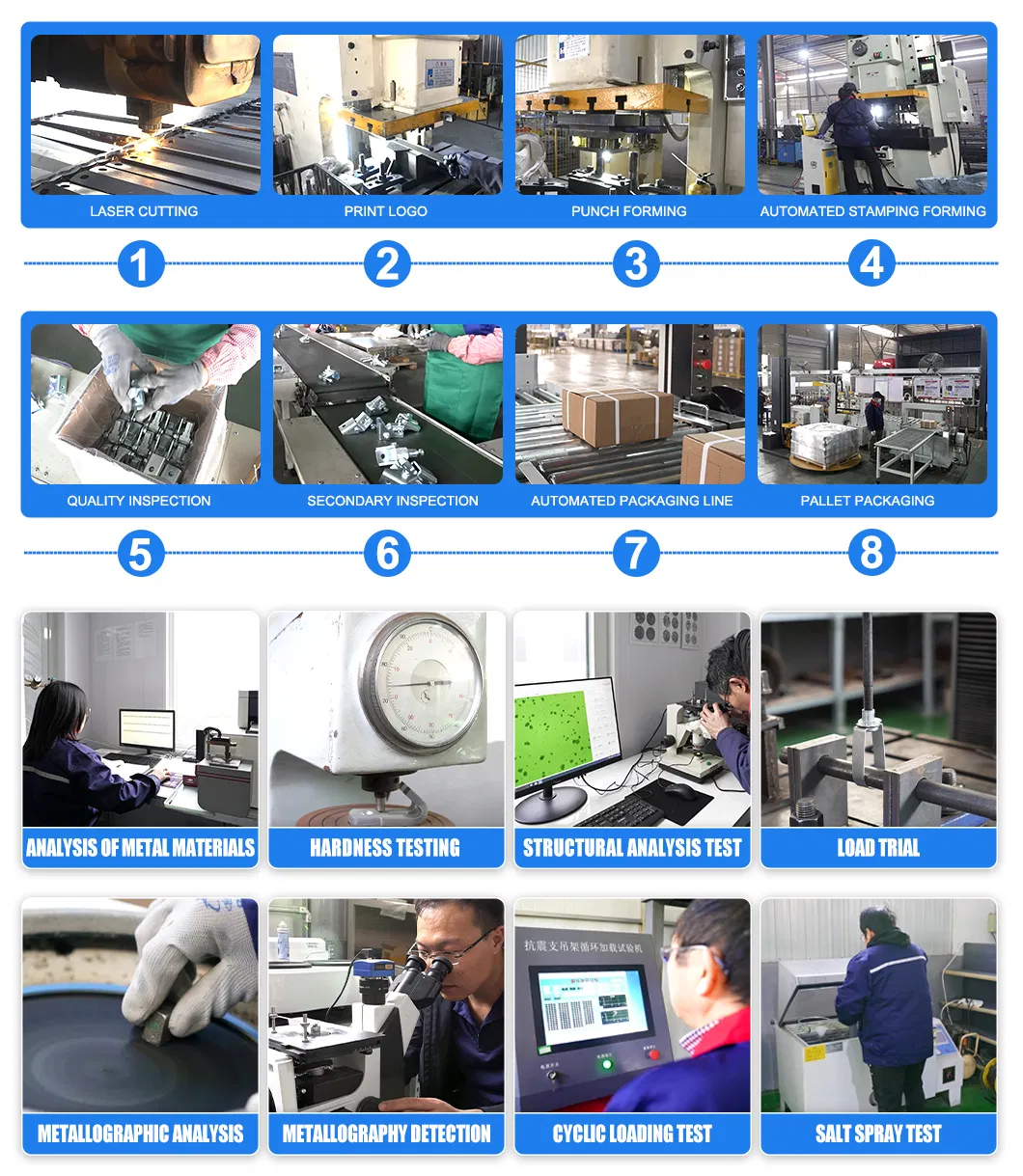

Produced using high-quality carbon steel, ductile iron, or stainless steel via casting or laser forging.
Galvanized finish provides a beautiful, smooth surface with excellent anti-corrosion properties for long service life.
We provide OEM and ODM services based on engineering drawings for specialized support systems.
