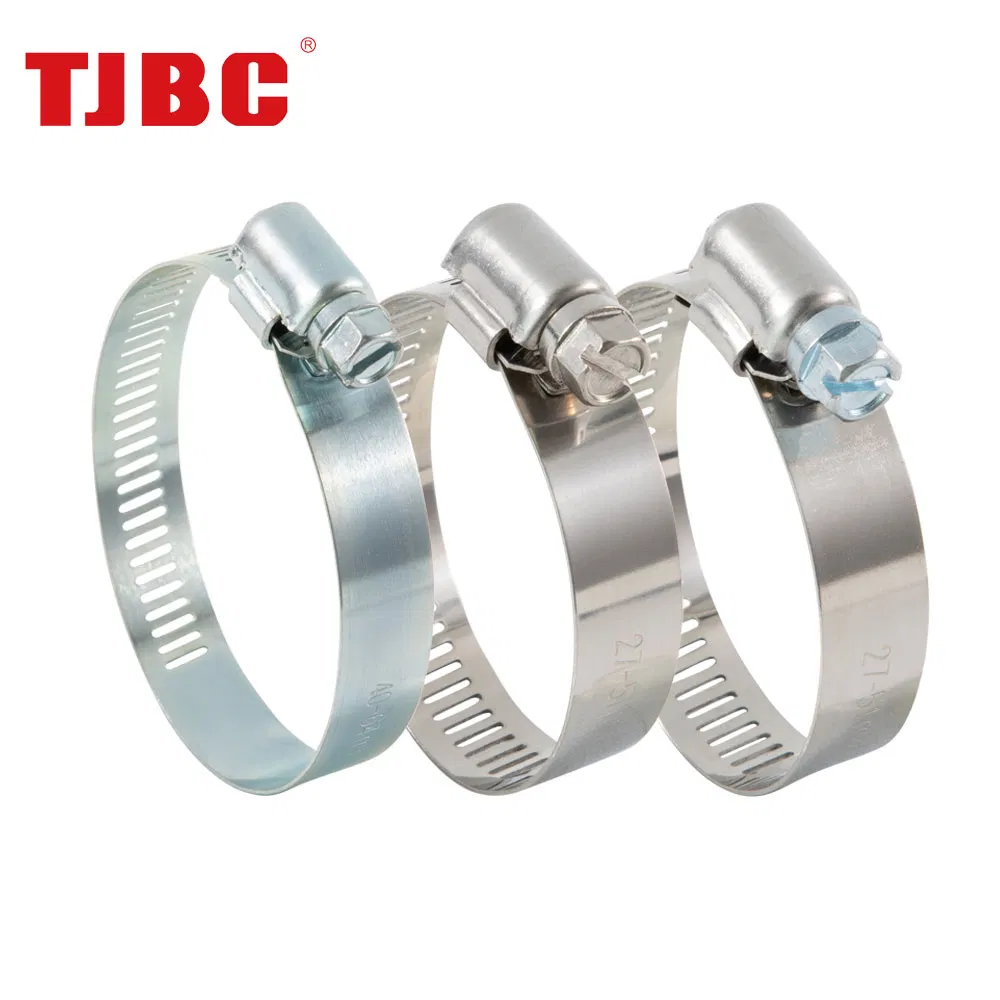

12.7mm Bandwidth W2 Stainless Steel Worm Gear American Type Flexible Marine Grade Hose Clamp Hose Clip Adjustable Pipe Tube Clamps for Telescope, 13-23mm

1 / 5

12.7mm Bandwidth W2 Stainless Steel Worm Gear American Type Flexible Marine Grade Hose Clamp Hose Clip Adjustable Pipe Tube Clamps for Telescope, 13-23mm

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📦 Product Specifications

Model NO.

MS01B8

Product Name

American Type Hose Clamp

Connection

Hose Clamp

Surface Treatment

Galvanized Sheet

Head Type

Round

Type

Perforated Hose Clamp

Scope of Application

Auto Parts

Certification

ISO/TUV/BSCI/IATF

Specification

13-23mm

HS Code

732690

Production Capacity

10000 PCS/Day

Transport Package

Plastic Bag Carton

📝 Product Overview

MS01 (12.7mm perforated and interlock design hose clamp)

SAE No.	Size		Item NO.				pcs/bag	pcs/carton
SAE No.	mm	inch	W1	W2	W4	W5	pcs/bag	pcs/carton
6	11-20	0.44"-0.78"	MS01A6	MS01B6	MS01D6	MS01E6	100	1000
8	13-23	0.5"-0.91"	MS01A8	MS01B8	MS01D8	MS01E8	100	1000
10	14-27	0.56"-1.06"	MS01A10	MS01B10	MS01D10	MS01E10	100	1000
12	18-32	0.69"-1.25"	MS01A12	MS01B12	MS01D12	MS01E12	50	1000
16	21-38	0.81"-1.5"	MS01A16	MS01B16	MS01D16	MS01E16	50	1000
20	21-44	0.81"-1.75"	MS01A20	MS01B20	MS01D20	MS01E20	50	500
24	27-51	1.06"-2"	MS01A24	MS01B24	MS01D24	MS01E24	50	500
28	33-57	1.31"-2.25"	MS01A28	MS01B28	MS01D28	MS01E28	50	500
32	40-64	1.56"-2.5"	MS01A32	MS01B32	MS01D32	MS01E32	50	500
36	46-70	1.81"-2.75"	MS01A36	MS01B36	MS01D36	MS01E36	50	500
40	50-76	2"-3"	MS01A40	MS01B40	MS01D40	MS01E40	20	500
44	59-83	2.31"-3.25"	MS01A44	MS01B44	MS01D44	MS01E44	20	500
48	65-89	2.56"-3.5"	MS01A48	MS01B48	MS01D48	MS01E48	20	500
52	72-95	2.81"-3.75"	MS01A52	MS01B52	MS01D52	MS01E52	20	500
56	78-102	3.06"-4"	MS01A56	MS01B56	MS01D56	MS01E56	10	250
60	84-108	3.31"-4.25"	MS01A60	MS01B60	MS01D60	MS01E60	10	250
64	91-114	3.56"-4.5"	MS01A64	MS01B64	MS01D64	MS01E64	10	250
72	103-127	4.06"-5"	MS01A72	MS01B72	MS01D72	MS01E72	10	250
80	117-140	4.62"-5.5"	MS01A80	MS01B80	MS01D80	MS01E80	10	250
88	130-152	5.12"-6"	MS01A88	MS01B88	MS01D88	MS01E88	10	250
96	141-165	5.56"-6.5"	MS01A96	MS01B96	MS01D96	MS01E96	10	250
104	157-178	6.18"-7"	MS01A104	MS01B104	MS01D104	MS01E104	10	250

🛠 Material & Torque Info

Material Grade	Band	Housing	Screw	Install Torque
W1	Zinc plated steel	Zinc plated steel	Zinc plated steel	3.8Nm
W2	AISI 201SS/301SS	AISI 201SS/302SS	Zinc plated steel	6Nm
W2B	AISI 201SS	Zinc plated steel	Zinc plated steel
W4	AISI 201SS/301SS/304SS	AISI 201SS/301SS/304SS	AISI 201SS/301SS/304SS
W5	AISI 316SS	AISI 316SS	AISI 316SS

📷 Product Gallery

❓ Frequently Asked Questions

What are the different material grades (W1-W5)?

W1 refers to all-zinc plated steel. W2 uses a stainless steel band and housing with a zinc-plated screw. W4 and W5 are high-grade stainless steel (304SS and 316SS) for maximum corrosion resistance in marine and industrial environments.

What is the advantage of the perforated band design?

The perforated band (American type) allows for a flexible and strong interlock with the worm gear screw, providing a reliable and adjustable seal for various hose diameters.

What is the recommended installation torque?

For W1 materials, the suggested torque is 3.8Nm. For stainless steel grades (W2, W4, W5), the recommended installation torque is 6Nm to ensure a leak-proof connection without damaging the hose.

What are the typical applications for these clamps?

These clamps are widely used in automotive parts, telescope adjustment, marine hose connections, and industrial pipe tubing where a secure, adjustable fastening is required.

Are these clamps certified for quality?

Yes, our manufacturing processes are certified under ISO, TUV, BSCI, and IATF standards, ensuring consistent quality and performance for global industrial requirements.

How do I choose the correct size?

Measure the outer diameter of your hose when it is connected to the fitting. Choose a clamp size range (e.g., 13-23mm) where your measurement falls comfortably in the middle of the range.
