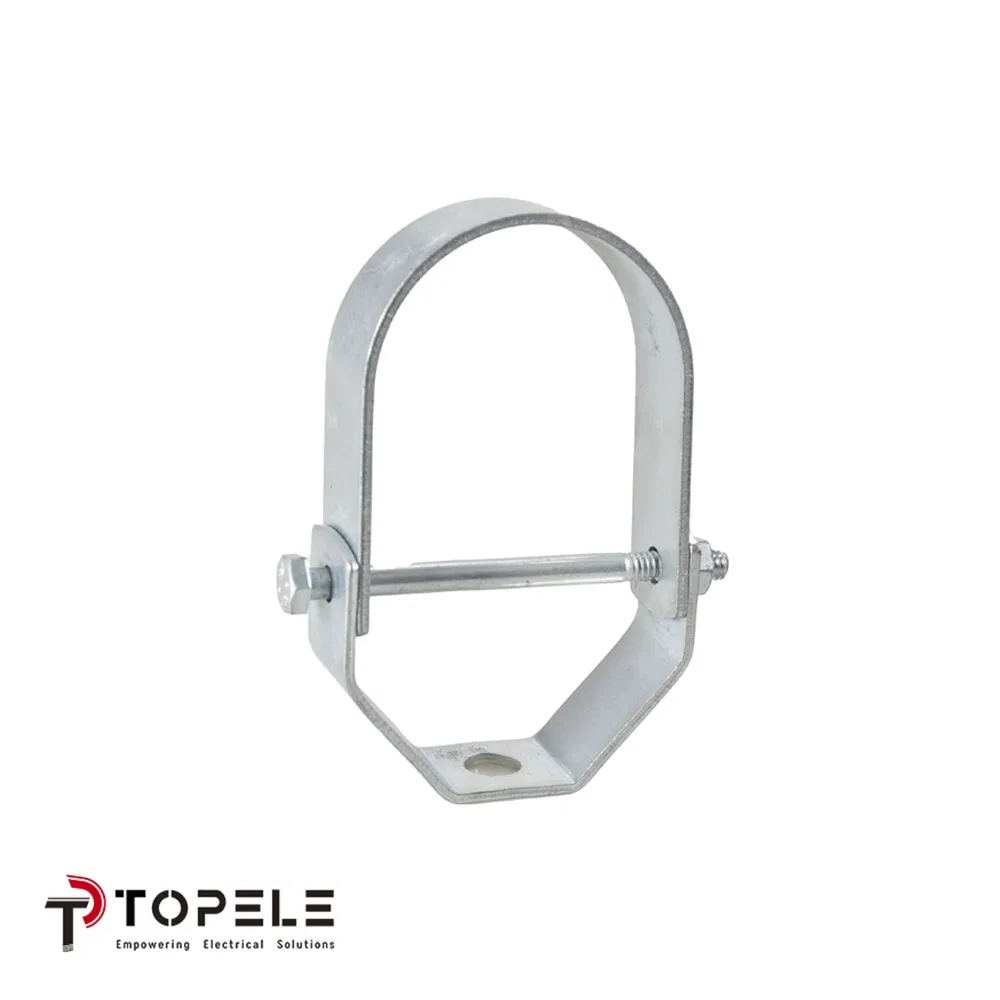

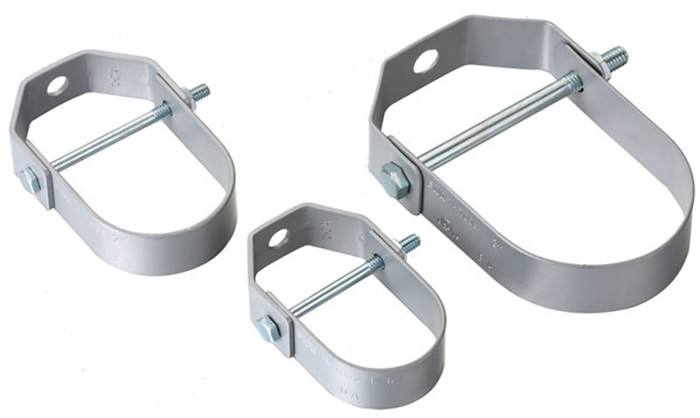

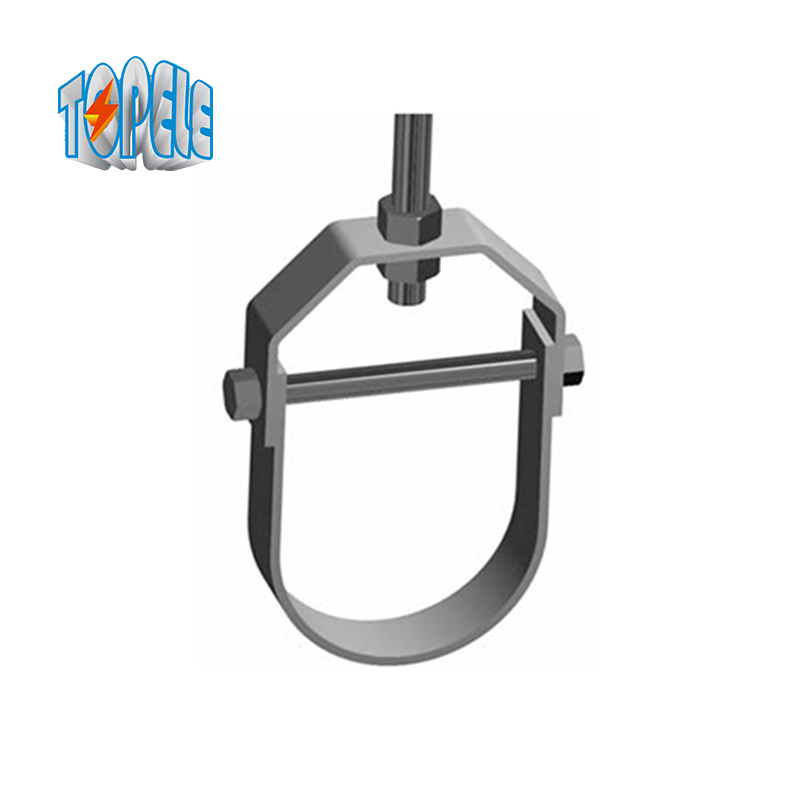

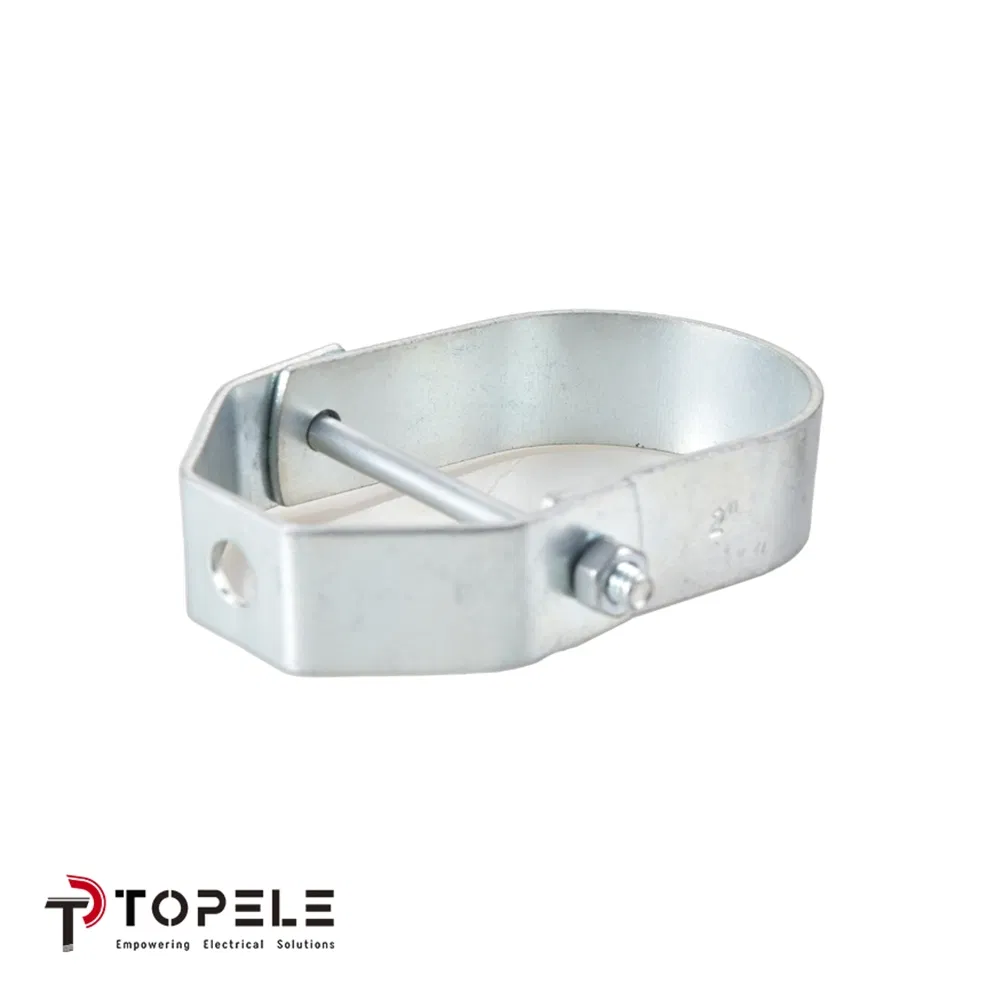

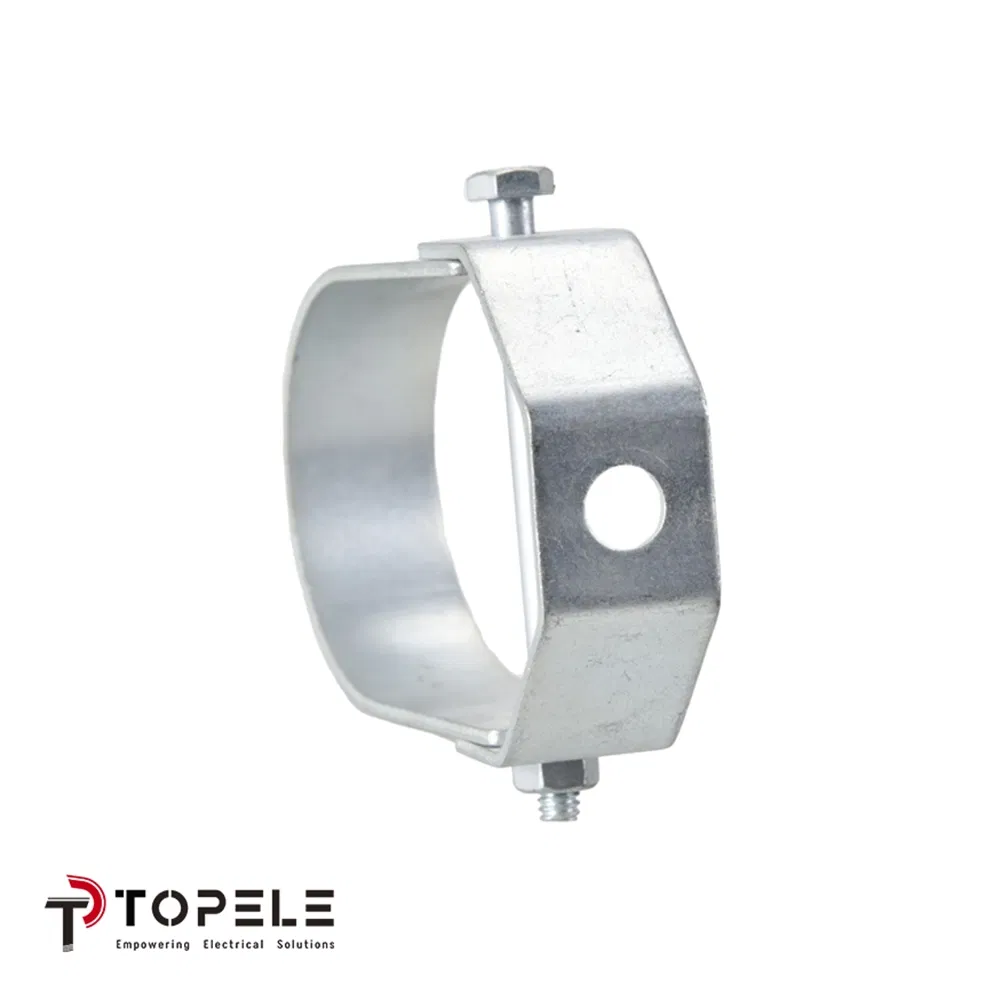

The adjustable swivel loop hanger is designed specifically for the suspension of stationary steel pipelines or fire sprinkler piping. The retained insert nut design ensures that the sprinkler clamp and nut remain together during installation.
Constructed from heavy-duty carbon steel with a pre-galvanized finish, this hanger provides lasting durability and excellent corrosion resistance. Available in trade sizes ranging from 1/2" through 4".
Key Applications:
| Cat.No. | Conduit Size (IN) | Ø (MM) | Max Load (LBS / KG) | A (MM) | E (MM) | d (UNC) | |
|---|---|---|---|---|---|---|---|
| TPCLH-050 | 1/2" | 11 | 610 | 277 | 68 | 36 | 1⁄4" |
| TPCLH-075 | 3/4" | 11 | 610 | 277 | 83 | 36 | 1⁄4" |
| TPCLH-100 | 1" | 11 | 610 | 277 | 84 | 42 | 1⁄4" |
| TPCLH-125 | 1-1/4" | 11 | 610 | 277 | 102 | 45 | 1⁄4" |
| TPCLH-150 | 1-1/2" | 11 | 610 | 277 | 108 | 50 | 1⁄4" |
| TPCLH-200 | 2" | 11 | 610 | 277 | 122 | 56 | 1⁄4" |
| TPCLH-250 | 2-1/2" | 14.2 | 1130 | 513 | 142 | 60 | 3⁄8" |
| TPCLH-300 | 3" | 14.2 | 1130 | 513 | 162 | 78 | 3⁄8" |
| TPCLH-400 | 4" | 17.2 | 1330 | 513 | 205 | 92 | 3⁄8" |
