📋 Basic Information
Usage
Supporting System, Construction Area
Surface Treatment
Pre-Galv/HDG/Al-Zn-Mg/Epoxy
Steel Type
Carbon Structural Steel Q235
Standard
GB, ASTM, DIN, JIS, AISI, BS

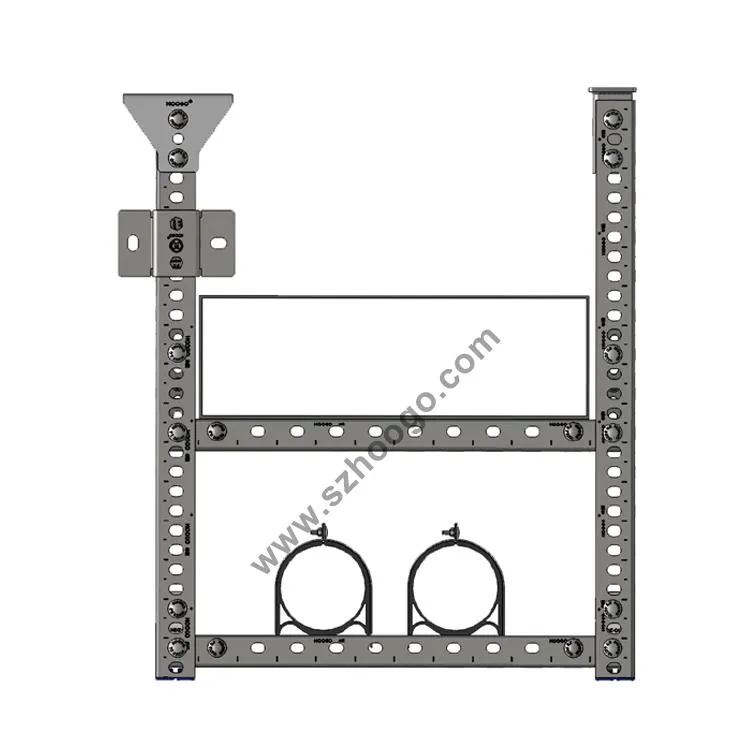

🏗️ Assembly Anti-Fall Bracing System

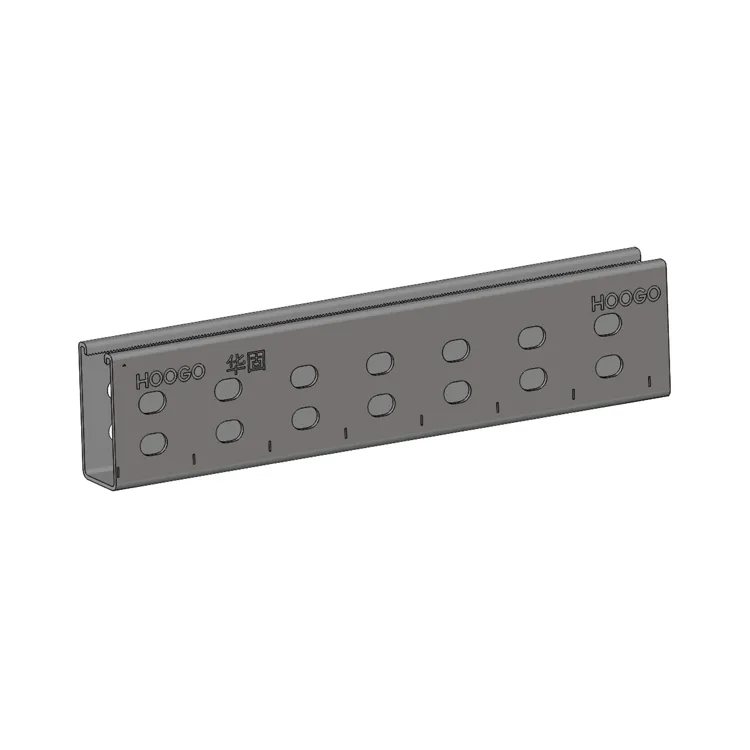

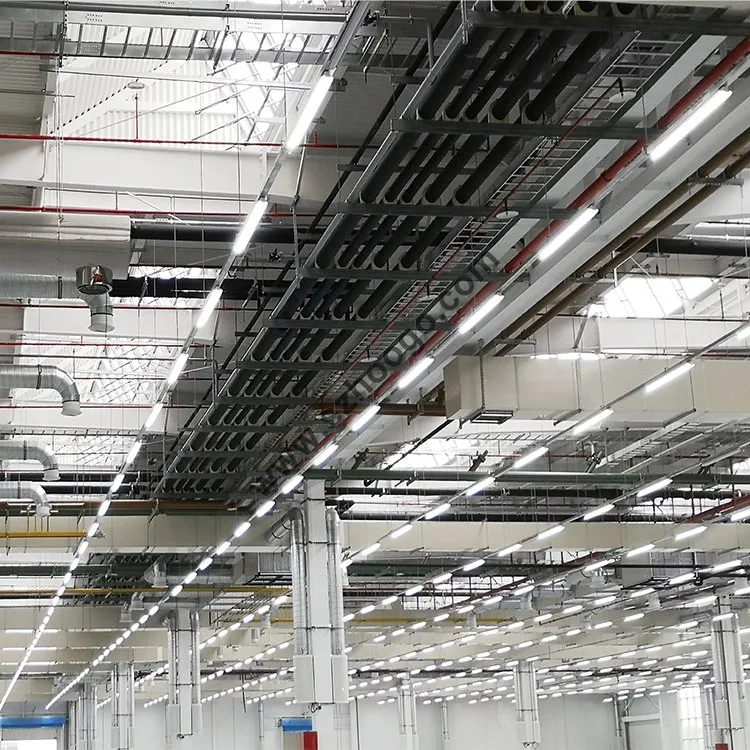

The 82U punched channel steel is a perfect and efficient solution for pipes, air ducts, and bridge support systems, specifically designed for anti-fall bracing cross arms.
| Technical Specifications |
| Material |
SGC440 / Q235B / KS-SGMH490 |
| Tests Passed |
Mechanical, Anti-corrosion, Fire resistance, Anti-fatigue, Impact tests |
✨ Key Features
- Easy Measurement: Features graduation marks on the surface for precise cutting.
- Secure Connection: Side mounting holes allow for reliable bolt connections.
- Perfect Matching: Channel flanges with teeth match perfectly with pipe bundle systems.
- Durability: High-grade surface treatments for maximum corrosion resistance.
📊 Model Specifications
| Product Name |
Surface Treatment |
Model |
Code |
| 82U punched channel - HDZ |
Pre-galvanized |
41*82*2.5 M10 |
915020 |
| 82U punched channel - HDG |
Hot-dip galvanized |
41*82*2.5 M10 |
915021 |
| 82U punched channel - ZMA |
Al-Zn-Mg coating |
41*82*2.5 M10 |
915022 |
| 82U punched channel - EP |
Epoxy spray |
41*82*2.5 M10 |
915023 |
🖼️ Product Display

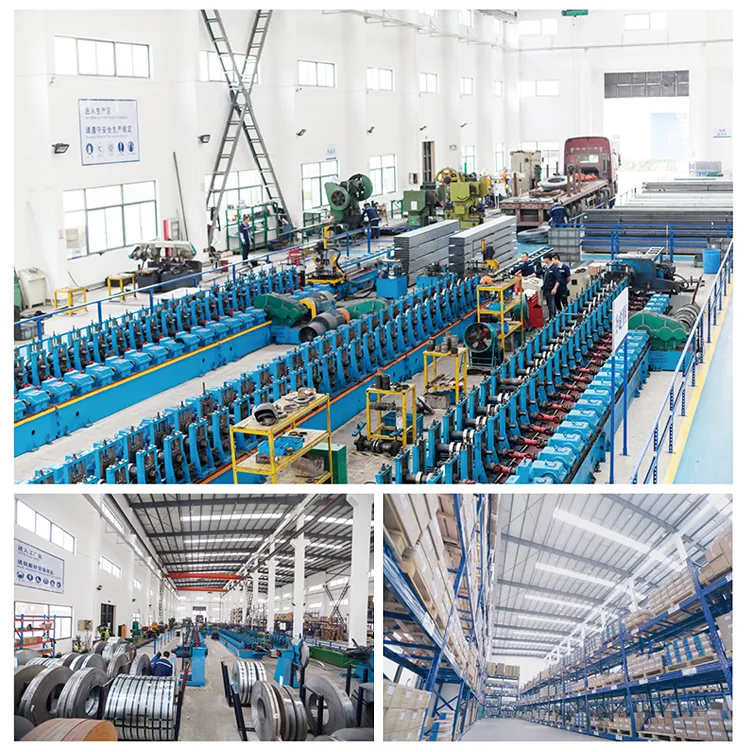

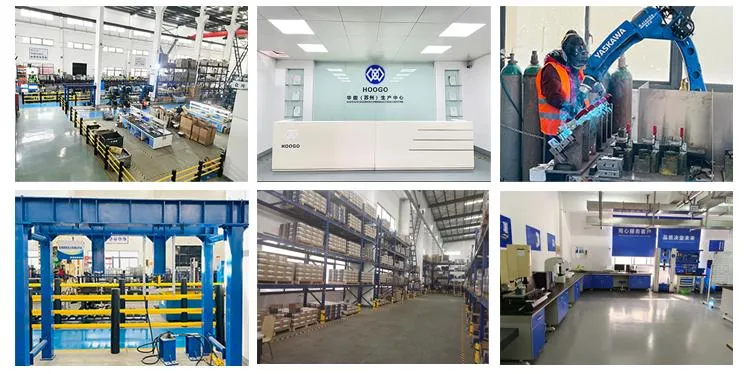

🏭 Production & Facilities
📜 Certificates & Honors
🚢 Packaging & Delivery
❓ Frequently Asked Questions
1. What are the primary applications for 82U punched channel steel?
It is widely used for anti-fall bracing cross arms and provides an efficient solution for supporting pipes, air ducts, and bridge support systems.
2. Which materials are available for these channels?
The standard materials include SGC440, Q235B, and KS-SGMH490, ensuring high structural integrity.
3. What kind of surface treatments do you offer?
We offer Pre-galvanized, Hot-dip galvanized (HDG), Al-Zn-Mg coating, and Epoxy spray finishes to meet different anti-corrosion requirements.
4. Has the product undergone safety testing?
Yes, our products have passed mechanical tests, anti-corrosion performance tests, fire resistance tests, anti-fatigue tests, and impact tests.
5. Can the channel steel be customized in length?
While standard lengths are 3m and 6m, we can provide customized lengths based on specific project requirements (3m channel steel may require a special order).
6. What unique design features assist in installation?
The channels include graduation marks for easy cutting, mounting holes for secure bolt connection, and flanged teeth for a perfect grip with pipe bundles.
