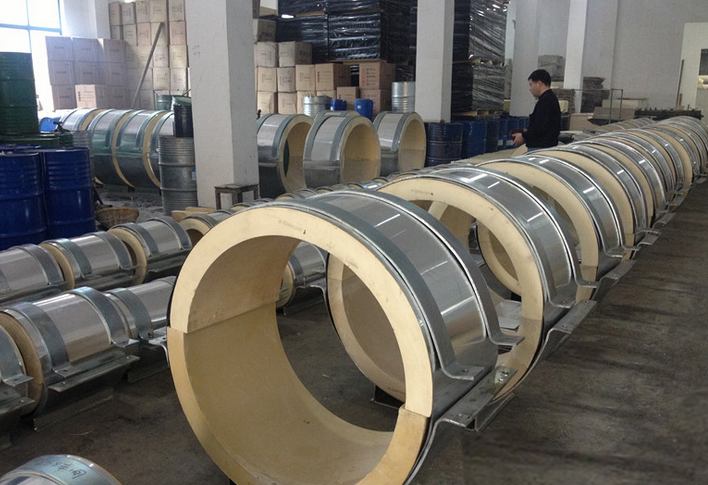

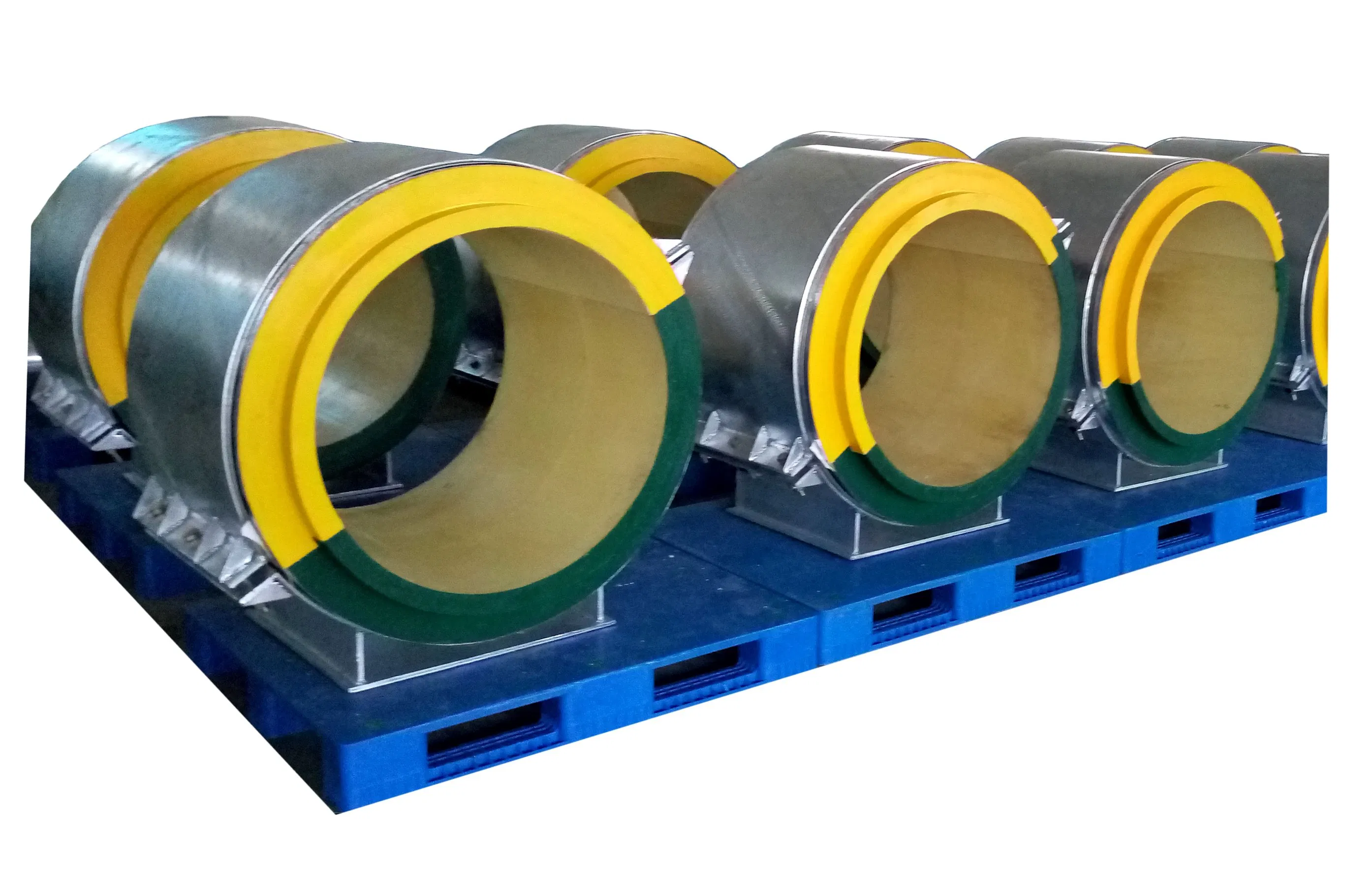

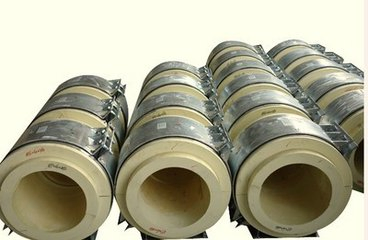

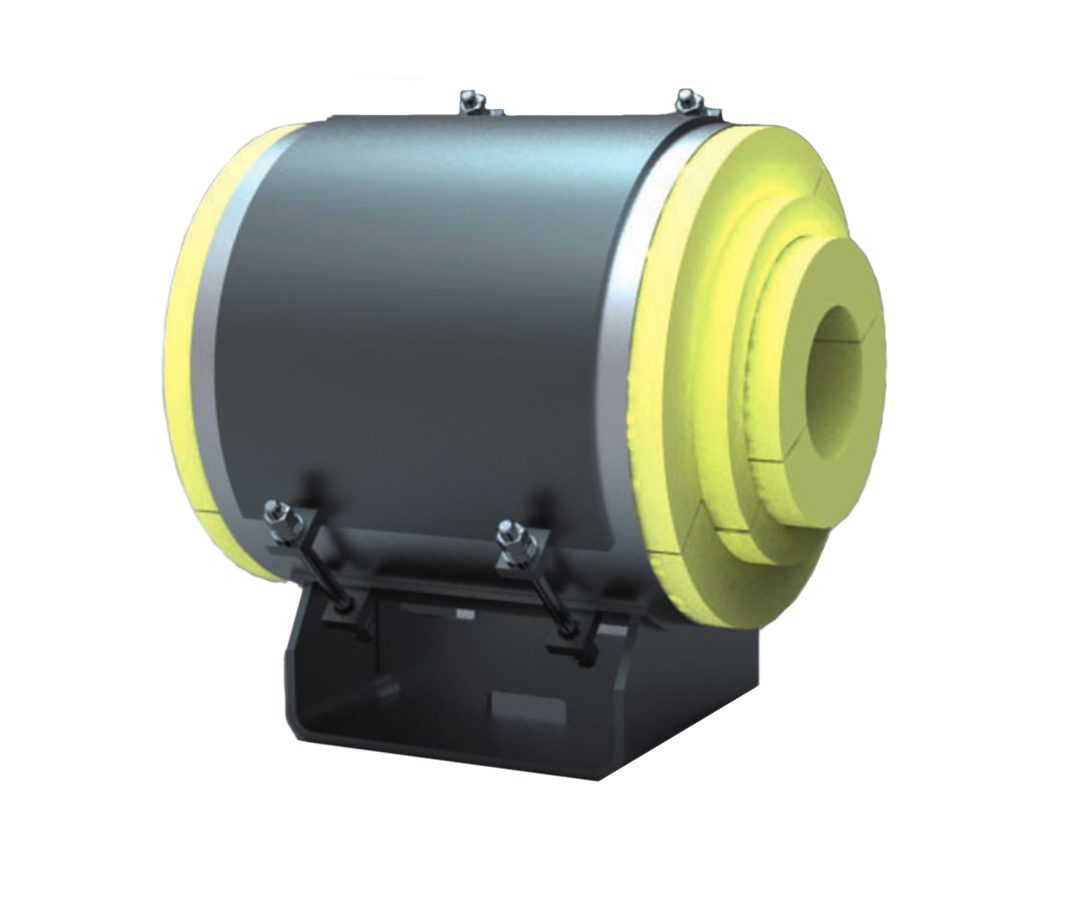

Thermal Insulation Pipe Support/Cryogenic Pipe Support for LNG Project

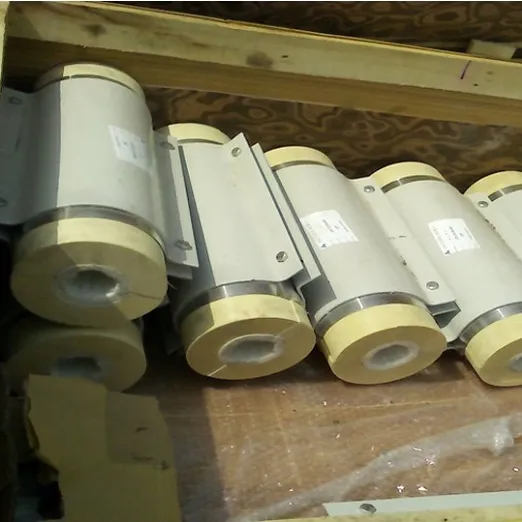

Energy Saving Heat Insulated Pipe Bracket: Suitable for all pipe diameters. The bracket height is determined by the user. For heat pipe temperatures less than 540°C, insulation thickness is determined based on temperature requirements. Systems for temperatures exceeding 540°C can be custom designed. Insulation material features a compressive strength of 2-5MPa.

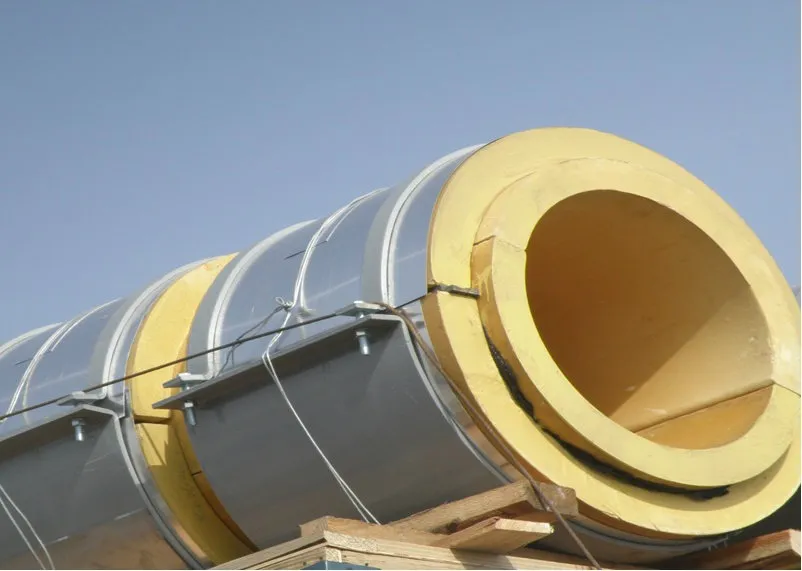

Moisturizing Cold Pipe Racks: Applicable for cold medium pipelines with temperatures ≥ -196°C. Layer thickness and count are based on specific cold insulation requirements. Designs for temperatures below -196°C are available independently. Compression strength ranges from 5-15MPa based on conditions.

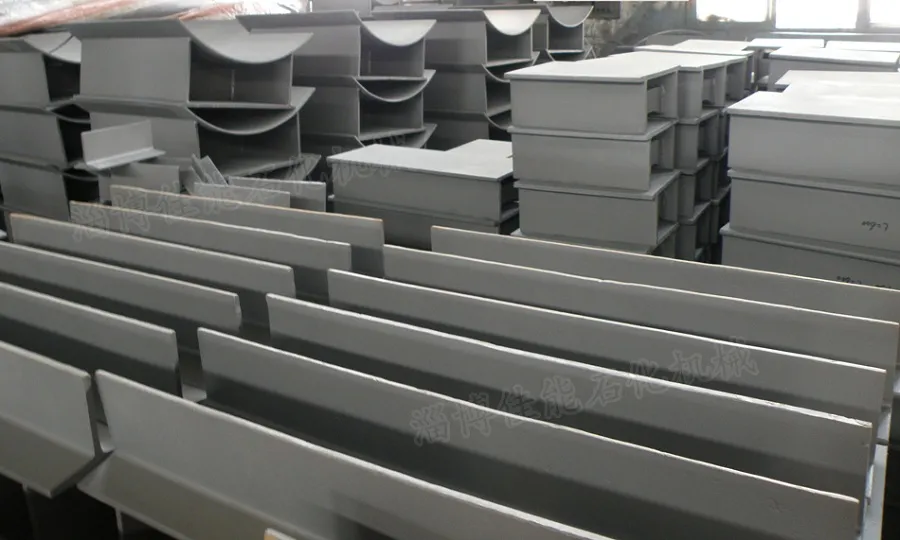

Versatile Configurations: Tube holders can be configured as fixed, sliding, guiding, or spacing units with various suspension forms to meet diverse working conditions.

Low Friction Design: Sliding friction pairs handle radial and axial displacement with a low friction coefficient of ≤ 0.1.

How to Order: Provide technical conditions if standard schedules do not meet your needs. Orders should include diameter, computational load, pipe temperature, insulation thickness, material, bracket type, limit type, displacement direction, and supporting beam breadth.
