Construction Use Structural Parts Seismic Support Profile Steel Steel Rod Connecting Base

Customization:	Available
Certification:	CE, UL
Surface Treatment:	Electro-Galvanized

Send Inquiry

Product Description

📋 Basic Information

Model NO.

UTTH10

Material

Alloy/Carbon Steel/Stainless Steel

Molding Method

Casting, Laser Forging

Adaptive Domain

Building/Bridge Piping Support

Surface Treatment

Galvanized

Feature

Heavy Duty/Seismic Resistant/Corrosion Resistance

Function

Seismic Bracing

Applicable Area

Top Beam Connection

HS Code

7326909000

Production Capacity

100,000

📦 Packaging & Delivery

Package Size

28.00cm * 28.00cm * 15.00cm

Gross Weight

19.800kg

Transport Package

Wooden Case

📜 Certifications

🛠️ Product Description

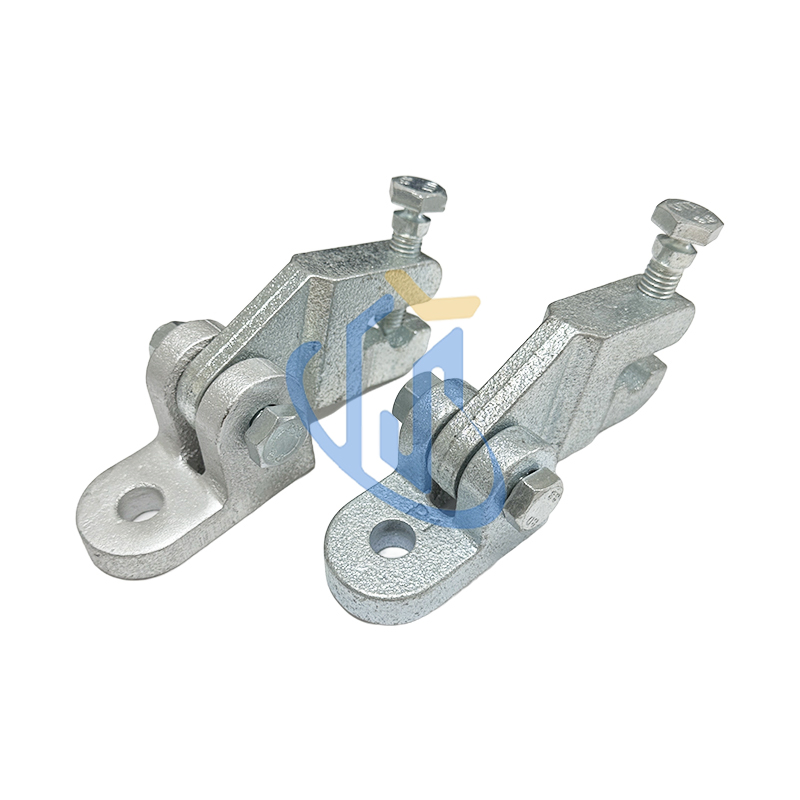

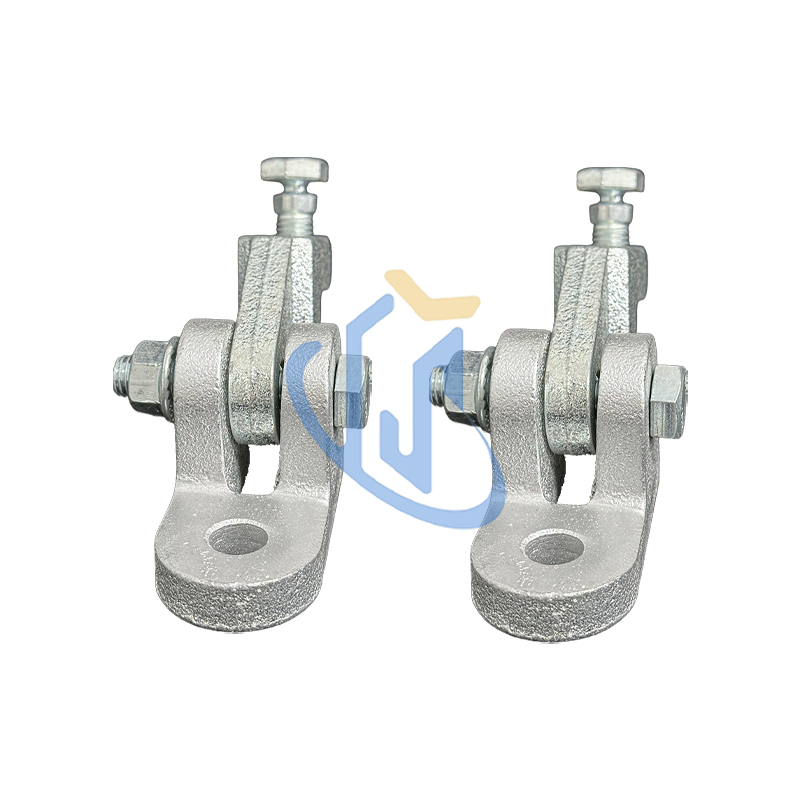

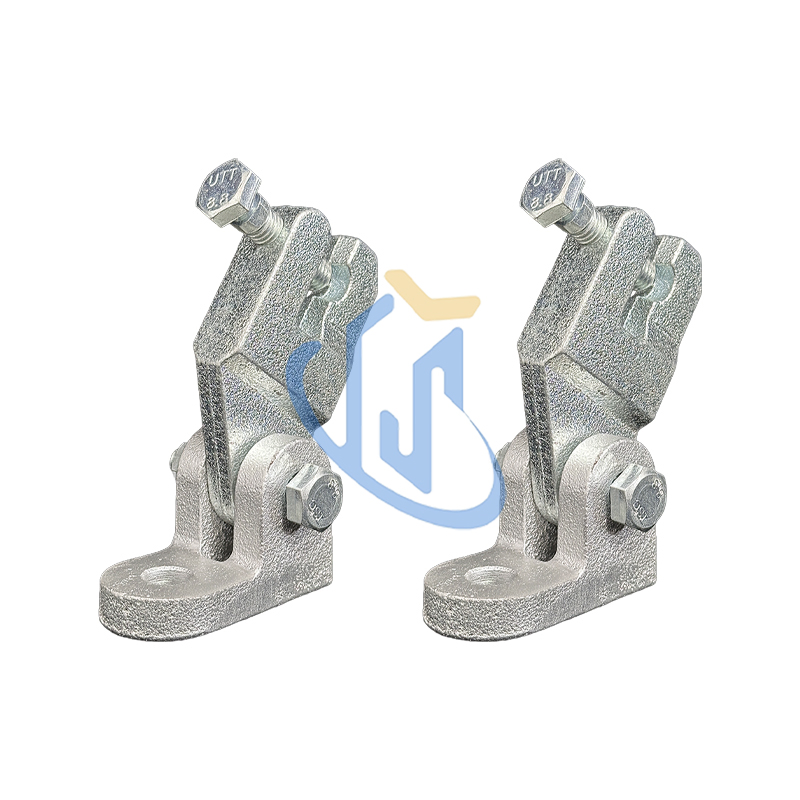

UTTH10 Structure Attachment
Function: Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a structural attachment fitting, and joined together with a bracing pipe element forms a complete sway brace assembly. Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer's installation instructions.
Type: Sprinkler Pipe Sch 10, Sch 40, GB/T 3091, JIS G3454
Size: One size fits braced pipe up to 8'', with 1/2'' bolt hole for structure.
Material: Ductile iron QT450
Finish: Electro-galvanized

UL Maximum Design Load
Brace Member	lbs.	KN	Weight Each
Brace Member	lbs.	KN	lb.	kg
1'' SCH40 pipe	1885	(8.38)	1.96	(0.89)

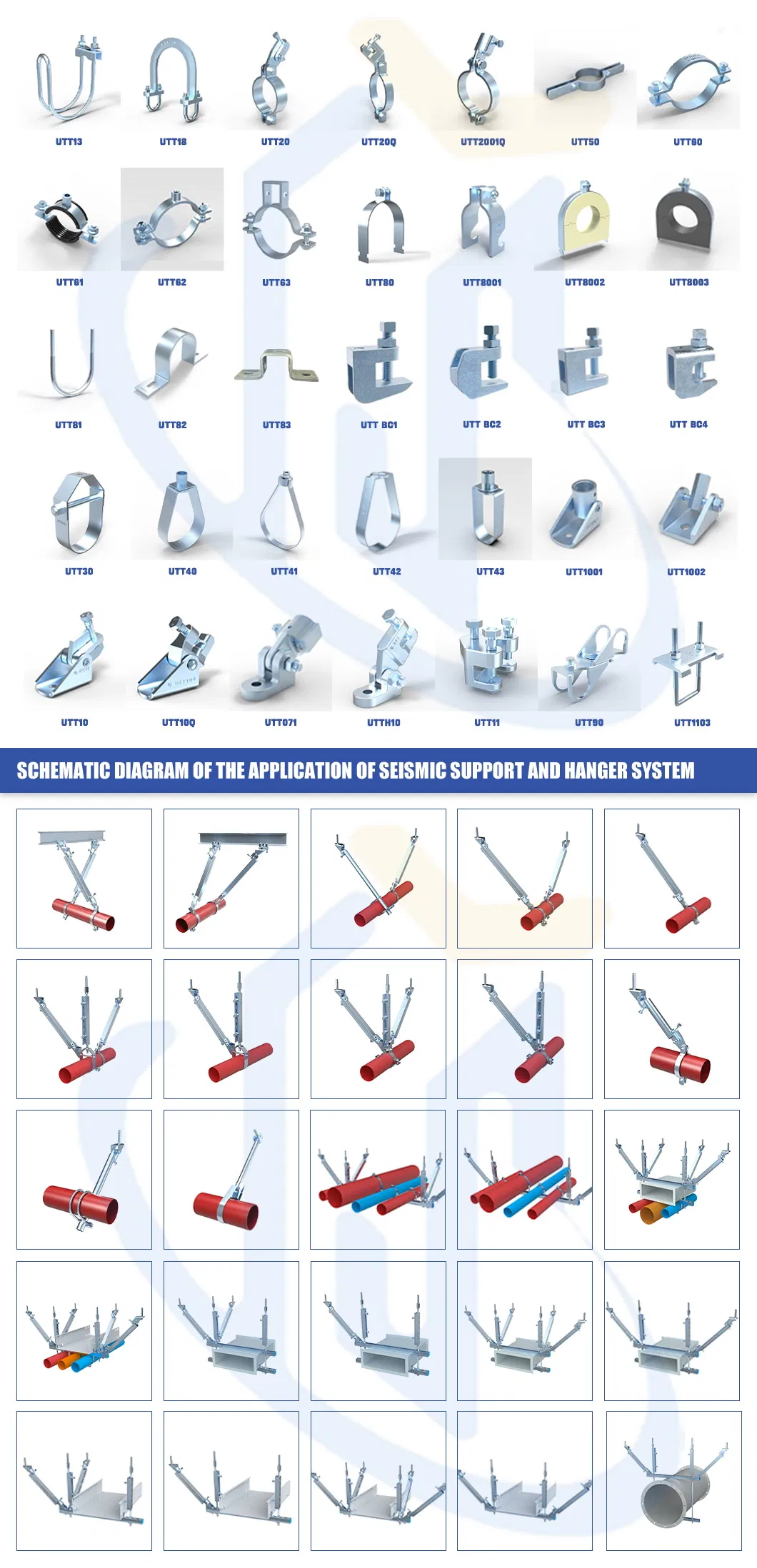

🖼️ Product Show

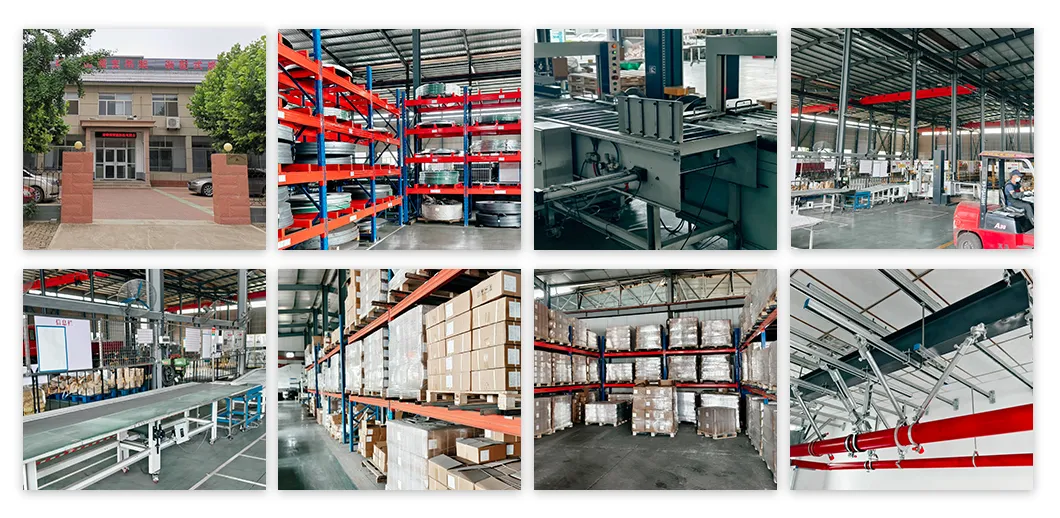

🏭 Manufacturing Excellence

Advanced Production

Equipped with 5 advanced laser cutters and high-quality casting equipment for smooth, defect-free surfaces and reliable results.

Precision Engineering

Utilization of dedicated molds and hydraulic presses ensures accuracy that meets stringent OEM and ODM requirements.

Efficient Assembly

Streamlined testing and packing processes. Products are secured in waterproof cartons with desiccants and fumigated pallets.

Product Qualification

Prioritizing safety with FM, UL, and CE certifications, ensuring compliance with global regulatory standards.

⭐ Key Features

Compliance with UL and FM industry certification standards.
Customized pipe support system accessories based on engineering drawings.
Manufactured using carbon steel, ductile iron, or stainless steel via casting or forging.
Galvanized finish for anti-corrosion, aesthetic appeal, and long service life.

Product Name	Seismic support system accessories
Seismic parts	Base/Connecting support frame/pipe clamp
Craftsmanship	Casting, laser forging
Product material	Carbon steel, ductile iron, stainless steel
Approval Standards	FM, UL, CE Certificate

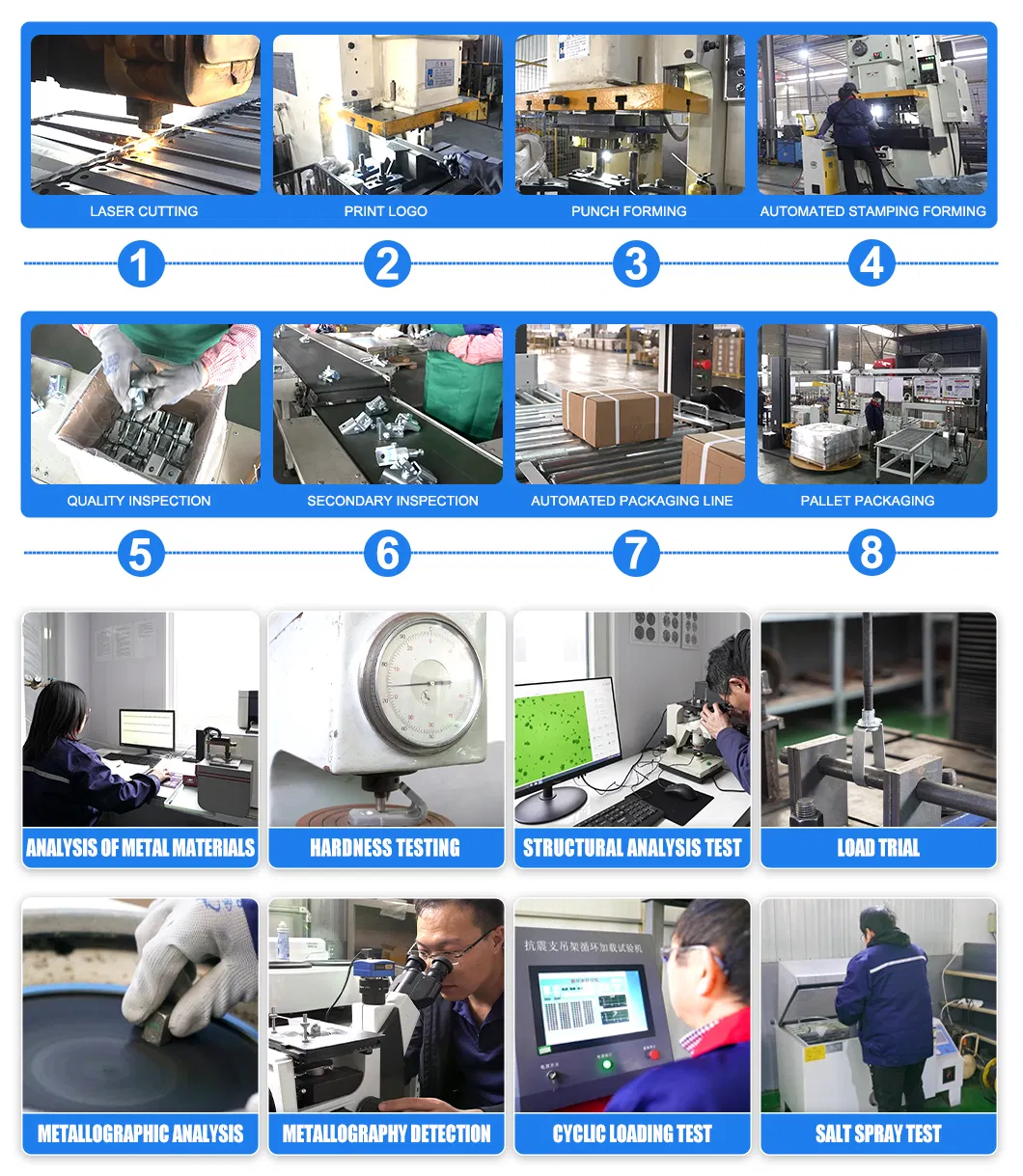

🔄 Production Process

🤝 Why Choose Us

🎪 Exhibition

❓ Frequently Asked Questions

Q1: What materials are used for the UTTH10 structure attachment?

A: The product is manufactured using high-quality Ductile iron (QT450), Carbon Steel, or Stainless Steel depending on specific requirements.

Q2: Does this seismic support system have international certifications?

A: Yes, our products are compliant with FM, UL, and CE industry certification standards, ensuring high safety and reliability.

Q3: How is the product protected against corrosion?

A: All components undergo an electro-galvanizing process, providing a smooth, anti-corrosion finish that extends the service life of the hardware.

Q4: Can these accessories be customized for specific projects?

A: Absolutely. Our engineers can customize special pipe support system accessories based on the engineering drawings provided by the customer.

Q5: What is the primary function of the sway brace assembly?

A: It is designed to brace piping systems against sway and seismic disturbances, maintaining structural integrity during vibrations or earthquakes.

Q6: What standards should be followed for installation?

A: Sway brace assemblies should be installed in accordance with NFPA 13 and the provided installation guidelines to ensure maximum effectiveness.
