Stainless Steel Pipe Repair Clamp Straight Pipe Repair Clamps Sleeves for Dutile Iron Pipe of Dual-Card Type/304 Stainless Steel

1 / 5

Stainless Steel Pipe Repair Clamp Straight Pipe Repair Clamps Sleeves for Dutile Iron Pipe of Dual-Card Type/304 Stainless Steel

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

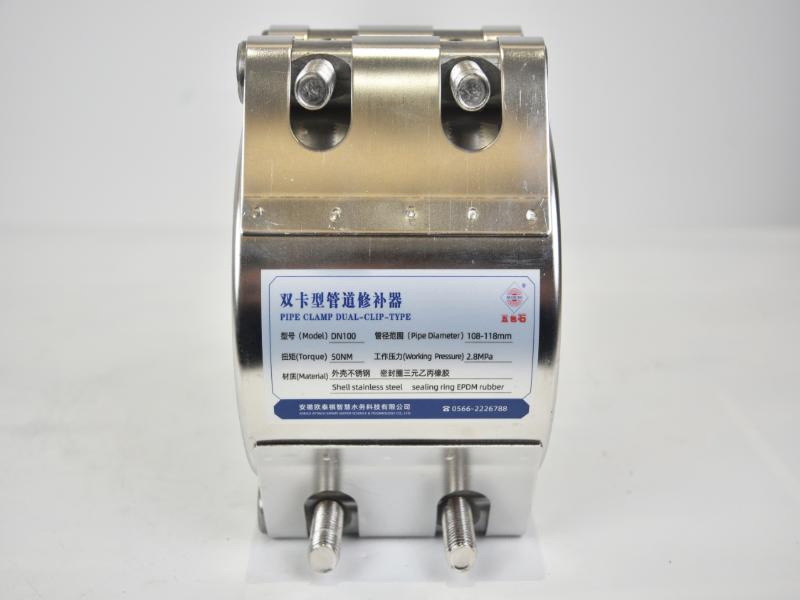

Model NO.DN100

ConnectionPress Connection

MaterialStainless Steel

ApplicationWater, Gas, Oil Pipeline

FeatureNo Shutdown, No Welding, Instant Repair

Working Pressure1.6MPa

Seal RingEPDM/NBR/HNBR/Mvq/Mitona

Specification32-1000mm

🛠️ Product Description

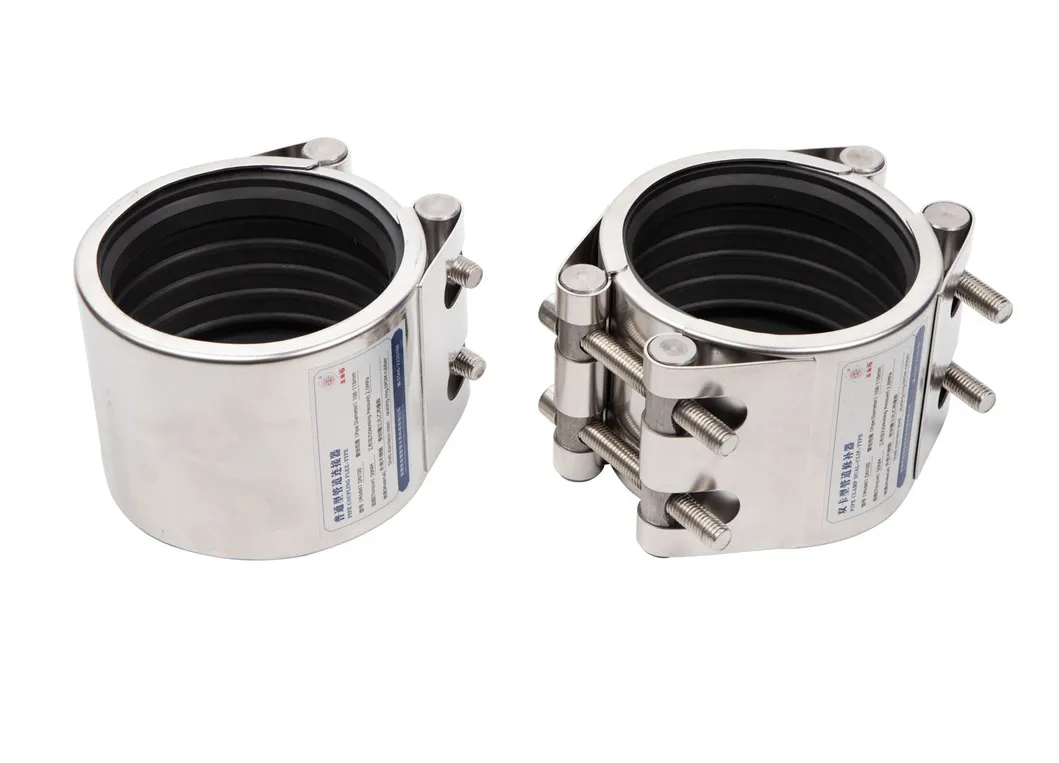

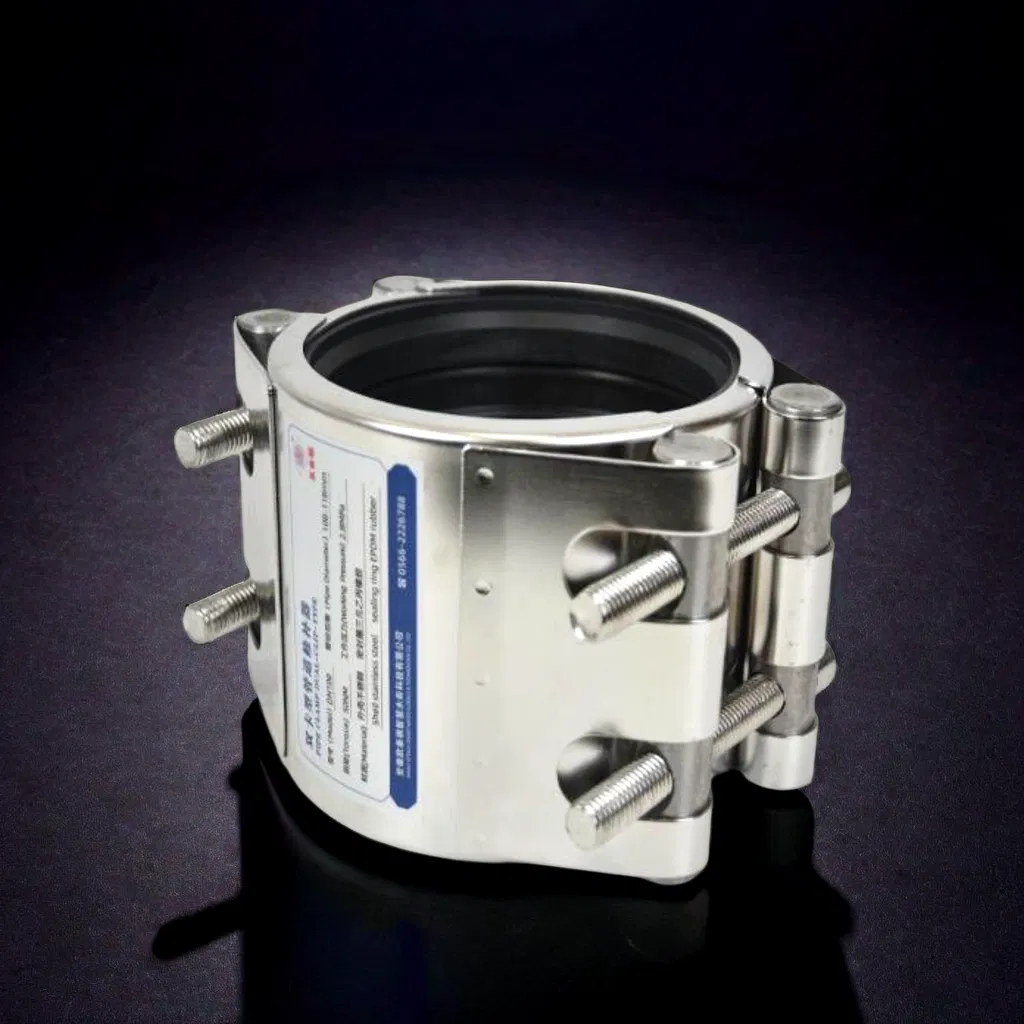

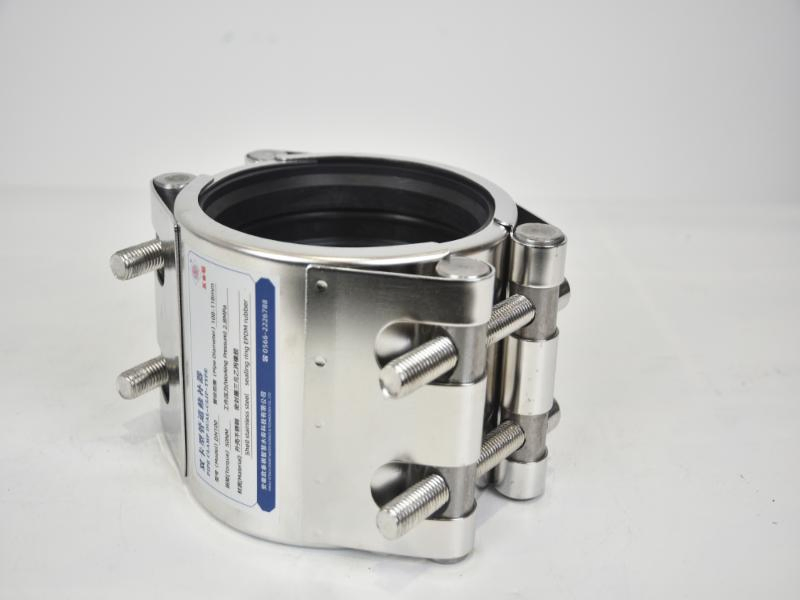

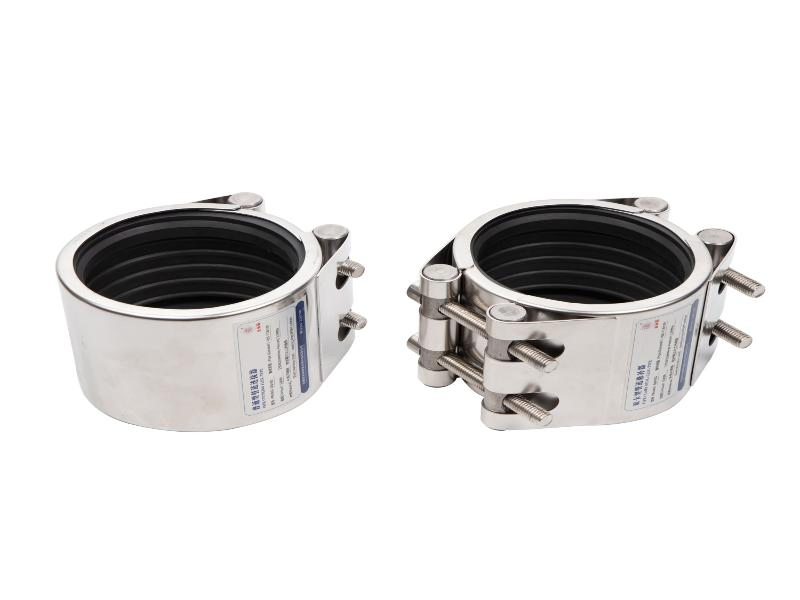

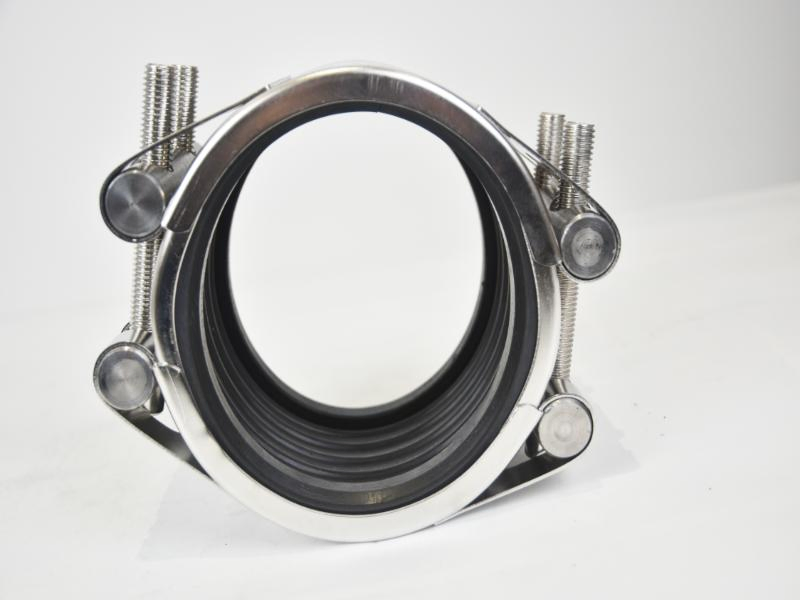

Stainless Steel Pipe Repair Clamp

This straight pipe repair clamp is designed for ductile iron pipes and other rigid systems. It is particularly effective for larger-diameter pipelines (DN300 or above). The dual-clip locking structure ensures a more balanced preload and a superior sealing effect. Its split dual-opening structure is ideal for installations with limited space, such as dense pipelines or locations close to grounds and walls.

📊 Technical Specifications

Nominal Diameter (OD mm)	Diameter Range (mm)	Working Pressure (MPa)	Length S (mm)	Length L (mm)	Bolt (M)	Bolt Torque (NM)
DN32	42 - 45	3.2	60	100	8	15
DN50	57 - 63	3.2	60	100	8	30
DN100	108 - 118	2.8	107	203	10	50
DN200	200 - 219	1.6	155	255	14	80
DN300	315 - 325	1.6	155	255	14	100
DN500	500 - 530	1.0	155	255	14	120
DN1000	1016 - 1048	0.4	155	255	16	150

🌟 Key Features

High Corrosion Resistance: Housing made of 304 stainless steel, perfect for humid or harsh installation environments.

Premium Sealing: EPDM rubber sealing ensures high hygiene standards and excellent aging resistance.

Compact Design: Lightweight and adaptable to narrow spaces, reducing the overall load on the pipeline network.

Structural Enhancement: Not only stops leaks but also reinforces the pipeline for improved stability and durability.

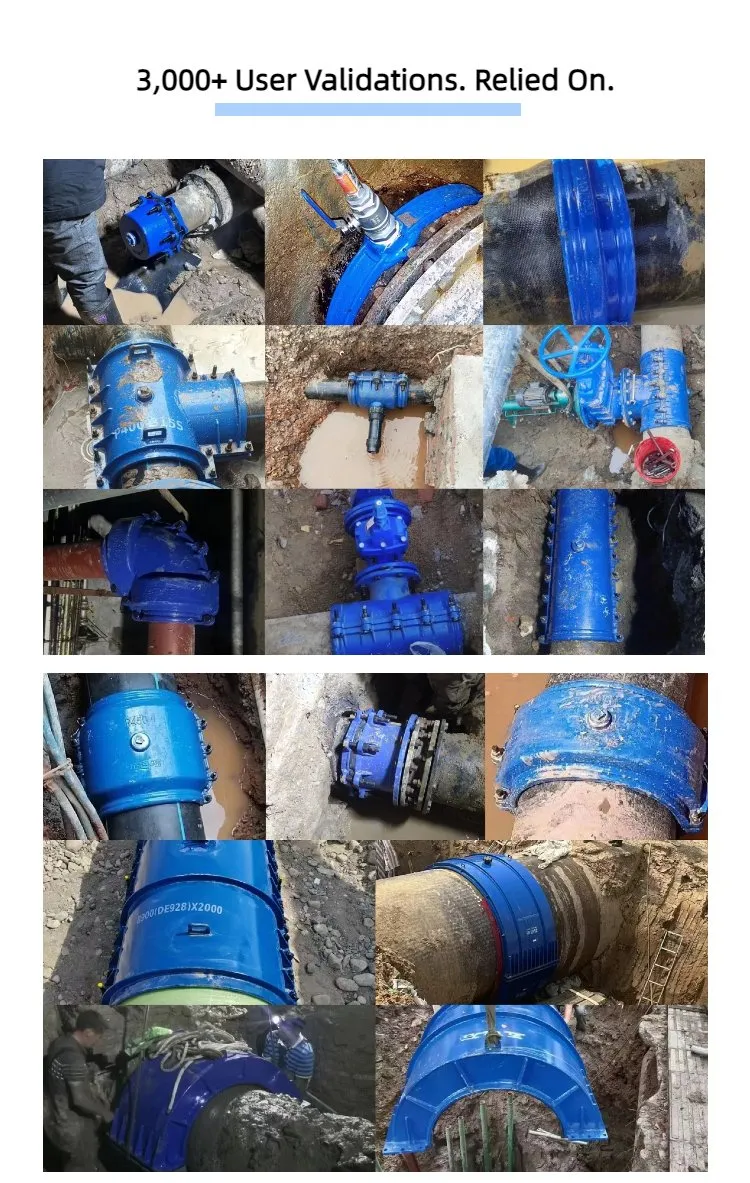

📸 Product & Application Gallery

❓ Frequently Asked Questions

Q1: Can this clamp be used while the pipeline is still under pressure? A: Yes, one of the primary features is "No Shutdown" repair, allowing you to fix leaks without stopping the flow.

Q2: What materials is the repair clamp compatible with? A: It is widely used for Ductile Iron, Stainless Steel, Carbon Steel, and other rigid pipeline materials.

Q3: How long does the EPDM seal last? A: EPDM rubber is known for its excellent aging resistance and hygiene standards, providing a long-term durable seal.

Q4: Is welding required during installation? A: No welding is required. The clamp uses a mechanical locking structure for instant repair.

Q5: Can these clamps be customized for specific pipe sizes? A: Yes, customized services are available to accommodate various nominal diameters and specific site requirements.

Q6: What is the maximum working pressure these clamps can handle? A: Depending on the size, the standard working pressure is up to 1.6MPa, ensuring stable performance for water, gas, and oil lines.
