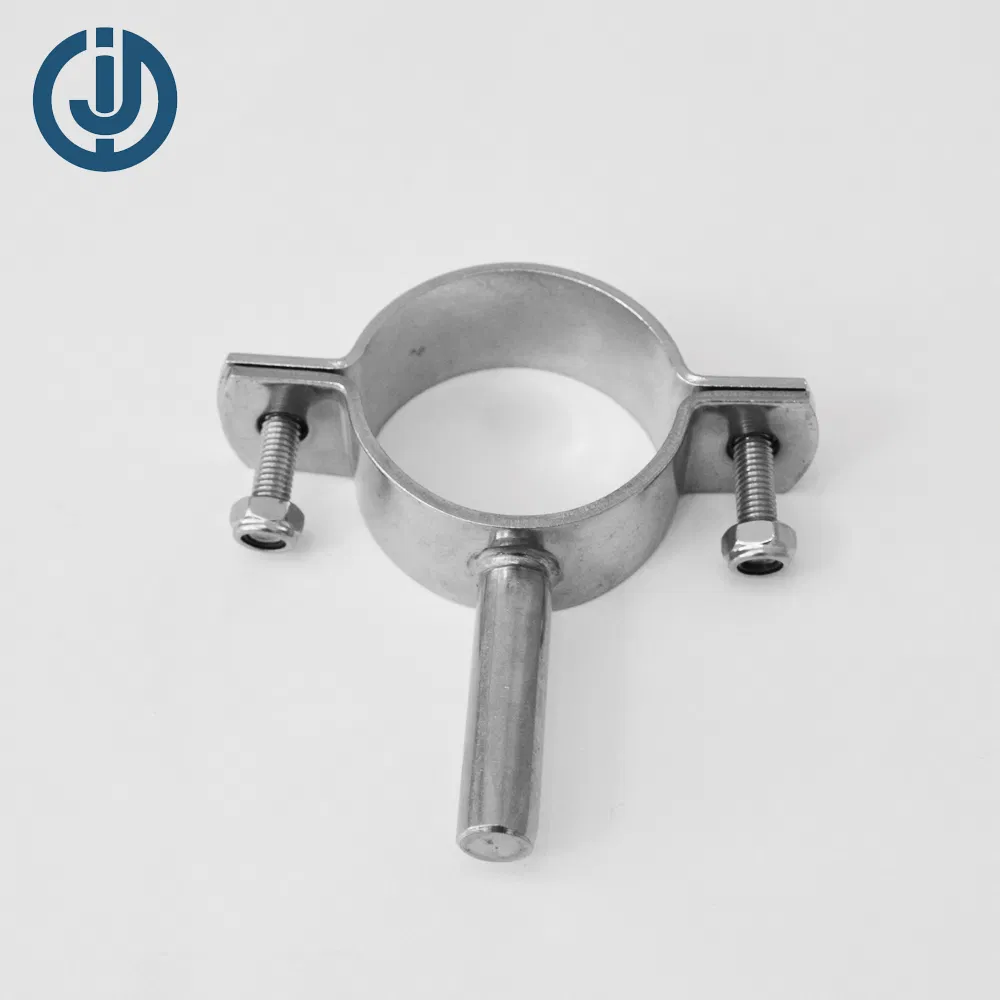

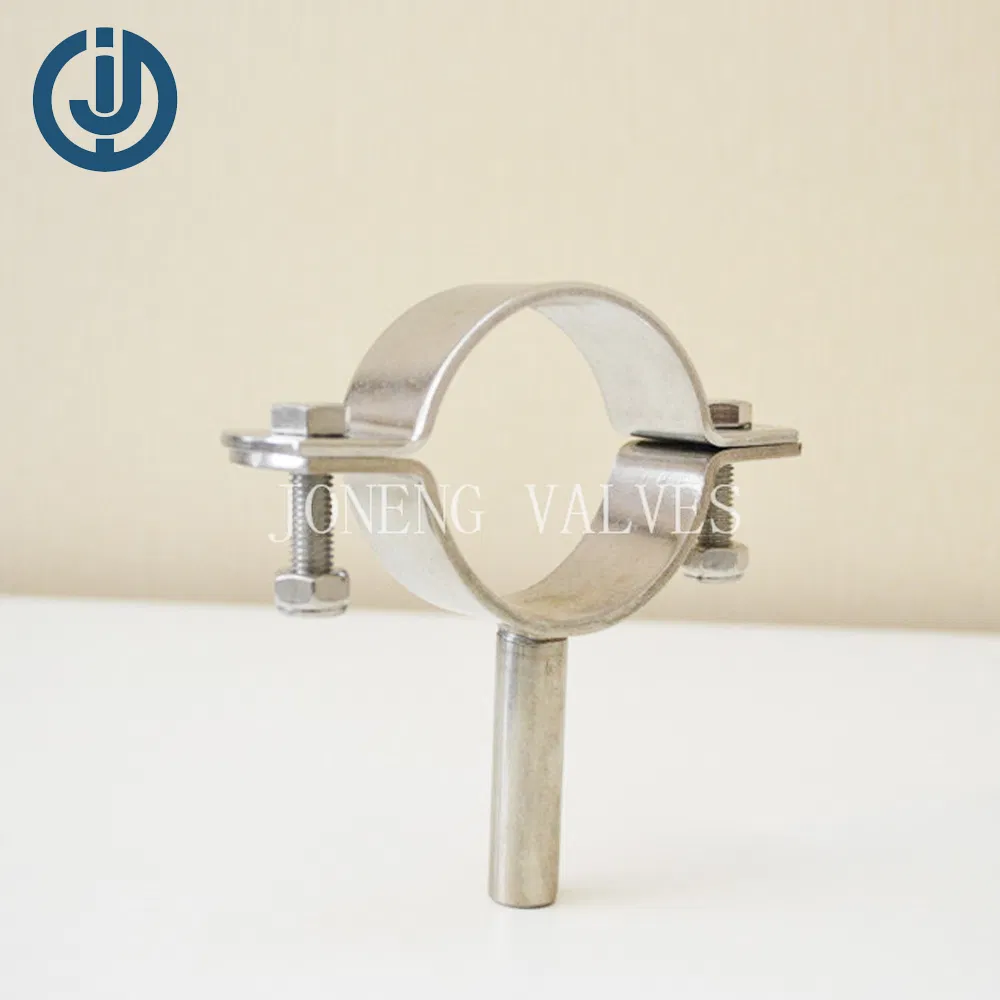

Stainless Steel Sanitary DIN ISO Customized Pipe Clamp Fixed Support

i

Basic Info

Model NO.	EZO-PF30203
Connection	Female
Surface Treatment	Phosphide
Head Type	Round
Warranty	1 Year
Production Period	15-60 Days Upon Order Quantity
Payment Term	L/C, T/T, WU, etc.
Certificate	ISO, PED

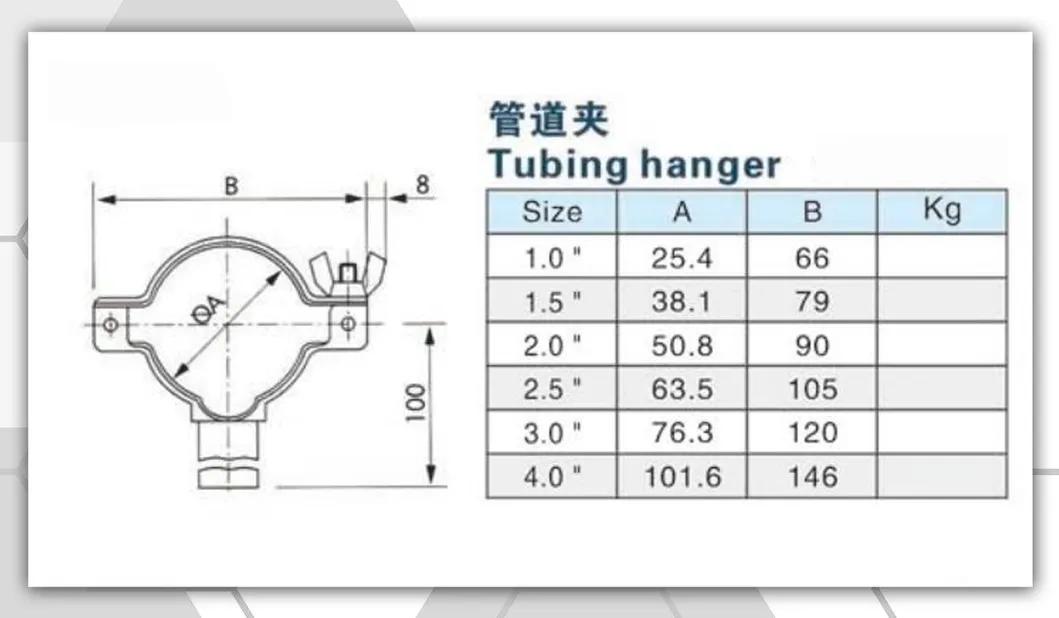

Specification	1.0", 1.5", 2.0", 2.5", 3.0", 4.0"
HS Code	8413190000
Production Capacity	1000PCS/Month

📦

Packaging & Delivery

Package Size	10.00cm * 10.00cm * 10.00cm
Package Gross Weight	5.000kg
Lead Time	7 days (1 - 10 Pieces); To be negotiated (> 10 Pieces)
Transport Package	Cartons, Pallet, Cases

✓

Product Specifications

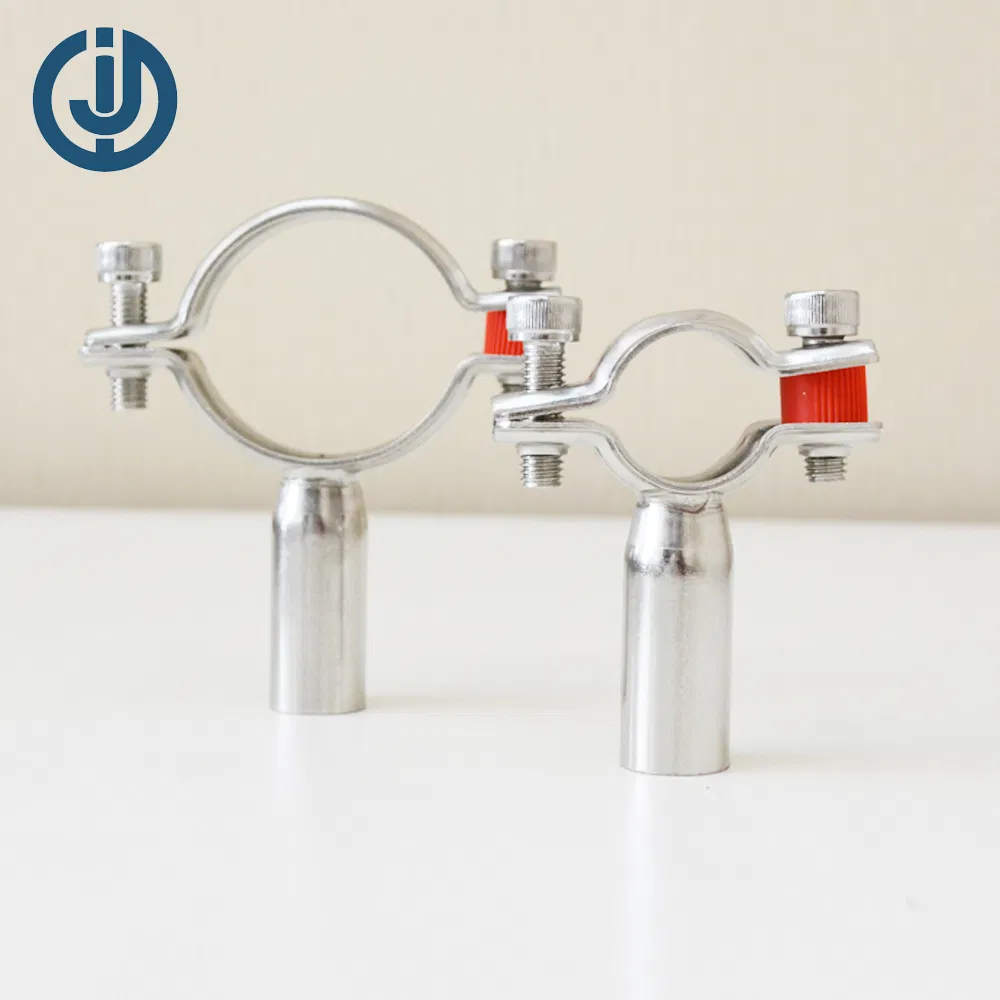

Product Name	Stainless Steel Sanitary DIN ISO Customized Pipe Clamp Fixed Support
Standard	DIN, SMS, ISO, 3A, BPE, IDF, AS, BS
Work Pressure	0-10 Bar
Temperature	-10°C to +150°C
Material	SS304 / SS316L
Gasket Options	EPDM, SILICONE, PFTE, NBR
Machining Tolerance	0.1-0.002mm (CNC), 0.01-0.1mm (Stamping)

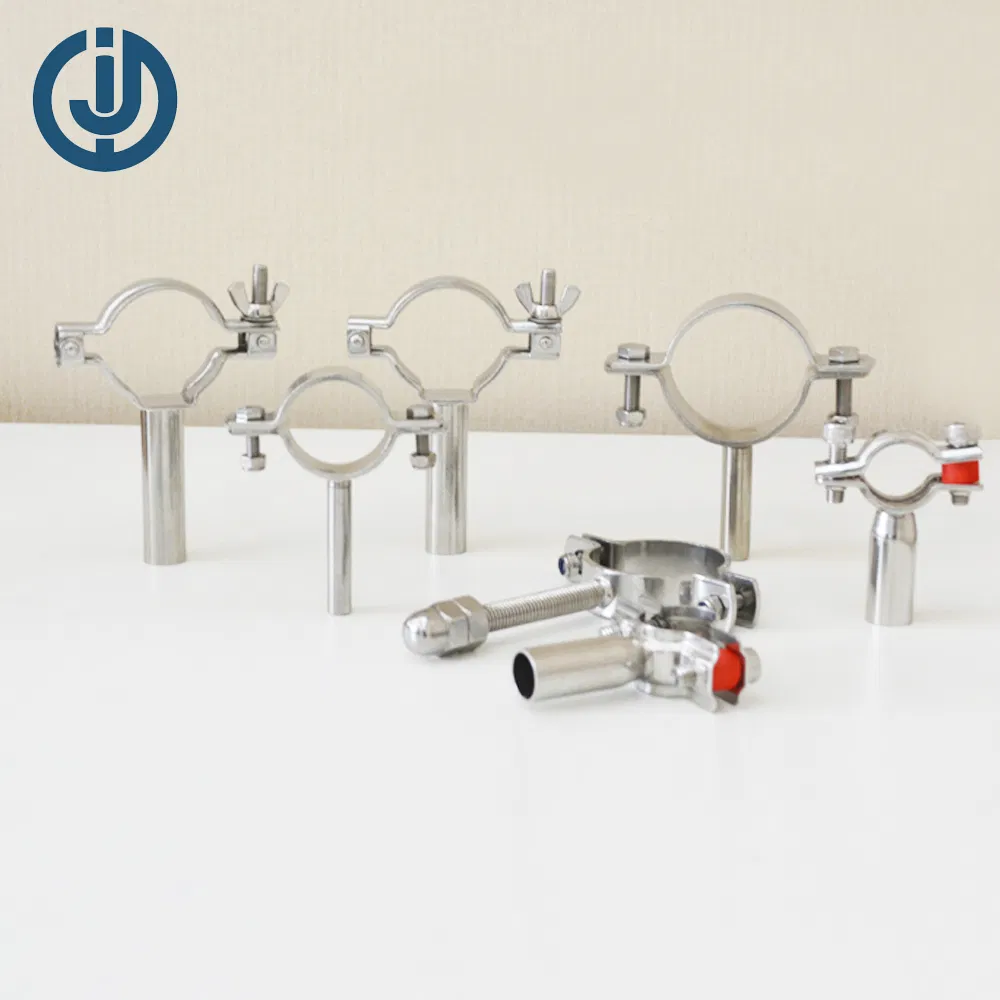

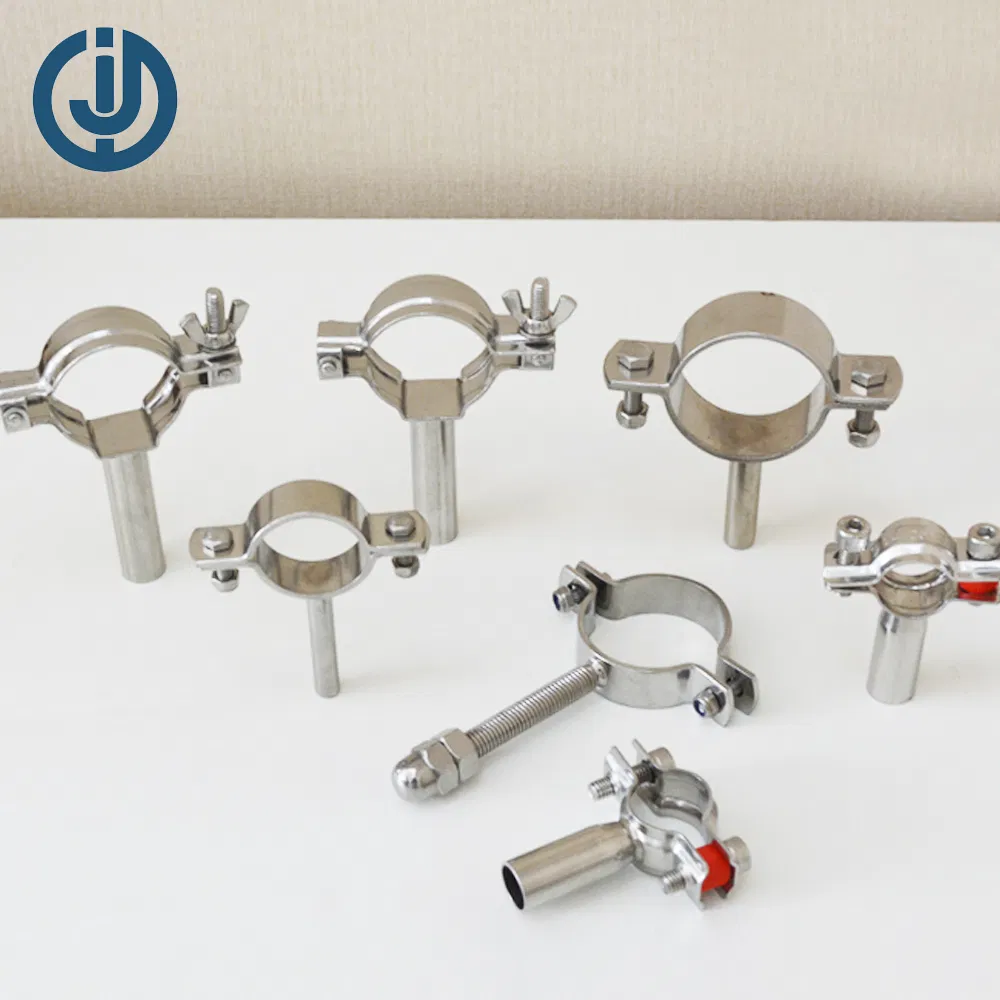

Type Options	Stand, Clevis Hangers, O Rings, Band Hangers, Swivel Ring
Surface Options	Round, Hexagon, with rubber insert
Surface Treatment	Sandblasting, Vibratory Polishing, E-coating, or Self-color
Connection Types	Clamp (quick), Welding, Thread (Union type)

📷

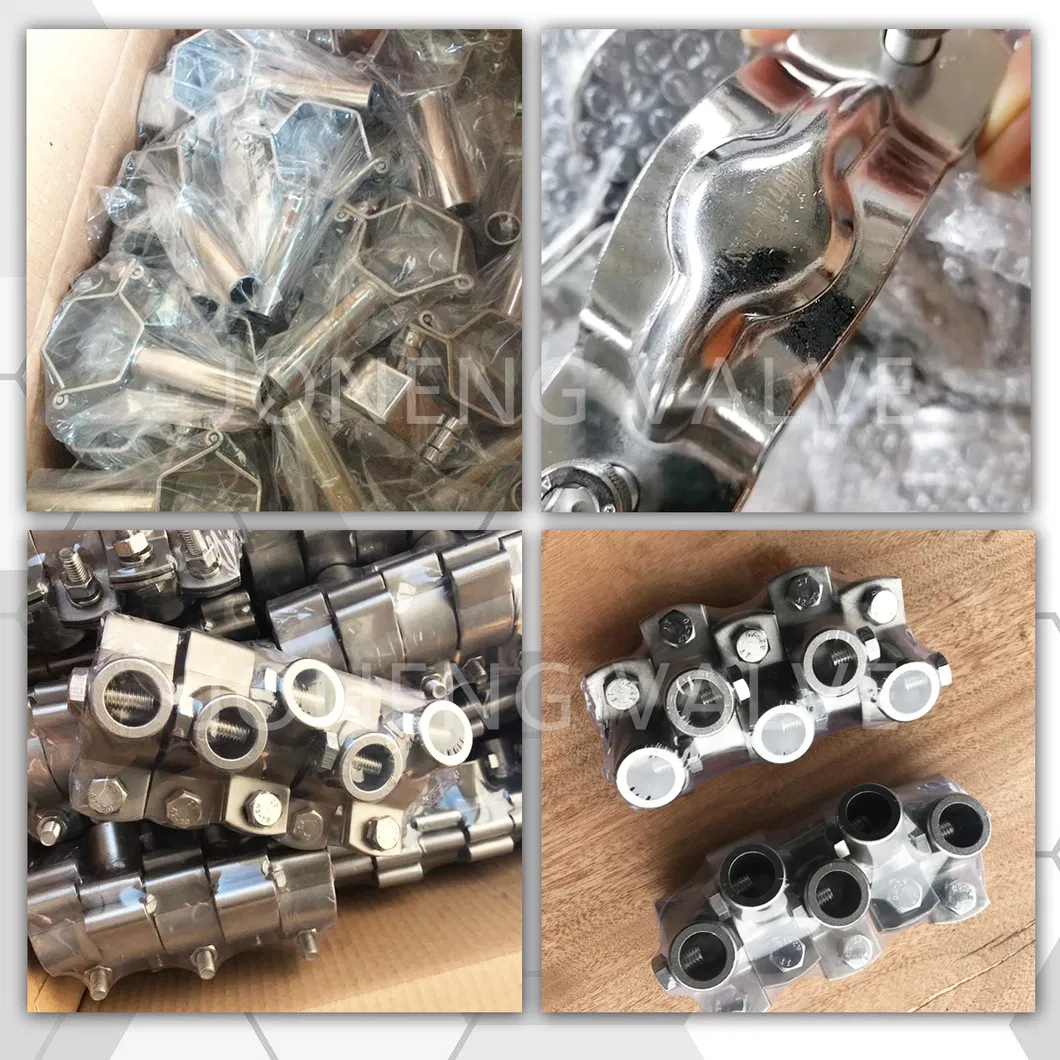

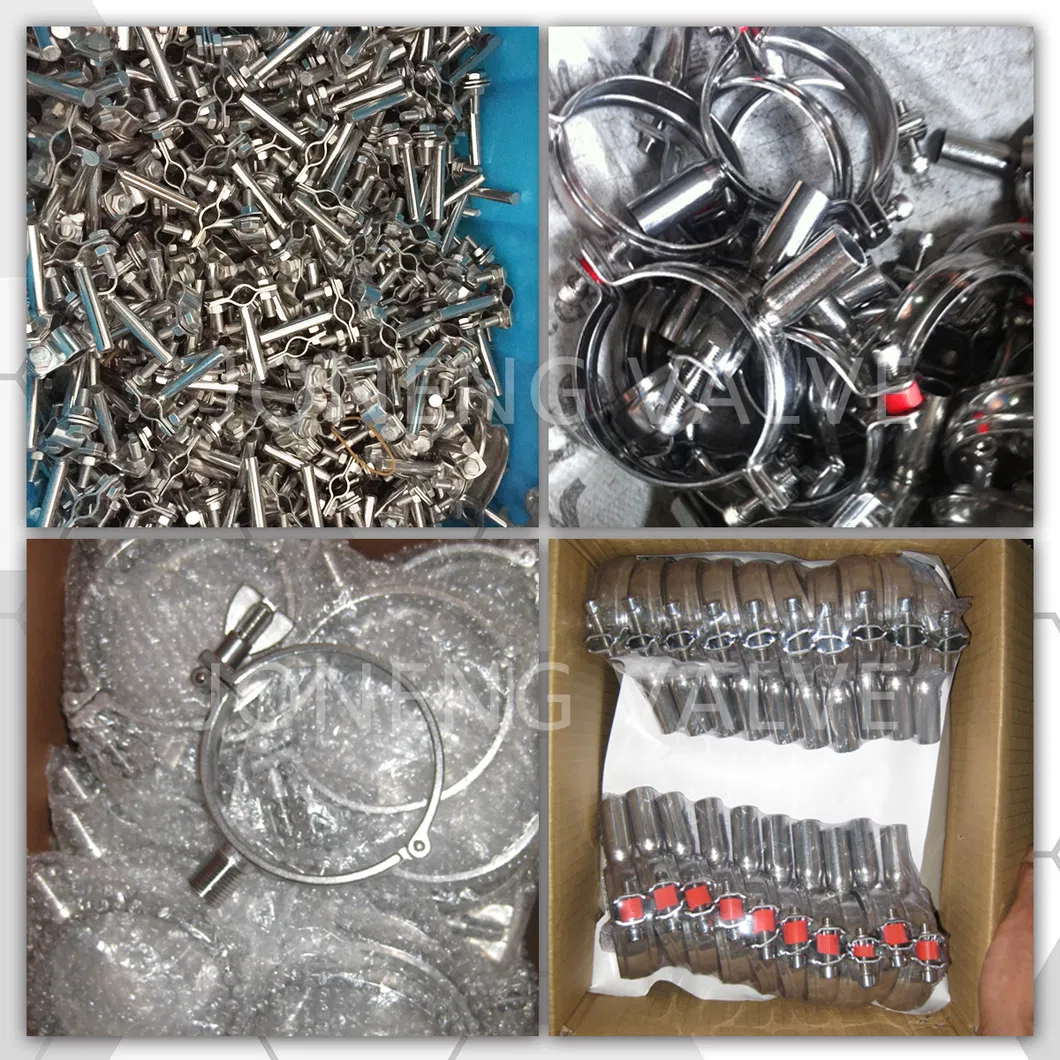

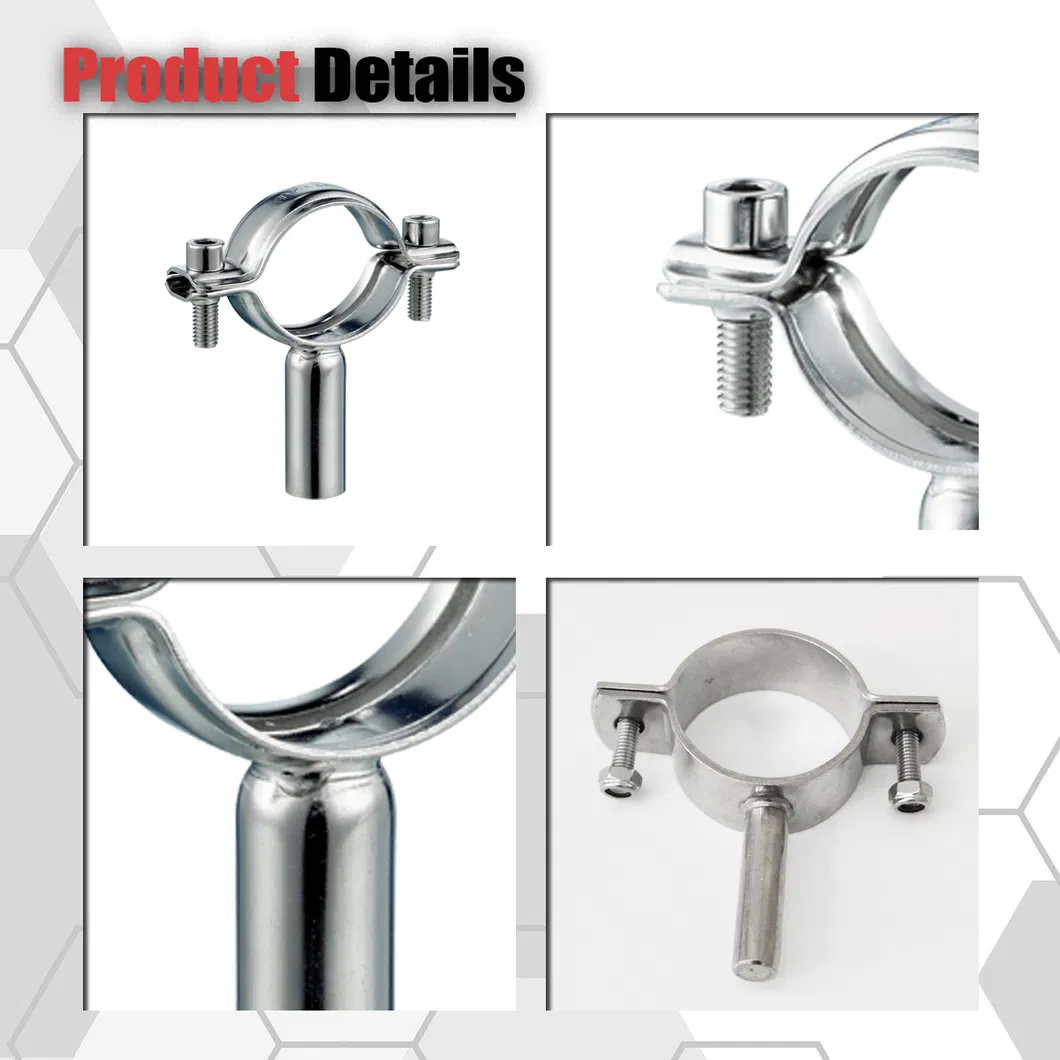

Product Gallery

★

Key Features & Applications

Main Function: Primarily used to hold and support high-quality pipe systems.
Durability: Low maintenance, durable, and reusable construction.
Corrosion Resistance: High-grade stainless steel anti-corrosion properties.
Application Scope: Widely used in food-processing, beverage, beer, and pharmaceutical industries.
Advantage: Quality control from raw materials to final products with abundant stock for quick delivery.

⚙

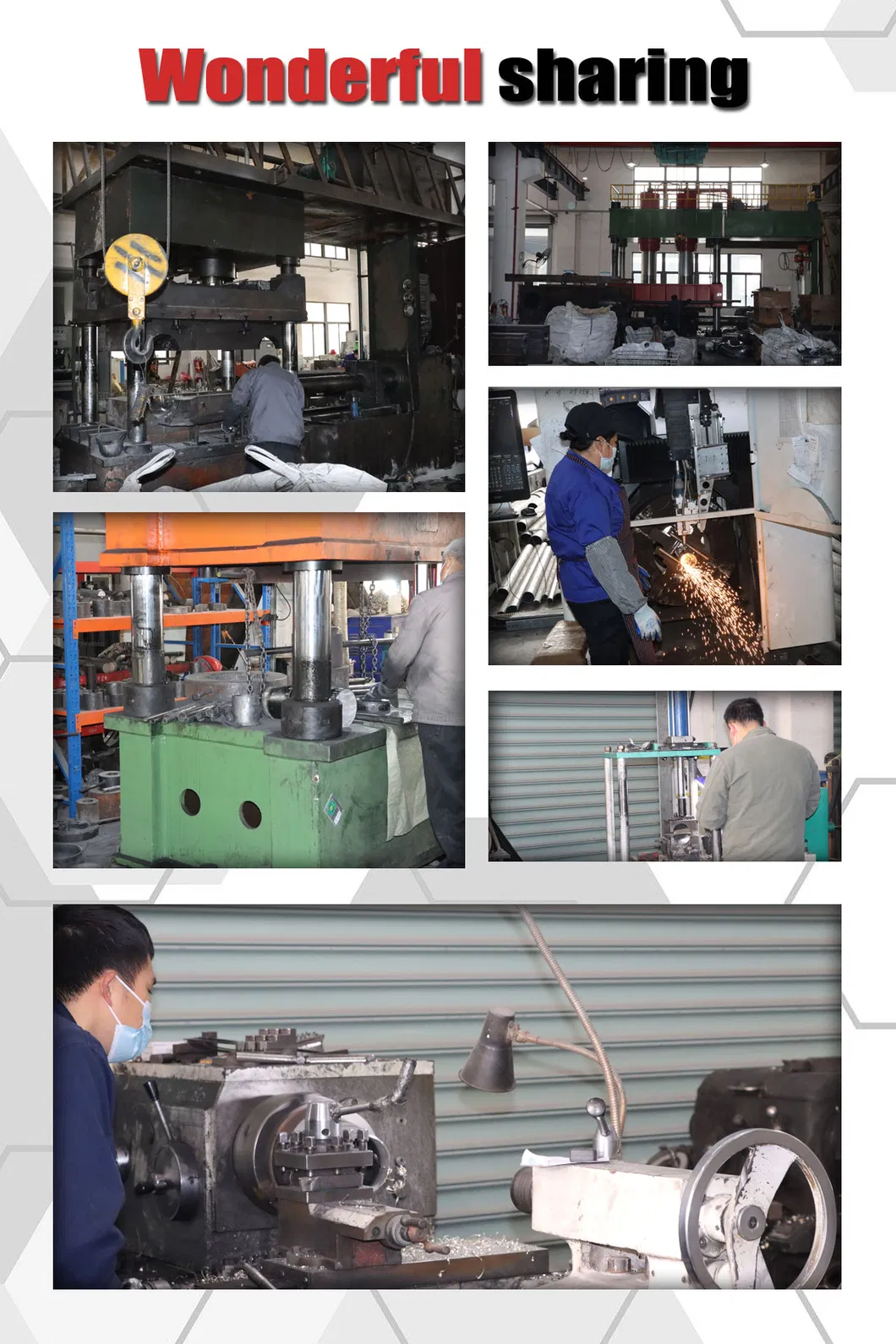

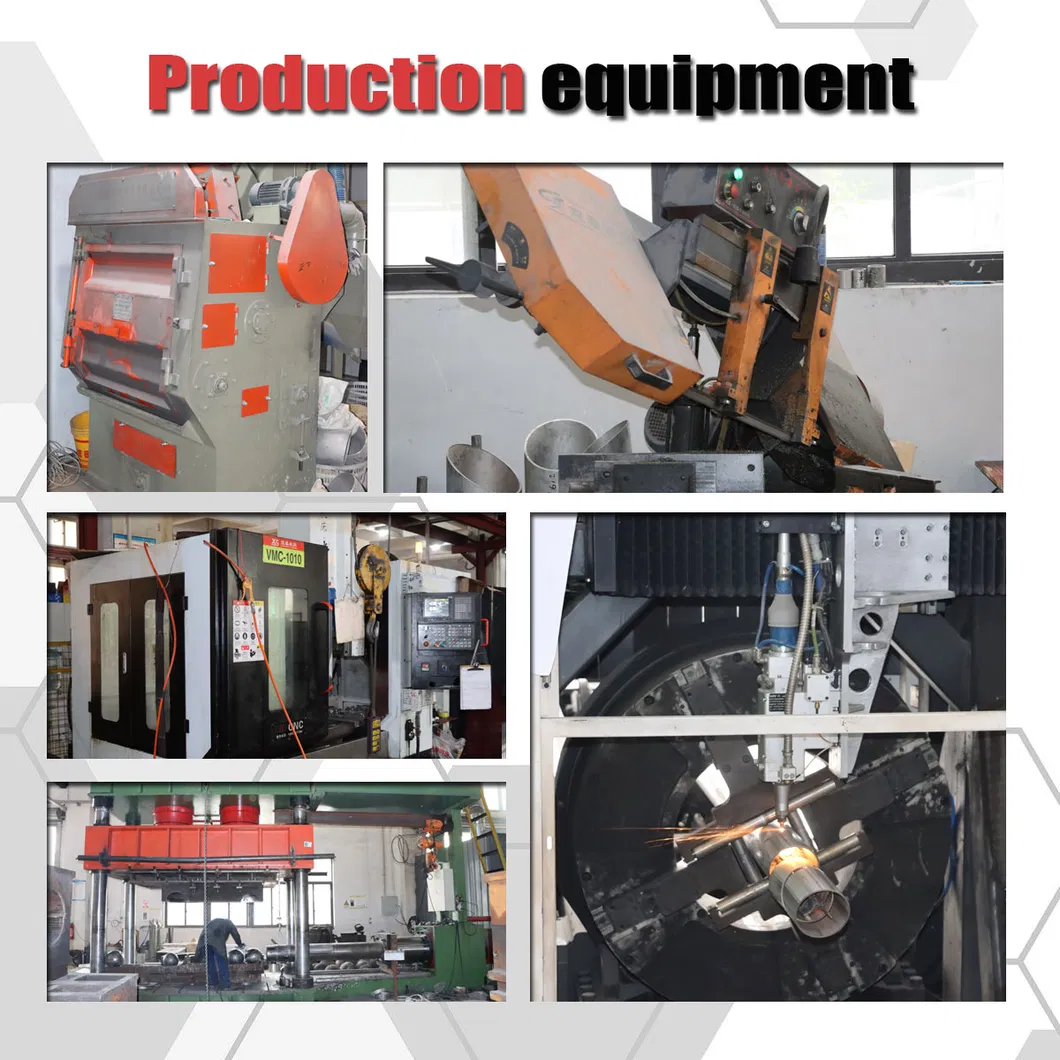

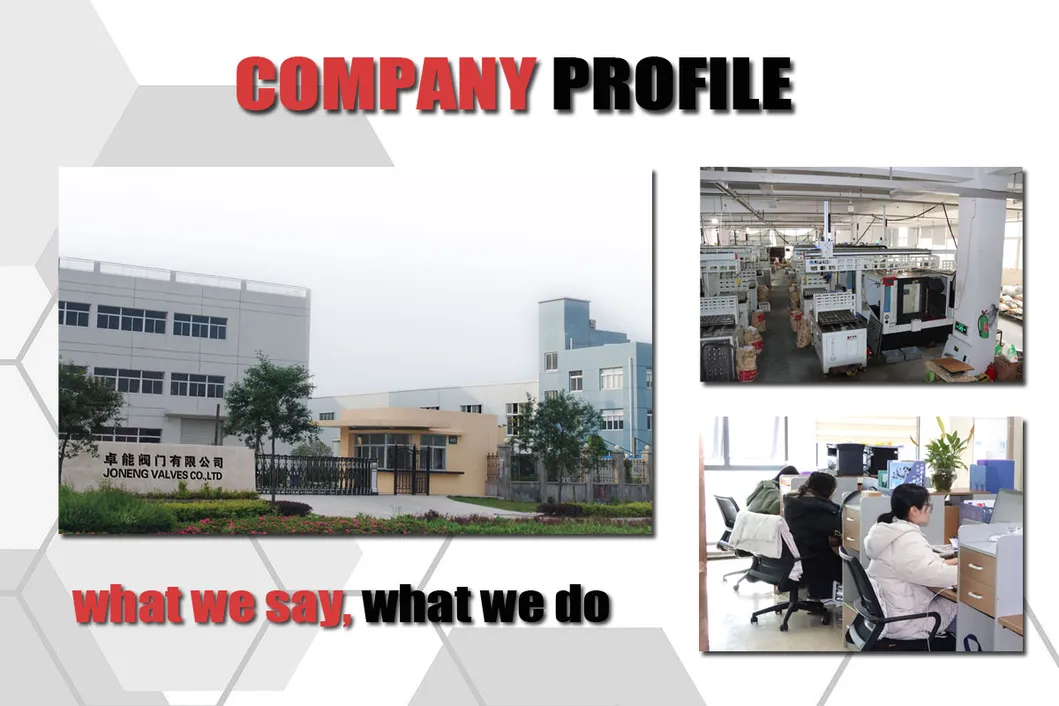

Manufacturing Capabilities

CNC Machines	50 units
Automatic CNC Center	2 full-automatic units
Polishing Equipment	40 polishing machines

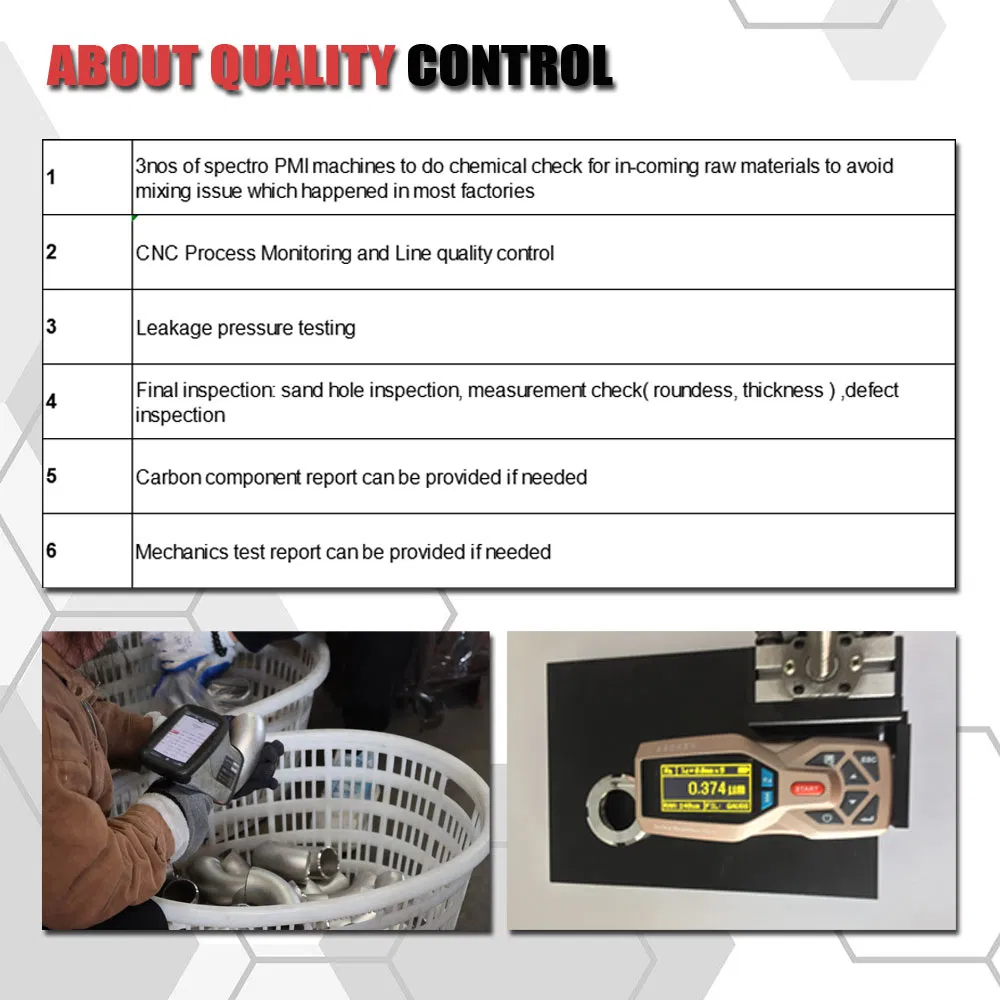

Testing Equipment	Pressure test, Hardness test, Spectro instrument, Roughness device
Export Ratio	80% worldwide including USA, Germany, UK, etc.

?

Frequently Asked Questions

1. Which standards do these sanitary pipe clamps follow?

Our pipe clamps comply with multiple international standards including DIN, SMS, ISO, 3A, BPE, IDF, AS, and BS.

2. What are the available material and gasket options?

The clamps are manufactured using high-grade SS304 or SS316L stainless steel. Gasket options include EPDM, Silicone, PTFE, and NBR to suit different chemical and temperature requirements.

3. What is the working pressure and temperature range for these supports?

These supports are designed to handle a working pressure of 0-10 Bar and can operate within a temperature range of -10°C to +150°C.

4. Can I request customized dimensions or surface treatments?

Yes, we provide OEM and design services. We can offer customized dimensions, shapes (round/hexagon), and various surface treatments like sandblasting, polishing, or e-coating.

5. What industries typically use these pipe clamp supports?

They are widely utilized in sanitary industries such as food processing, dairy, beverage, brewery, and pharmaceutical manufacturing.

6. What is the typical lead time for an order?

Small orders (1-10 pieces) usually ship within 7 days. Larger production orders typically take between 15 to 60 days depending on the quantity and specific requirements.
