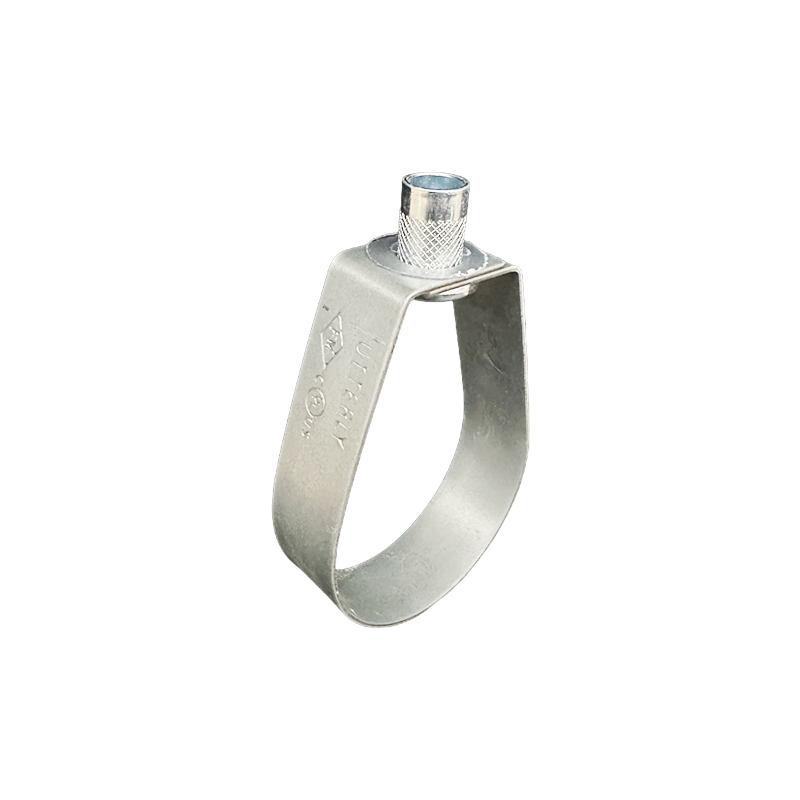

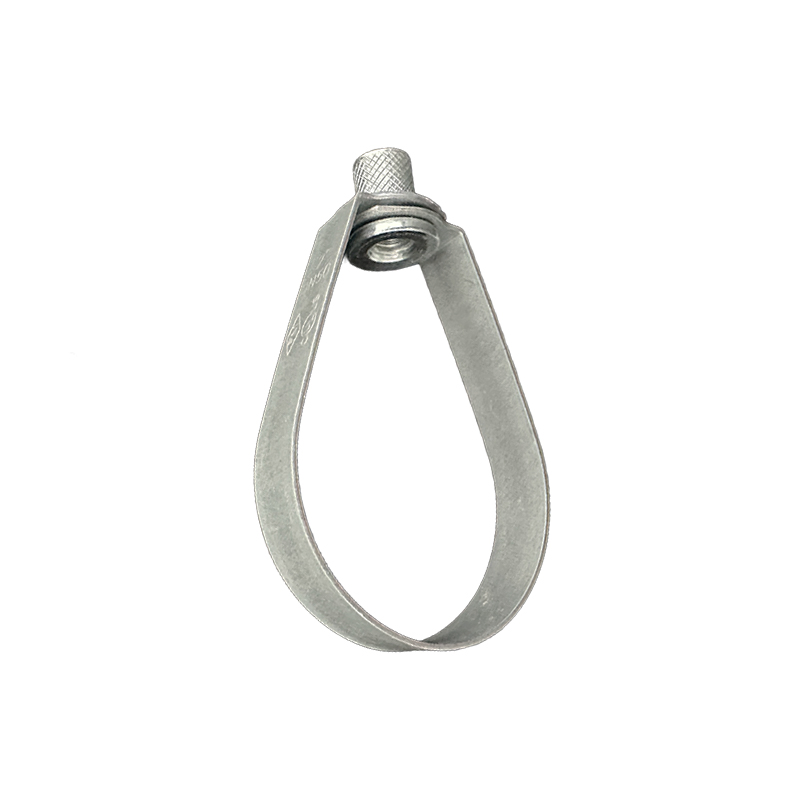

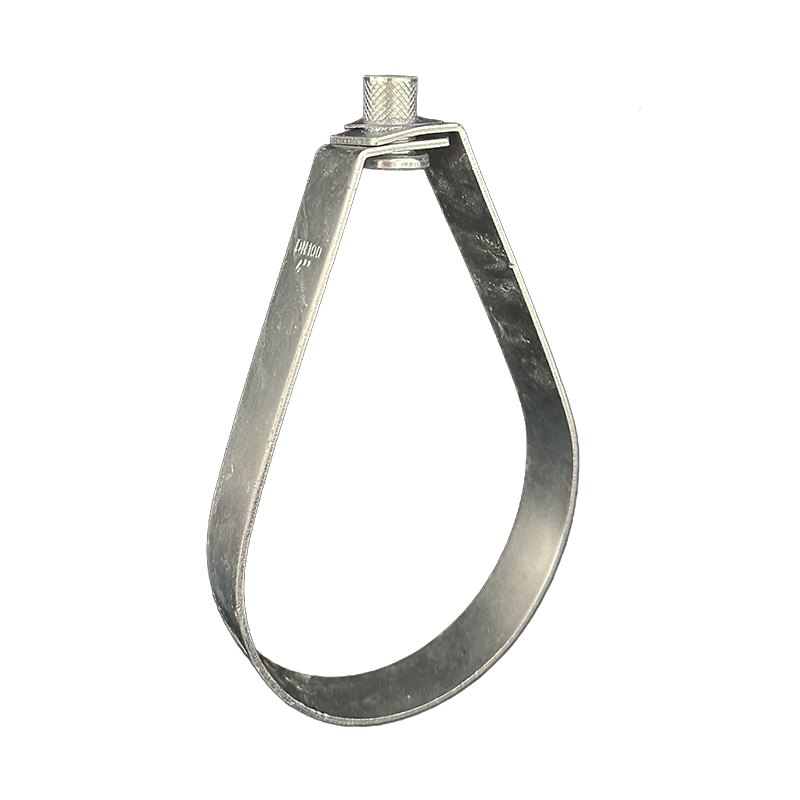

Ampy Pipe
1 / 5

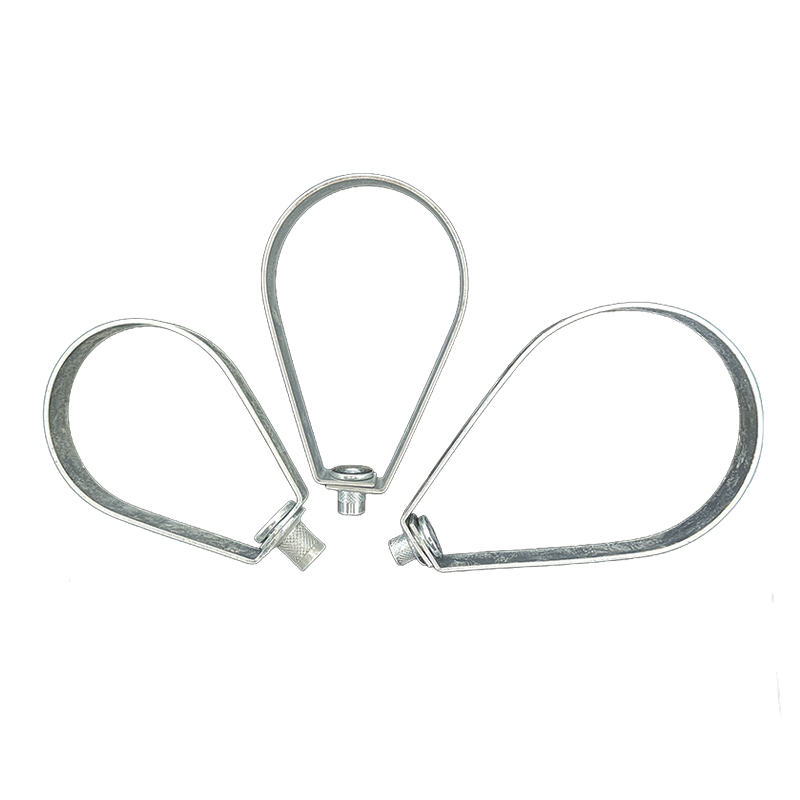

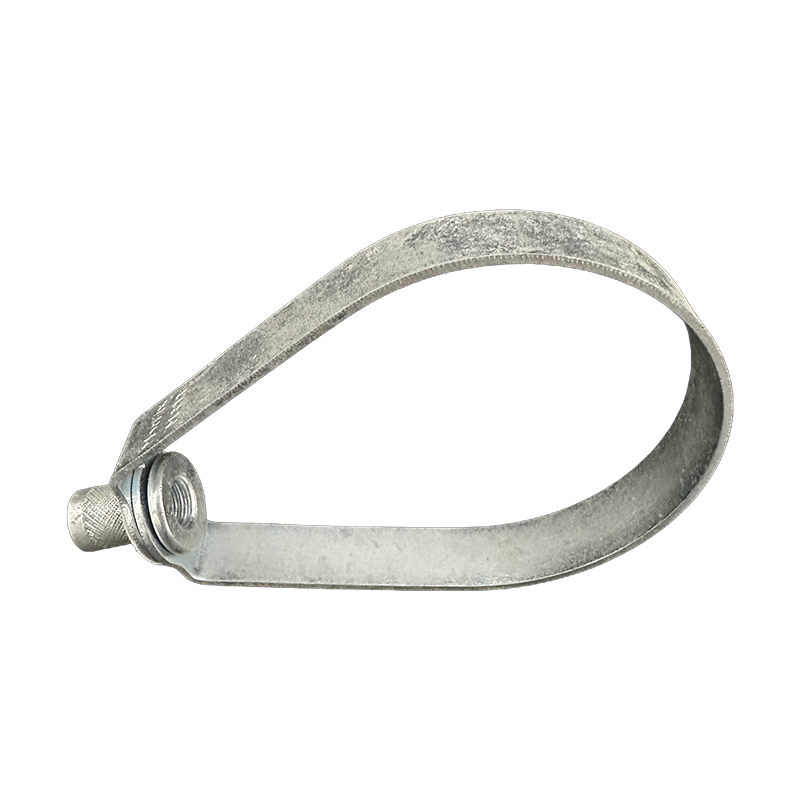

Function: Recommended for the suspension of stationary non-insulated pipe lines.
Features:
Size: 1/2" Thru 12"
Finish: Zinc Plate / Galvanized
Certificate: FM UL

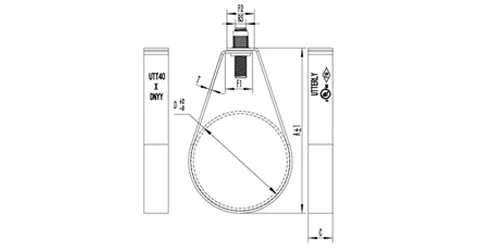

| Size | A | C | D | T | |||||
|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | in | mm | in | mm | in | mm |
| 1/2" | DN15 | 2.01 | 51 | 0.87 | 22 | 1/2" | 21.3 | 0.05 | 1.2 |
| 3/4" | DN20 | 2.32 | 59 | 0.87 | 22 | 3/4" | 26.7 | 0.05 | 1.2 |
| 1" | DN25 | 2.56 | 65 | 0.87 | 22 | 1" | 33.4 | 0.05 | 1.2 |
| 2" | DN50 | 3.67 | 93.1 | 0.87 | 22 | 2" | 60.3 | 0.05 | 1.2 |
| 4" | DN100 | 6.84 | 173.7 | 0.87 | 22 | 4" | 114.3 | 0.08 | 2.0 |
| 8" | DN200 | 12.04 | 305.9 | 1.02 | 26 | 8" | 219.1 | 0.12 | 3.0 |
| 12" | DN300 | 17.6 | 447 | 1.57 | 40 | 12" | 323.9 | 0.2 | 5.0 |

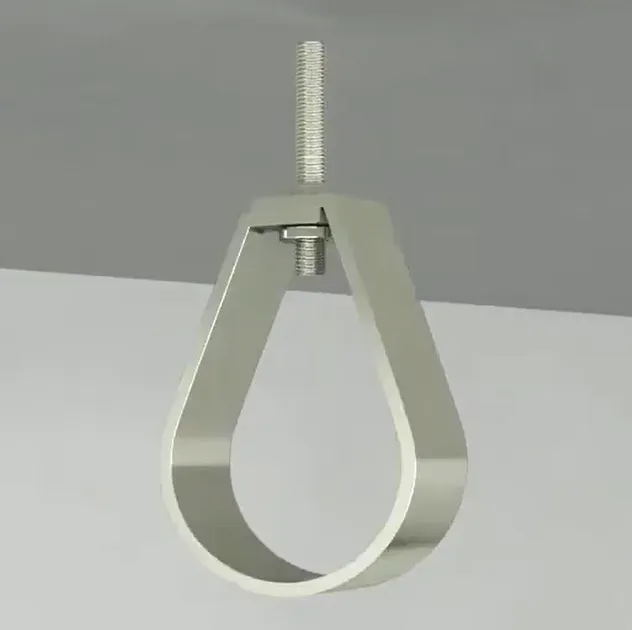

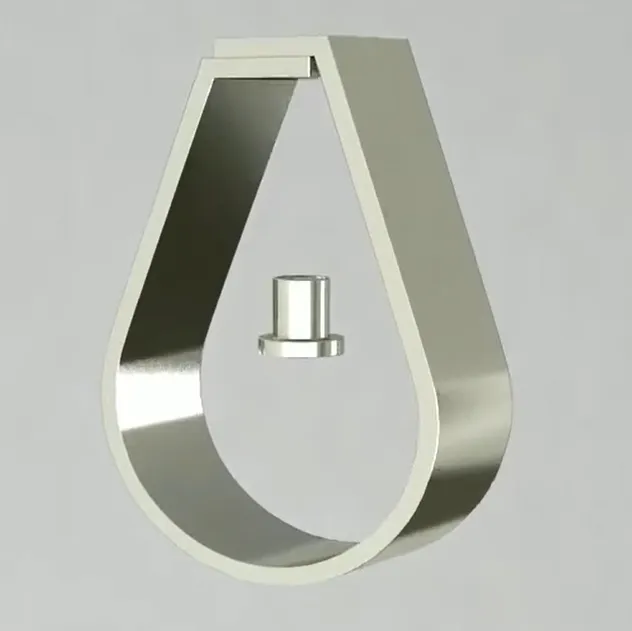

Assemble the clamp and the screw: Connect the screw with the hanger to form a fixed component.

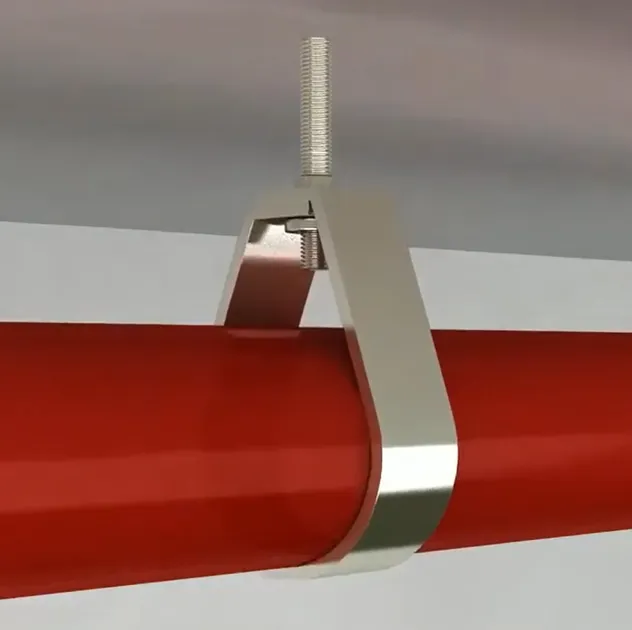

Place the pipeline into the pear-shaped slot of the hanger, ensuring a proper fit.
Fix the entire device onto the base surface (e.g., ceiling) using the screw for secure clamping.

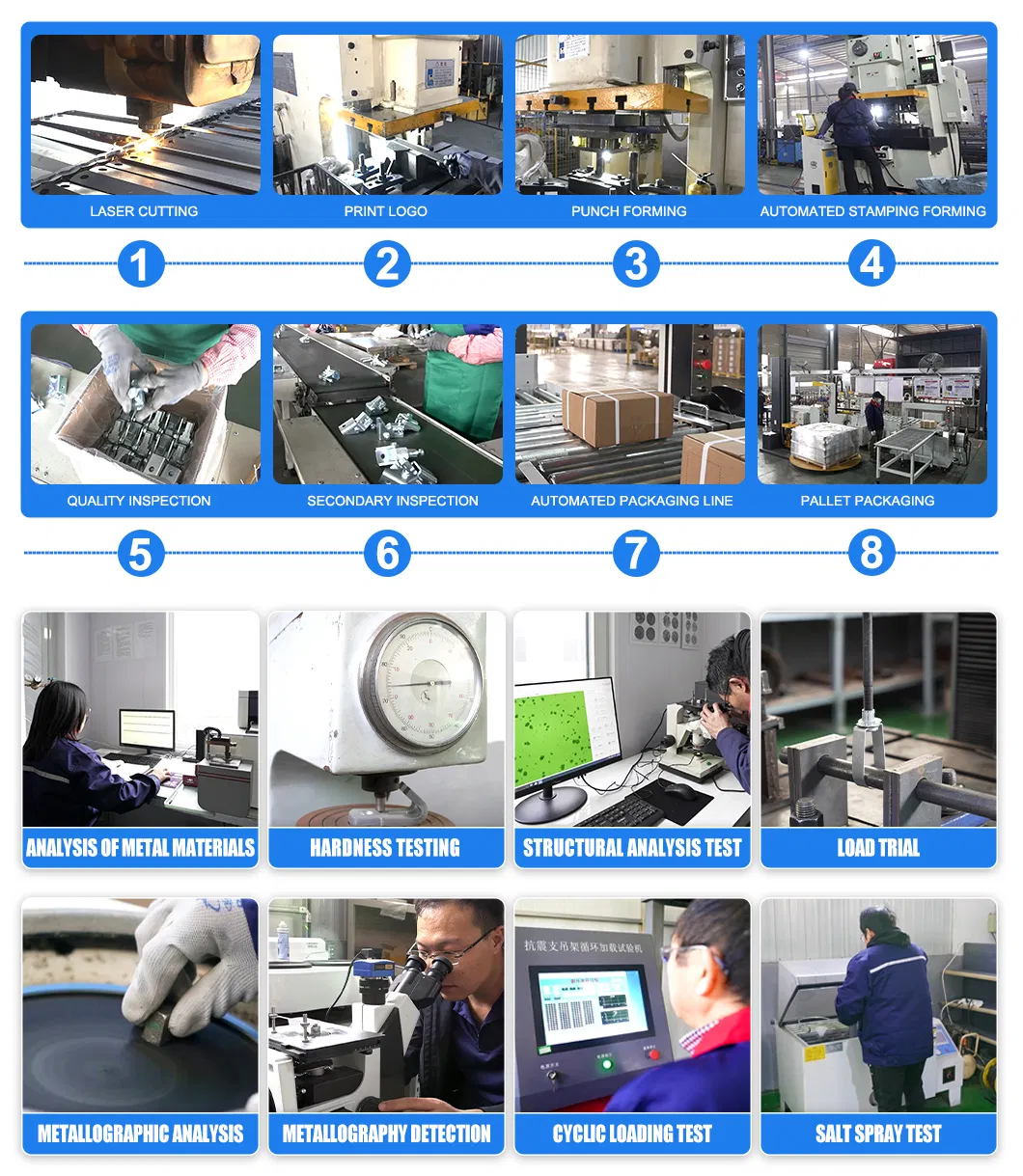

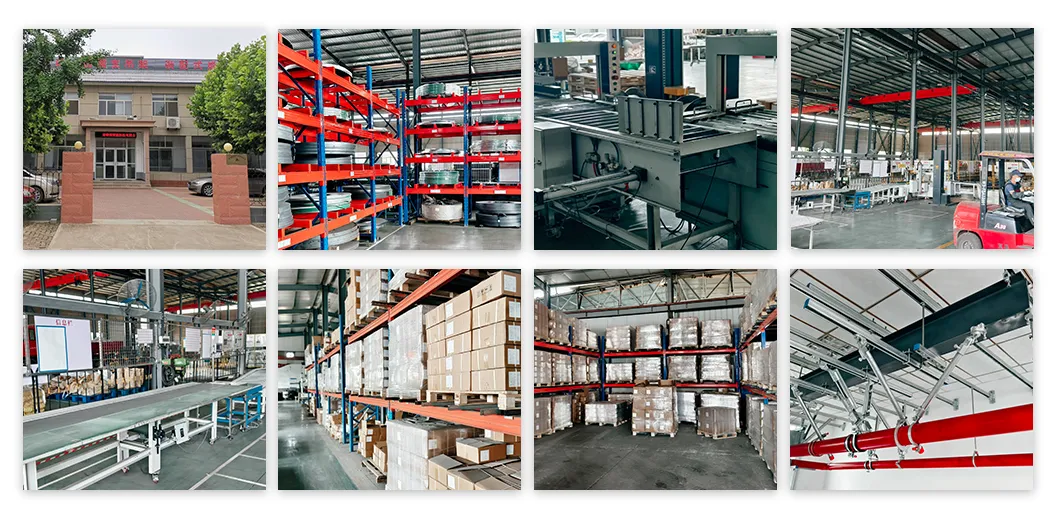

Precision Engineering: We use 5 advanced laser cutters and high-quality casting equipment to ensure smooth surfaces without defects. Durable manufacturing leads to lasting results.
Accurate Molding: Dedicated molds and hydraulic presses enable precise forming to meet stringent OEM and ODM requirements.
Efficient Assembly: Skilled teams manage streamlined assembly, testing, and packaging. Waterproof cartons and desiccants protect items during transit.
Safety Standards: Factories hold FM, UL, and CE certifications, prioritizing safety and regulatory compliance.
A: Our pipe hangers are primarily manufactured from high-quality Carbon Steel, Ductile Iron (Qt450), or Stainless Steel through casting or forging methods.
A: Yes, our products are certified by UL and FM, and we also hold CE certification to ensure high safety and reliability in engineering applications.
A: We offer a wide range of sizes from 1/2" (DN15) up to 12" (DN300) to accommodate various pipeline requirements.
A: All our products undergo a professional surface treatment process, typically Zinc Plating or Galvanization, which provides excellent anti-corrosion properties and a long service life.
A: Yes, our engineers can customize special pipe support system accessories based on the specific engineering drawings and requirements provided by the customer.

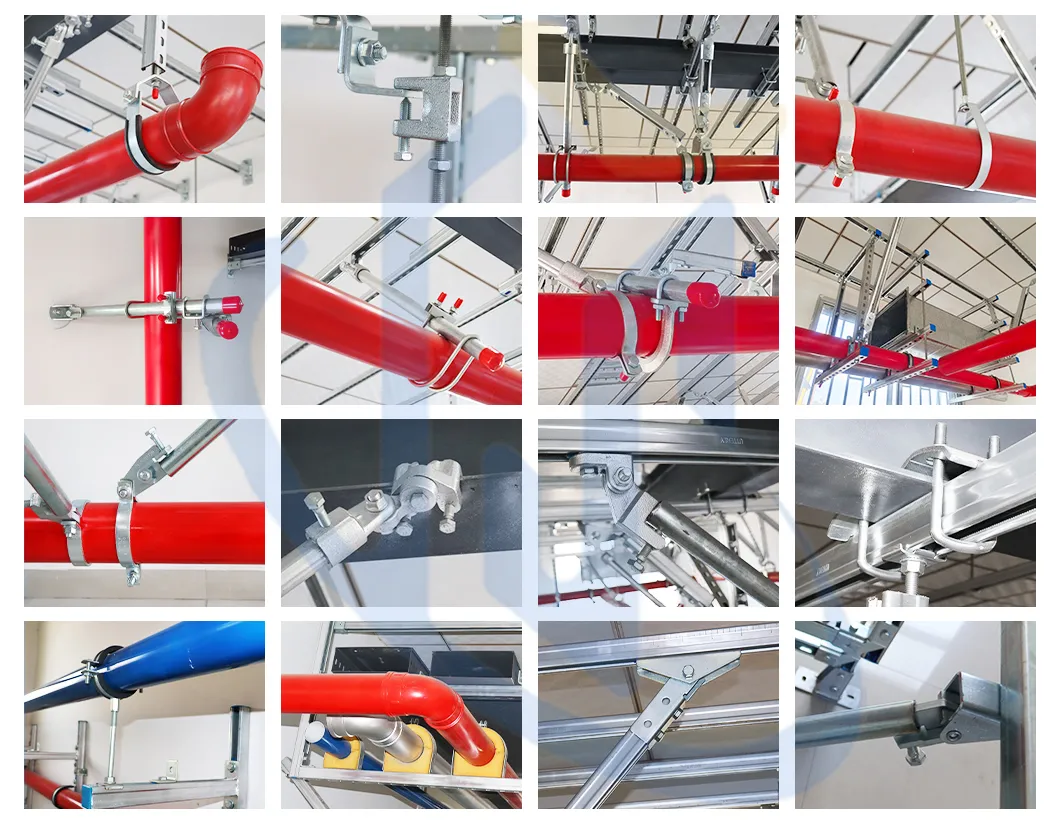

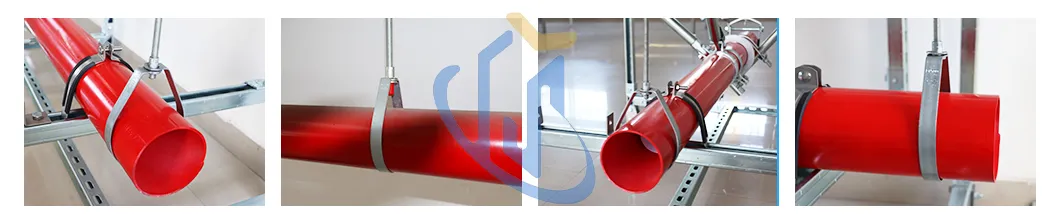

A: They are recommended for the suspension and support of stationary, non-insulated pipe lines in fire protection, water systems, and general plumbing installations.
