Small Tapping Saddle for PE/PVC Pipe ISO9001 Pipe Repair Clamp

1 / 3

Small Tapping Saddle for PE/PVC Pipe ISO9001 Pipe Repair Clamp

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊 Basic Information

Model NO.:P50-P500

Connection:Press Connection

Structure:Other

Flexible or Rigid:Rigid

Material:Alloy

Standard:Standard

Application:Water Pipeline

Working Pressure:2.5 MPa and Above

Feature:No Shutdown, No Welding, Instant Repair

Repair Tool Material:Ductile Iron

Package:Plywood or Carton Box

Specification:35-317mm

🔧 Product Overview

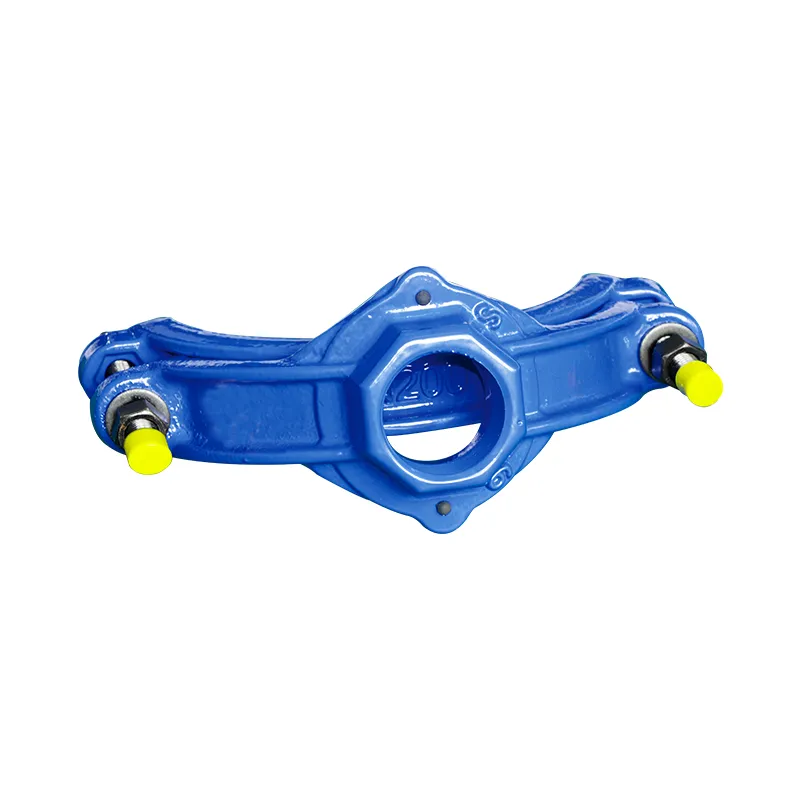

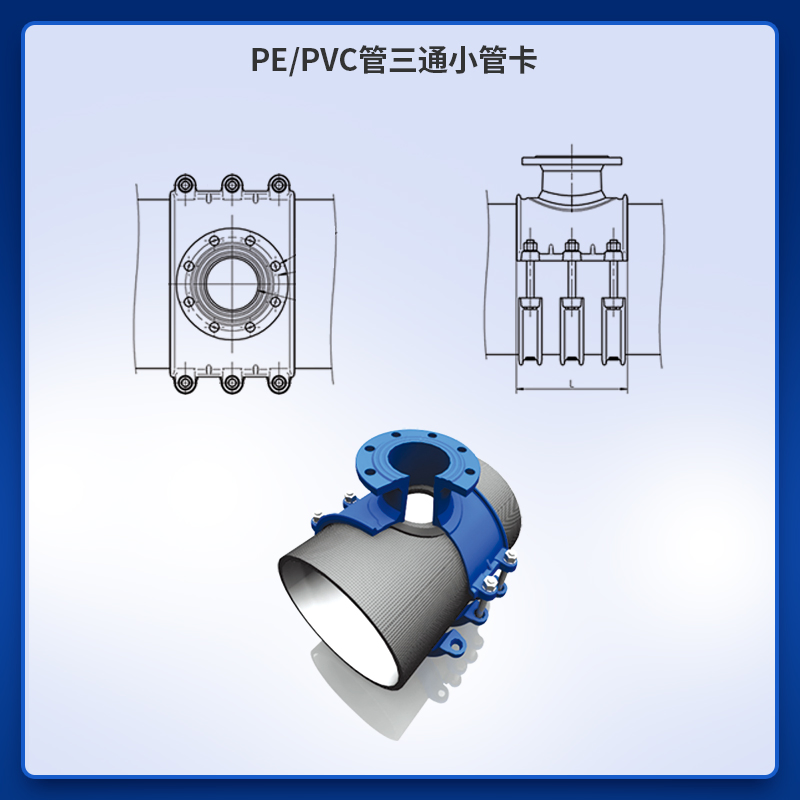

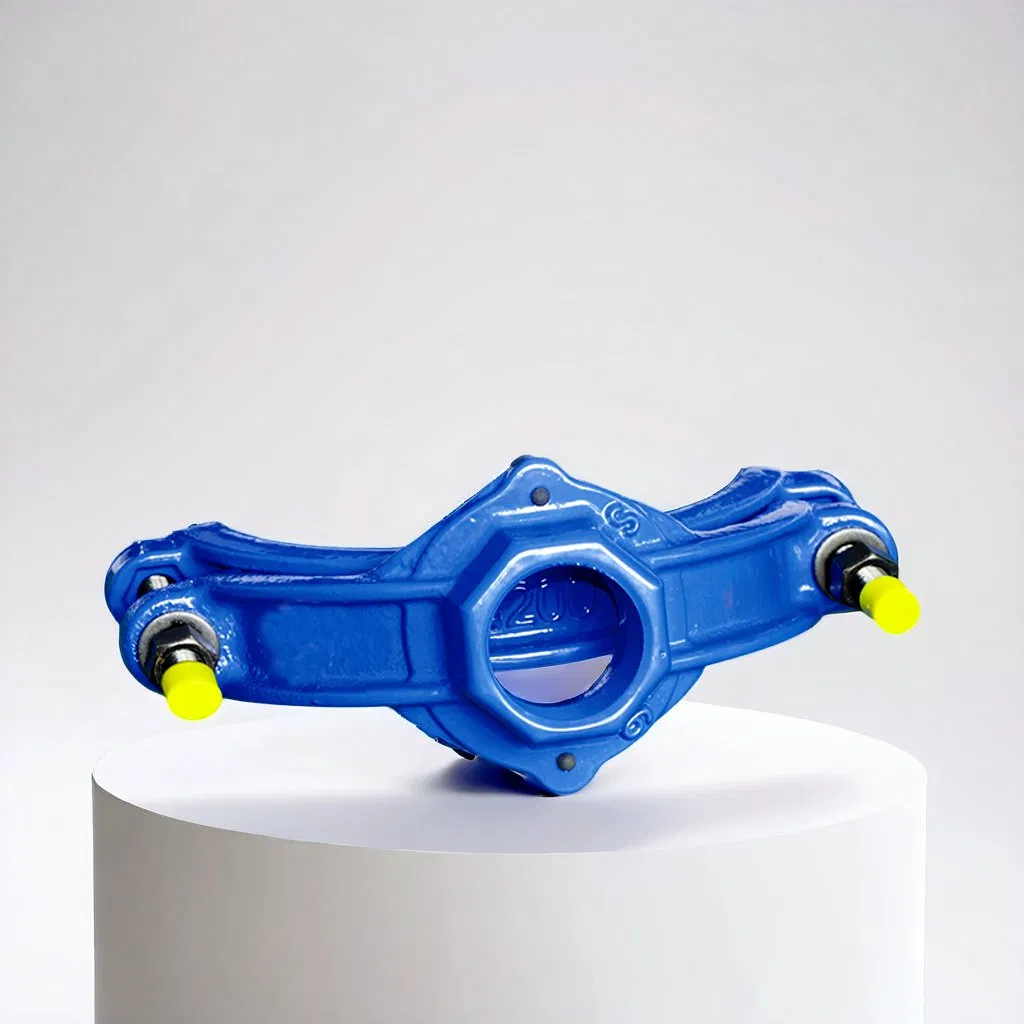

Small Tapping Saddle for PE/PVC Pipe

Application Scene: Emergency repair for Tapping Saddle of PE/PVC Pipe.

📋 Product Specification

Specification and Model	Suitable Pipe Outer Diameter (mm)	Branch Interface
P50-25	35-52	1cun
P63-25	48-65	1cun
P75-25	60-77	1cun
P90-50	75-92	2cun
P110-50	95-112	2cun
P140-50	125-142	2cun
P160-50	145-162	2cun
P180-50	165-182	2cun
P200-50	185-202	2cun
P250-50	235-252	2cun
P315-50	300-317	2cun
P355-50	240-257	2cun
P400-50	385-402	2cun
P450-50	435-452	2cun
P500-50	485-502	2cun
P110-80	95-110	3cun
P160-80	145-162	3cun
P200-80	185-202	3cun
P315-80	300-317	3cun

🌟 Key Features

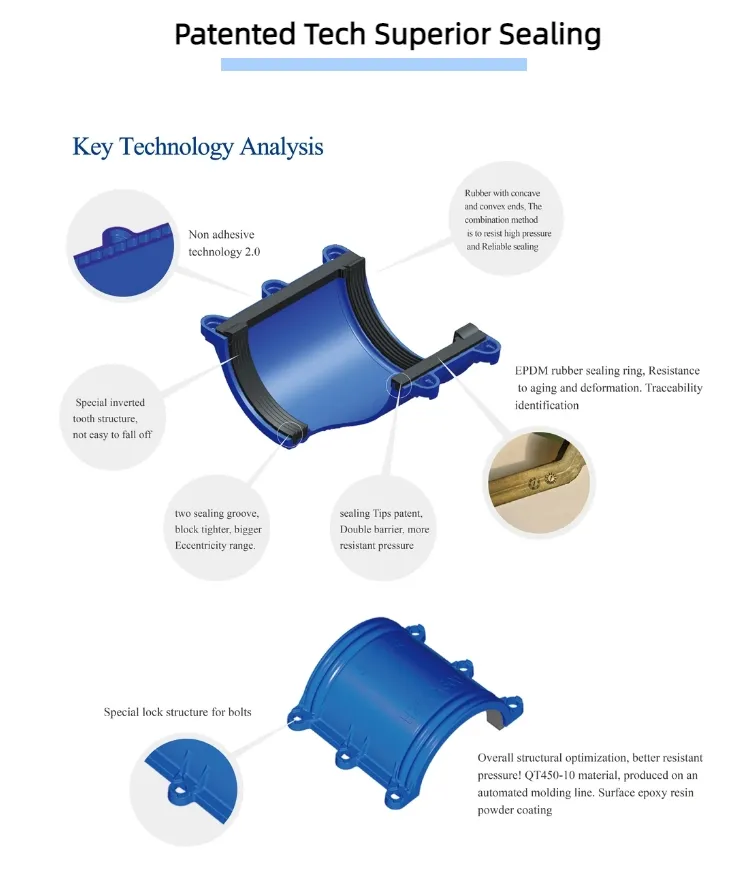

Advanced Sealing Technology: The ends adopt a double circular sealing groove patent technology, and the side wings use an anti-pressure sealing lip. This creates a dual anti-pressure sealing barrier.
High Reliability: High-pressure sealing structure offers stronger connections, specifically for plastic pipelines, adapting well to pressure deformation and misalignment.
Durable Construction: The shell and rubber pad use a strong clamp connection, ensuring it is durable and environmentally friendly.
Quality Fasteners: Supplied with stainless steel standard fasteners or 8.8 grade high-strength fasteners. Includes installation-specific lubricant.
Extended Service Life: Due to the anti-high-pressure sealing structure and enhanced material thickness, the service life of these components is greatly extended.

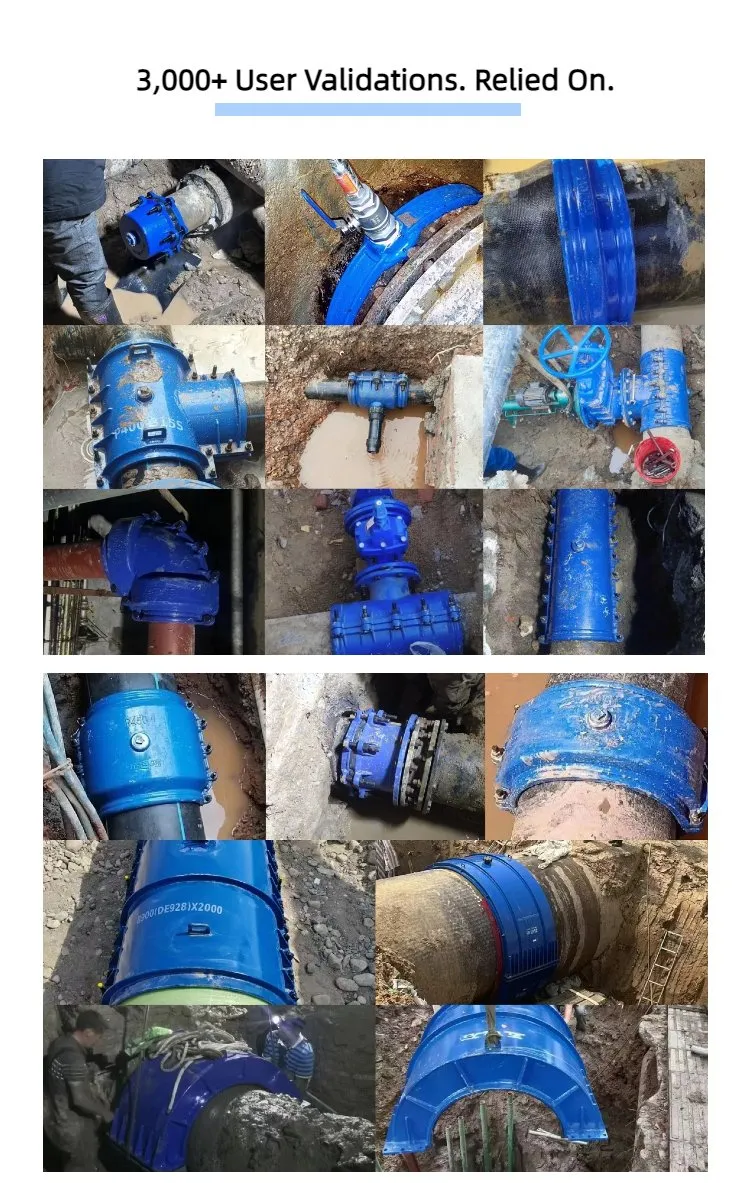

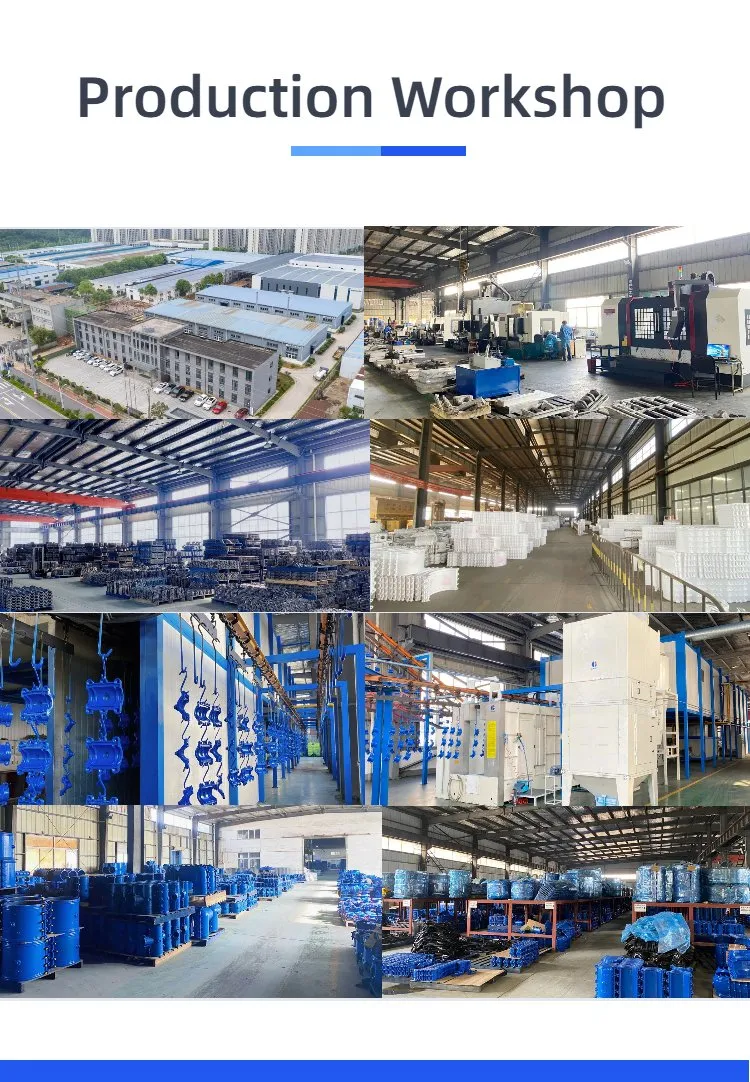

🏭 Production & Cases

❓ Frequently Asked Questions

Q1: What types of pipes are these tapping saddles suitable for? A1: They are specifically designed for emergency repairs and tapping on PE and PVC pipelines.

Q2: Does installation require shutting down the water system? A2: No, one of the primary features is that it allows for instant repair without the need for a system shutdown or welding.

Q3: What makes the sealing mechanism reliable under high pressure? A3: The product utilizes a double circular sealing groove and an anti-pressure sealing lip patent technology, which doubles the width of the sealing element.

Q4: What is the maximum working pressure these saddles can handle? A4: These saddles are rated for a working pressure of 2.5 MPa and above.

Q5: Are the materials used in the saddle corrosion-resistant? A5: Yes, the shell is made of ductile iron and the fasteners are available in stainless steel or high-strength 8.8 grade steel to ensure longevity.

Q6: Is the provided installation lubricant safe? A6: Yes, the included lubricant is environmentally friendly and meets skin-care grade standards, making it harmless to humans.
