Own Brand Factory Small Tapping Saddle for PE/PVC Pipe

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.

P50-P500

Connection

Press Connection

Flexible or Rigid

Rigid

Material

Alloy / Ductile Iron

Application

Water Pipeline

Working Pressure

2.5 MPa and Above

Feature

No Shutdown, No Welding, Instant Repair

Capacity

10,000 pieces/Year

🚀

Product Description

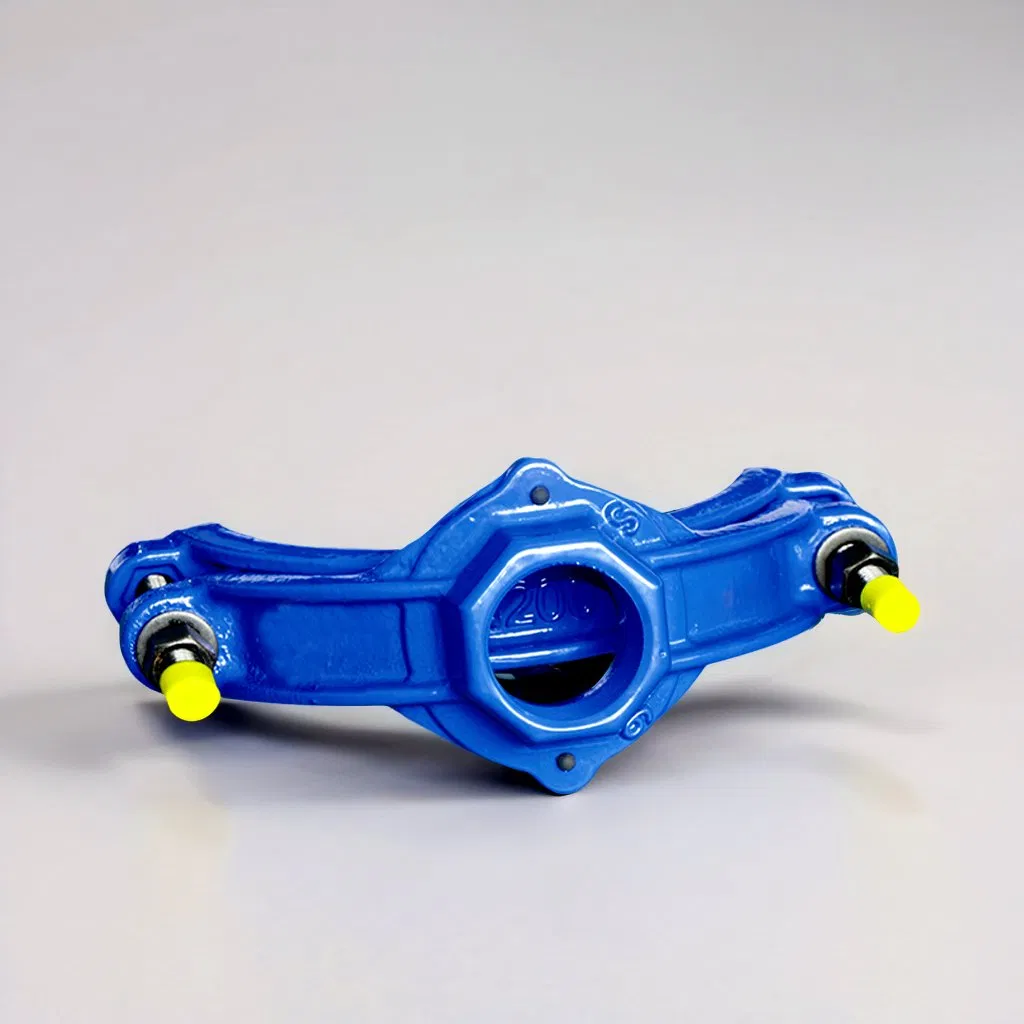

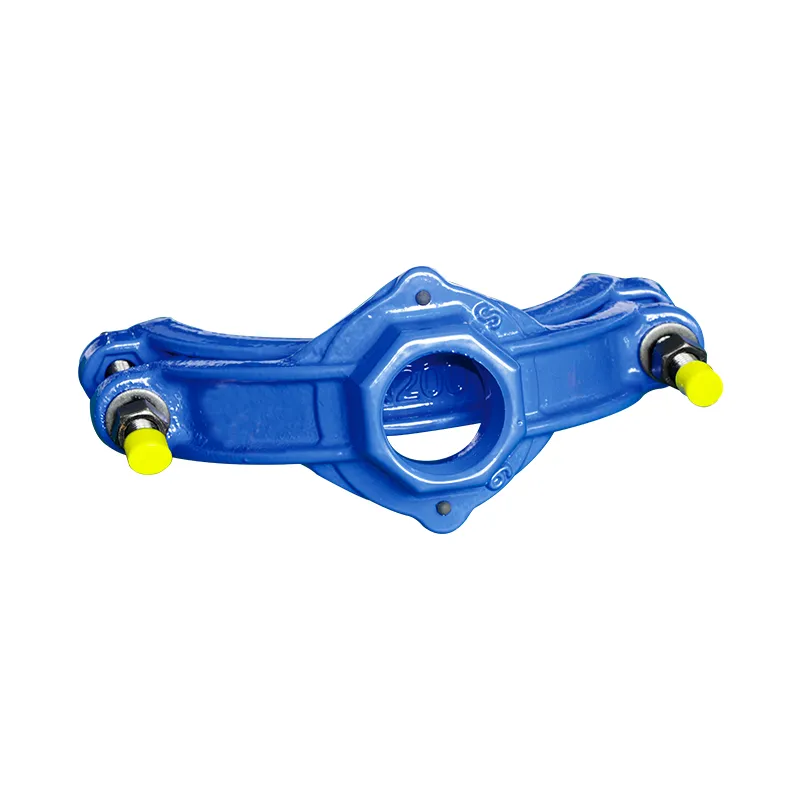

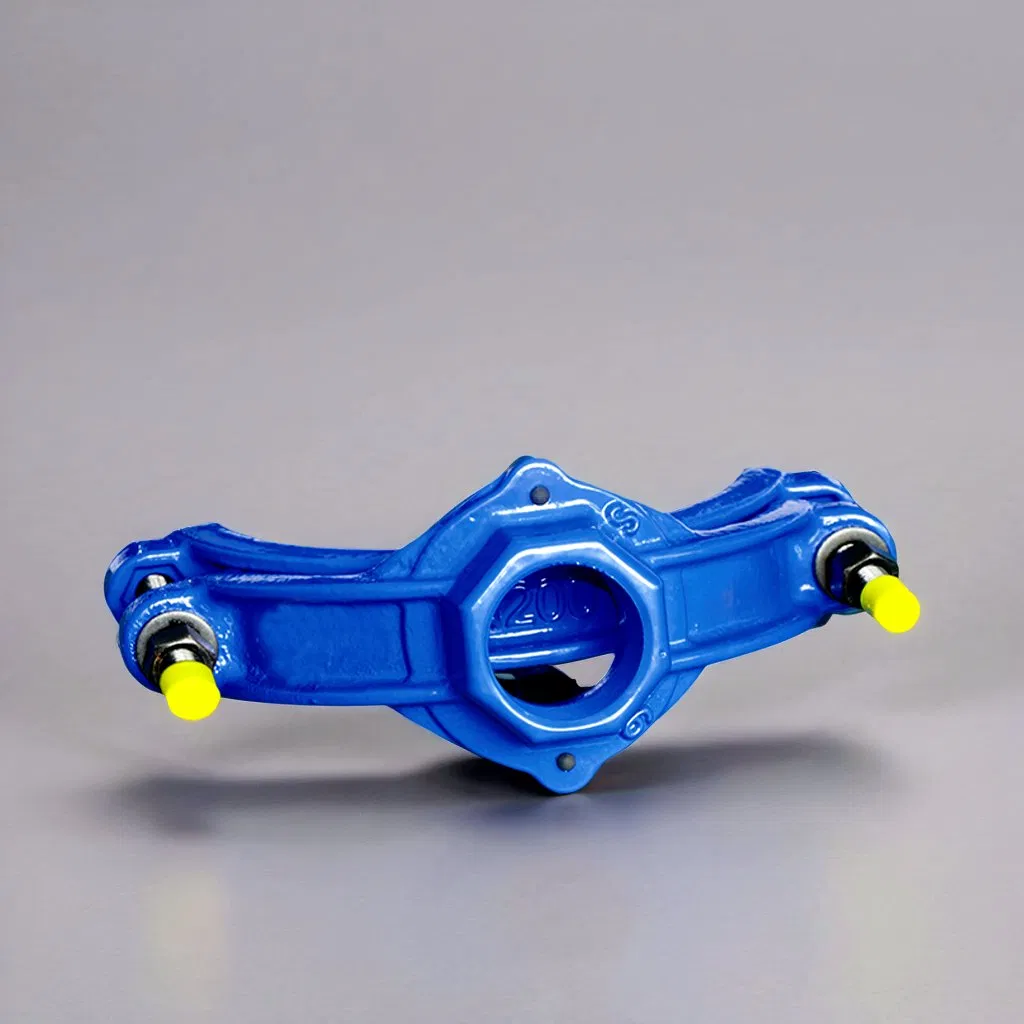

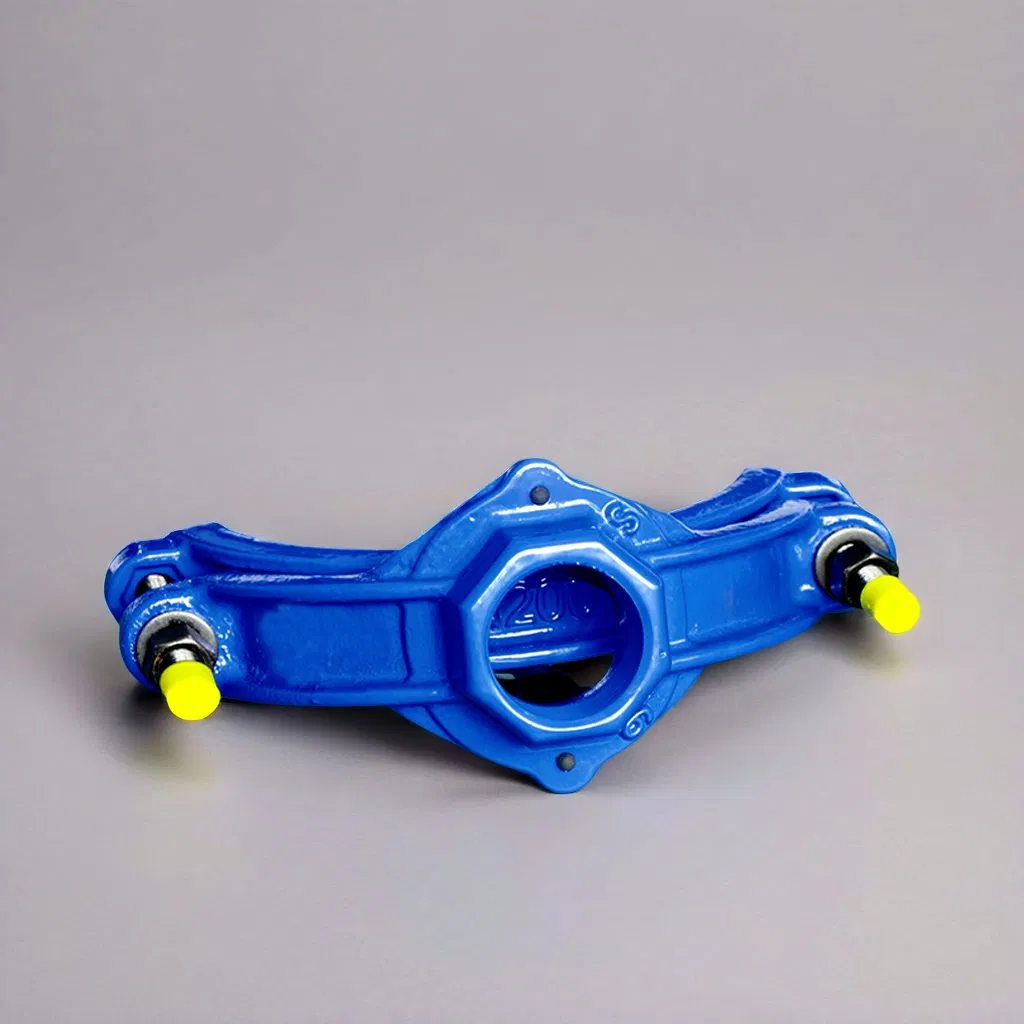

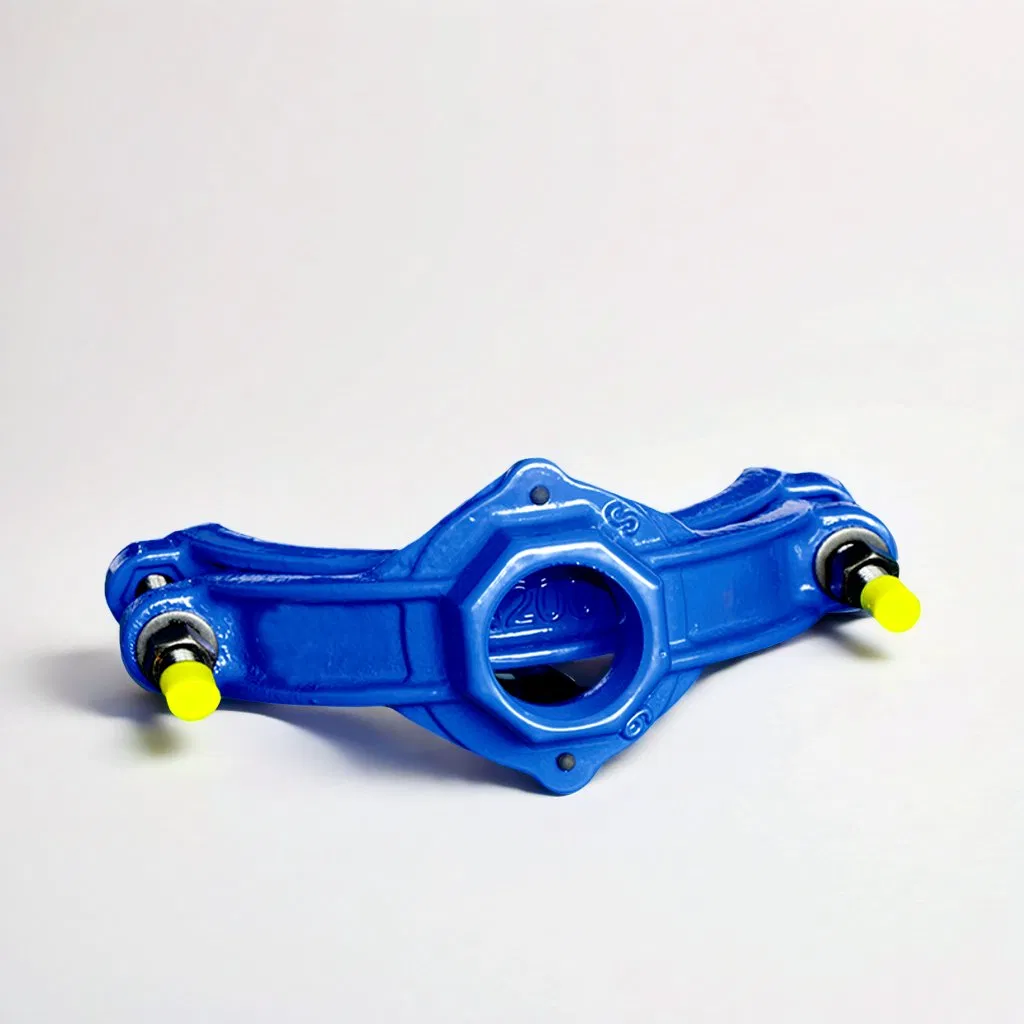

Small Tapping Saddle for PE/PVC Pipe

Emergency repair solution specifically designed for PE and PVC pipe tapping saddles, enabling quick intervention without pipeline shutdown or welding.

Specification and Model	Suitable Pipe Outer Diameter (mm)	Branch Interface
P50-25	35-52	1cun
P63-25	48-65	1cun
P75-25	60-77	1cun
P90-50	75-92	2cun
P110-50	95-112	2cun
P140-50	125-142	2cun
P160-50	145-162	2cun
P180-50	165-182	2cun
P200-50	185-202	2cun
P250-50	235-252	2cun
P315-50	300-317	2cun
P355-50	240-257	2cun
P400-50	385-402	2cun
P450-50	435-452	2cun
P500-50	485-502	2cun
P560-50	545-562	2cun
P110-80	95-110	3cun
P160-80	145-162	3cun
P200-80	185-202	3cun
P315-80	300-317	3cun

⭐

Key Features

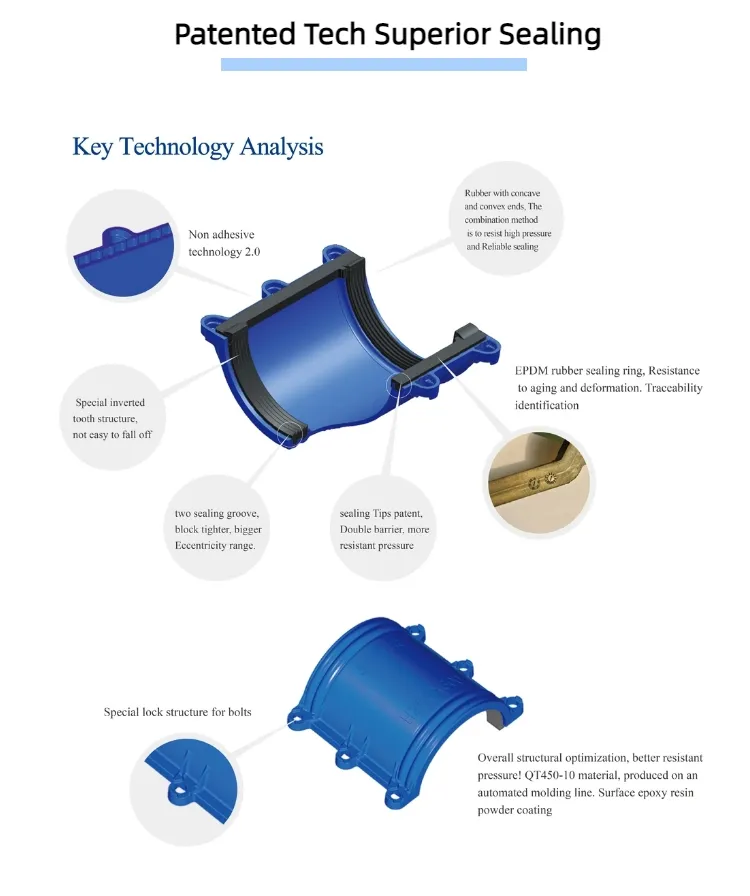

Advanced Sealing Technology The ends adopt a double circular sealing groove patent technology, and the side wings use an anti-pressure sealing lip. This creates a dual anti-pressure barrier that prevents rubber from bulging under high water pressure.

Reliable Connections High-pressure sealing structure offers superior adaptability under pressure deformation, twist deformation, and pipe misalignment, especially on plastic pipelines.

Eco-Friendly & Durable The shell and rubber pad use a strong clamp connection. Supplied with stainless steel or 8.8 grade high-strength fasteners and skin-care grade lubricant harmless to humans.

Extended Service Life Enhanced width and material of rubber seals combined with upgraded accessories significantly extend the lifespan of repair components.

🏭

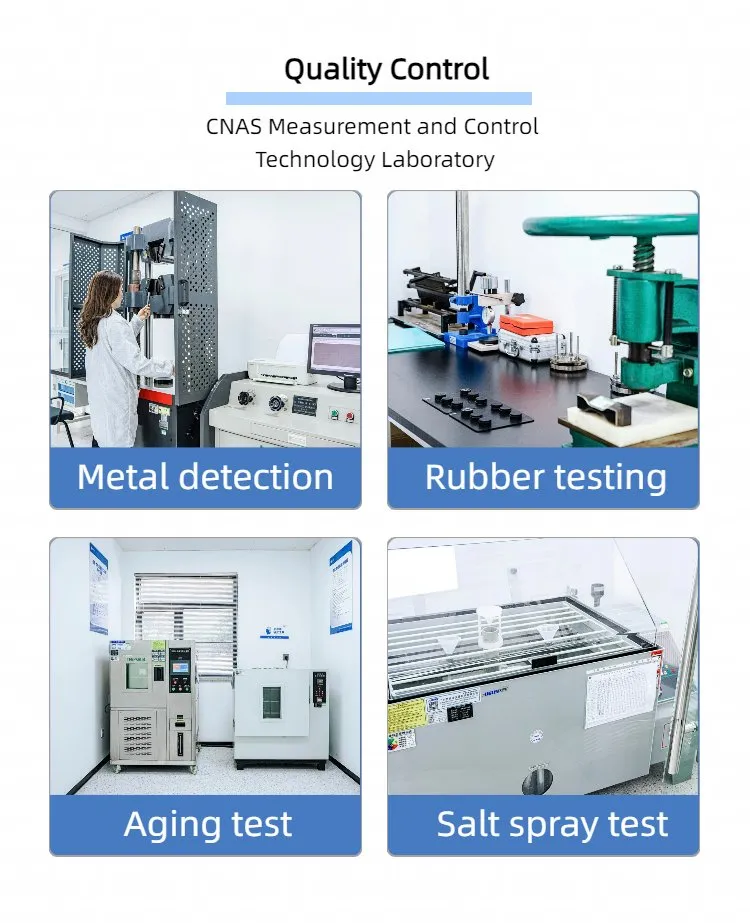

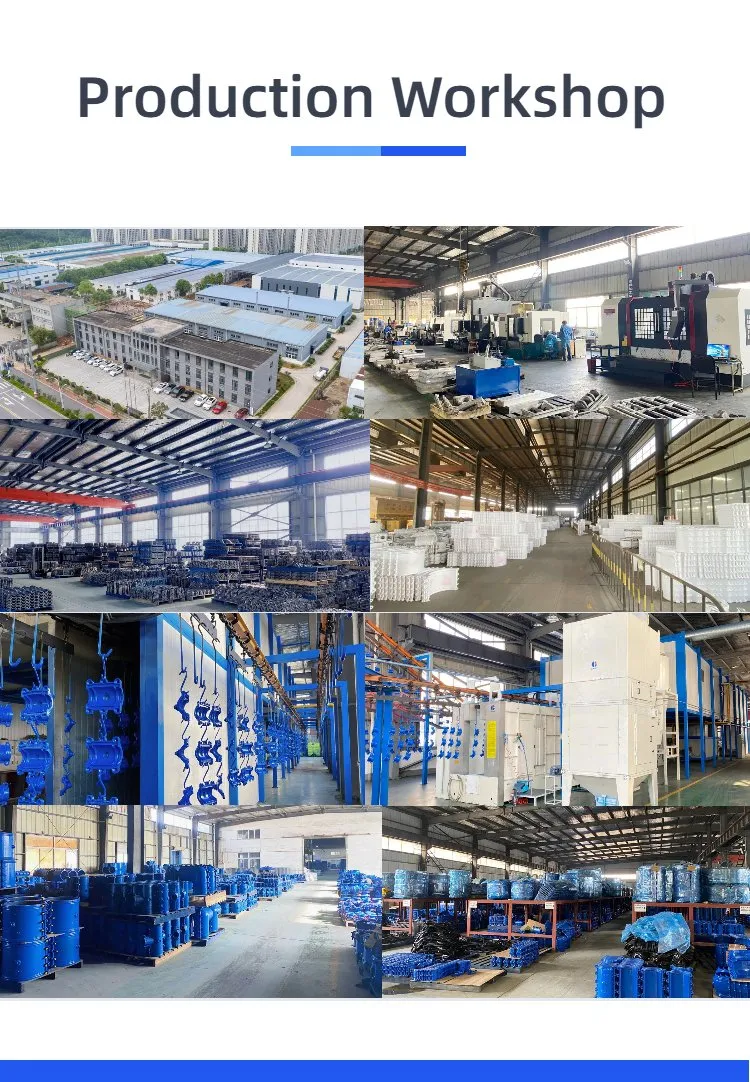

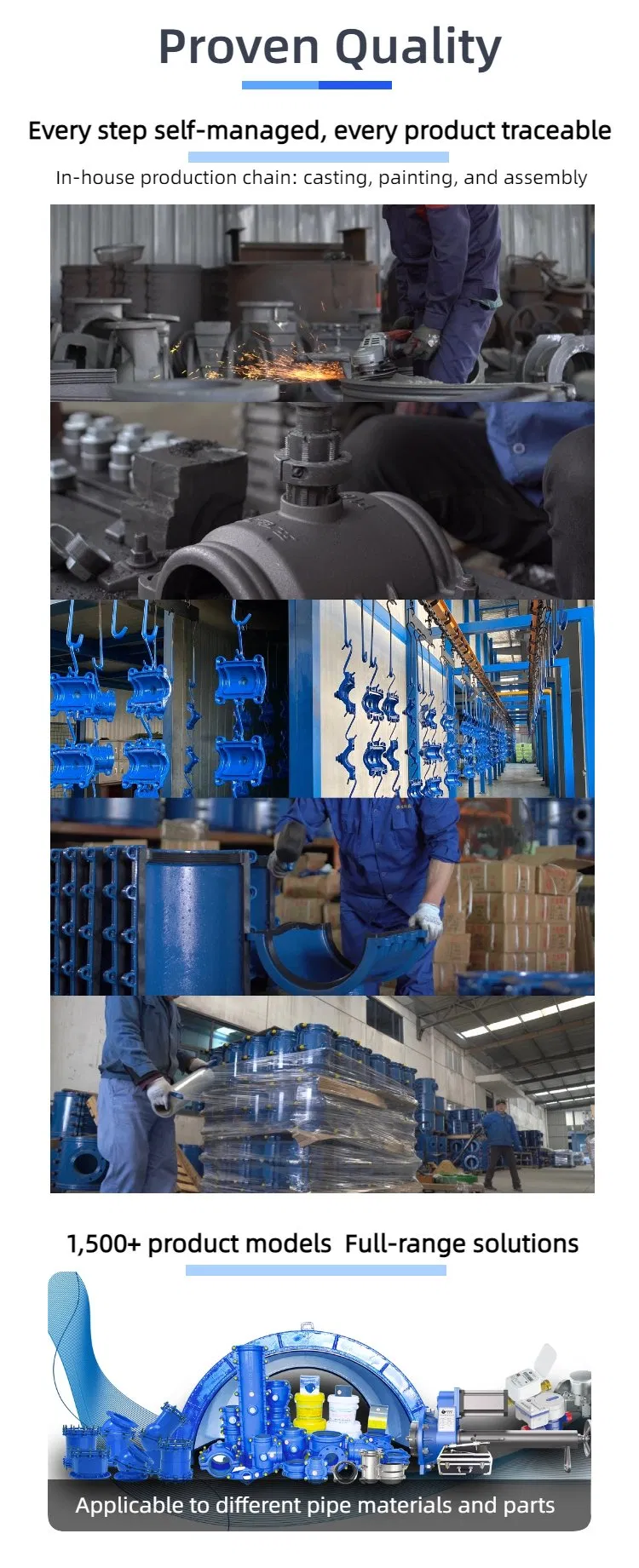

Professional Production & Quality

❓

Frequently Asked Questions

What types of pipes is this tapping saddle suitable for?

It is specifically designed for PE (Polyethylene) and PVC (Polyvinyl Chloride) plastic pipelines.

What is the maximum working pressure these saddles can handle?

Our tapping saddles are rated for working pressures of 2.5 MPa and above, ensuring reliable performance in high-pressure water pipelines.

Is it necessary to stop the water flow during installation?

No, one of the primary features of this product is "No Shutdown" repair, allowing for instant tapping and repair without interrupting the pipeline service.

How does the patented sealing technology work?

It uses a double circular sealing groove and anti-pressure side wing lips. This creates a dual barrier that prevents rubber leakage or bulging even under significant pressure.

What materials are used for the hardware?

The saddles are equipped with stainless steel standard fasteners or 8.8 grade high-strength fasteners for maximum durability and corrosion resistance.

Can these saddles handle pipe misalignment?

Yes, the high-pressure sealing structure is designed to be flexible and adaptable to twist deformation and significant misalignment of the joined pipes.
