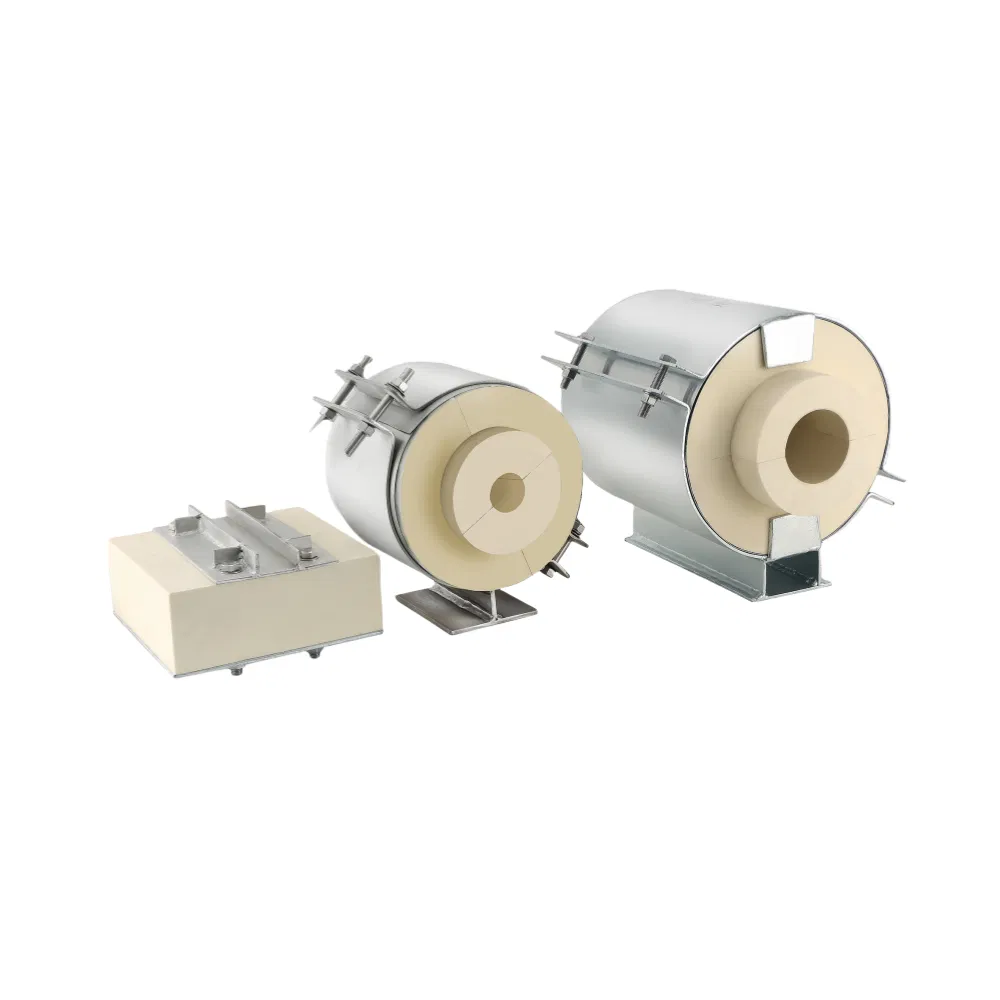

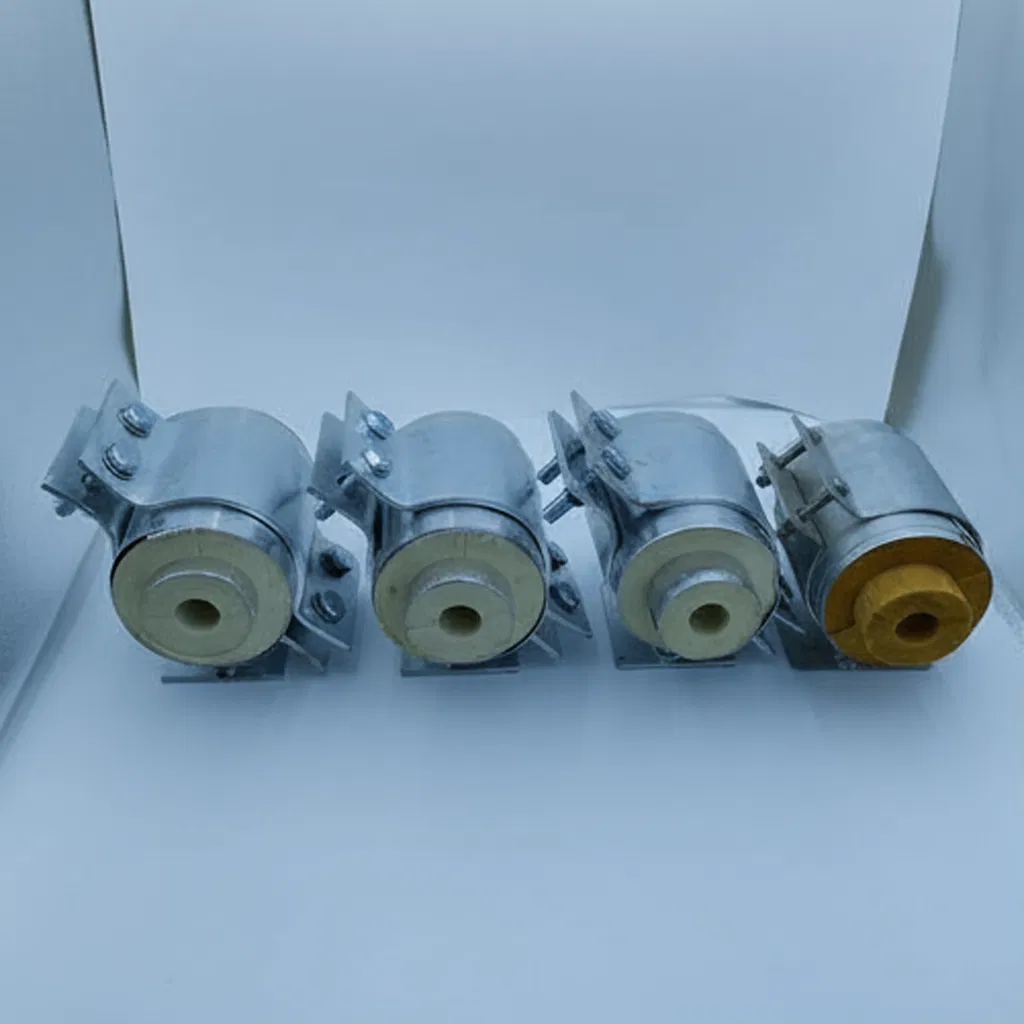

Sliding Pipe Support with Advanced Cryogenic Foam Technology Features

Customization:	Available
After-sales Service:	Installation Guide
Highest Working Temperature:	-196℃-120℃

📋

Basic Product Information

Model NO.

9220

Material

Polyurethane Foam Board

Applicable Temperature

-196°C to 120°C

Density

160-340 Kg/M³

Shape

Rectangle

Customized Services

Yes

HS Code

3921139000

Package Size

76.00cm * 66.00cm * 102.00cm

🔍

Product Description

High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. Our innovative concepts and solutions for high-performance cold insulation are suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.

Version	Unit	9160	9220	9320	9340
Density	Kg/m³	160	220	320	340
Thermal Conductivity	W/(m.k)	≤0.036	≤0.040	≤0.050	≤0.048
Water absorption	%	≤2	≤2	≤1.8	≤1.6
Closed cell	%	≥95	≥95	≥95	≥98
Compressive strength	Mpa	≥1.6	≥4	≥6	≥9

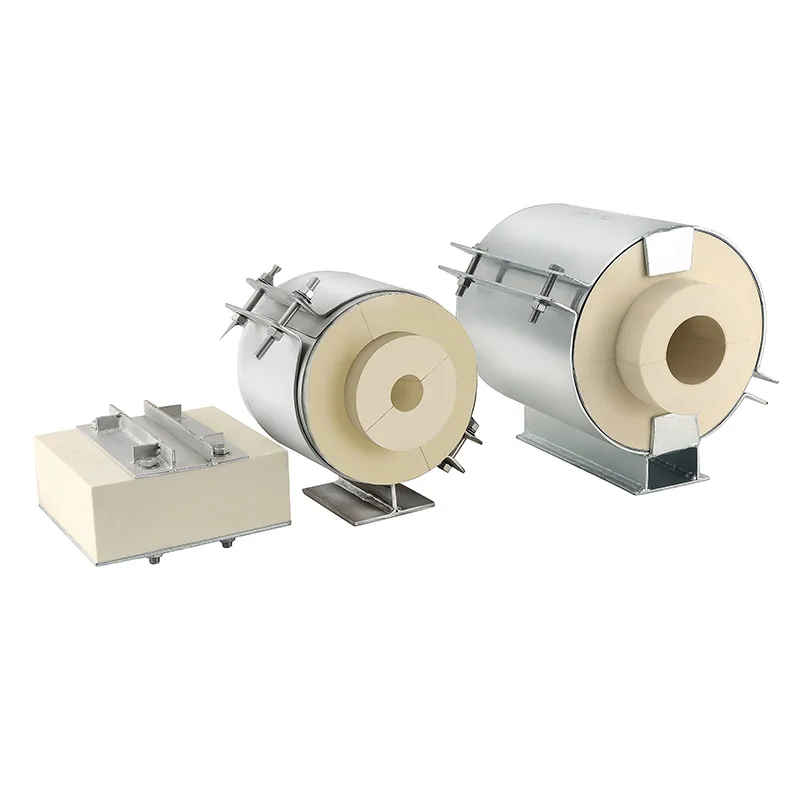

Our insulation system cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.

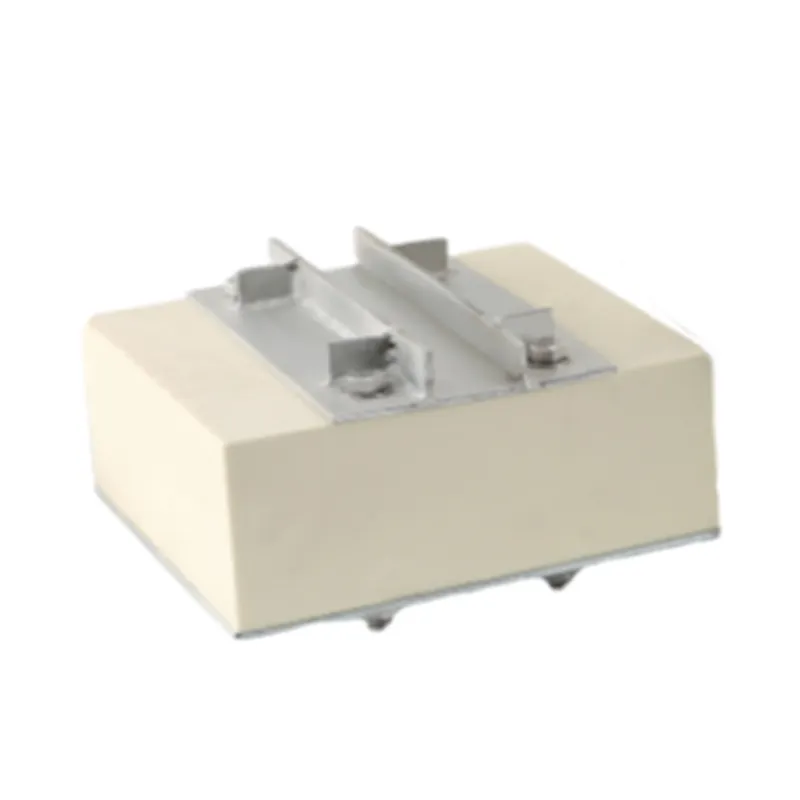

Fixed Tube Bracket

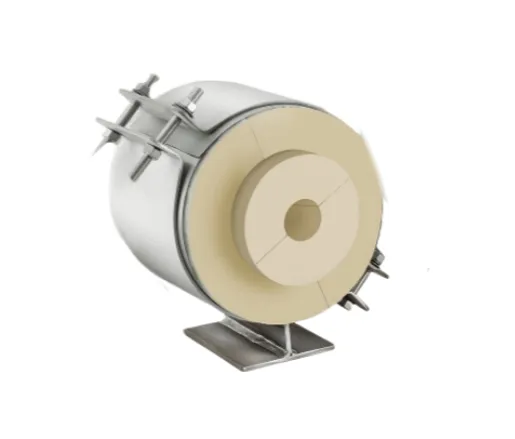

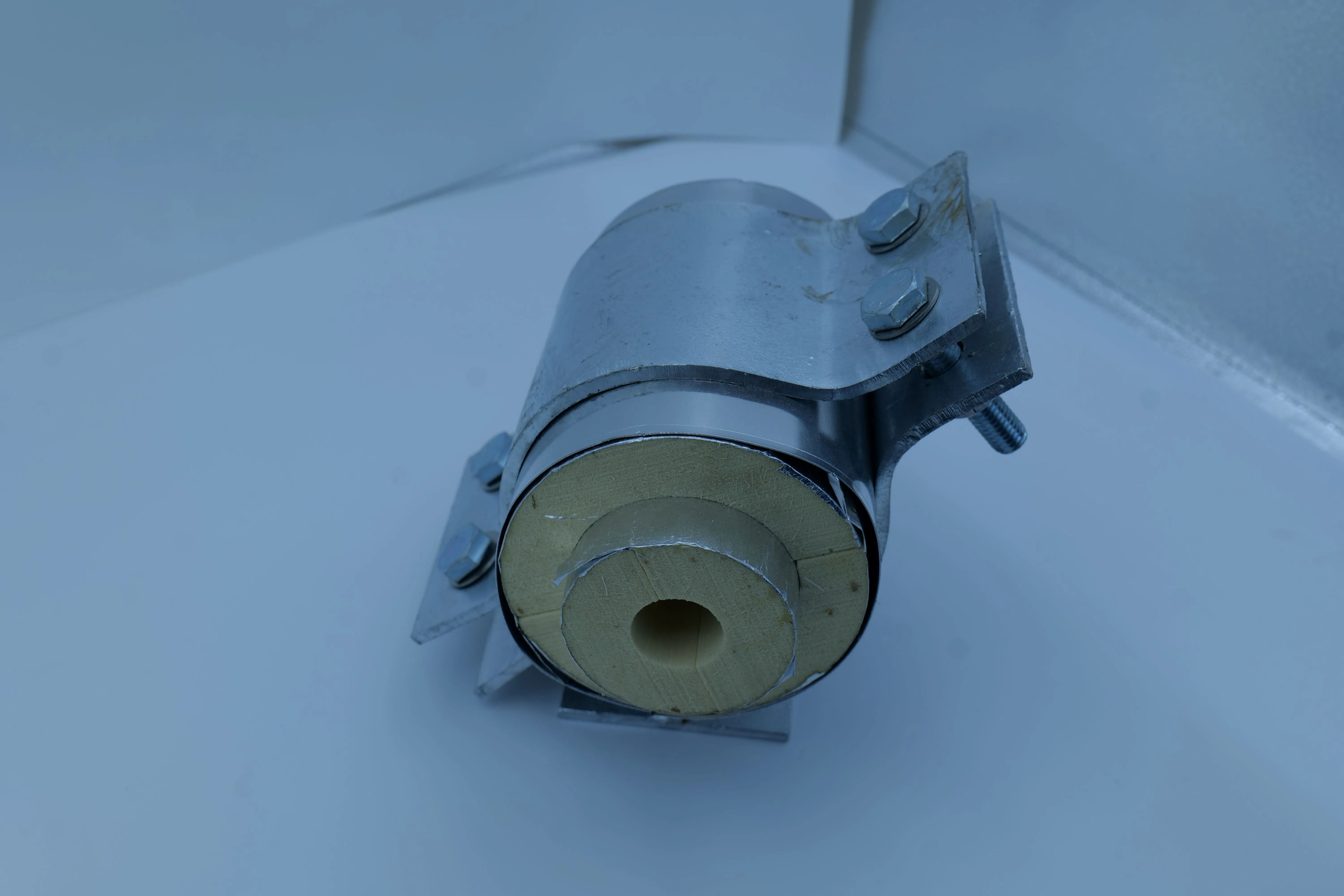

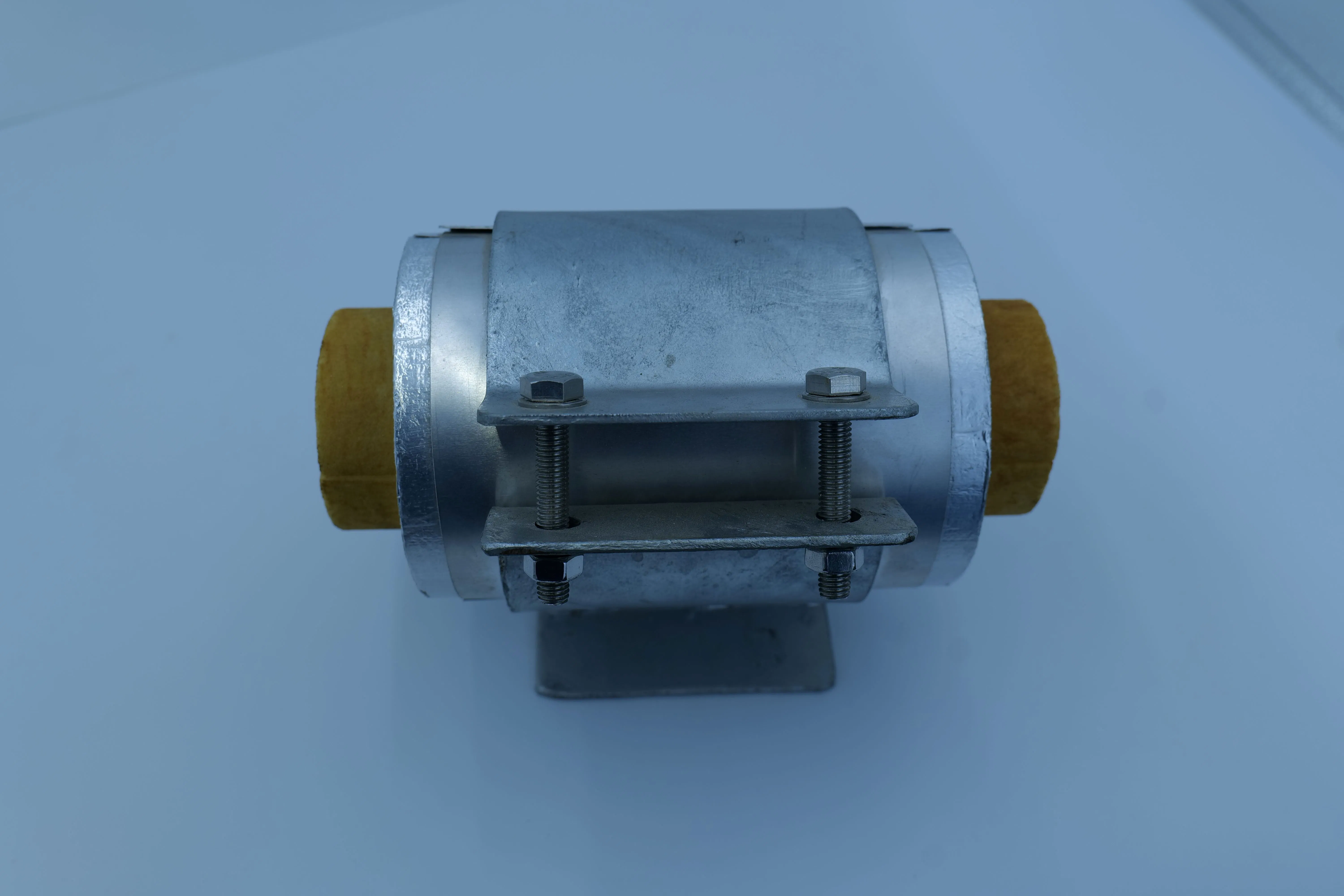

Sliding Tube Holder

🖼️

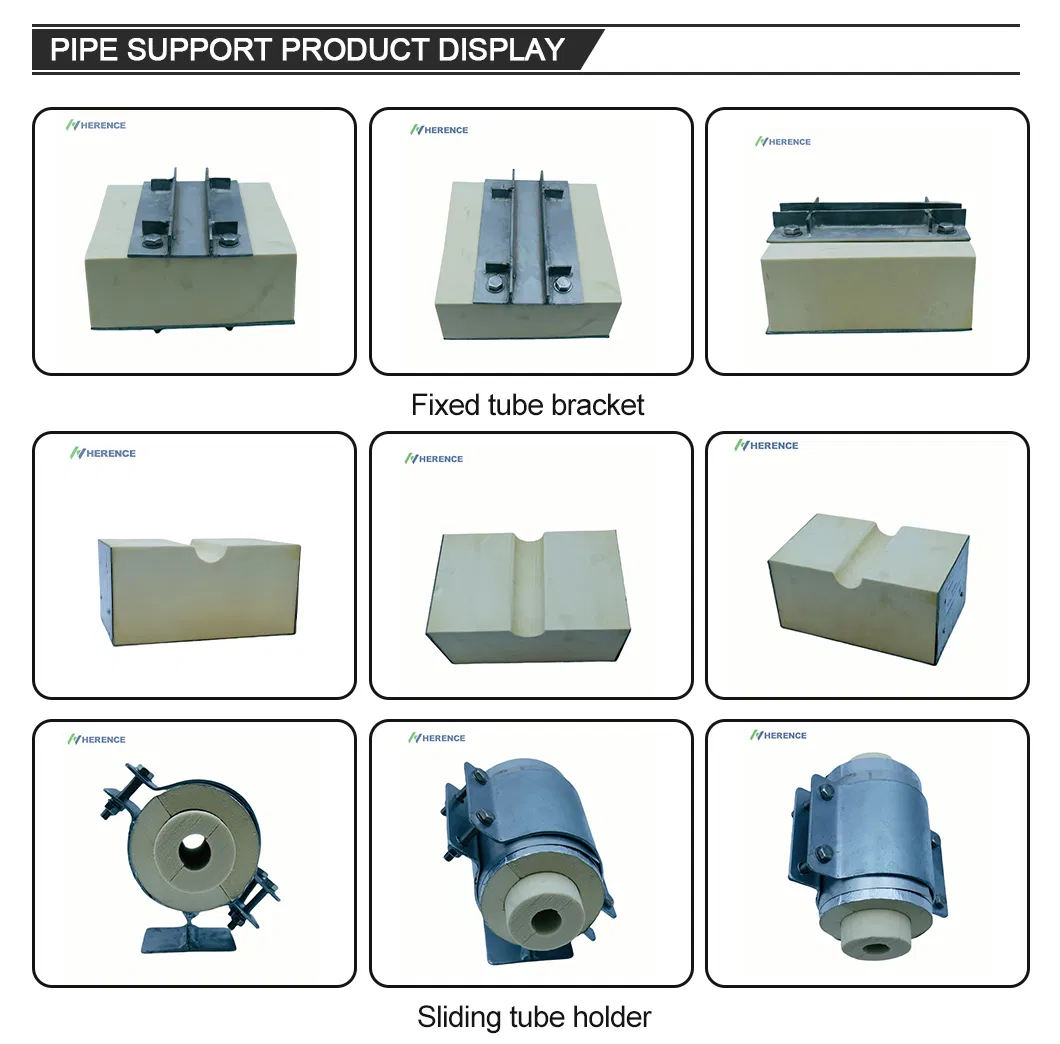

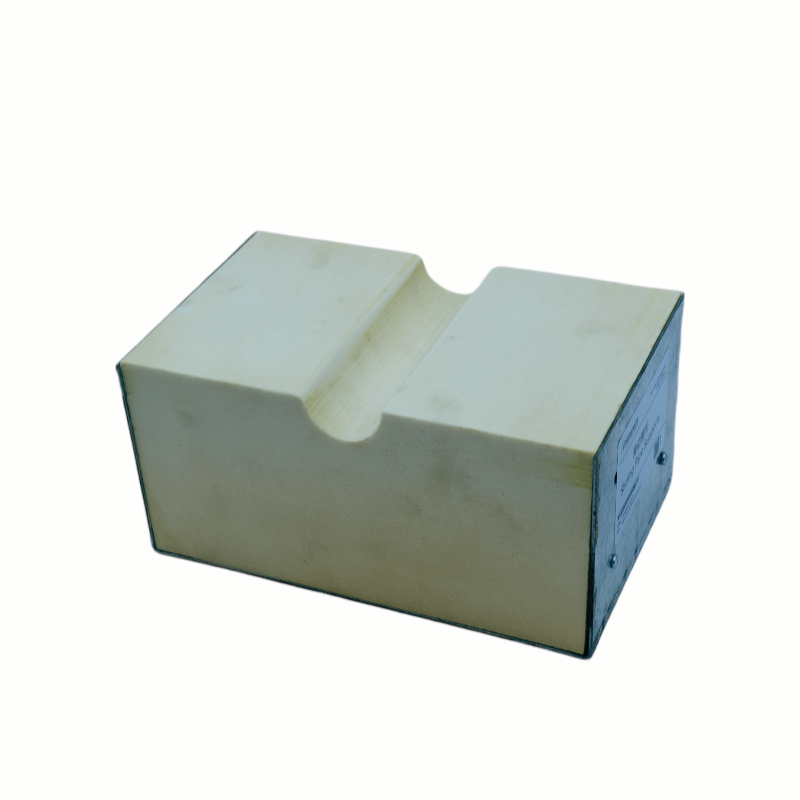

Product Display

⚙️

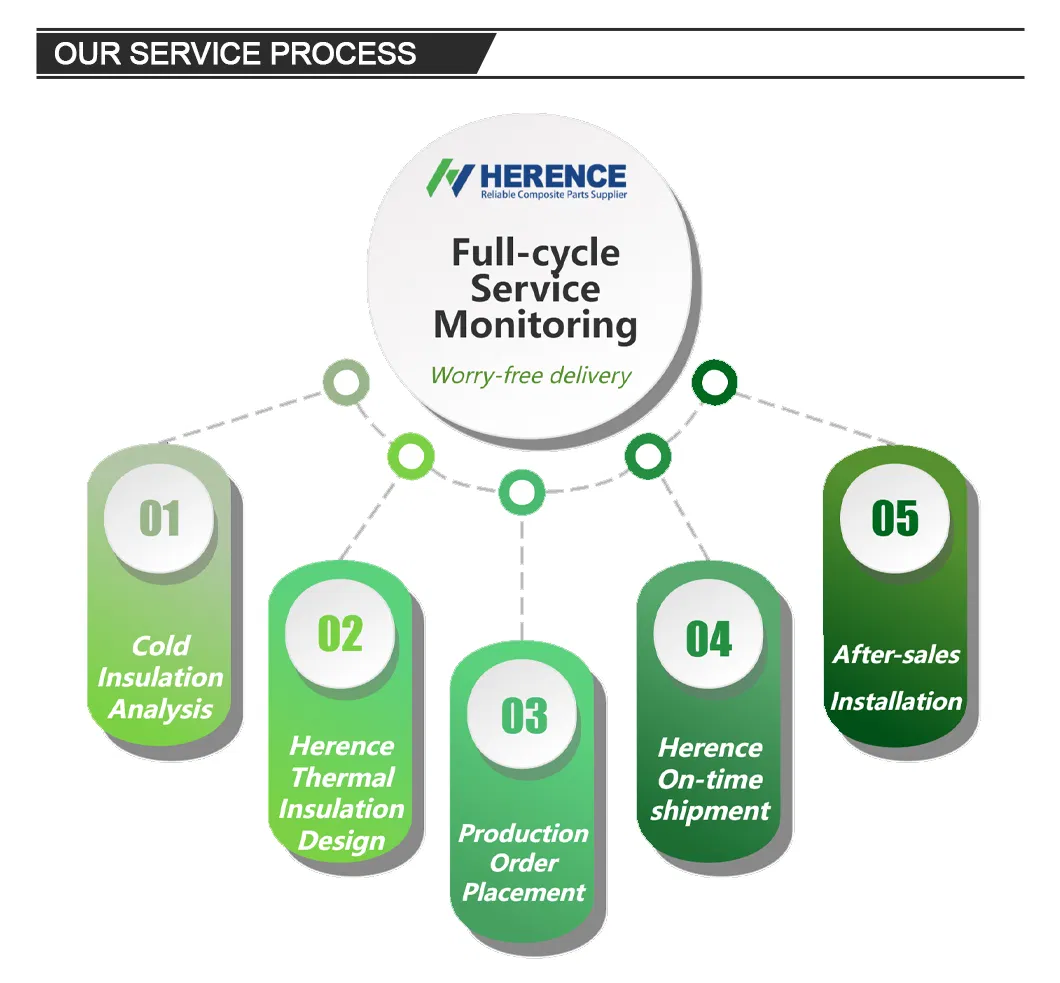

Production Process

🏢

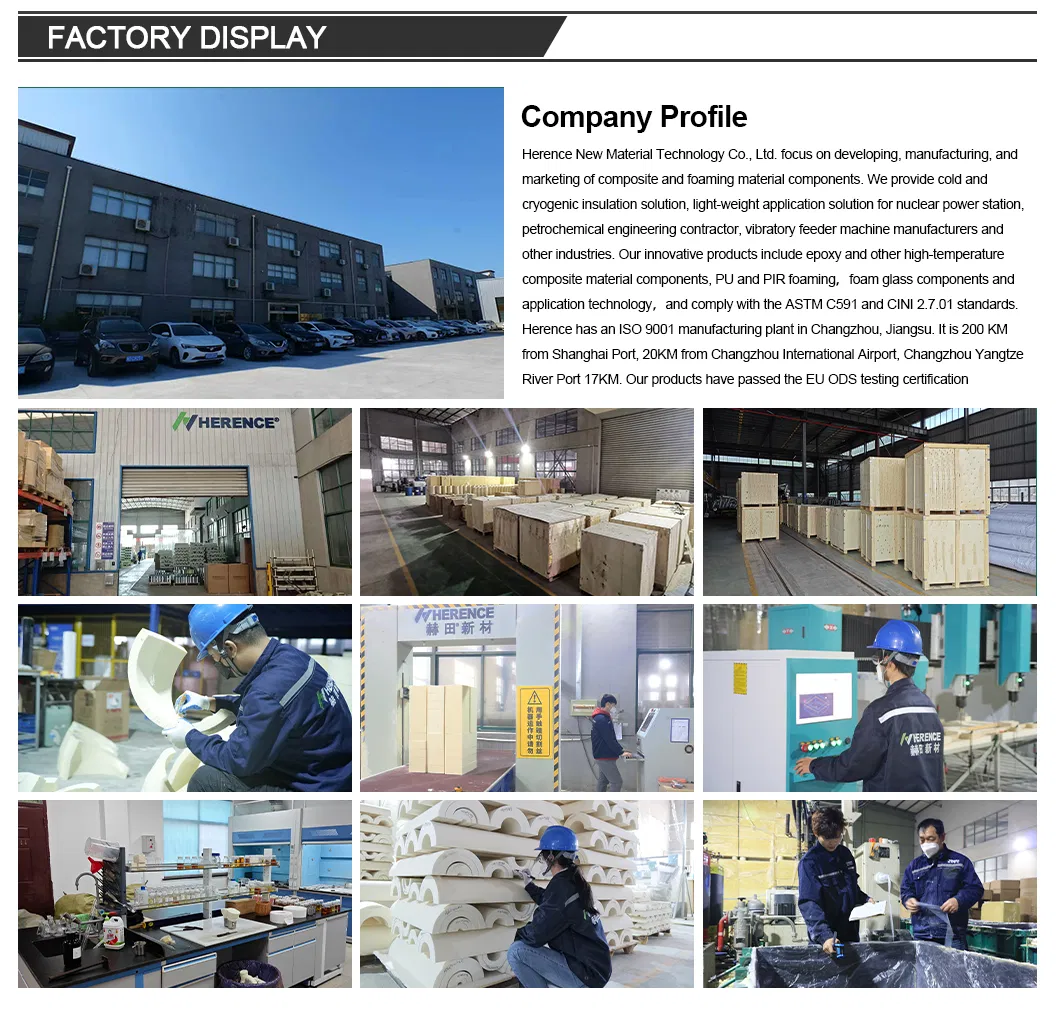

Company Profile

We are an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components. Established in July 2017, we specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.

Our core innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, foam-glass components, and integrated construction services. All products comply with ASTM C591 and CINI 2.7.01 standards. Our products are deployed globally, including Europe, the United States, Russia, and Southeast Asia.
