Ampy Pipe
1 / 4

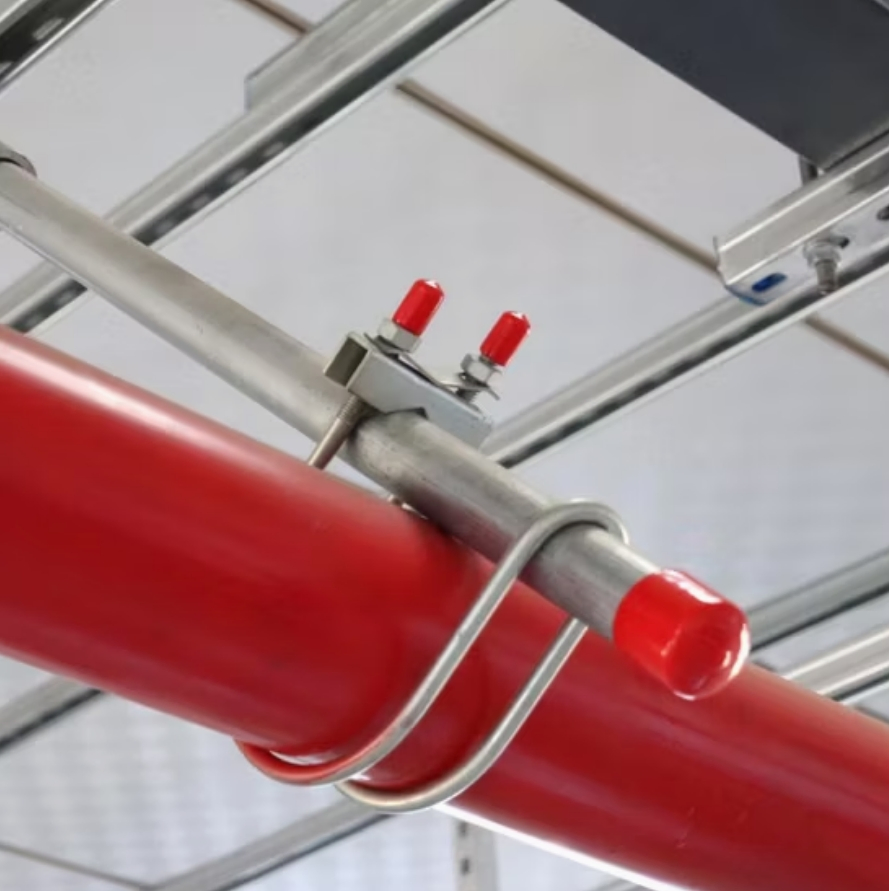

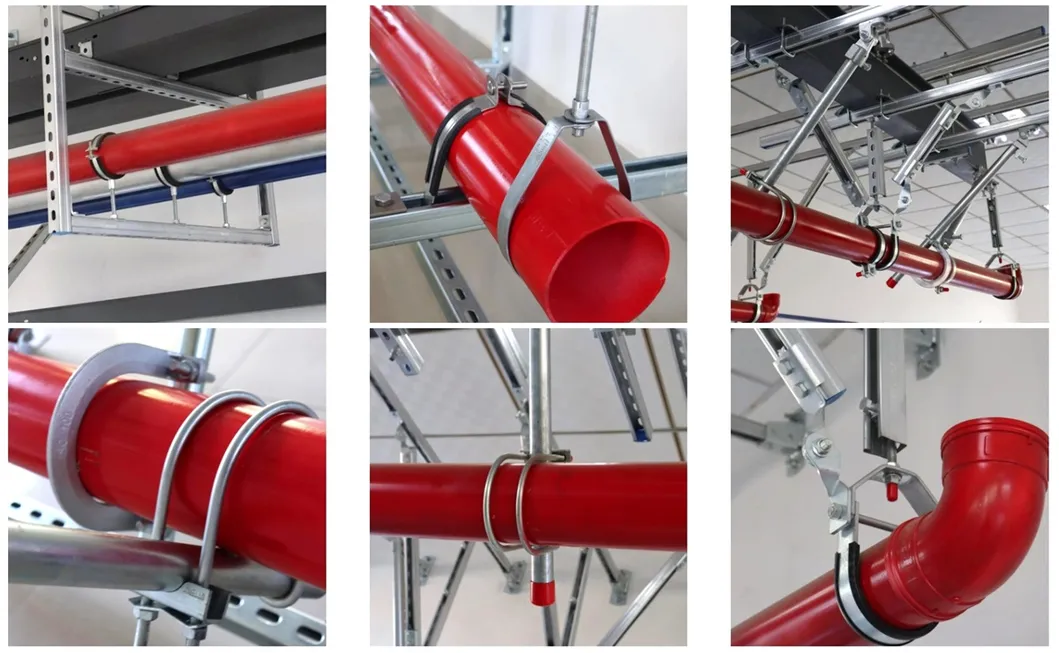

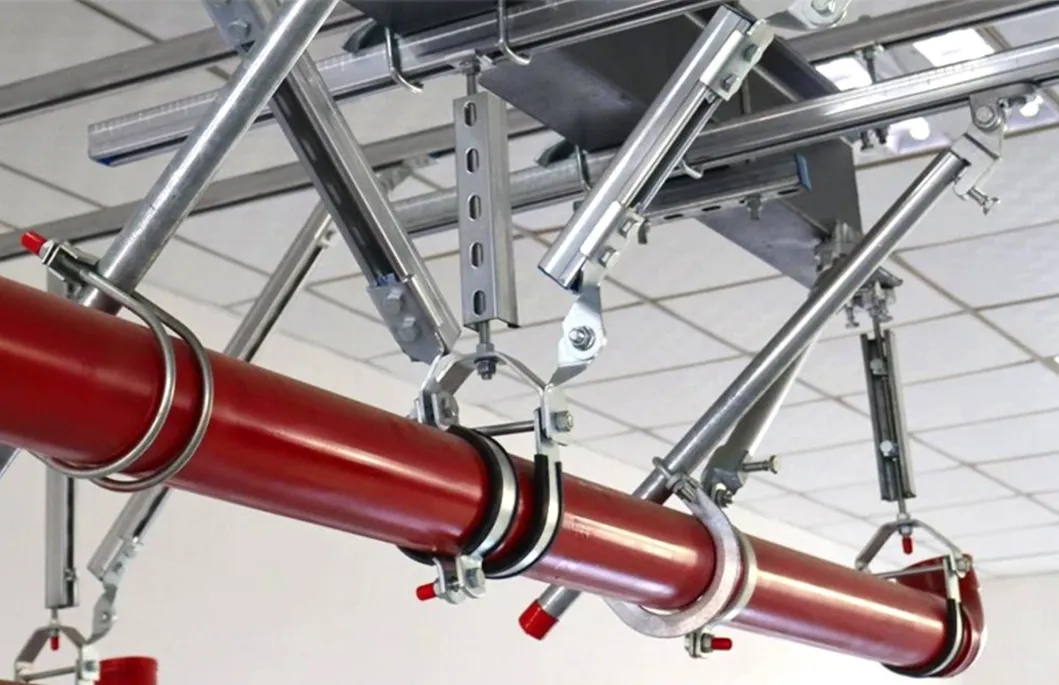

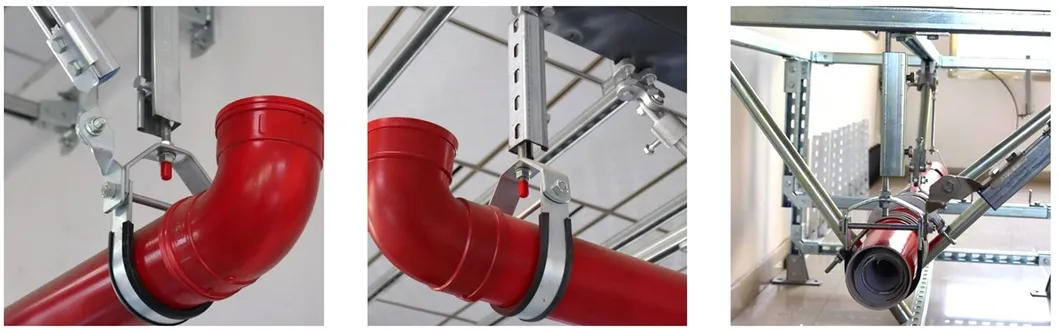

Seismic supports can minimize the economic losses caused by earthquakes and prevent casualties, and their role cannot be underestimated. Seismic supports can protect waterways and power channels, prevent the collapse of other building facilities in the house, and ensure other hazards caused by earthquakes, thereby ensuring personal safety and reducing economic losses to a greater extent.

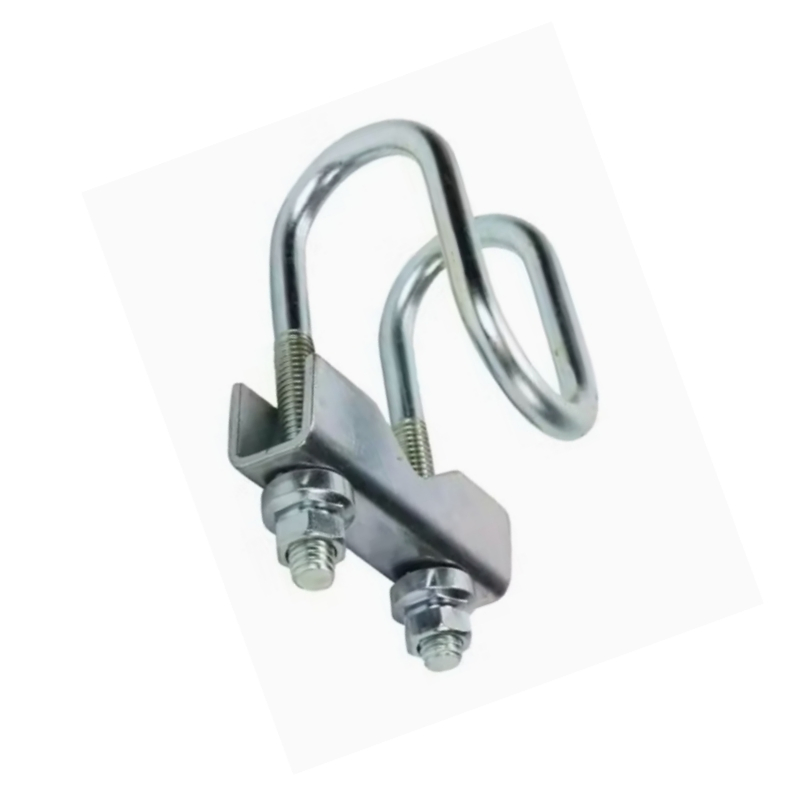

| UL Maximum Design Load | |||||
|---|---|---|---|---|---|
| Pipe Size | lbs. | kN | Wt. Each (1" Brace) | ||
| 1 | (25) | 680 | 3.02 | 0.71 lb | 0.35 kg |
| 2 | (50) | 680 | 3.02 | 0.92 lb | 0.42 kg |
| 4 | (100) | 680 | 3.02 | 1.21 lb | 0.55 kg |
| 6 | (150) | 1370 | 6.09 | 1.52 lb | 0.69 kg |
| 8 | (219) | 1370 | 6.09 | 1.81 lb | 0.82 kg |
| FM Maximum Design Load | |||||||
|---|---|---|---|---|---|---|---|
| Pipe Size | Horiz. Load (30°-44°) | Horiz. Load (45°-59°) | Wt. Each (1" Brace) | ||||
| 2 | (50) | 590 lbs | 2.62 kN | 840 lbs | 3.73 kN | 0.92 lb | 0.42 kg |
| 4 | (100) | 540 lbs | 2.40 kN | 770 lbs | 3.42 kN | 1.21 lb | 0.55 kg |
| 6 | (150) | 270 lbs | 1.20 kN | 390 lbs | 1.73 kN | 1.52 lb | 0.69 kg |

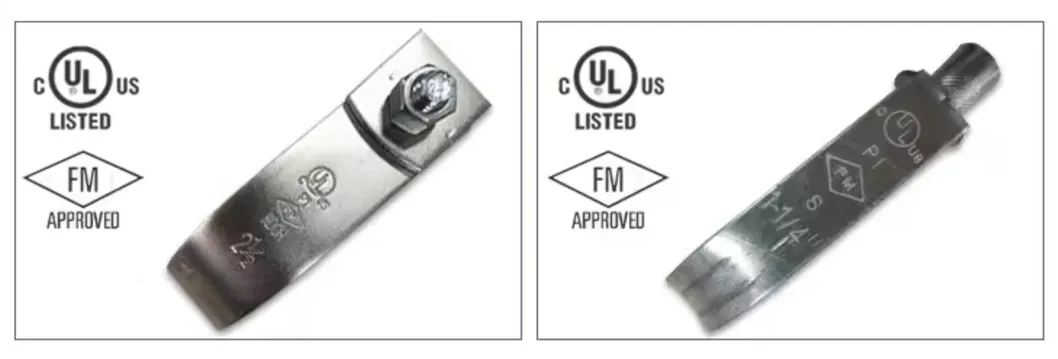

Our production range includes various pipe fittings such as Steel Pipe Nipples, Couplings, Stainless Steel Threaded Fittings, and Malleable Iron Fittings adhering to DIN, British, and American standards. We ensure strict quality adherence through FM/UL certification and cooperation with third-party inspections.
