Ampy Pipe
1 / 5
| Model NO. | UTT30 Clevis Hanger | Shock Absorption | High Performance |
|---|---|---|---|
| Certification | FM / UL | Molding Method | Casting, Laser Forging |
| Adaptive Domain | Building/Bridge Piping Support | Application | Construction / Fire Control |
| Characteristics | Horseshoe / U Shape Design | Surface Treatment | Black, Painted or Galvanized |
| Specification | 1/2'' ~ 12'' | HS Code | 7326909000 |
| Production Capacity | 50,000 / Month | Package Size | 35.00cm * 35.00cm * 15.00cm |

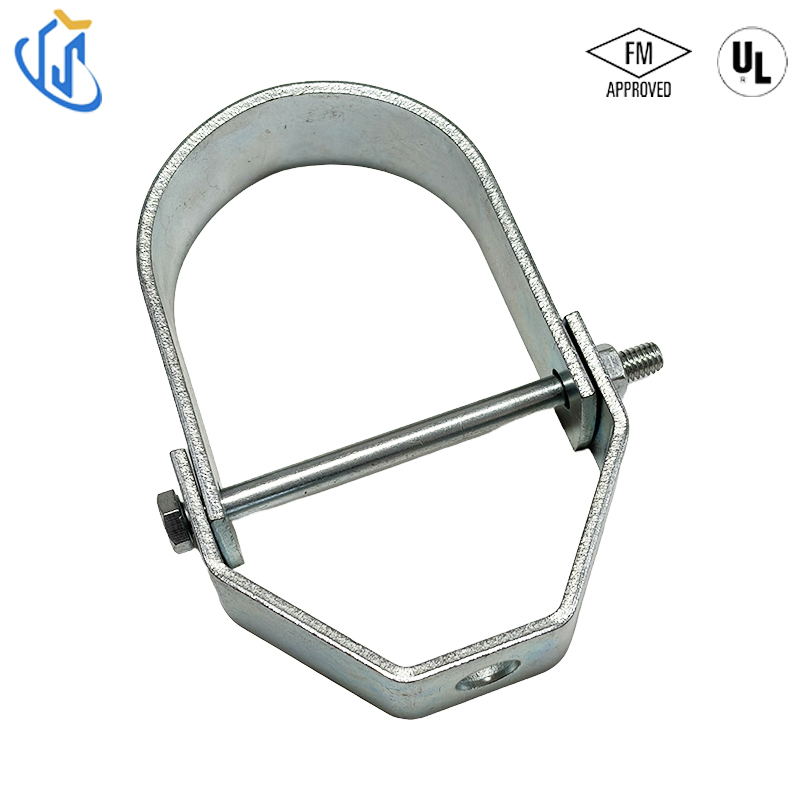

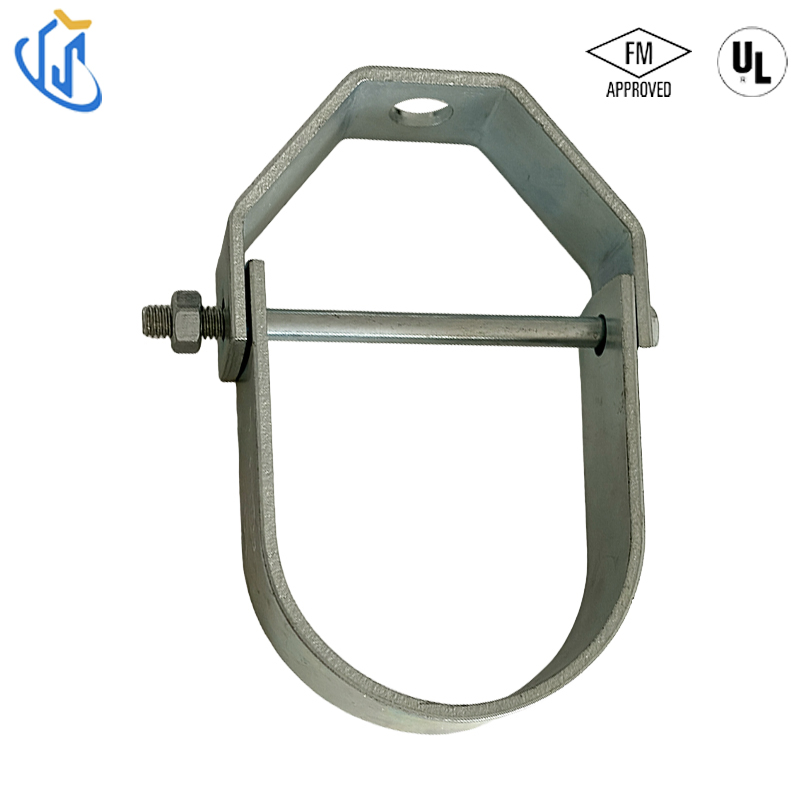

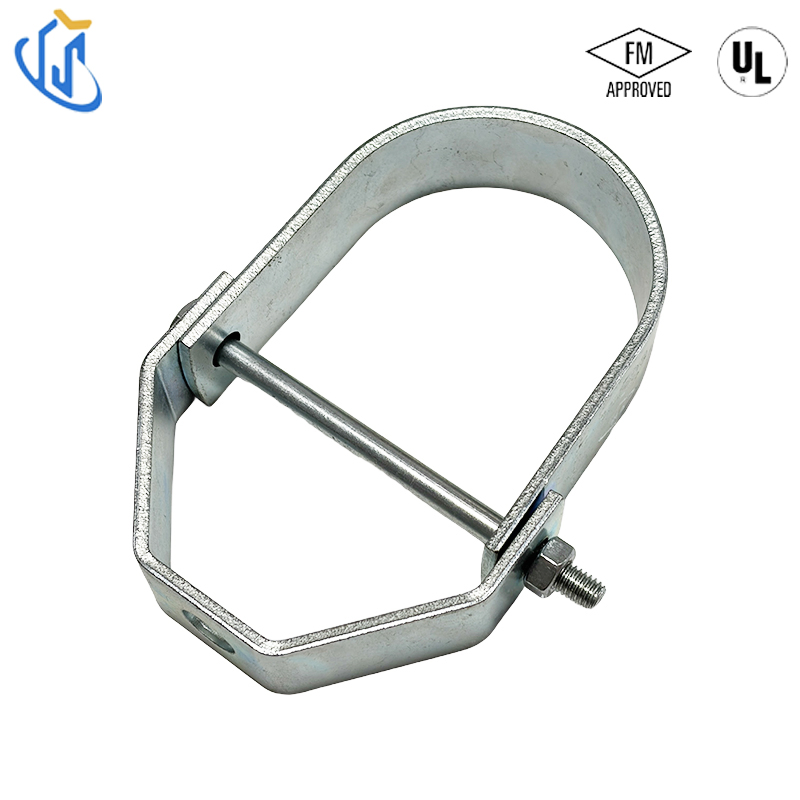

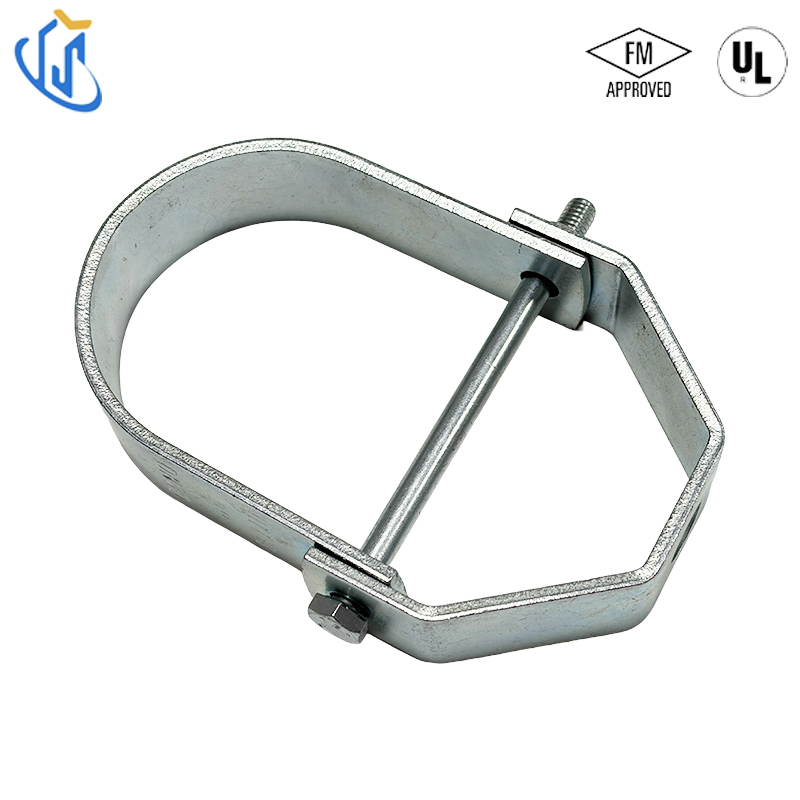

UTT30 Clevis Hanger features a horseshoe-like design for easy installation and removal, significantly reducing labor time and effort. Its innovative shape allows it to be simply slid onto the pipe or conduit and securely snapped into place without the need for complex tools.

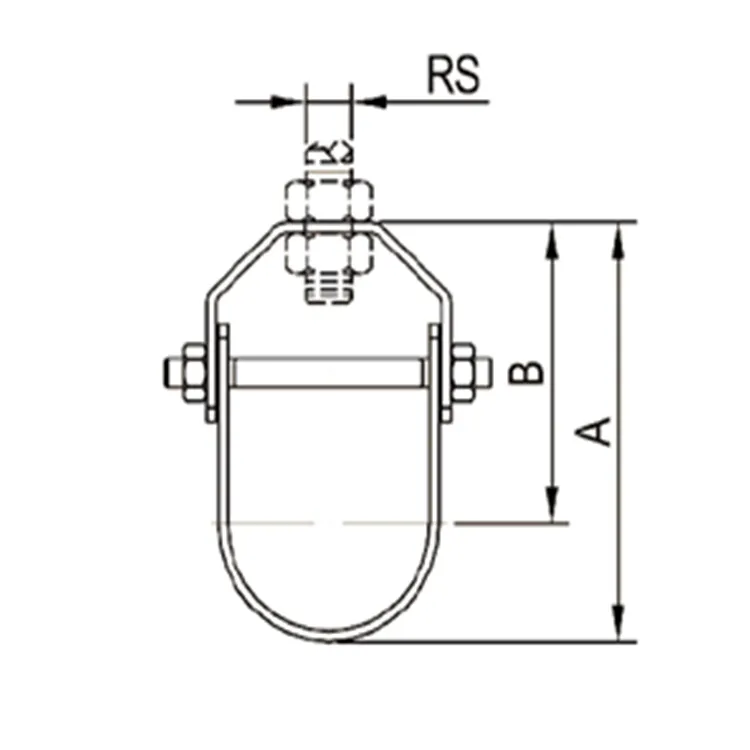

| Size (in/mm) | B (in/mm) | Rod Size C | Max Load (lbs/KN) | ||||
|---|---|---|---|---|---|---|---|
| 1/2" | DN15 | 1.57 | 39.4 | M6 | 1/4" | 750 | 3.34 |
| 1" | DN25 | 1.62 | 40.6 | M6 | 1/4" | 750 | 3.34 |
| 2" | DN50 | 2.13 | 53.5 | M10 | 3/8" | 750 | 3.34 |
| 4" | DN100 | 3.31 | 83.2 | M12 | 1/2" | 1500 | 6.67 |
| 8" | DN200 | 5.64 | 141.6 | M16 | 5/8" | 4050 | 18.02 |
| 12" | DN300 | 6.14 | 154.0 | M20 | 3/4" | 7900 | 35.14 |

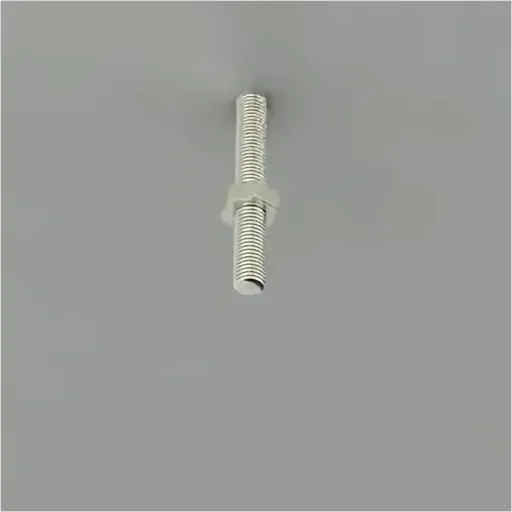

Step 1
Secure the screw to the mounting base surface (e.g., ceiling), then install the nut onto the screw.

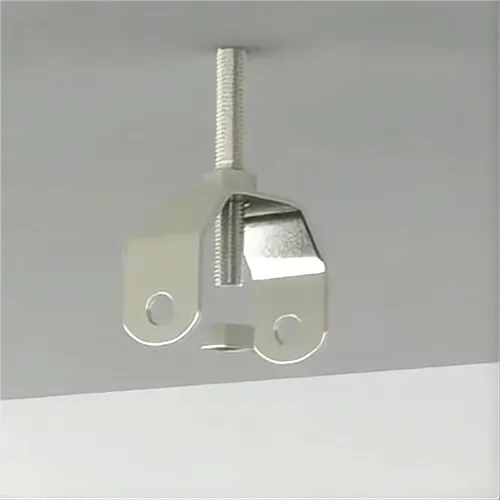

Step 2
Install the main part of the clevis hanger onto the screw, and initially fix it using the nut.

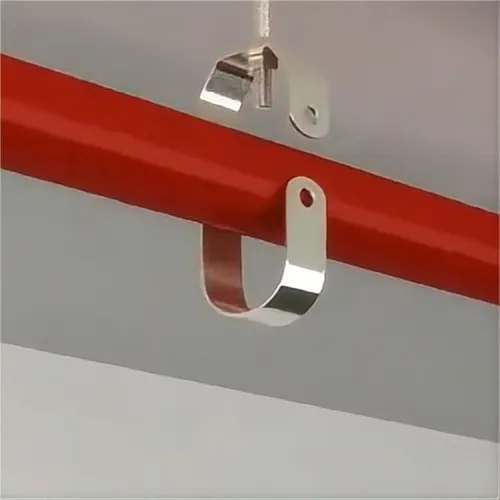

Step 3
Adjust the hanger position to align with the pipe. Place the pipe into the slot of the clevis hanger.

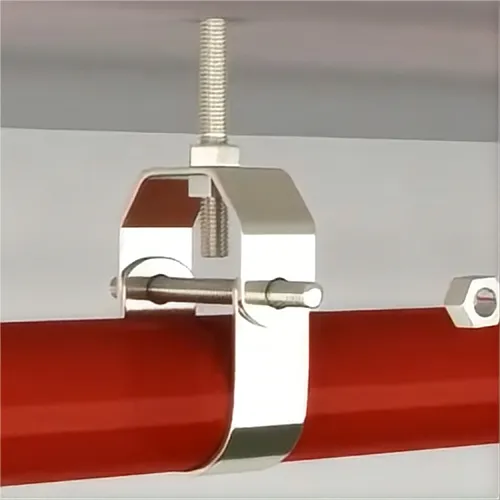

Step 4
Install U-shaped clamps and fasteners to lock the device, ensuring the hanger is firmly connected.

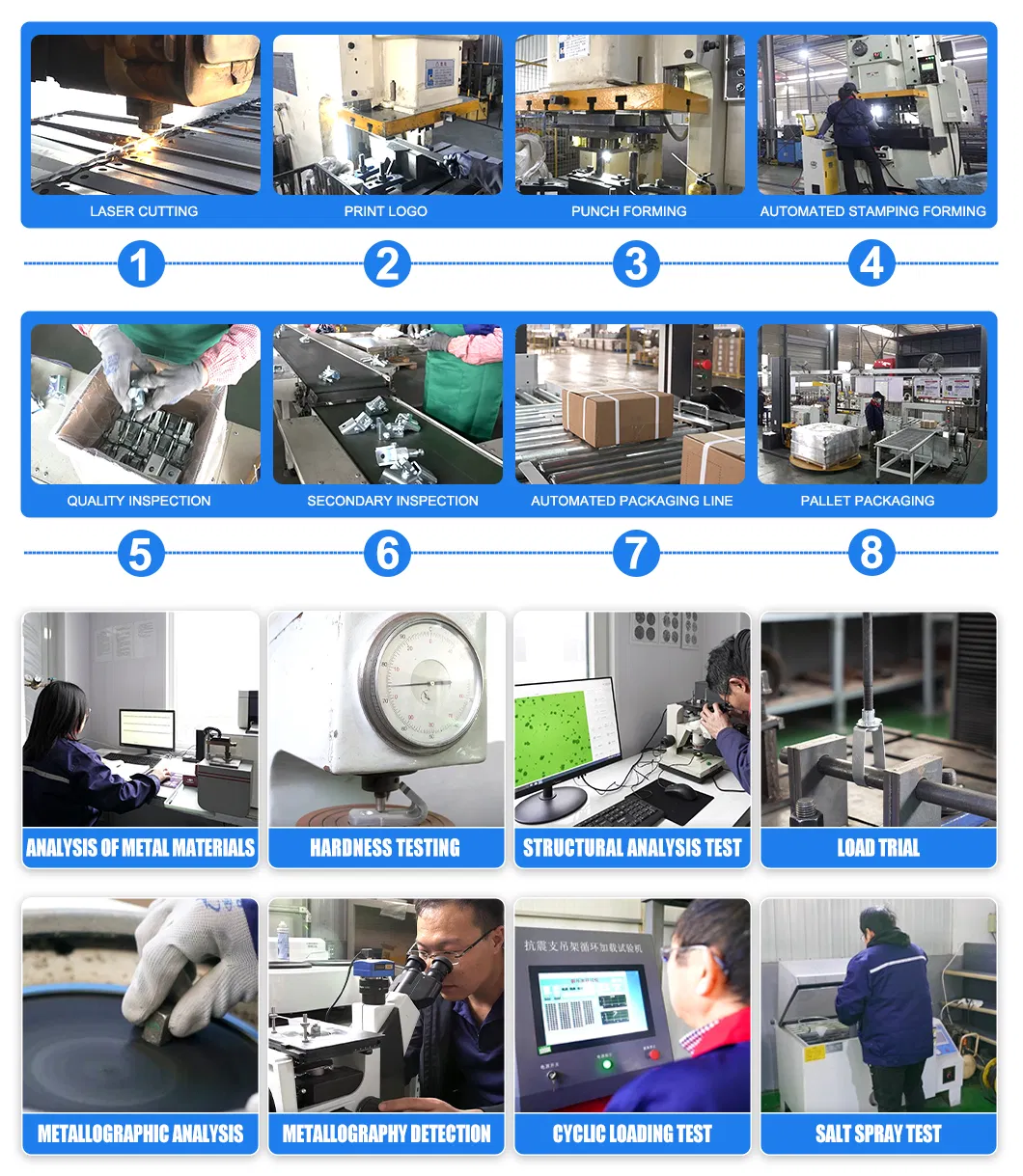

Equipped with 5 advanced laser cutters and high-quality casting equipment for smooth, defect-free surfaces.
Dedicated molds and hydraulic presses ensure accuracy for OEM and ODM requirements.
Holding FM, UL, and CE certifications ensuring high safety and reliability standards.
A: We offer a comprehensive range of sizes from 1/2" through to 12" to accommodate various piping requirements.
A: Yes, our clevis hangers are both UL Listed and FM Approved, making them ideal for fire control and critical construction applications.
A: The hangers are primarily manufactured from high-quality Carbon Steel with options for Zinc Plated, Painted, or Galvanized finishes for anti-corrosion protection.
A: Yes, the UTT30 design specifically allows for vertical adjustment of the pipe after installation to ensure precise alignment.
A: The galvanized clevis hangers are rated for a maximum temperature of 450°F, while the plain version can handle up to 650°F.
A: Absolutely. Our engineering team can customize special pipe support system accessories based on your provided technical drawings.
