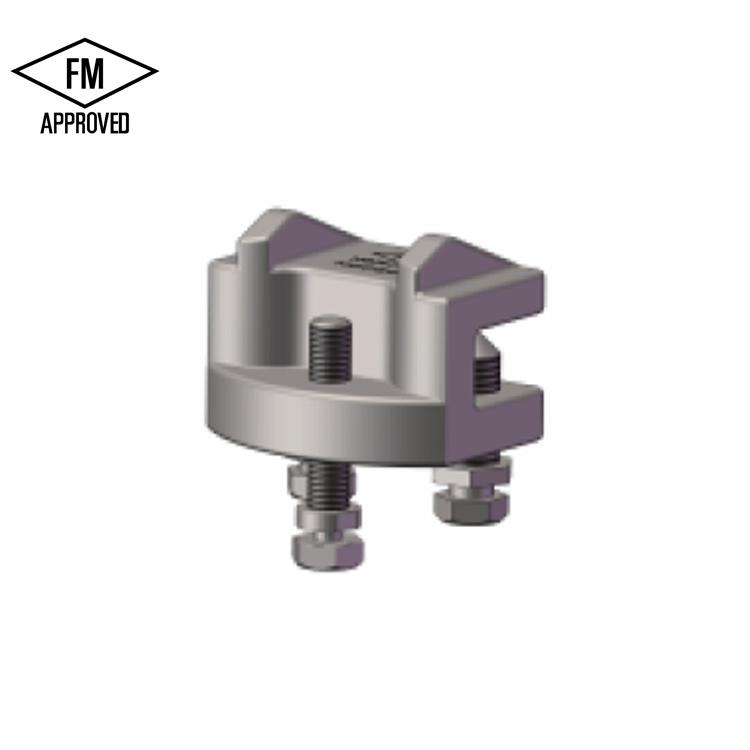

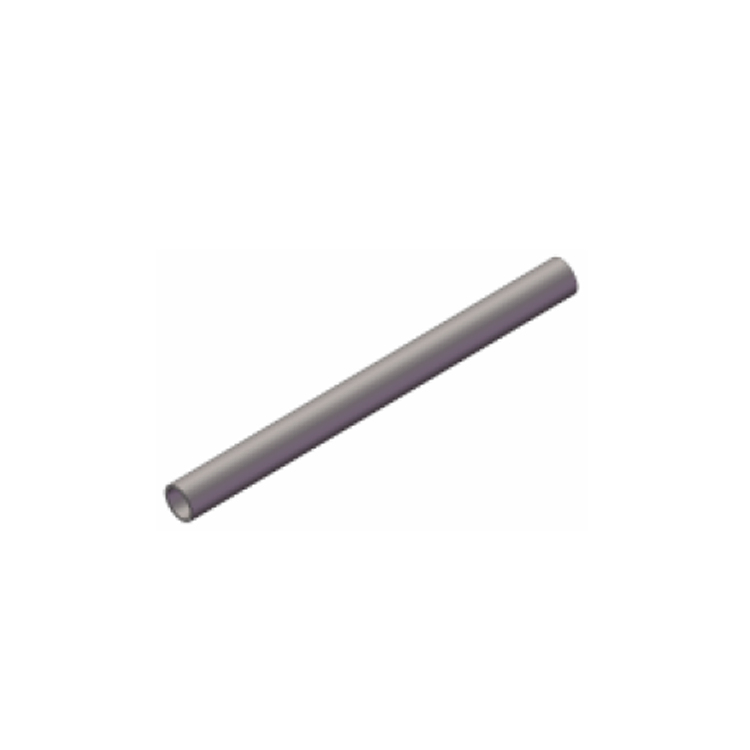

Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
1 / 5
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System
Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System

Seismic Pipe Supports Fire Protection UL and FM for Sprinkle System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Technical Specifications
Model NO.
GHS(FM)-150C
Usage
Fire Sprinkler Seismic Bracing
Type
Channel Steel
Standard
GB, ASTM, DIN, JIS, AISI, BS
Material
Carbon Structural Steel Q235
Connection
Bolt Connection
Warranty
12 Months
Forming
Cold Forming
Product Overview

Lateral seismic bracing - Steel structure: Designed specifically for high-performance fire sprinkler seismic bracing systems. This product ensures structural integrity during seismic events.

FM Certification Excellence: FM Global provides testing and certification services to industrial and commercial products around the world through its FM Approvals agency. FM Approved certificates are recognized worldwide, indicating that the service has passed the highest international standards. The FM certification body is also capable of issuing CE marks for fire protection products.

Certification Testing:

Seismic Pipe Support Test
Product Range
No. Bracing Code Item Name Pipe Diameter
1GHS(FM)-25SFM longitudinal seismic bracingDN25
2GHS(FM)-32SFM longitudinal seismic bracingDN32
3GHS(FM)-40SFM longitudinal seismic bracingDN40
4GHS(FM)-50SFM longitudinal seismic bracingDN50
5GHS(FM)-65SFM longitudinal seismic bracingDN65
6GHS(FM)-80SFM longitudinal seismic bracingDN80
7GHS(FM)-100SFM longitudinal seismic bracingDN100
8GHS(FM)-125SFM longitudinal seismic bracingDN125
9GHS(FM)-150SFM longitudinal seismic bracingDN150
10GHS(FM)-200SFM longitudinal seismic bracingDN200
11GHS(FM)-250SFM longitudinal seismic bracingDN250
12GHS(FM)-300SFM longitudinal seismic bracingDN300
Product Display

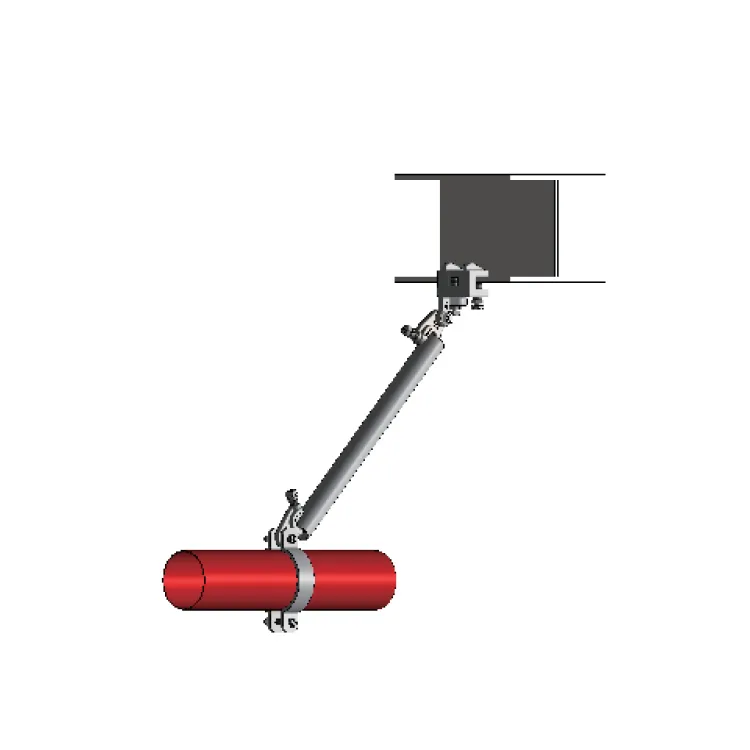

Product Image 1

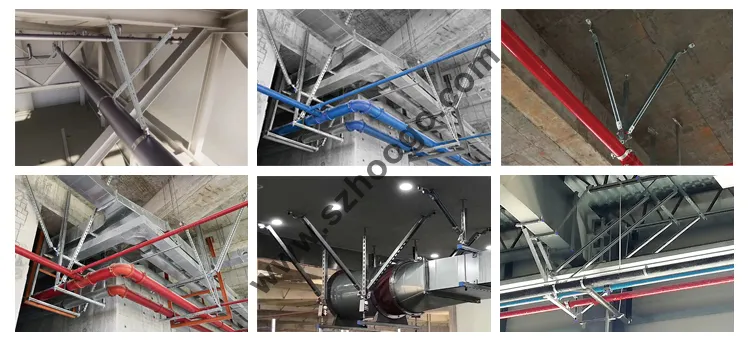

Product Image 2
Production & Facilities
Facility 1

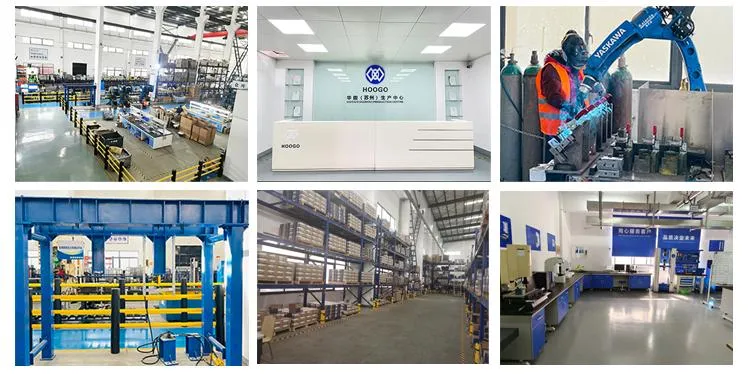

Facility 2

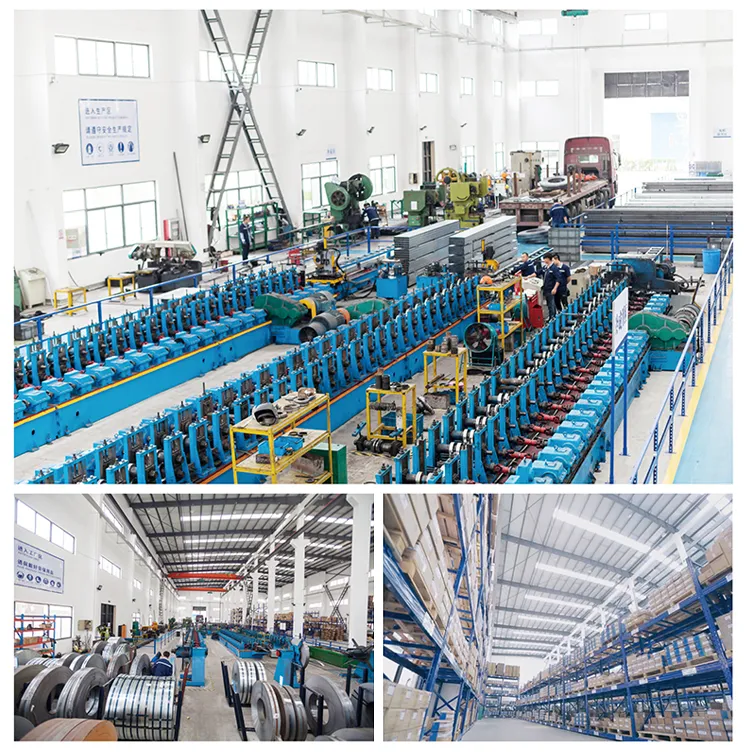

Facility 3
Certificates & Logistics
Certificate
Delivery
Frequently Asked Questions

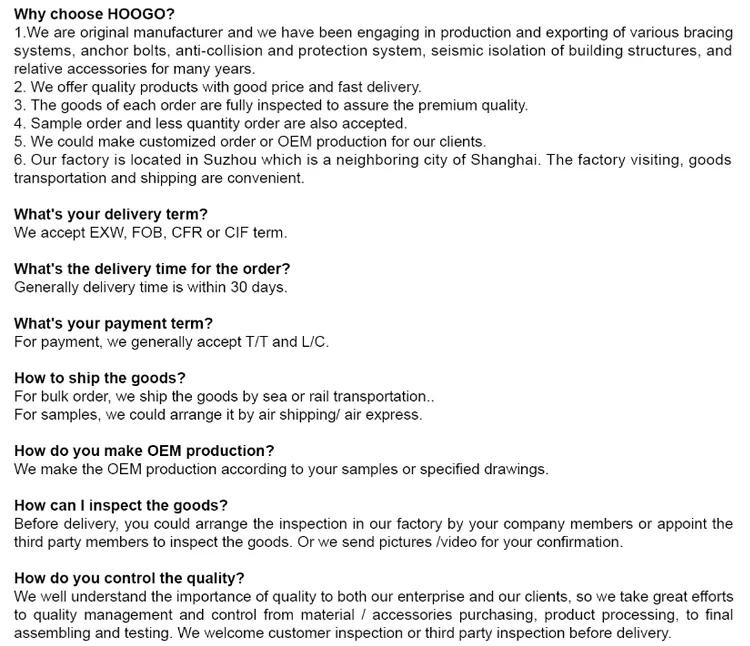

FAQ Overview
What is the primary application for this seismic bracing?
It is primarily used for fire sprinkler seismic bracing systems in steel workshops, platforms, fabricated houses, and structural roofing.
What standards do your products comply with?
Our products meet multiple international standards including GB, ASTM, DIN, JIS, AISI, and BS.
Why is FM Approval important for seismic bracing?
FM Approval signifies the product has passed rigorous testing by FM Global, ensuring it meets the highest international safety and performance standards for fire protection.
What material is used in the construction?
The bracing is manufactured using Q235 Carbon Structural Steel through a cold forming process for maximum durability.
What size range is available for pipe diameters?
We offer a full range of specifications covering pipe diameters from DN25 up to DN300.
What is the standard warranty period?
All our FM longitudinal seismic bracing products come with a 12-month standard warranty.
