Seismic Sway Bracing Set FM Approved Pipe Supports for FM Sprinkle System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HS(FM)-25C

Usage

Applicable to Fire Sprinkler Seismic Bracing

Type

Channel Steel

Standard

GB, ASTM, DIN, JIS, AISI, BS

Trademark

Carbon Structural Steel

Connection Form

Bolt Connection

Carbon Steel

Q235

Warranty

12 Months

Forming

Cold Forming

Specification

DN25-DN300

Product Description

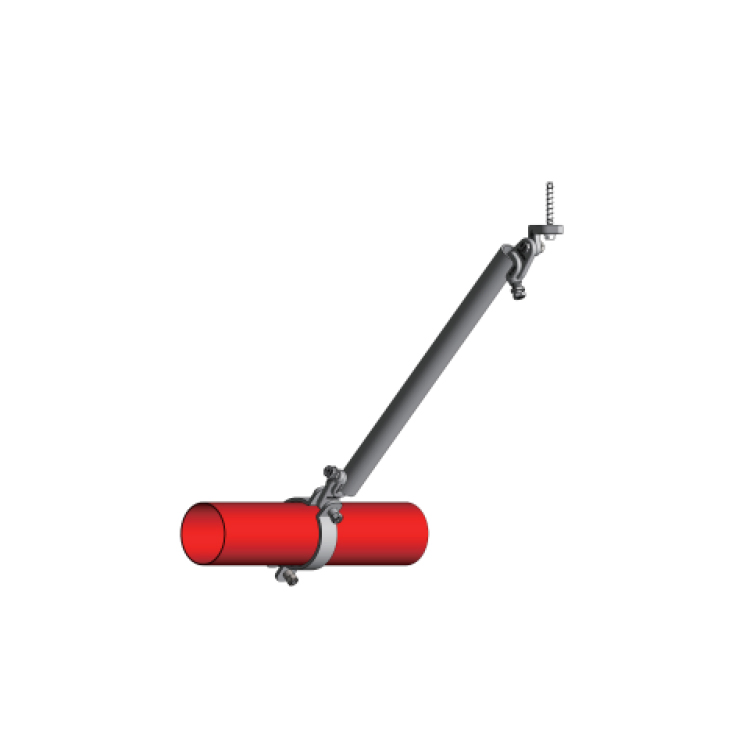

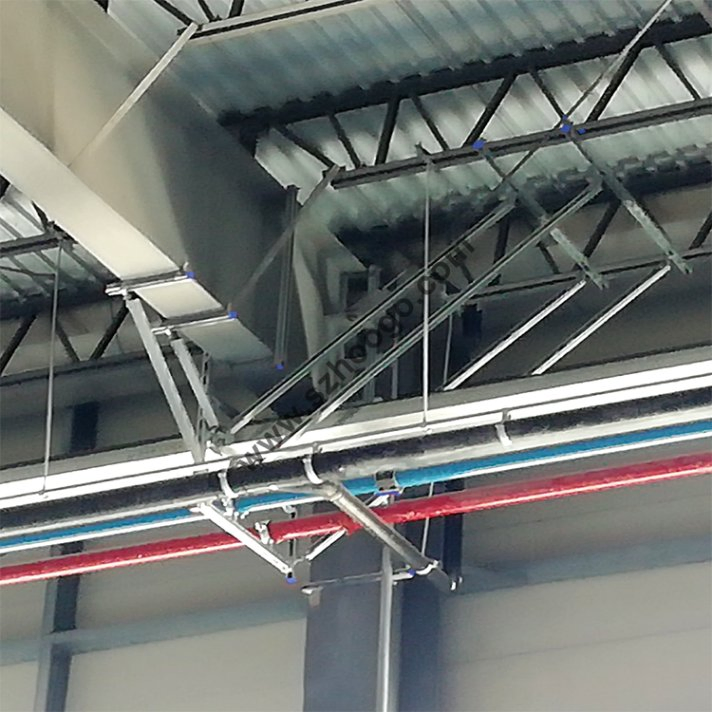

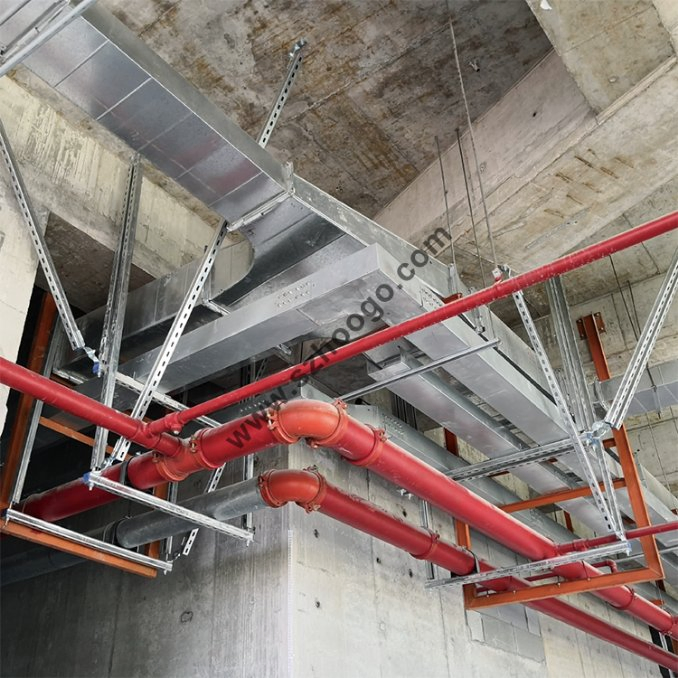

Lateral seismic bracing - Steel structure

Application: It is applicable to fire sprinkler seismic bracing system.

Product Features:

FM Global provides testing and certification services to industrial and commercial products around the world through its FM Approvals agency. FM Approved certificates are generally recognized worldwide, indicating that the product has passed the highest international standards. The FM certification body is also the only organization outside of Europe that can directly issue CE marks to fire protection products.

Technical Specifications

No.	Bracing Code	Item Name	Pipe Diameter
1	HS(FM)-25C	FM lateral seismic bracing	DN25
2	HS(FM)-32C	FM lateral seismic bracing	DN32
3	HS(FM)-40C	FM lateral seismic bracing	DN40
4	HS(FM)-50C	FM lateral seismic bracing	DN50
5	HS(FM)-65C	FM lateral seismic bracing	DN65
6	HS(FM)-80C	FM lateral seismic bracing	DN80
7	HS(FM)-100C	FM lateral seismic bracing	DN100
8	HS(FM)-125C	FM lateral seismic bracing	DN125
9	HS(FM)-150C	FM lateral seismic bracing	DN150
10	HS(FM)-200C	FM lateral seismic bracing	DN200
11	HS(FM)-250C	FM lateral seismic bracing	DN250
12	HS(FM)-300C	FM lateral seismic bracing	DN300

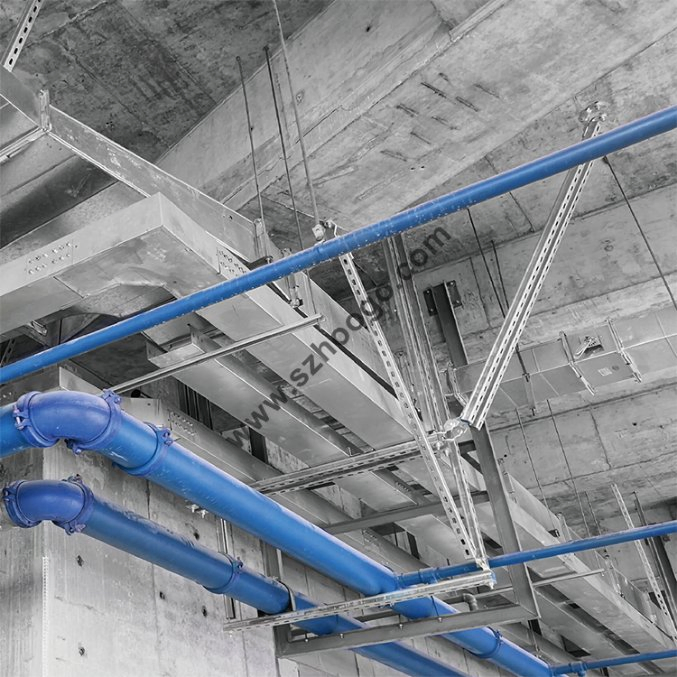

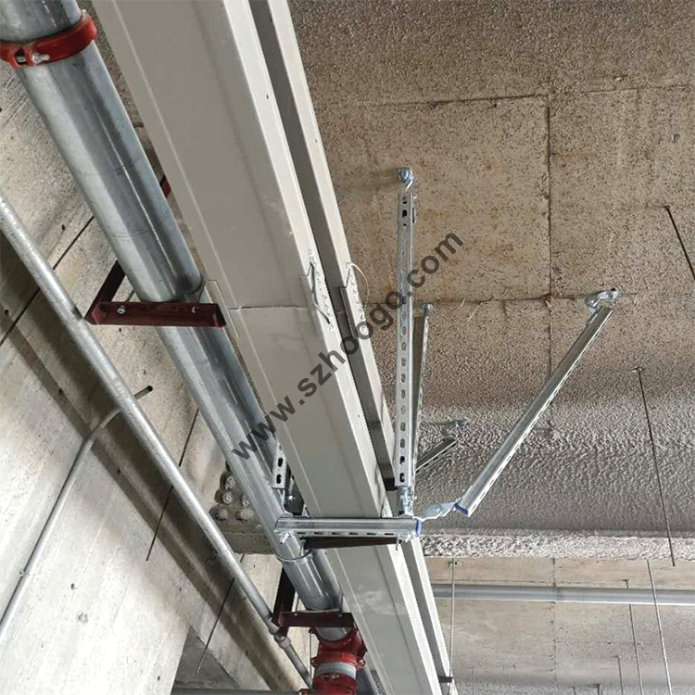

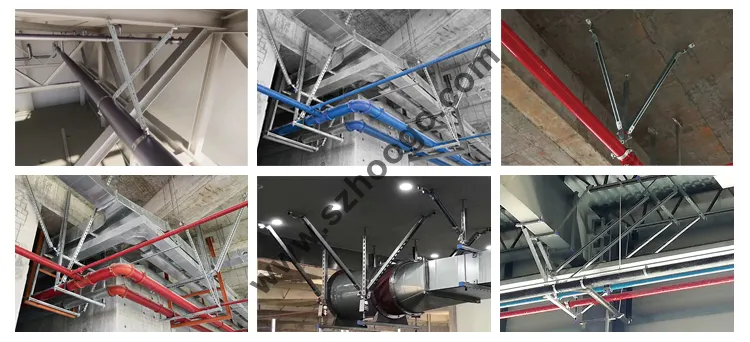

Product Display

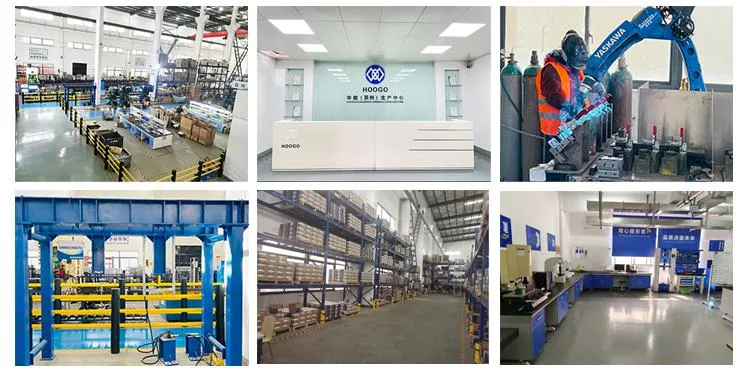

Certification & Logistics

Frequently Asked Questions

What is the primary use of this lateral seismic bracing?

It is specifically designed for fire sprinkler seismic bracing systems to ensure structural stability during seismic events.

What does FM Approval signify?

FM Approval indicates that the product has undergone rigorous testing by FM Global and meets the highest international standards for safety and reliability in fire protection.

What materials are used in the construction?

The bracing is made from Q235 Carbon Structural Steel and formed through a cold forming process for enhanced durability.

What pipe sizes are supported?

Our bracing systems cover a wide range of specifications from DN25 to DN300.

How are the components connected?

The system utilizes a secure bolt connection form for easy installation and structural integrity.

Is there a warranty provided?

Yes, we provide a 12-month warranty for the seismic bracing components.
