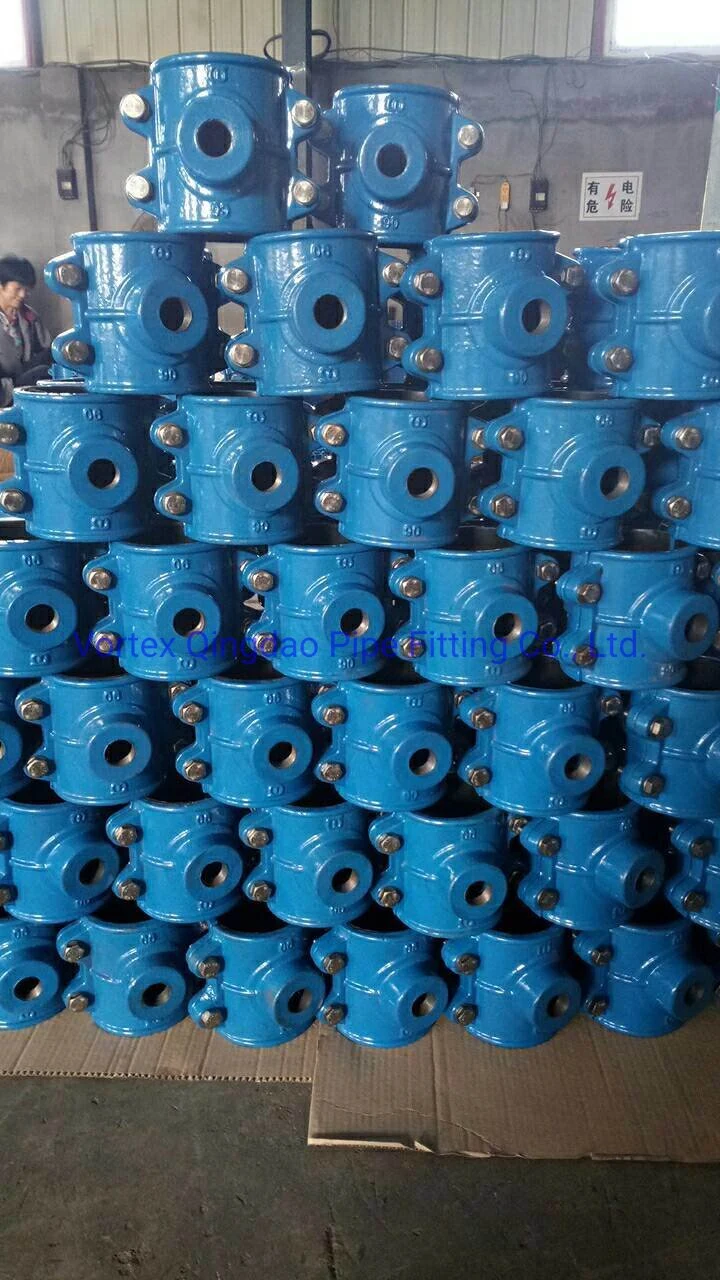

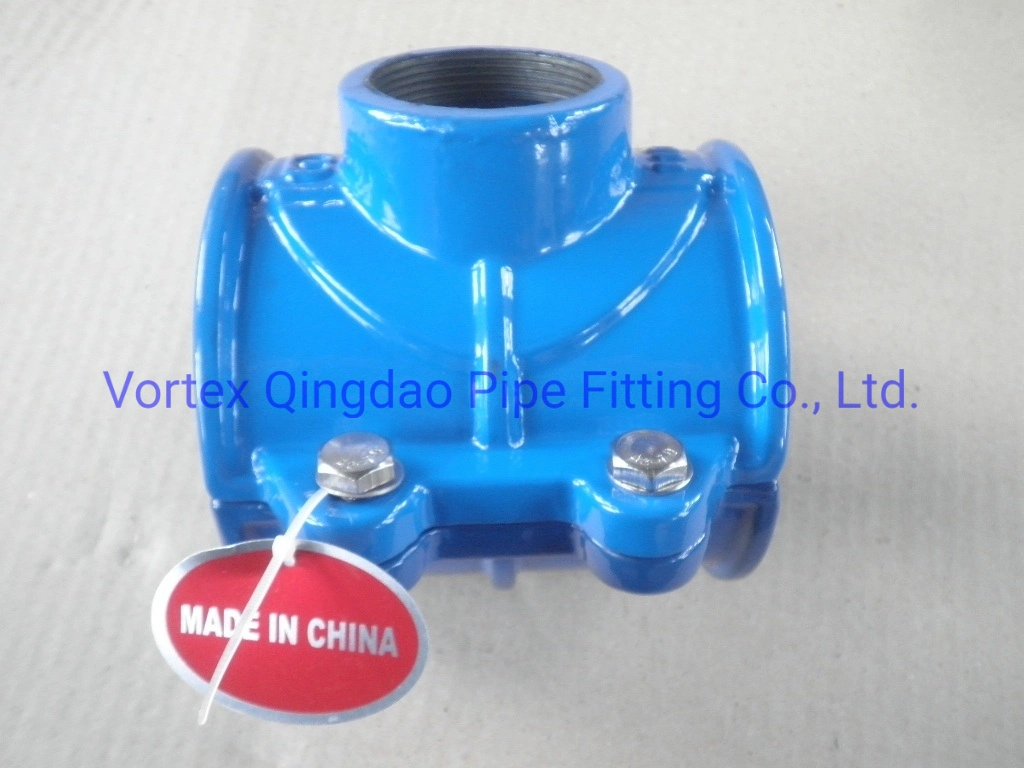

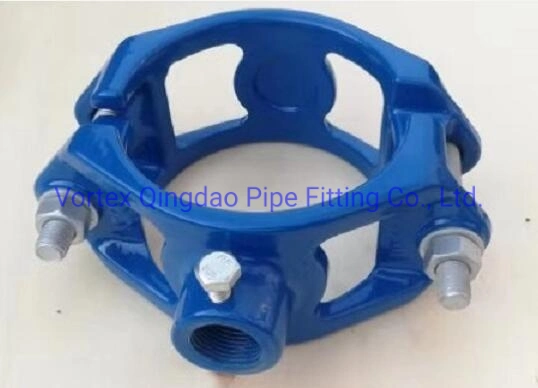

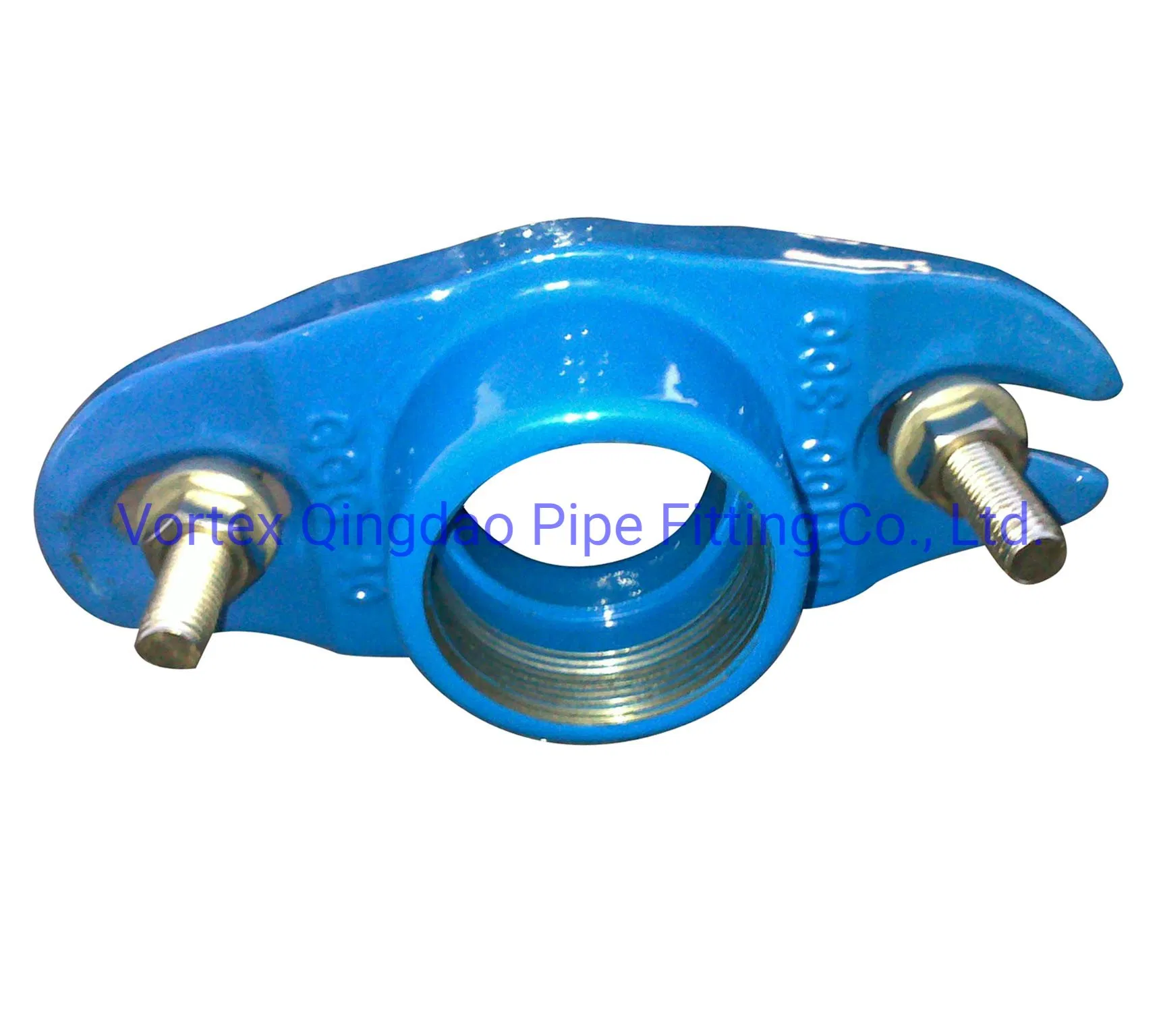

■Ductile iron pipe saddles are primarily designed for transferring drinkable water, waste water, and irrigation.
■Full compliance with international standards: ISO2531, EN545, and EN598.
■High-quality coating: Metallic zinc spray with Bituminous Coating (Outside) and Cement mortar lining (Inside). Epoxy coating is available upon request.
■Joint Methods: Various options including Push-on and flange joints.
■Size Range: Comprehensive product range from 80mm to 2000mm.
NO.
REFERENCE
MATERIAL
STANDARD
1
BODY
GJS-400-10
EN1563
2
COVER
GLS-400-10
EN1563
3
GASKET
EPDM/NBR
EN681
4
WASHER
SS A2-70
-
5
BOLT
SS A2-70
-

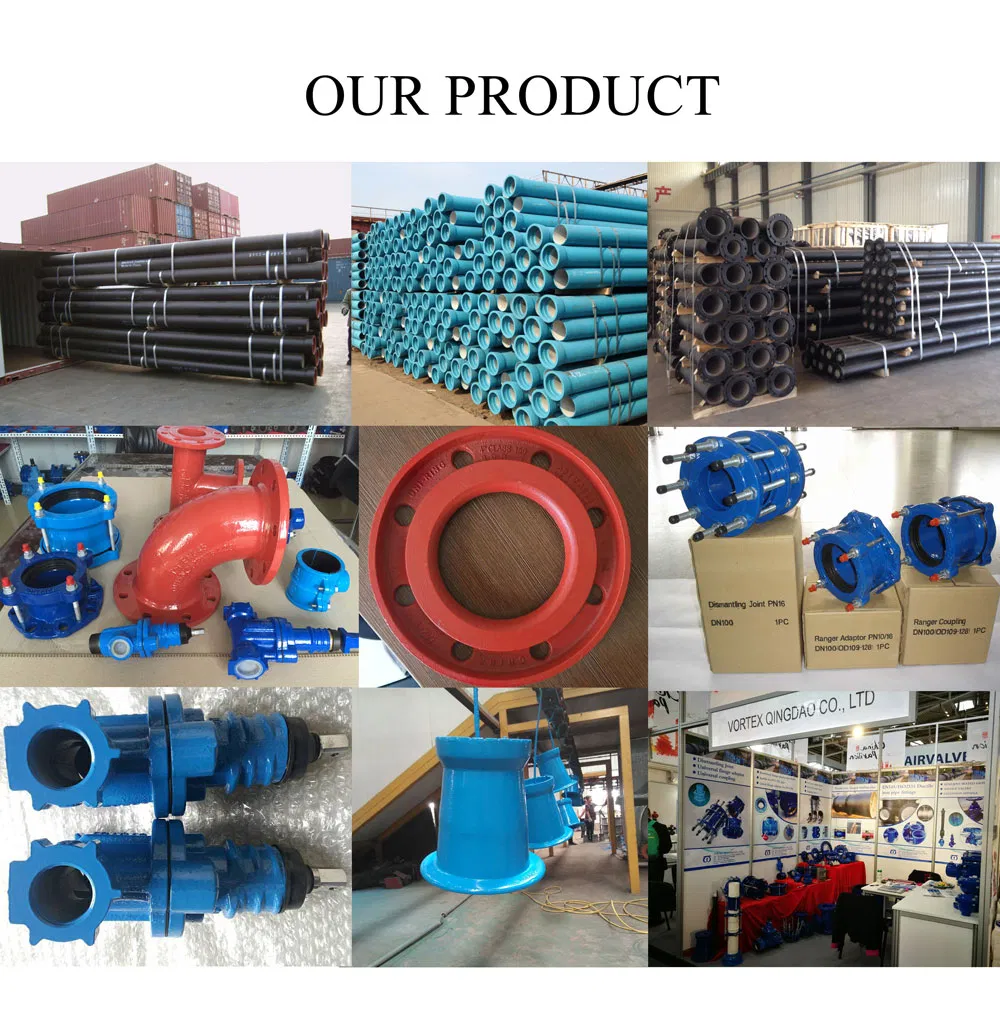

Manufacturing Scope
A professional manufacturing facility with an annual capacity of approximately 9,000 tons, specializing in:
✔Articulated Cable Pipe/Split Pipe (DN40-400mm): Developed for shallow water abrasion and impact protection for submarine cables. Suitable for depths down to 100M.

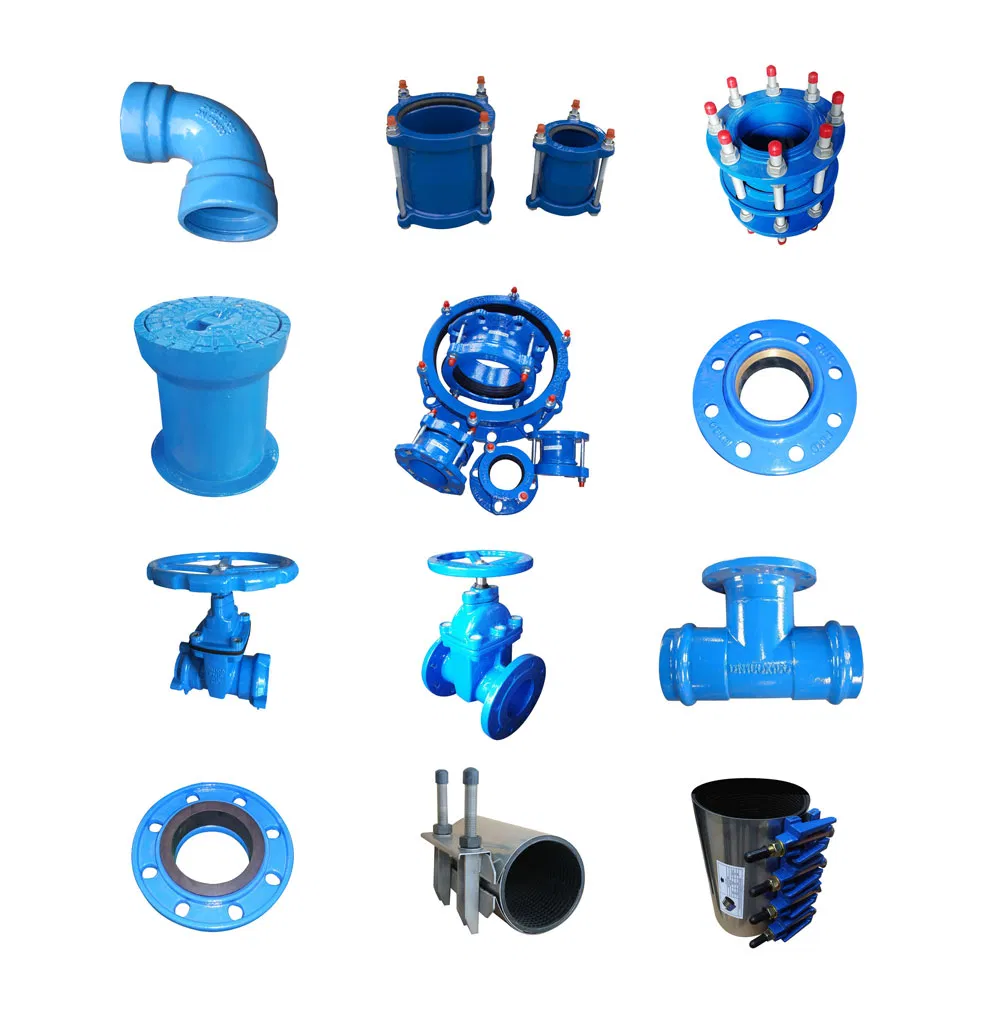

✔Ductile Iron Pipe & Fittings (DN80-2000MM): Standards ISO2531/EN545/EN598, Pressure PN10/PN16/PN25/PN40. Includes socket/flanged bends, tees, and tapers.
✔Couplings & Joints: Flanged adaptors, dismantling joints, and Viking Johnson type fittings.
✔Valves: Resilient seated gate valves, check valves, air valves, and butterfly valves.
Frequently Asked Questions
Q1: What are the primary applications for these ductile iron pipe saddles?They are mainly used for the transport of drinkable water, sewage systems, and agricultural irrigation pipelines.
Q2: Which international standards do the fittings comply with?The products strictly adhere to ISO 2531, EN545, and EN598 standards.
Q3: What materials are used for the internal components like gaskets and bolts?Gaskets are made of EPDM or NBR (EN681 standard), while washers and bolts are manufactured from high-grade Stainless Steel A2-70.
Q4: Are there different coating options available?Yes, standard coatings include metallic zinc spray with bitumen. We also provide cement mortar lining internally and epoxy coatings upon customer request.
Q5: What is the maximum size available for these fittings?We offer a wide range of sizes, starting from DN80 up to DN2000.
Q6: Can the articulated cable pipes be used for underwater projects?Yes, the Articulated Cable Pipe system is specifically designed for submarine cable protection in water depths down to 100 meters.
