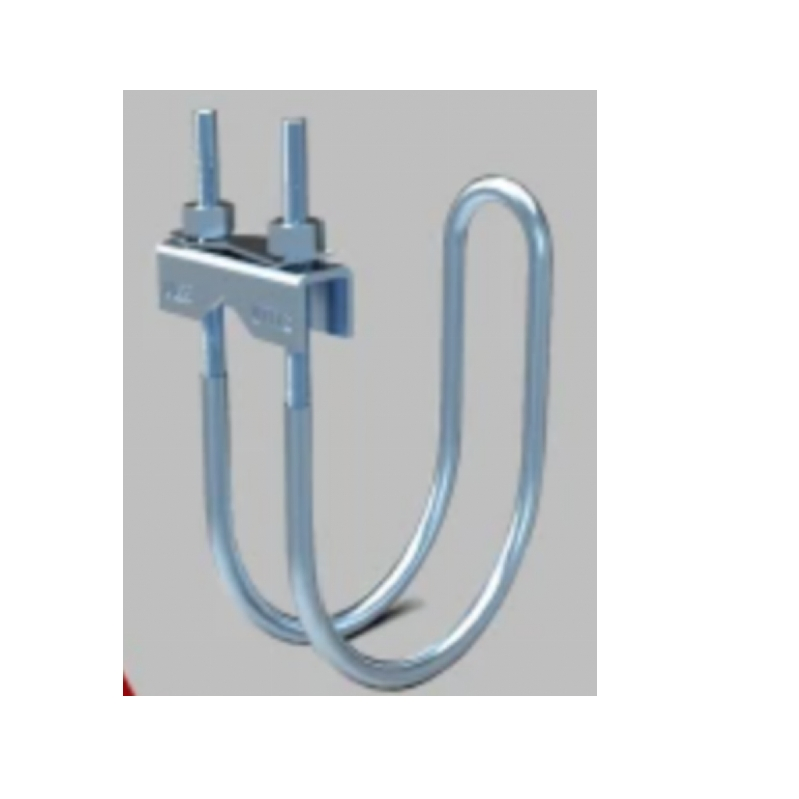

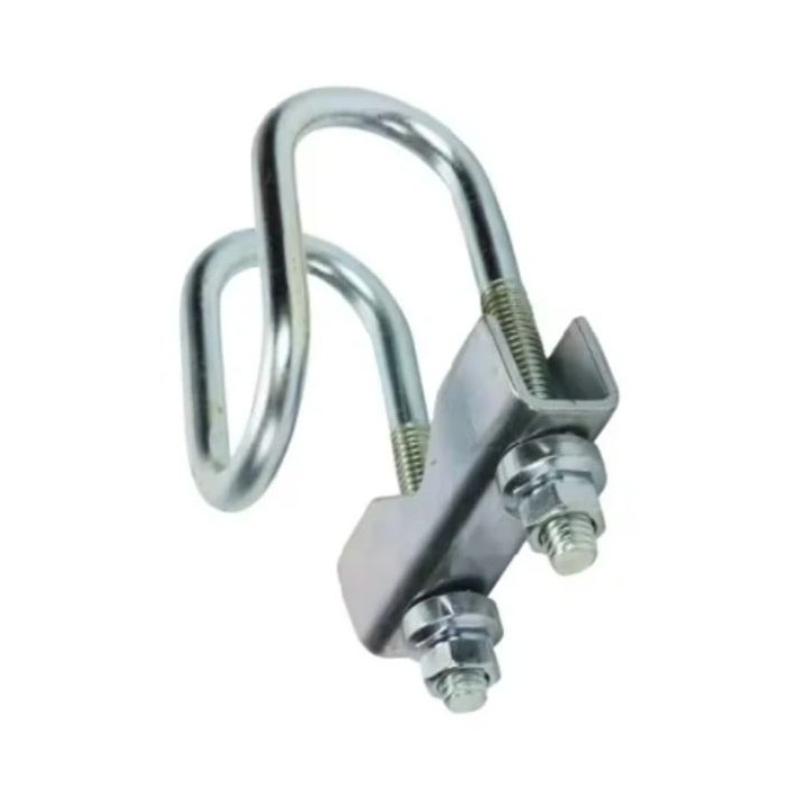

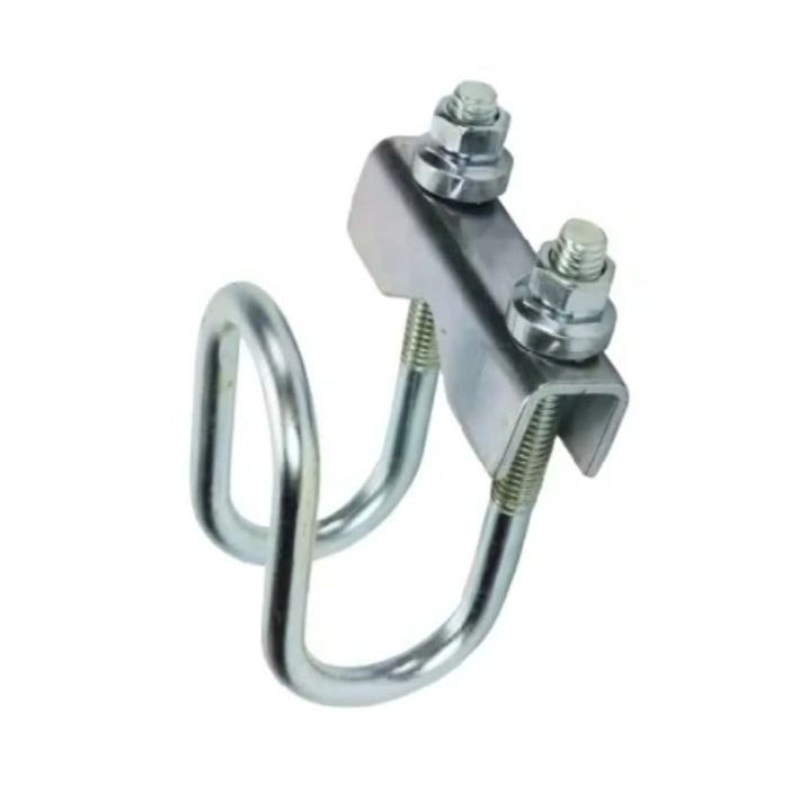

Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
1 / 5
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved
Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved

Quick Bracing Clamp Double U-Bolt Pipe Hanger for Fire Protection System Fire Sprinkler System Pipe Supports Metal FM UL Approved

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Quick Bracing Clamp Double U-Bolt Pipe Hanger
Connection
Coupling
Structure
Vertical
Flexible or Rigid
Flexible
Material
Alloy/Carbon Steel/Stainless Steel
Standard
Standard
Surface Treatment
Electro-Galvanized/Hot-DIP
Adaptive Domain
Sprinkler System/Piping Support/Fire Protection
Certificated
FM/UL/CE/ISO
Lead Time
15-20 Days
Capacity
50000/Month
Key Words
Sprinkler Hanger
International Standard
ASTM / JIS / DIN / BS / GB/GOST
Package Size
48.50cm * 32.00cm * 19.00cm
Detailed Photos

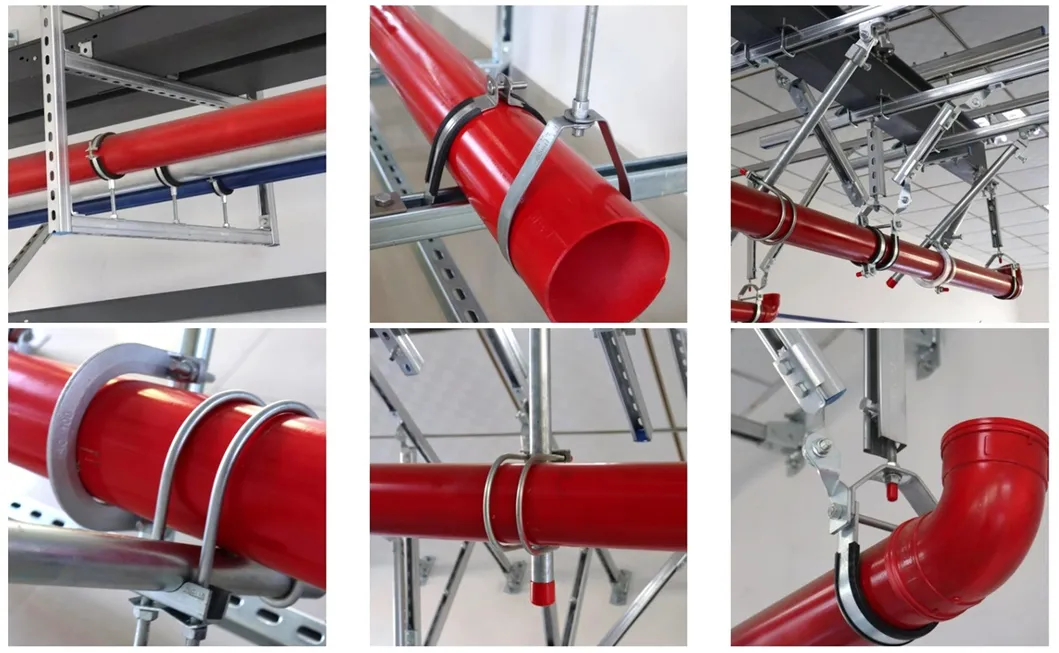

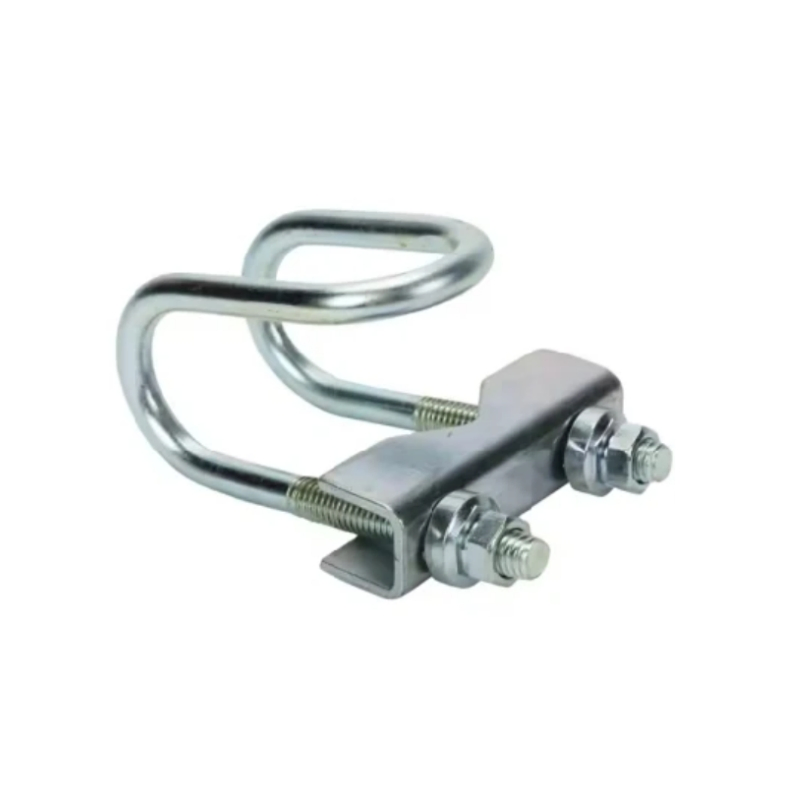

Quick Bracing Clamp

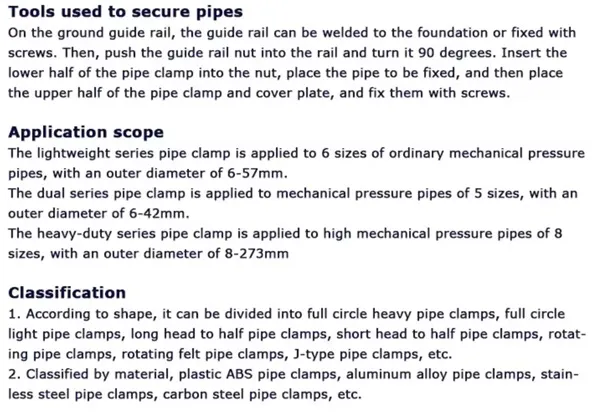

Product View 1

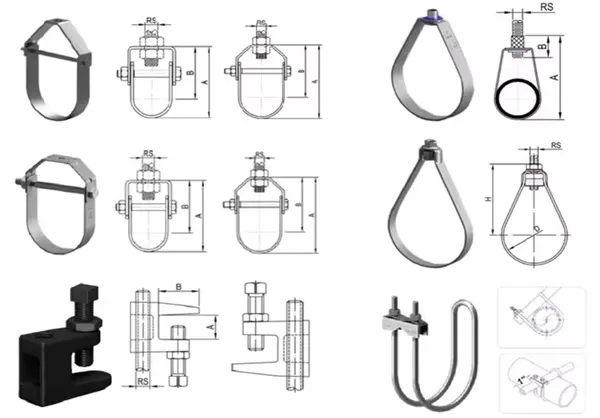

Product View 2
Product Description
Seismic supports can minimize the economic losses caused by earthquakes and prevent casualties, and their role cannot be underestimated. Seismic supports can protect waterways and power channels, prevent the collapse of other building facilities in the house, and ensure other hazards caused by earthquakes, thereby ensuring personal safety and reducing economic losses to a greater extent.
Drawing & Installation

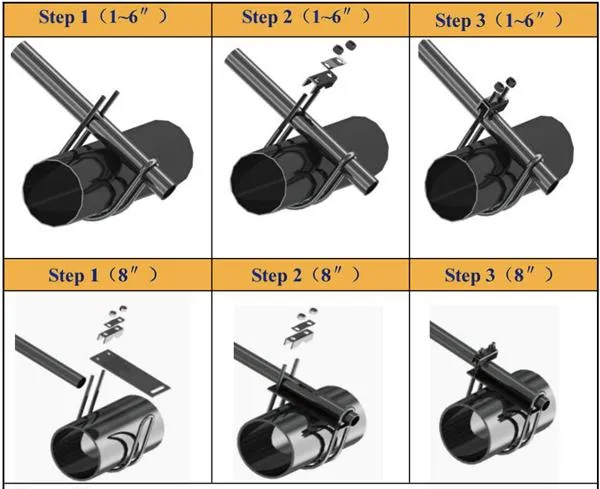

Technical Drawing

Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1" (25.4) extending from attachment. Brace pipe can be installed on top or bottom of pipe to be braced but must be a minimum of 6" (152.4) away from a pipe joint. Tighten nuts down evenly until 30~35N·M to make all green marking lines visible.

UL Maximum Design Load
Pipe Size lbs. kN Wt. Each (lb) Wt. Each (kg)
1(25)680(3.02)0.71(0.35)
1¼(32)680(3.02)0.81(0.37)
1½(40)680(3.02)0.86(0.39)
2(50)680(3.02)0.92(0.42)
4(100)680(3.02)1.21(0.55)
8(219)1370(6.09)1.81(0.82)
FM Maximum Design Load
Pipe Size Angle 30°-44° Angle 45°-59° Wt. Each
in (mm) lbs kN lbs kN lb kg
2(50)5902.628403.730.920.42
4(100)5402.407703.421.210.55
8(200)2100.932901.281.810.82
Quality Control & Manufacturing

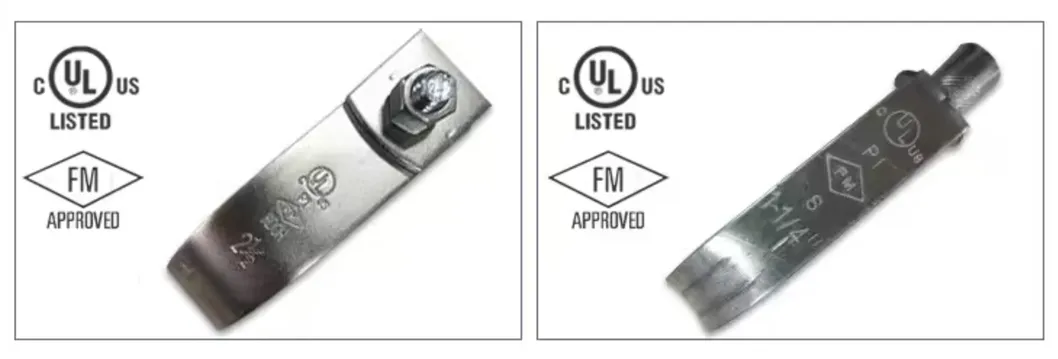

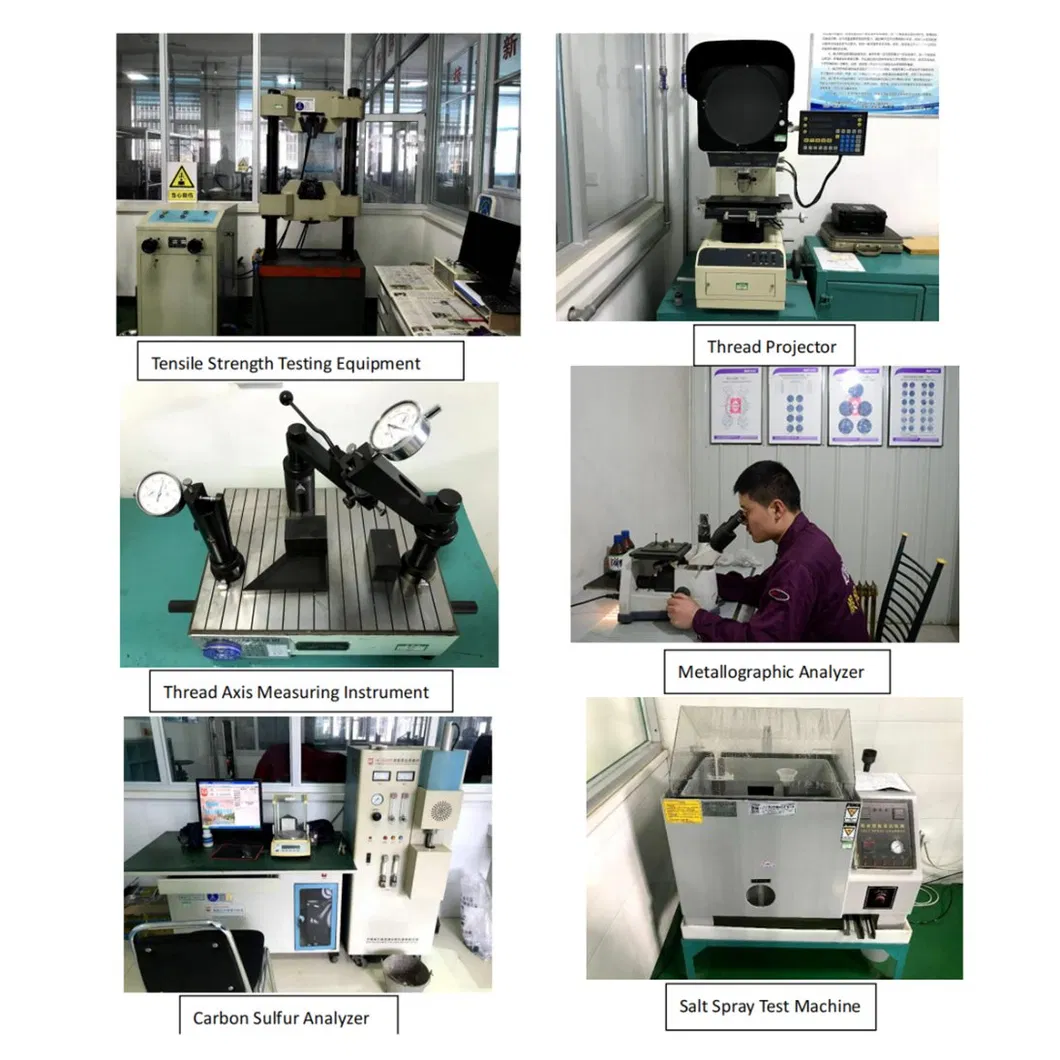

QC Standard Factory QC
Many types of pipe fittings in piping systems are provided, such as Steel Pipe Fittings, Nipples, Couplings & Sockets, Welded Outlets, Casing and Tubing Couplings with API Cert, Stainless Steel Pipe Fittings, Malleable Iron Pipe Fittings, and Seamless Pipe Nipples.

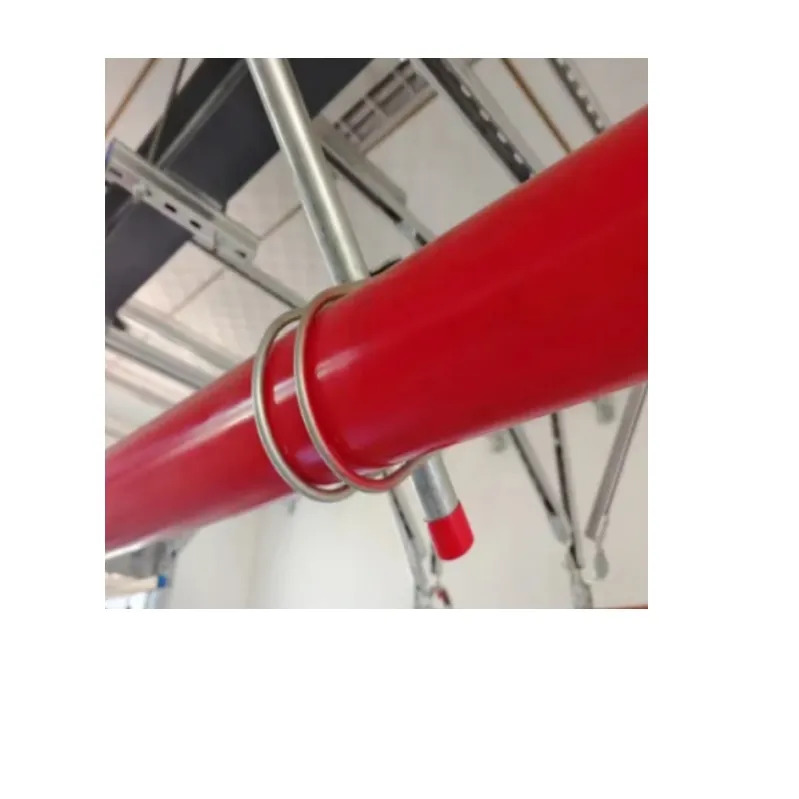

Application Cases

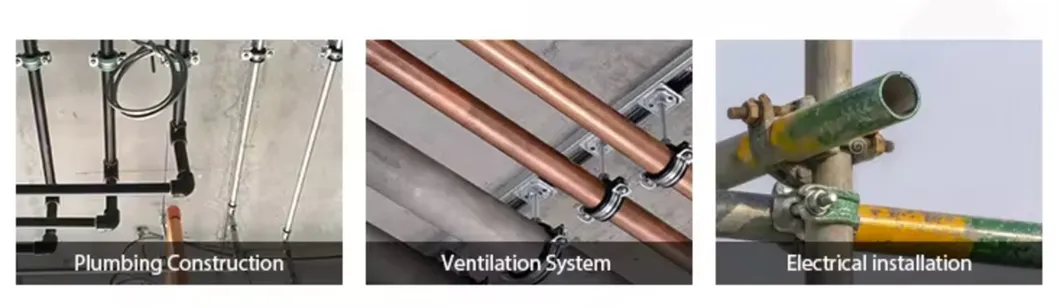

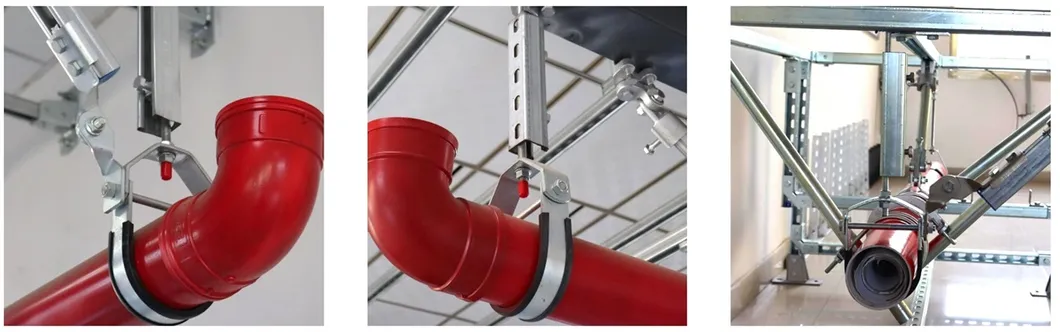

Application 1 Application 2
Packaging & Shipping
Package 1
Package 2
Package 3
Related Products

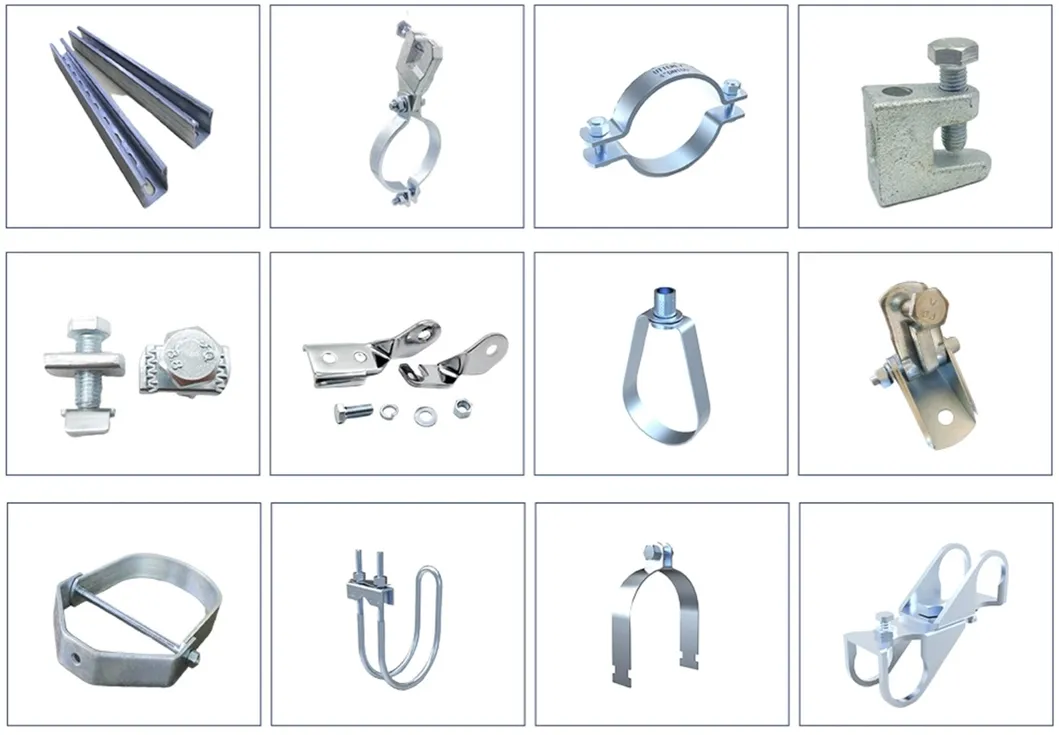

Related Items
Frequently Asked Questions
What is the minimum quantity of the order?
Answer: The purchase volume of mixed products is 4 tons.
How long is the delivery time of the order?
Answer: The delivery time for general orders is about 30 days. If the order is urgent and we have stock, around 7 days.
What payment methods do you accept?
Answer: We accept payment terms such as TT, L/C, DP, Western Union, Paypal, etc.
Where is your departure port of shipment?
Answer: The port of departure of our goods is generally Tianjin Port or Qingdao Port. We can transport the goods to designated warehouses, such as Yiwu, Guangzhou, etc.
What certificates do your products have?
Answer: Our products have FM/UL certificates, and we cooperate with third-party quality inspection certification before the factory, such as SGS, TUV.
Do product packaging cartons and labels support customization?
Answer: Packaging cartons and labels can be customized according to customer requirements.

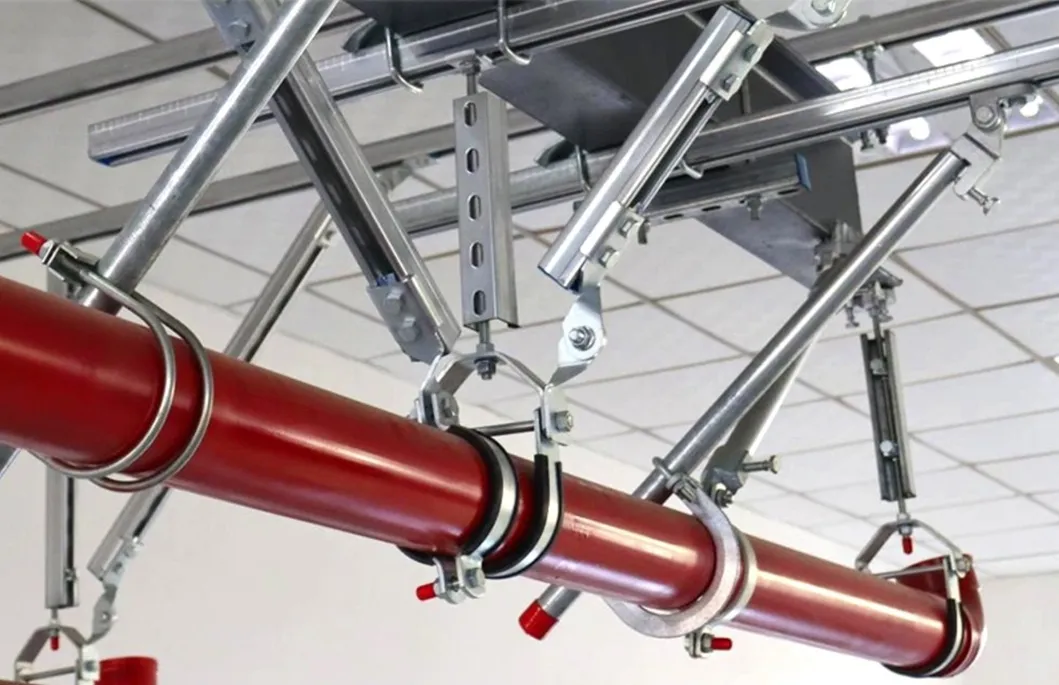

Summary View
