Q235B Pipe Slide Support for Thermal Pipe Installation with Large Displacements Electrogalvanized Pipe Slide Base

📋

Basic Information

Model NO.

HOHD-01-ZE

Trademark

Carbon Structural Steel

Connection Form

Bolt Connection

Application

Steel Workshop, Fabricated House, Structural Roofing

Service

Within 48 Hours

Warranty

12 Months

Material Spec

Q235B

Origin

China

⚙️

Product Description

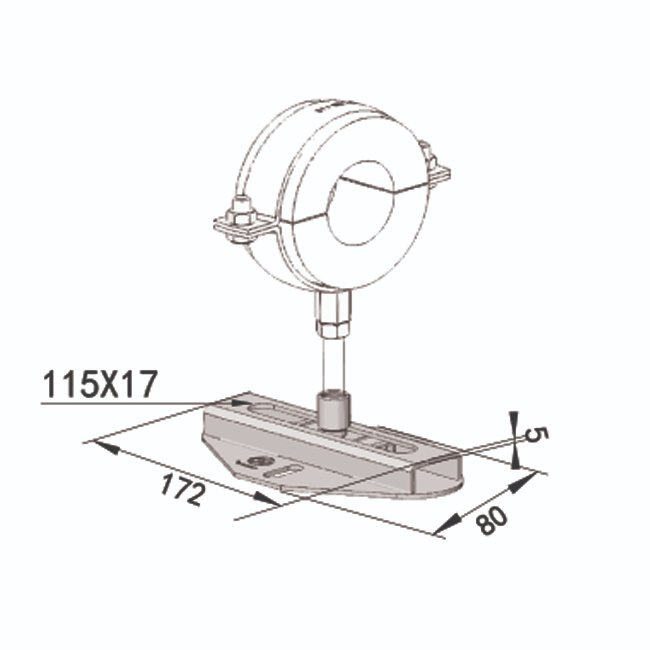

Pipe Slide Connector HOHD Technical Specifications
Application	For DN100 heat pipe installation
Material	Q235B Structural Steel
Surface Treatment	Zinc galvanized / Hot dip galvanized / Zinc chrome coating
Product Features	• Hanging and support installation methods • Slider retention design (doesn't come out) • Quick installation and easy operation

Product Name	Surface Treatment	Item No.	Product Code

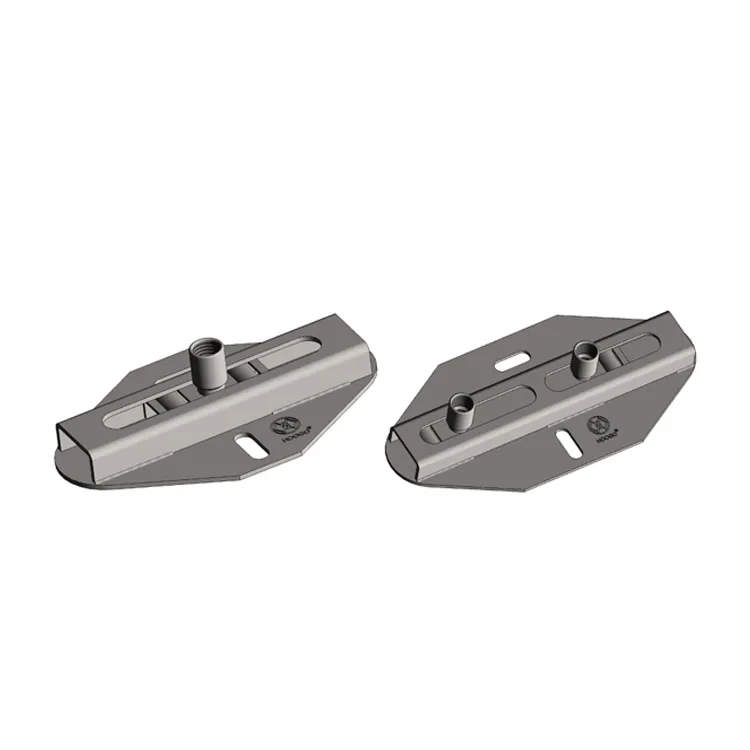

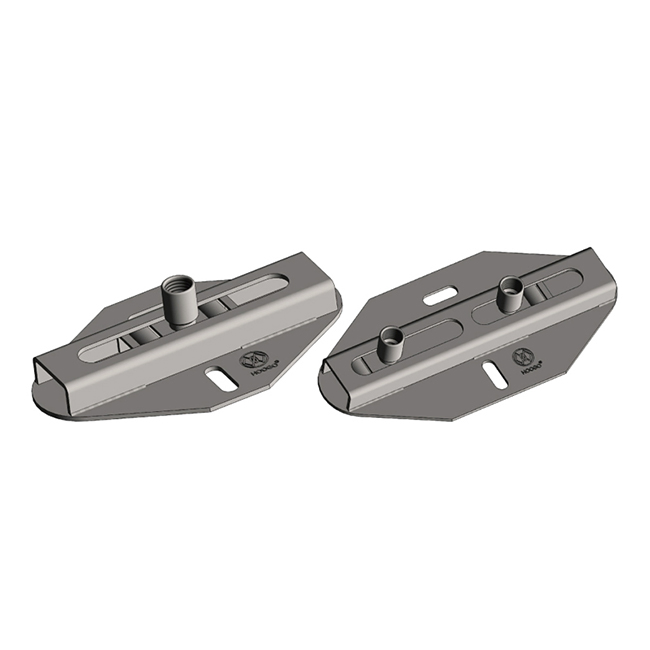

Slide connector (single connection)-ZE	Zincate galvanized	HOHD-01	5011311
Slide connector (single connection)-ZCC	Zinc chrome coating	HOHD-01	50113111

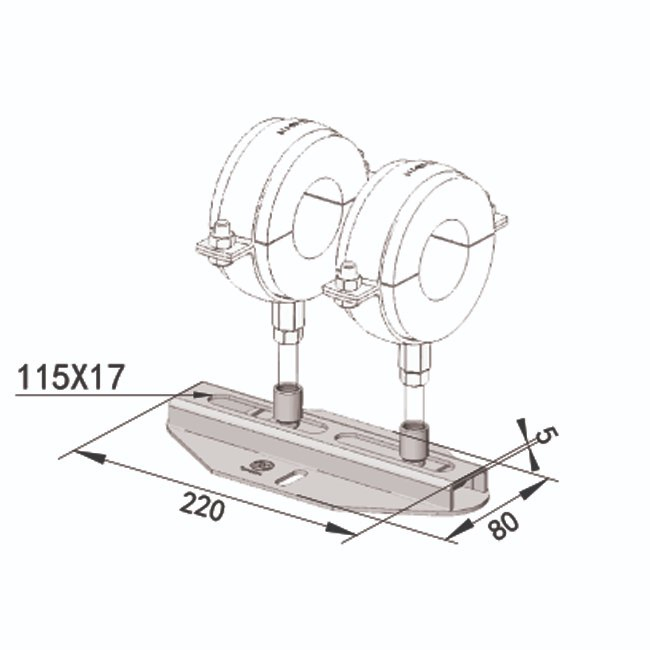

Slide connector (double connections)-ZE	Zincate galvanized	HOHD-02	5011321
Slide connector (double connections)-ZCC	Zinc chrome coating	HOHD-02	50113211

🖼️

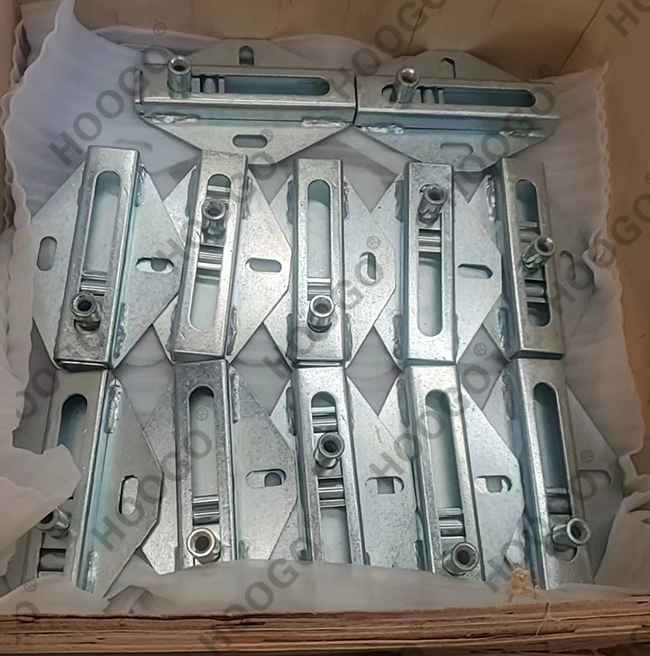

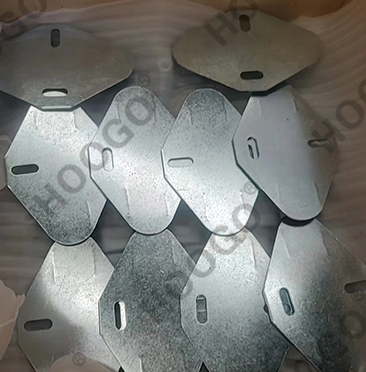

Product Display

🏭

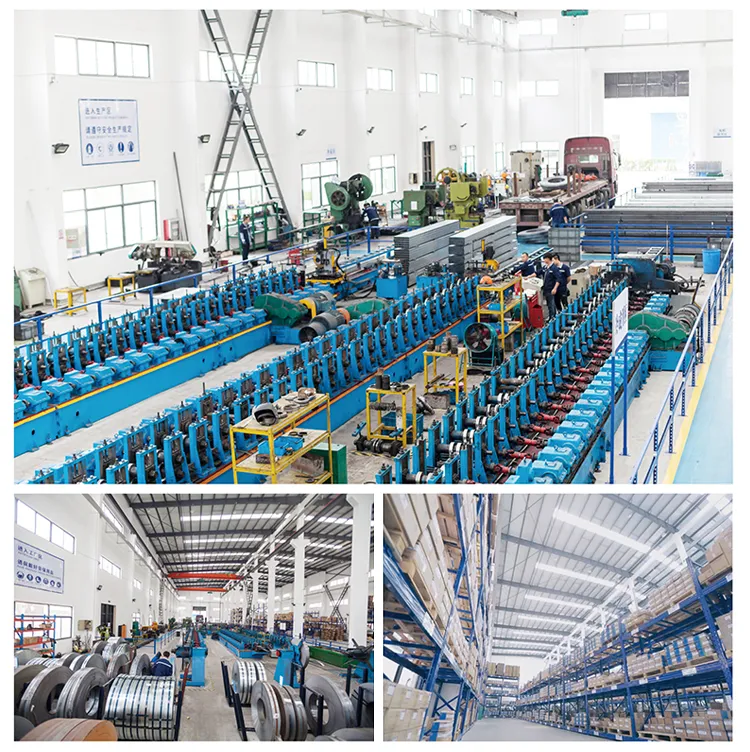

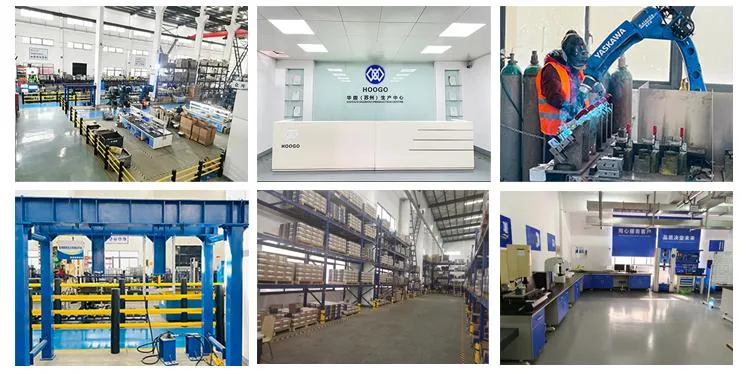

Manufacturing & Facilities

📜

Certificate & Logistics

❓

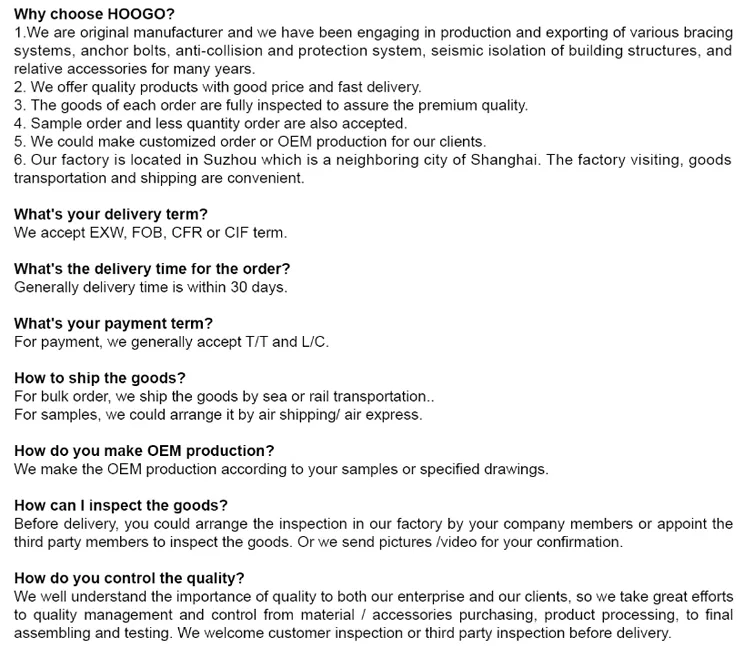

Frequently Asked Questions

What is the main application for the HOHD slide connector?

The HOHD series is specifically designed for DN100 heat pipe installations, providing stable support for thermal pipes with potential displacement.

What materials and surface treatments are available?

The products are manufactured using Q235B structural steel. Surface treatment options include Zincate galvanized, Hot dip galvanized, and Zinc chrome coating for superior corrosion resistance.

What are the installation options for this connector?

The HOHD slide connector supports two primary installation methods: hanging and support configurations, offering flexibility for different structural requirements.

Does the slider detach during movement?

No, the slider is designed with a safety mechanism so it does not come out or detach as it moves along the base.

What is the warranty and after-sales support period?

We provide a 12-month warranty on all structural components. Our after-sales service team responds to inquiries within 48 hours.

How are the products packaged for international shipping?

Standard transport packaging is optimized for sea shipping to ensure the safety and integrity of the steel components during long-distance transit.
