Prostar Clevis Pipe Hanger and Loop Hanger with UL & FM Listed

📋 Basic Information

Model NO.

CH

Application

Pipe Supports

Certification

ISO, UL & FM

Surface Treatment

Yes

Technics

Punching

Material

Steel

Product Name

Clevis Pipe Hanger and Loop Hanger

Thickness

1.2mm~2.5mm

Specification

1/2"~12"

Production Capacity

500,000 pcs/Month

🛠️ Product Description

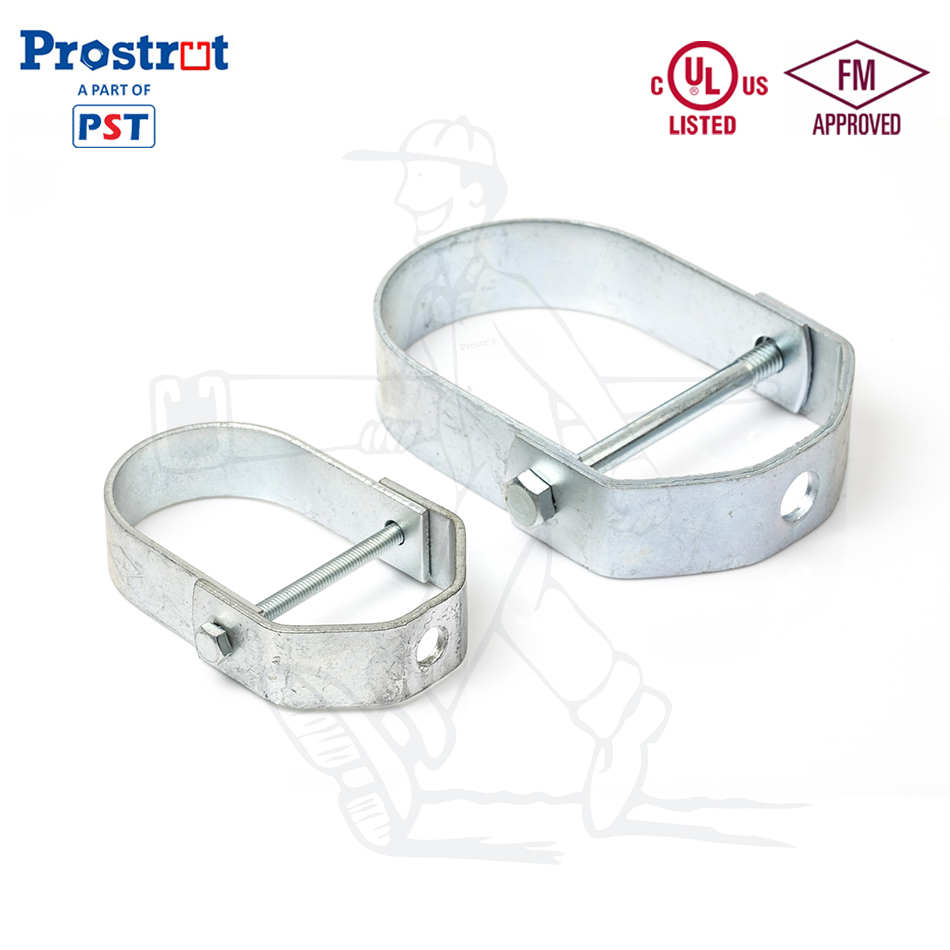

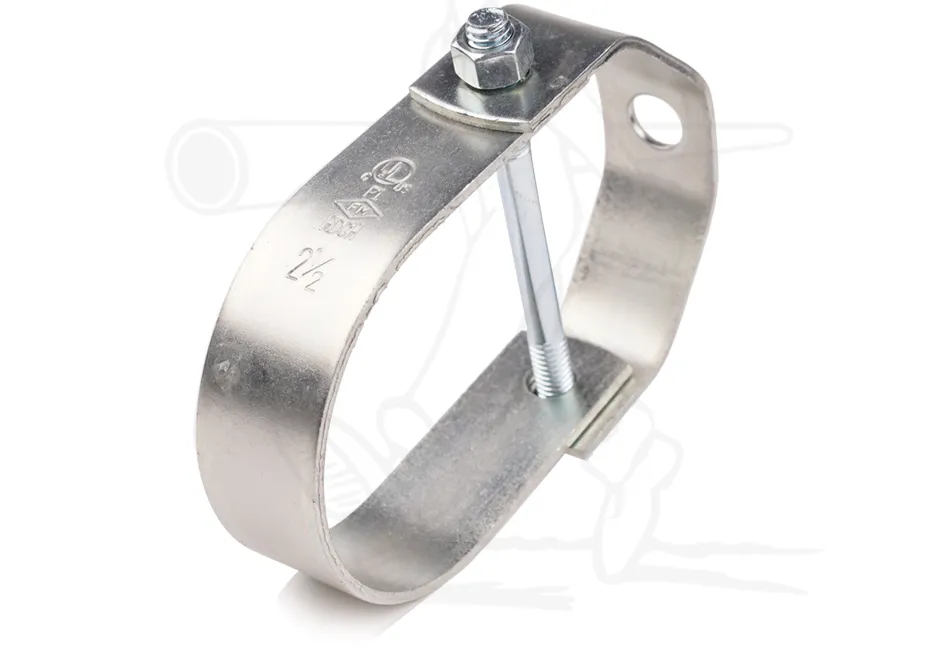

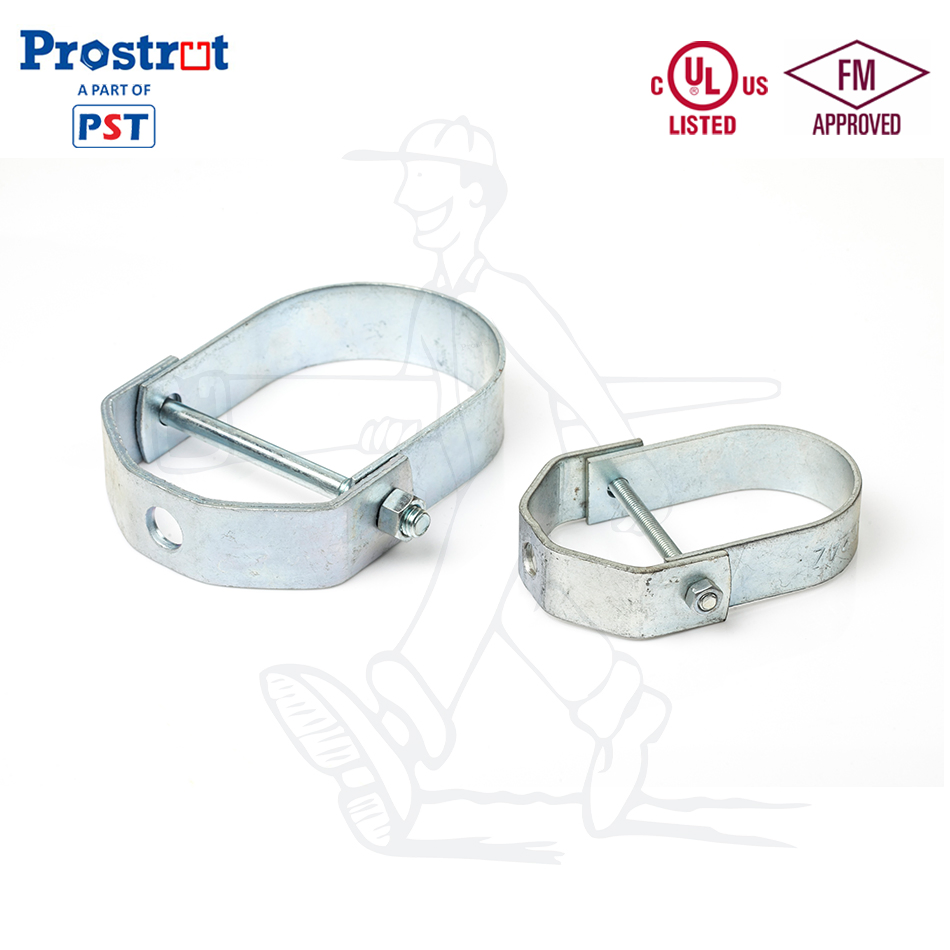

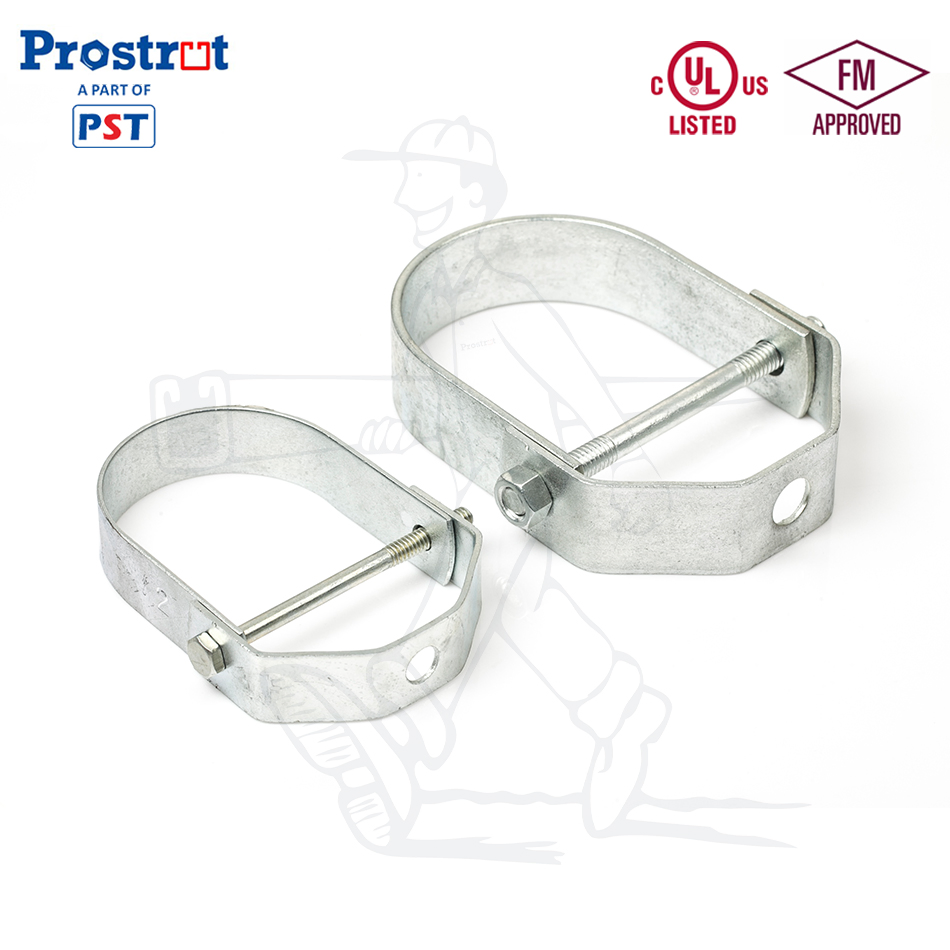

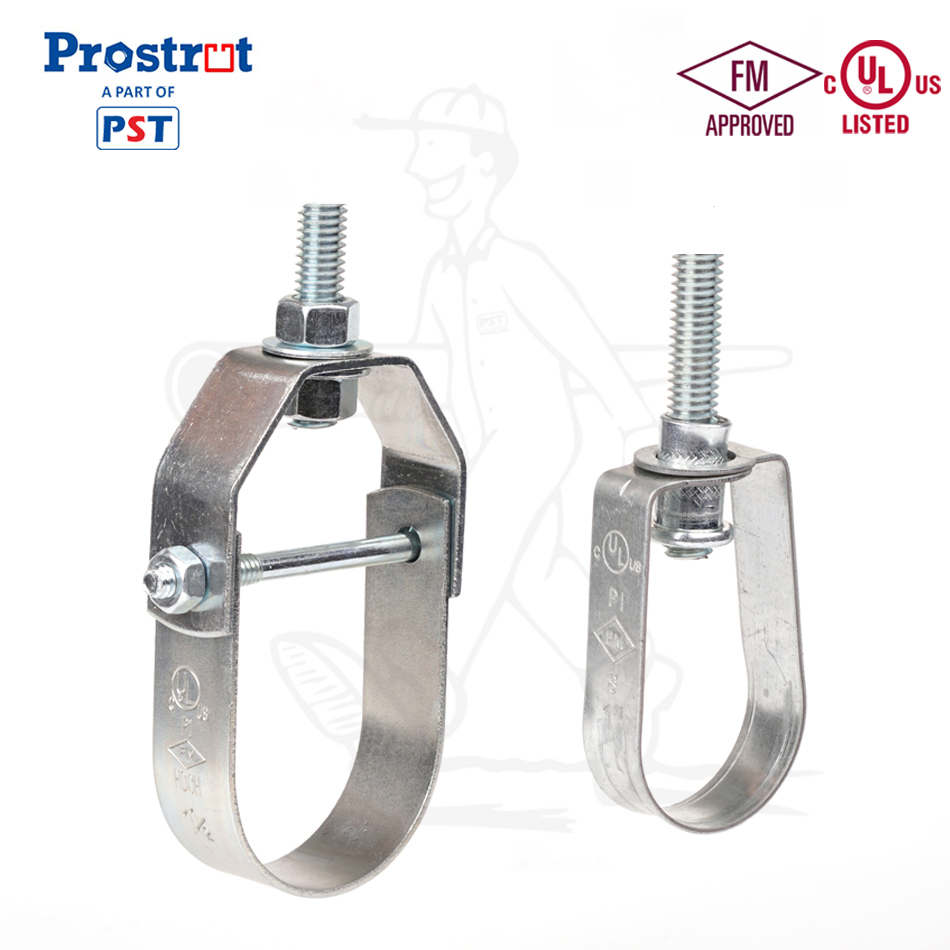

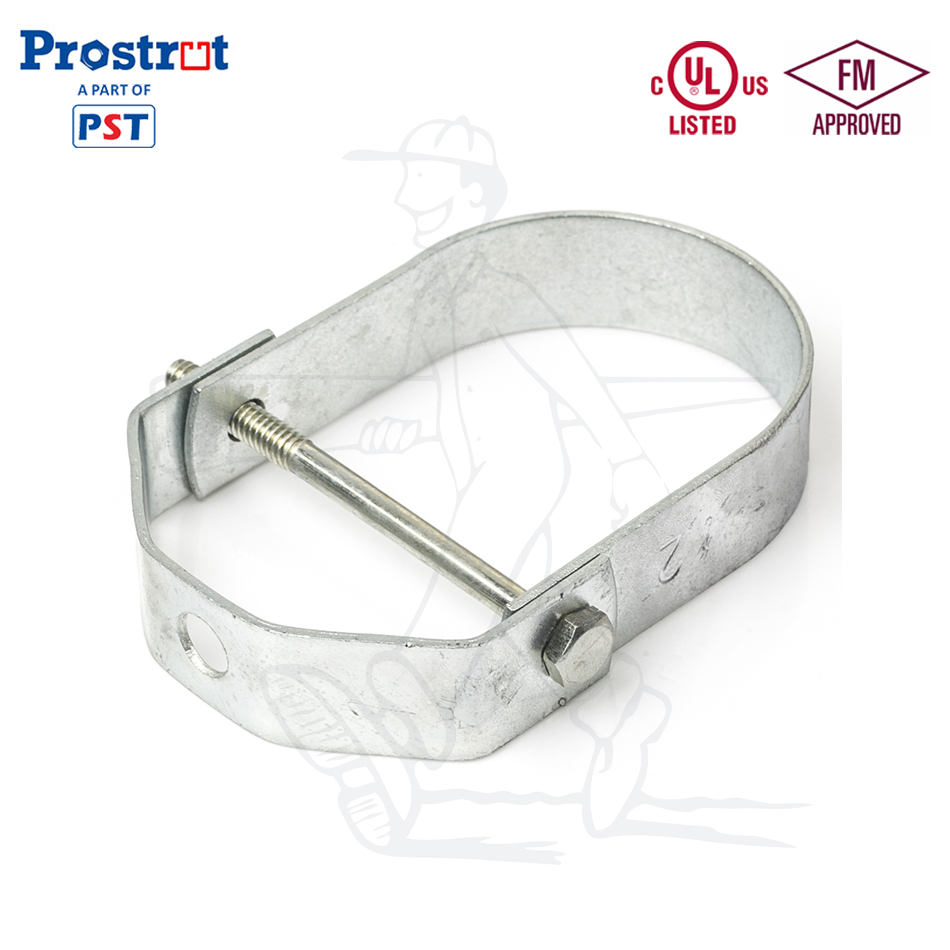

Clevis Hangers

A clevis hanger is a pipe attachment providing vertical adjustment, consisting of a clevis type top bolted to a formed steel bottom strap.
Recommended for the suspension of non-insulated, stationary pipe lines.
Constructed of high-quality zinc plated carbon steel.
FM and UL approved for reliable safety and performance.

📊 Specifications

Size (in)	Pipe Size (mm)	Rod Size (in)	Max Rec Load (lbs)	Packing (pcs/Ctn)
1/2"	21.4	3/8"	610	100
3/4"	26.7	3/8"	610	100
1"	33.4	3/8"	730	100
1-1/4"	42.2	3/8"	730	50
1-1/2"	48.3	3/8"	730	50
2"	60.4	3/8"	730	50
2-1/2"	73.1	1/2"	730	50
3"	88.9	1/2"	1350	40
4"	114.3	5/8"	1430	25
6"	168.3	3/4"	1940	200

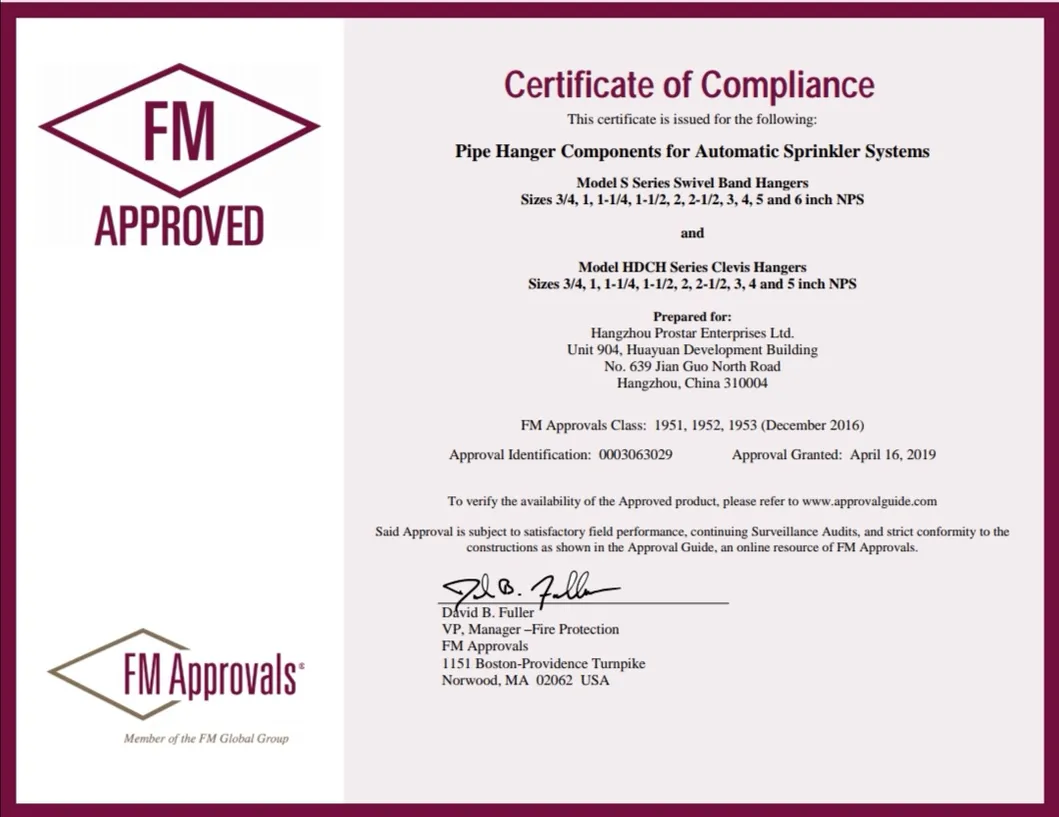

📜 Certifications

📦 Packaging & Shipping

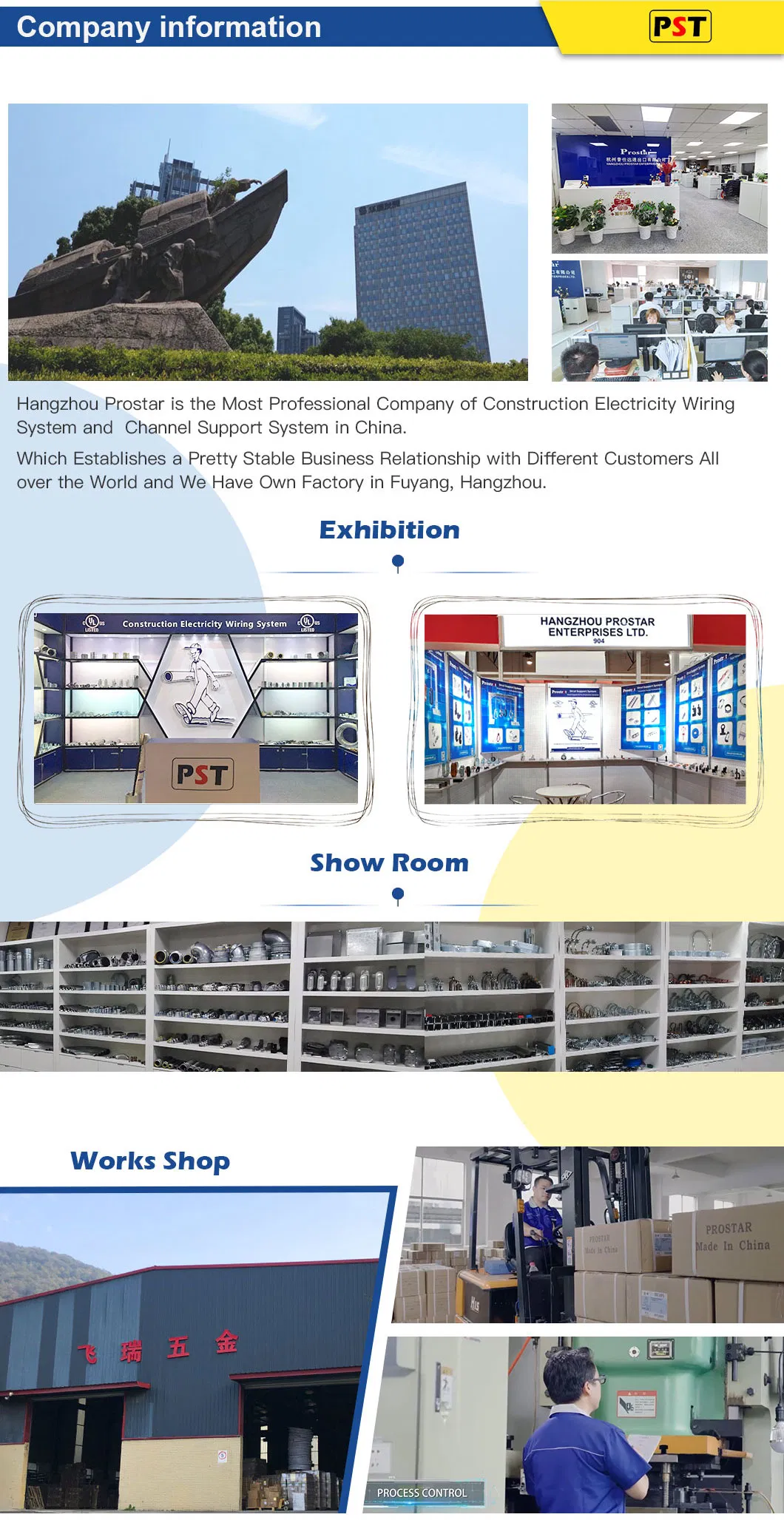

🏭 Production Capability

❓ Frequently Asked Questions

Do you have UL certificates for your products?

Yes, most of our pipe hangers and support products are UL listed, ensuring they meet international safety standards.

Can I request product samples before placing an order?

Samples are available free of charge. We only ask that the courier or shipping charges be covered by the requester.

How can I obtain a product catalog?

We can provide digital PDF catalogs via email or file transfer services. Hard copies are also available upon request.

What are your standard payment terms?

Our standard terms are a 30% T/T deposit with the balance due against the B/L copy, or 100% irrevocable L/C at sight.

What is the typical delivery time for an order?

Depending on the order volume and specific requirements, most orders are delivered within 30 to 35 days after deposit approval.

Why should we choose your pipe support solutions?

We offer industry-leading products that are UL/FM inspected, undergo 100% QC inspection before shipment, and provide competitive pricing with professional service.
