Ampy Pipe
1 / 5
| Performance Metrics | Unit | 9160 | 9220 | 9320 | 9340 |
|---|---|---|---|---|---|
| Density | Kg/m³ | 160 | 220 | 320 | 340 |
| Thermal Conductivity | W/(m.k) | ≤0.036 | ≤0.040 | ≤0.050 | ≤0.048 |
| Water absorption | % | ≤2 | ≤2 | ≤1.8 | ≤1.6 |
| Closed cell | % | ≥95 | ≥95 | ≥95 | ≥98 |
| Compressive strength | Mpa | ≥1.6 | ≥4 | ≥6 | ≥9 |
High-performance cold insulation is designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.
These cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These solutions cover complete pipeline cold insulation, from design and calculation to production and installation.

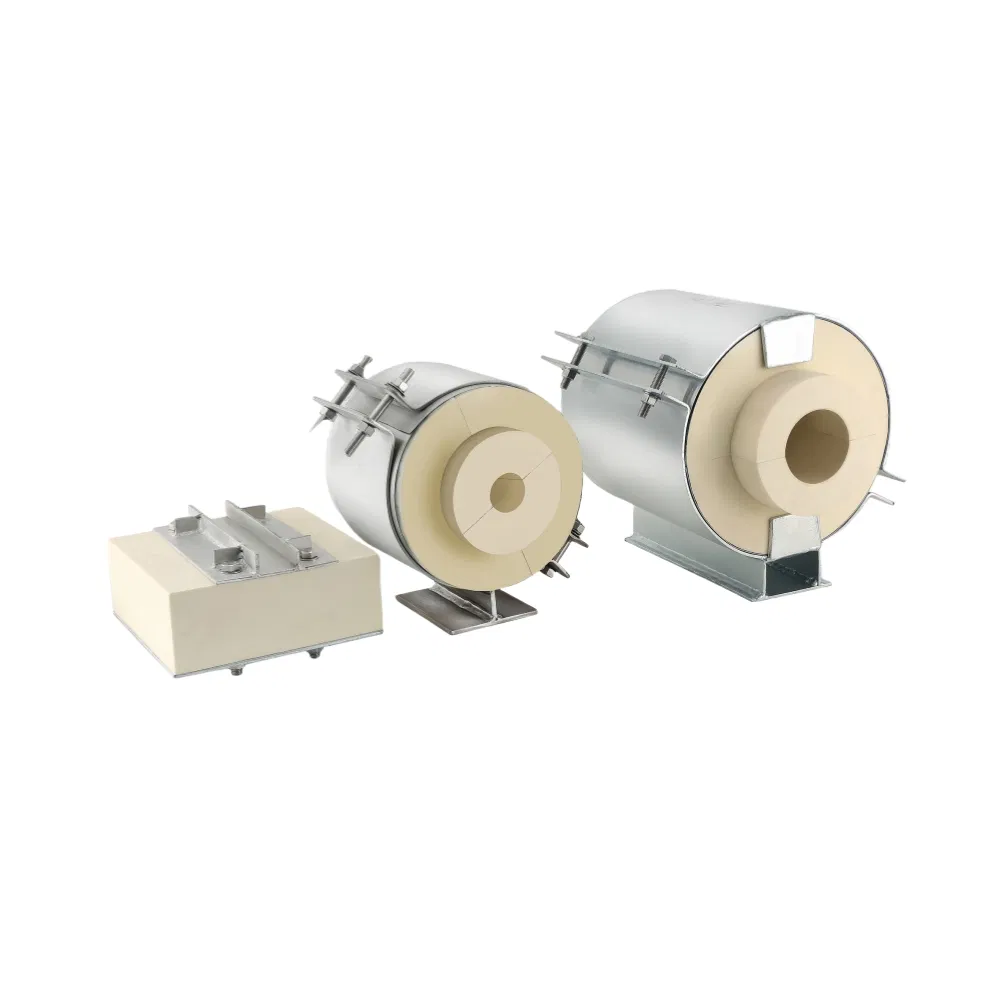

Fixed Tube Bracket
Sliding Tube Holder
