Polyurethane Cryogenic/Thermal Insulation Pipe Supports/Brackets

COLD/CRYOGENIC PIPELINE SUPPORTS/HOLDER

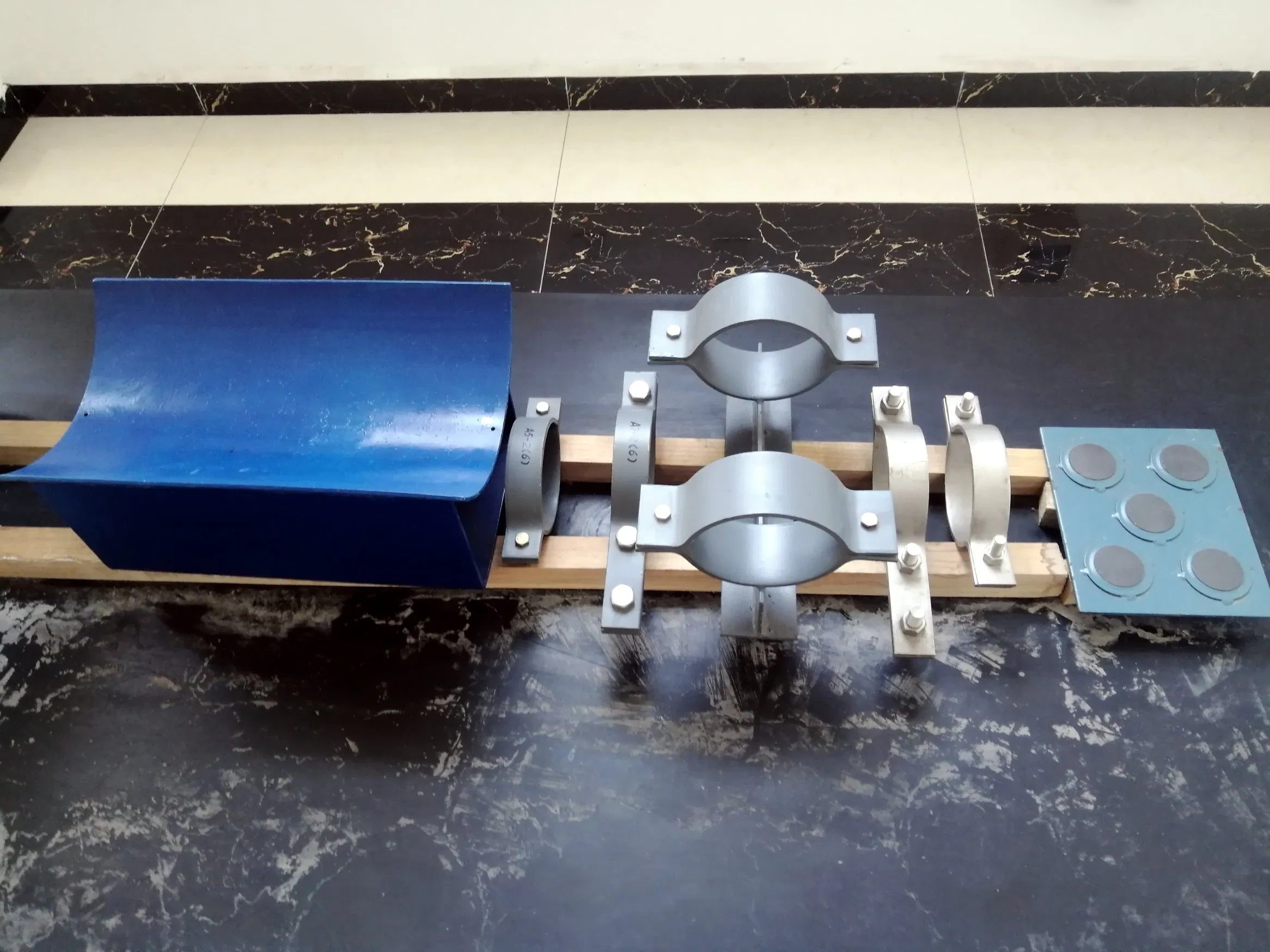

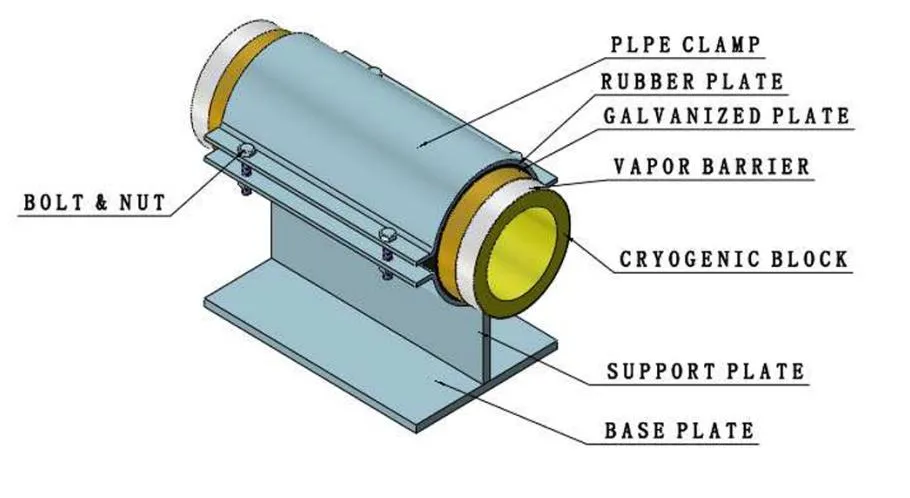

Polyurethane cold/cryogenic pipe holders are generally installed and equipped with clamps. They serve as essential pipe supports on low-temperature equipment and pipelines, primarily suitable for laying and connecting chemical energy pipelines. Available angles include 45°, 60°, 90°, 120°, 180°, and more. Thickness ranges from 20 to 320mm, with lengths between 80-300mm. Materials mainly include red pine and polyurethane, with the latter being a new type of modified product based on traditional wooden supports, offering a standardized mold for insulation in environments as low as minus 160 degrees Celsius.

These holders are designed for low-temperature pipelines transporting refrigerants across various industries, including:

• Petrochemicals, Fertilizers, and Chemical Fibers
• Pharmaceuticals and Paper Production
• Cold Storage, Steel Plants, and Power Stations
• Oil Pipelines, Ethylene, and Air Separation Projects
• LNG and LPG Projects, Shipbuilding, and Refrigeration
