Polyurethane Cryogenic/Cold Pipe Support and Holder

1 / 5

Polyurethane Cryogenic/Cold Pipe Support and Holder

Customization:	Available
After-sales Service:	Yes
Warranty:	12-18 Months

Send Inquiry

Product Description

Technical Specifications

Model NO.

JN-CP01

Condition

New

Certification

CE, ISO9001, ASME

Standard

Material

Stainless Steel

Application

Cryogenic

Package Size

1200.00cm * 700.00cm * 600.00cm

Gross Weight

40.000kg

Production Capacity

500/Year

Customized

Available

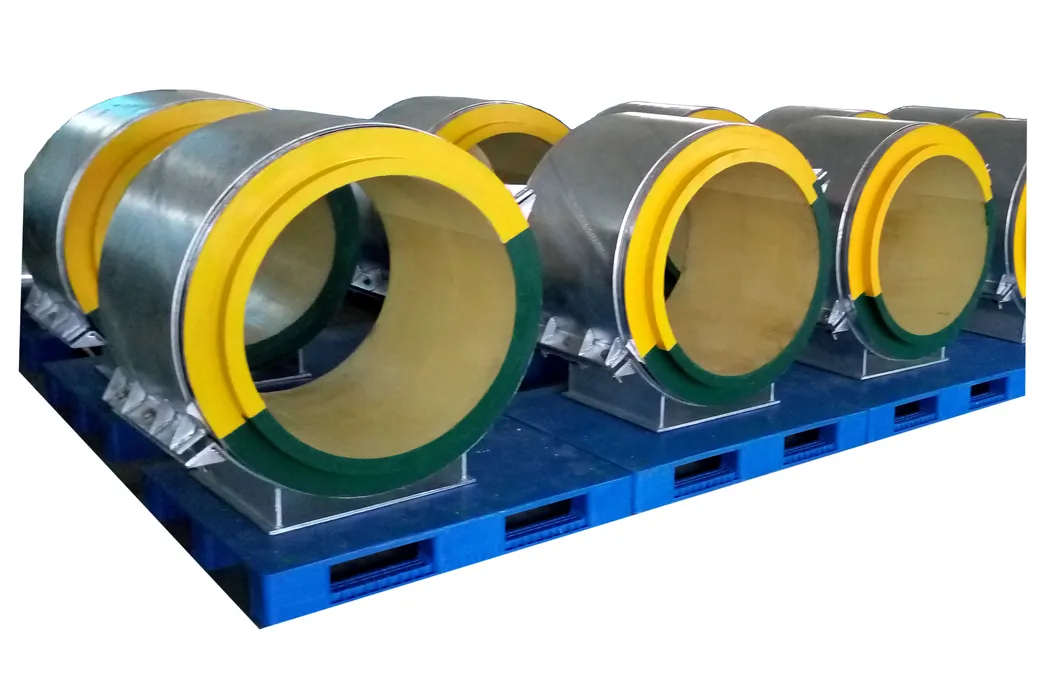

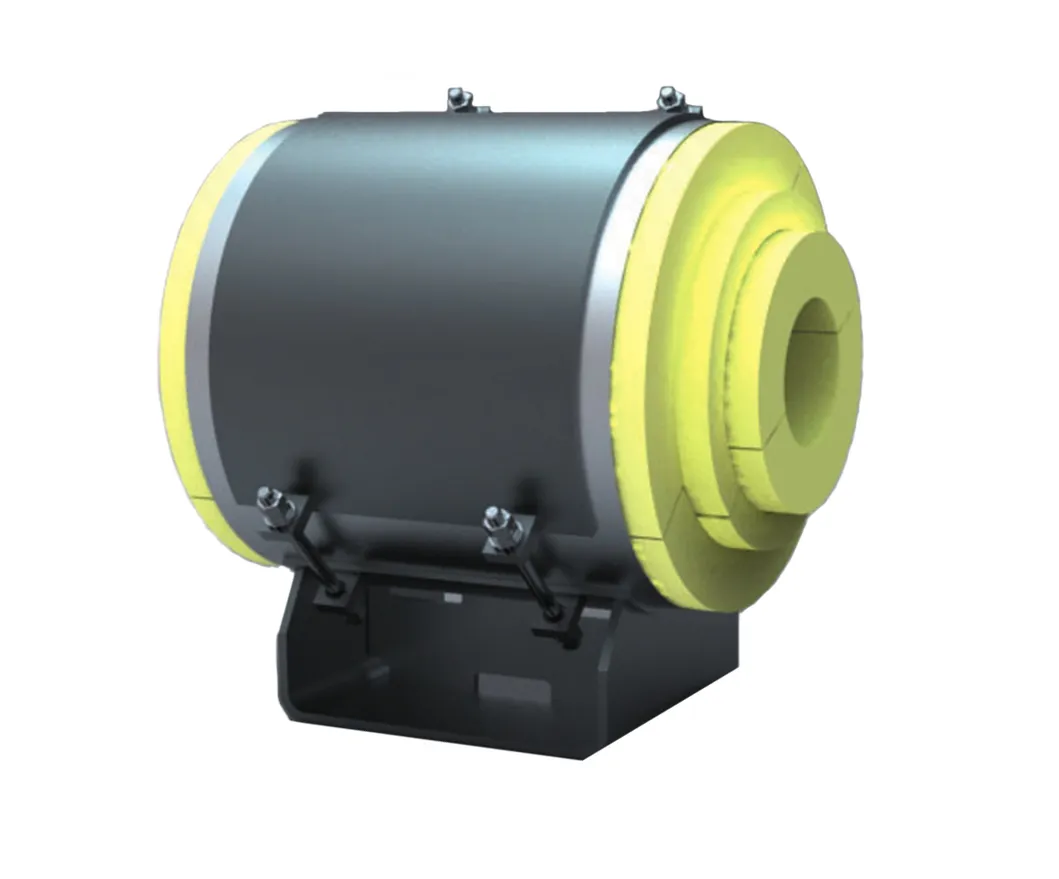

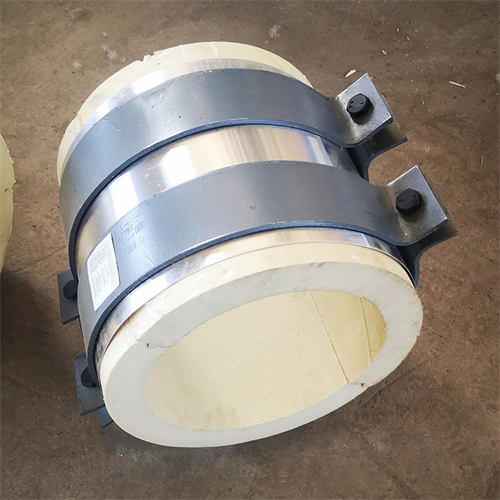

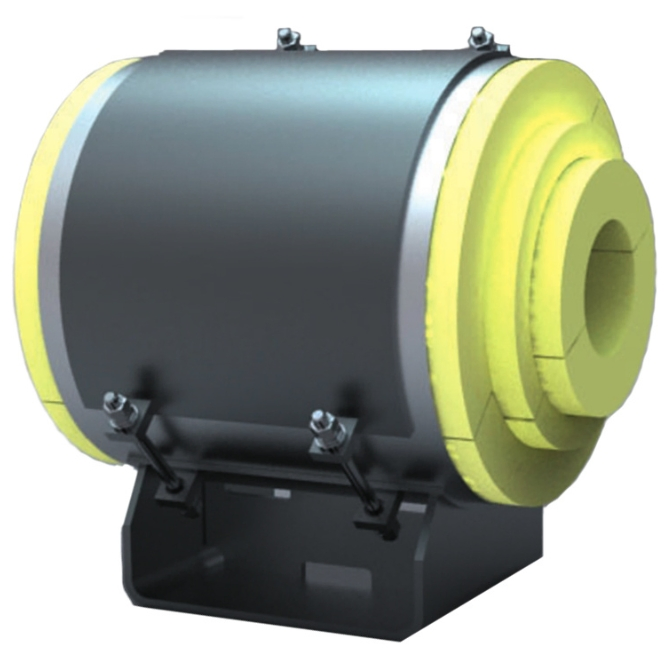

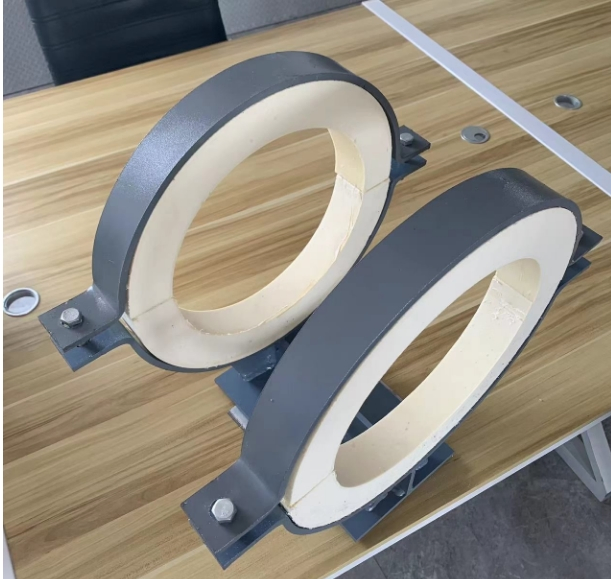

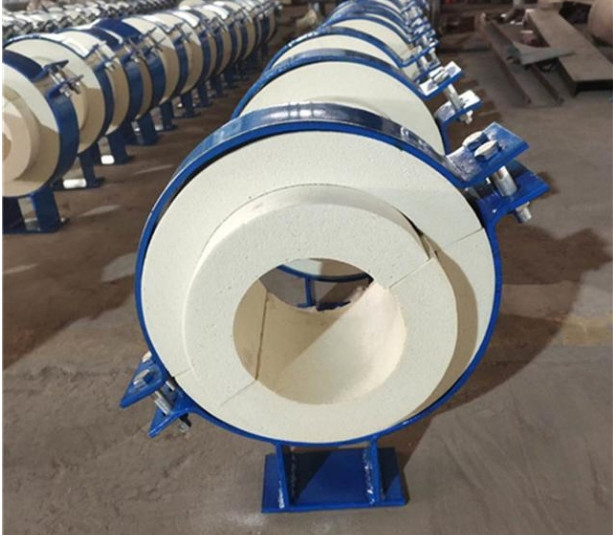

Polyurethane Cold & Cryogenic Pipe Supports

Product Overview

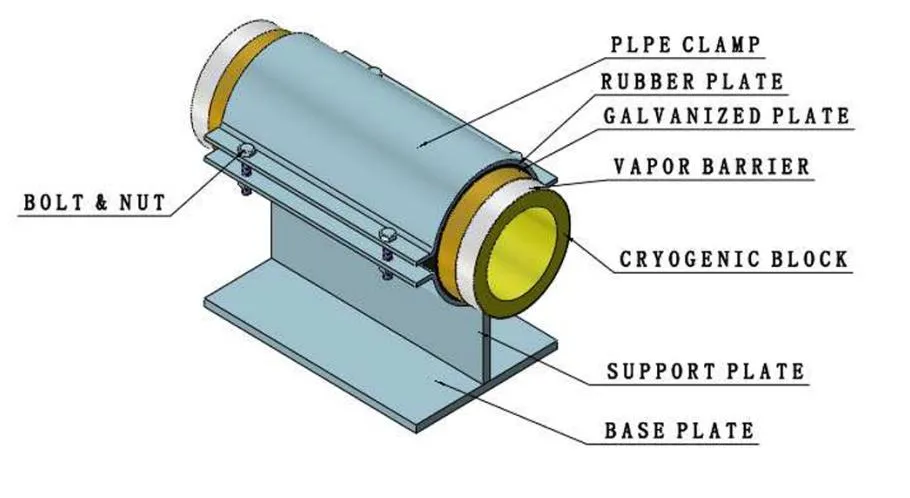

Polyurethane cold/cryogenic pipe supports are specialized components generally installed and equipped with clamps. Designed for low-temperature equipment and pipelines, they are primarily used for laying and connecting chemical energy pipelines. These supports utilize a proprietary and standardized mold for insulation products operating at temperatures as low as minus 160 degrees Celsius.

Available Angles: 45°, 60°, 90°, 120°, 180°
Thickness Range: 20mm to 320mm
Length Options: 80mm to 300mm
Core Materials: High-density Polyurethane and Red Pine options

Industry Applications

These supports are suitable for low-temperature pipelines transporting refrigerants in various industrial sectors, including:

Petrochemicals, Fertilizers, Chemical Fibers, Pharmaceuticals, Paper Production, LNG and LPG projects, Steel Manufacturing, Power Plants, Oil Pipelines, Ethylene Projects, Air Separation, Refrigeration, and Shipbuilding.

Key Advantages

Extreme Temperature Range: Suitable for surface temperatures ranging from -196ºC to 120ºC.
Variable Densities: Available in 160, 224, 320, and 500kg/m³ with color coding for full traceability.
Anti-Corrosion Performance: Features a closed-cell ratio of more than 20% for superior protection.
Wide Compatibility: Standard sizes from DN15 to DN2000 to meet diverse engineering requirements.
High Durability: Offers high strength, low thermal conductivity, low water absorption, hydrolysis resistance, and non-flammability.

Frequently Asked Questions

What is the working temperature range for these pipe supports? The supports are engineered to perform reliably within a surface temperature range of -196ºC to 120ºC, making them ideal for cryogenic applications.

What pipe sizes are supported? Our polyurethane supports are available in sizes ranging from DN15 to DN2000 to accommodate various industrial piping standards.

How do you ensure the traceability of different material densities? We offer densities of 160, 224, 320, and 500kg/m³. Each specific density is assigned a unique color code to ensure easy identification and traceability on-site.

Why is the closed-cell ratio important for cryogenic supports? A closed-cell ratio of over 20% significantly enhances anti-corrosion performance and prevents moisture ingress, which is critical for maintaining thermal efficiency in low-temperature environments.

Are these pipe supports fire-resistant? Yes, the polyurethane material used is formulated for non-flammability and high hydrolysis resistance, ensuring safety in demanding industrial environments.

Can the support dimensions be customized? Absolutely. While standard angles include 45° to 180° and thicknesses from 20-320mm, we can provide customized solutions according to exact design specifications.
