High-performance cold insulation is designed to provide optimal thermal insulation for various low-temperature applications, including cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.

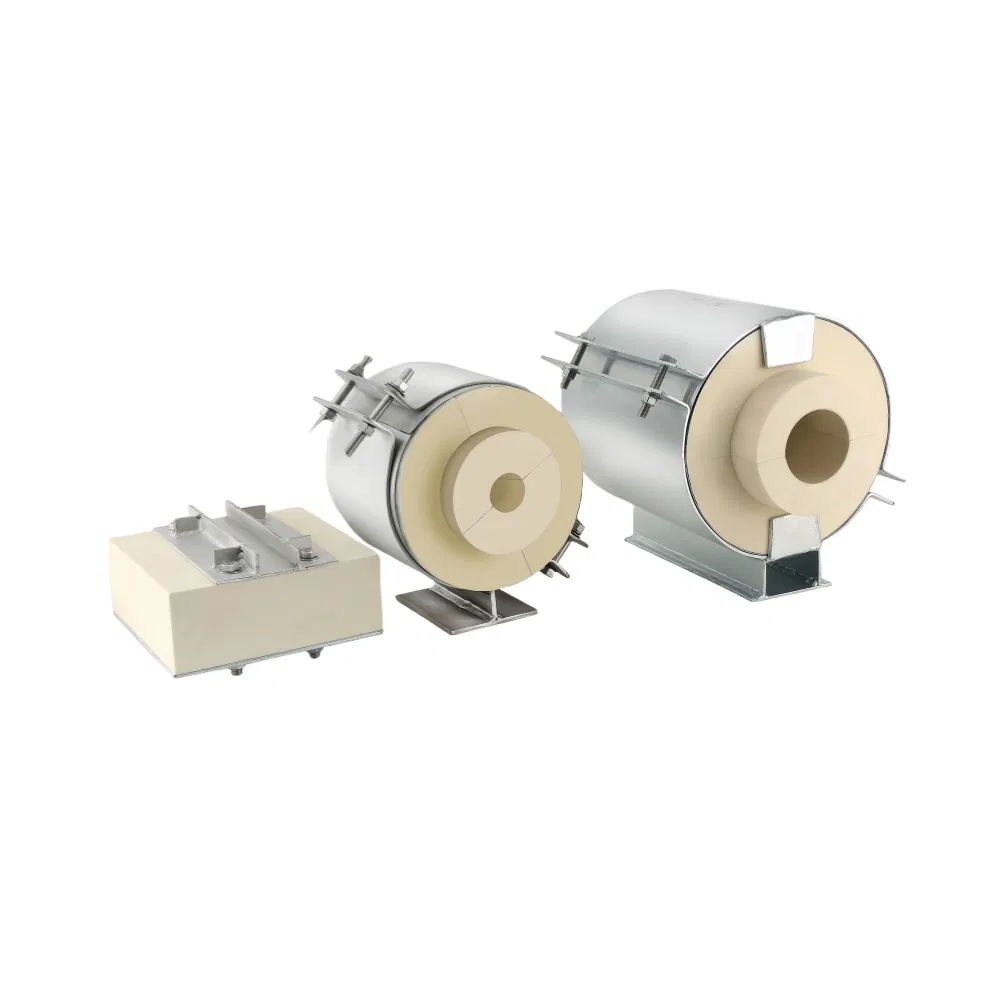

The insulation system cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.
| Version | Unit | 9160 | 9220 | 9320 | 9340 |
|---|---|---|---|---|---|
| Density | Kg/m³ | 160 | 220 | 320 | 340 |
| Thermal Conductivity | W/(m.k) | ≤0.036 | ≤0.040 | ≤0.050 | ≤0.048 |
| Water absorption | % | ≤2 | ≤2 | ≤1.8 | ≤1.6 |
| Closed cell | % | ≥95 | ≥95 | ≥95 | ≥98 |
| Compressive strength | Mpa | ≥1.6 | ≥4 | ≥6 | ≥9 |
We are an R&D-driven manufacturer dedicated to the development and global promotion of advanced foamed and composite molded components. We specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries.
Our innovations include PIR rigid foam, HDPIR, epoxy and bismaleimide (BMI) resin-based composite molded parts, and foam-glass components. All products comply with ASTM C591 and CINI 2.7.01 standards. Our solutions serve city-gas operators, petrochemical EPC contractors, air-separation plants, nuclear-power facilities, LNG pipelines, and medical-device manufacturers.
