Pipe Tapping Saddle for PE/PVC Pipe

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

P160-100--P500-200

Connection

Press Connection

Material

Alloy

Flexible or Rigid

Rigid

Application

Water Pipeline

Working Pressure

2.5 MPa and Above

Feature

No Shutdown, No Welding, Instant Repair

Repair Tool Material

Ductile Iron

Transport Package

Plywood or Carton Box

HS Code

7307190000

Production Capacity

10000 pieces/Year

Product Description

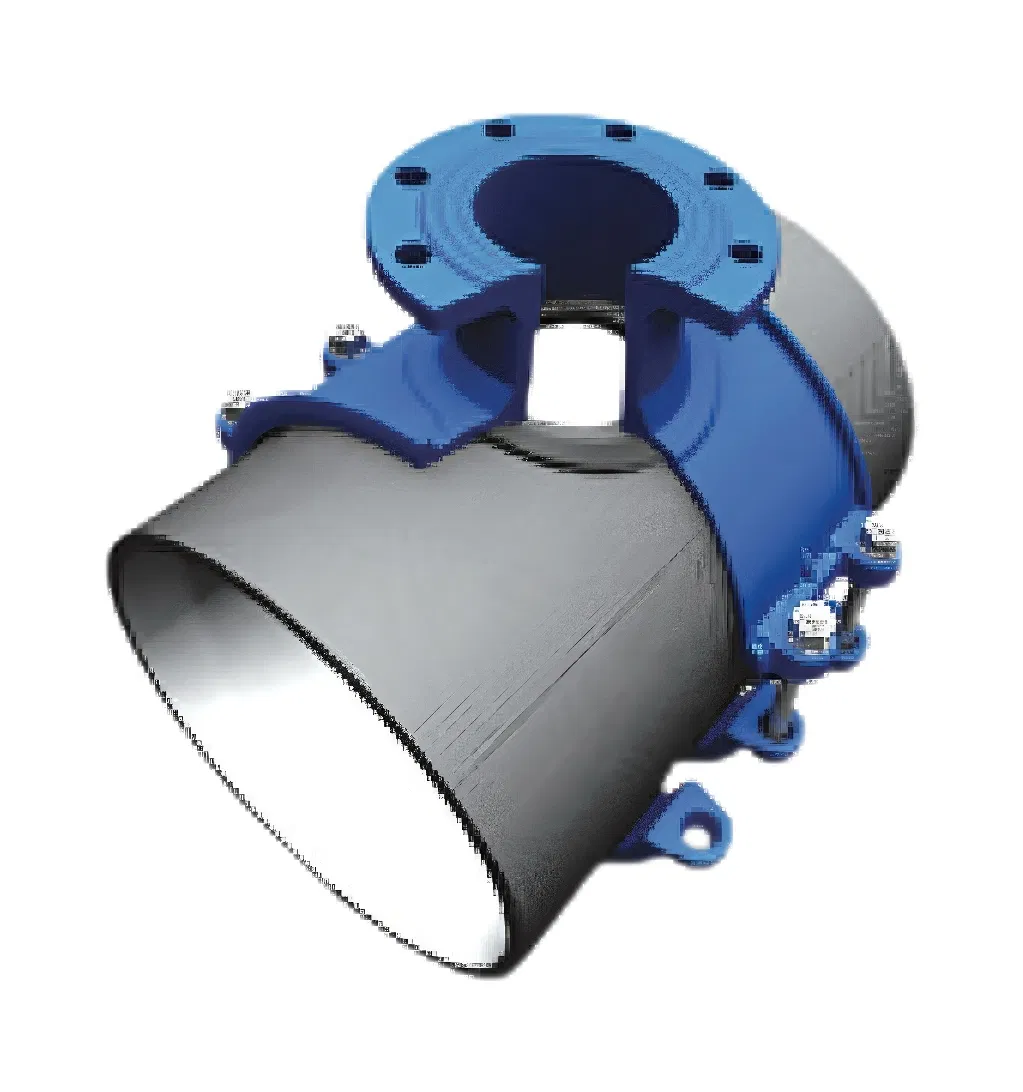

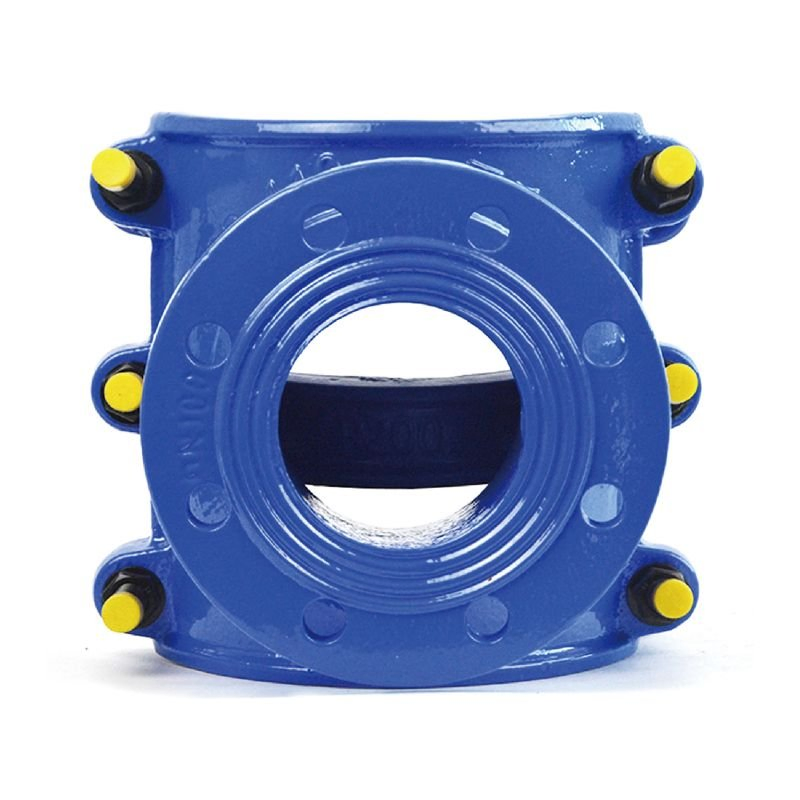

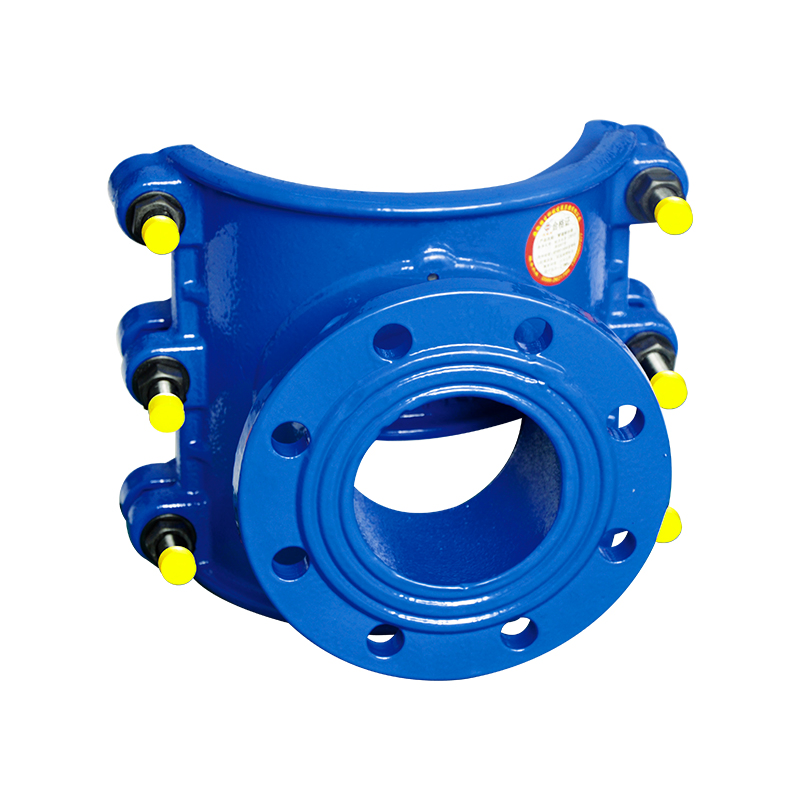

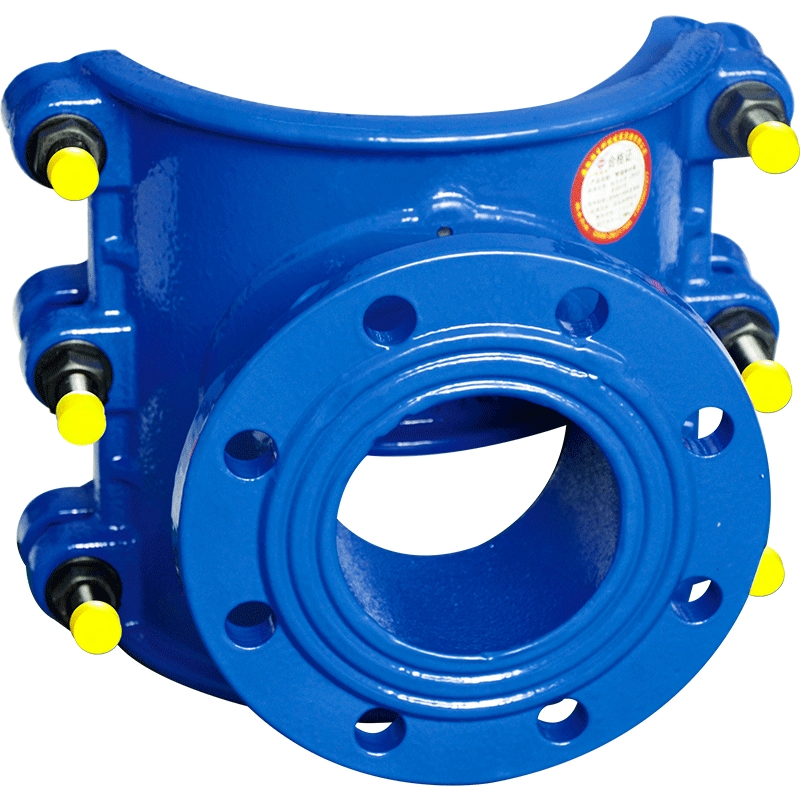

Pipe Tapping Saddle for PE/PVC Pipe

This high-performance tapping saddle is designed for efficient water pipeline maintenance. Suitable for emergency repair at PE/PVC pipe saddle tee locations, it ensures a secure connection without the need for system shutdowns or welding.

Product Specifications

Specification and Model	D1	D2	L	N	K
P160-100	100	180	270	8	18
P200-100	106	180	250	8	18
P200-150	150	240	310	8	23
P315-100	100	180	260	8	18
P315-150	155	240	320	8	23
P315-200	205	295	370	8	23
P400-100	102	180	260	8	18
P400-150	152	240	320	8	23
P400-200	205	295	370	8	23
P500-100	100	180	260	8	18
P500-200	205	295	370	8	23

Product Features

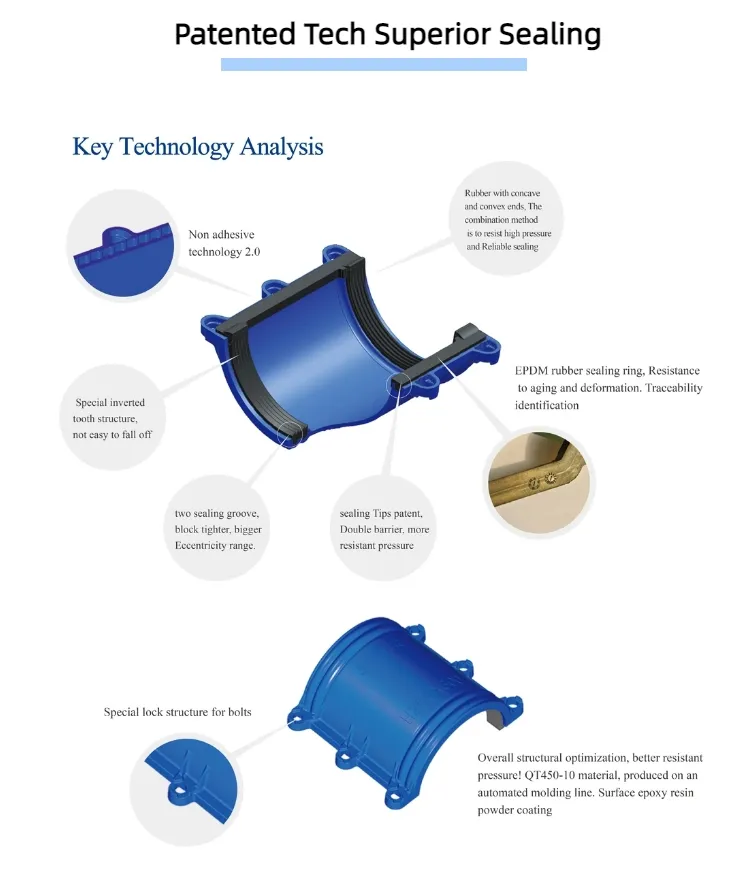

Advanced Sealing Technology: The ends adopt a double circular sealing groove patent, and side wings use anti-pressure sealing lip technology. This creates a dual barrier ensuring high reliability and preventing rubber bulging under high pressure.

High-Pressure Reliability: Specifically optimized for plastic pipelines, demonstrating exceptional adaptability under pressure deformation, twist, and misalignment.

Durable Connection: The shell and rubber pad use a clamp connection that is strong, durable, and environmentally friendly.

High-Strength Fasteners: Supplied with stainless steel or 8.8 grade high-strength fasteners. Includes specialized, skin-safe lubricant for installation.

Extended Service Life: Materials and accessory upgrades significantly extend the lifespan of repair components compared to traditional solutions.

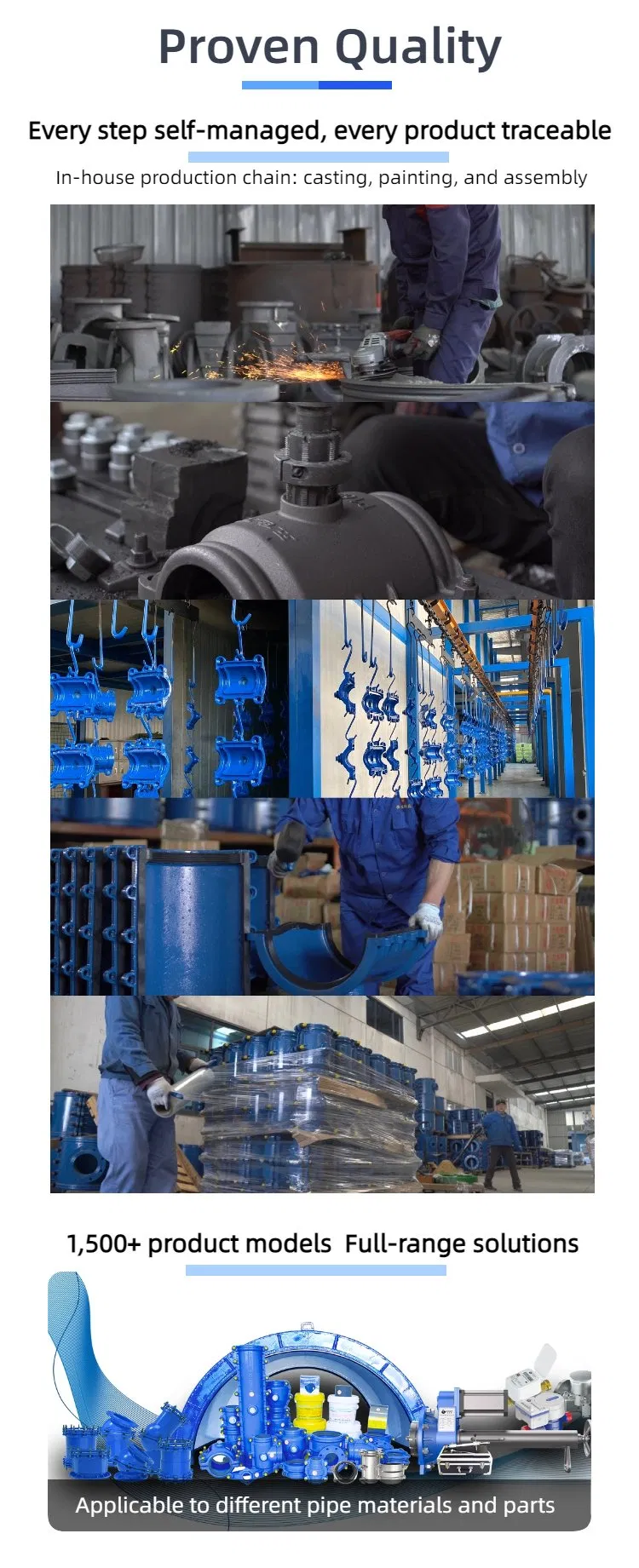

Company & Manufacturing

Our Advantages

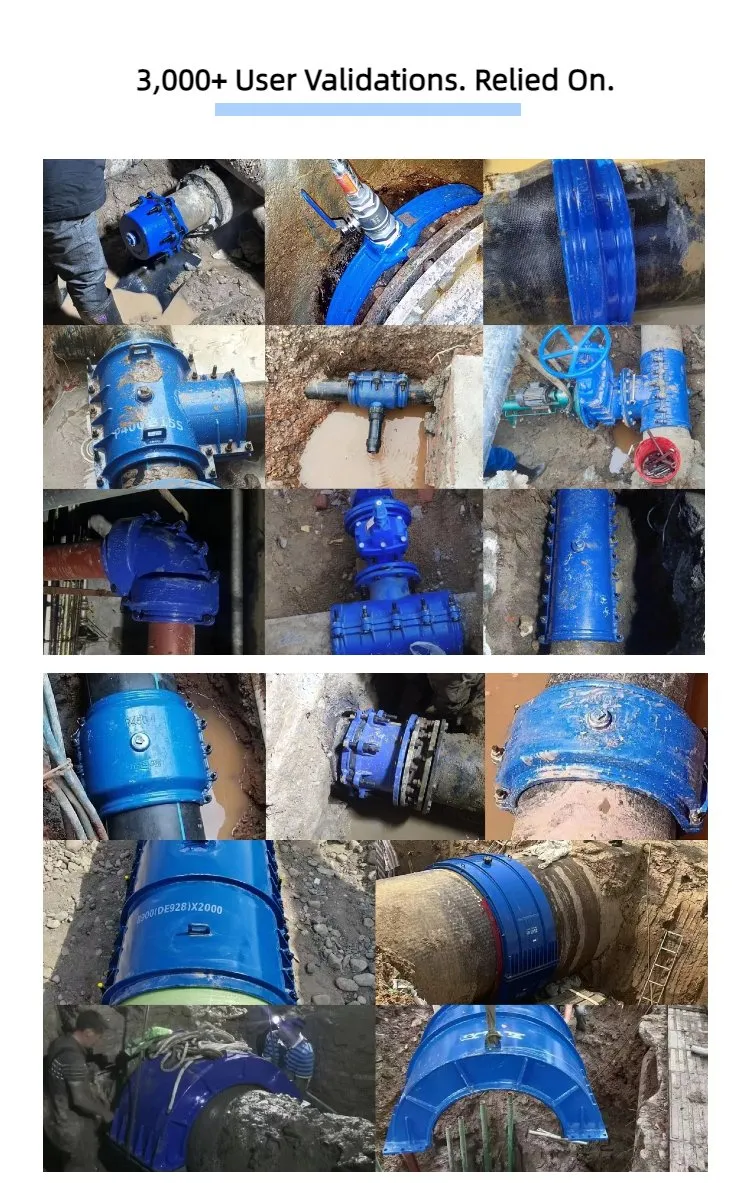

Application Cases

Customized Service & Quality Control

Frequently Asked Questions

1. What types of pipes are these tapping saddles suitable for?

They are specifically designed for PE (Polyethylene) and PVC (Polyvinyl Chloride) pipelines, commonly used in water supply systems.

2. Is it necessary to shut down the water supply for installation?

No, one of the primary features of this product is "No Shutdown" repair. It allows for instant repair and tapping without interrupting the water flow.

3. What is the maximum working pressure these saddles can handle?

These saddles are rated for high-pressure environments, typically 2.5 MPa and above, thanks to the patented dual circular sealing technology.

4. Are the materials used resistant to corrosion?

Yes, the body is made of high-quality alloy/ductile iron, and we provide stainless steel standard fasteners to ensure long-term durability in underground or wet environments.

5. Does the installation require specialized welding equipment?

No welding is required. The product uses a press connection/mechanical clamp structure, making installation much faster and safer than traditional methods.

6. Is the provided installation lubricant safe for drinking water pipes?

Yes, the installation-specific lubricant provided is environmentally friendly, meets skin-care grade standards, and is harmless to humans.
