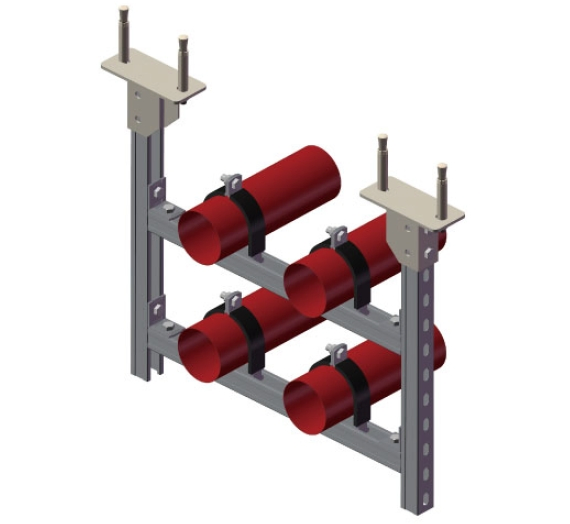

Finished Pipe Support and Hanger

Customization:	Available
After-sales Service:	Feedback in 24 Hours
Connection Form:	Bolt Connection

Send Inquiry

Product Description

🔷 Basic Info.

Model NO.DN50-250/L/TL

ConstructionSteeltruss

GradeCarbon Structural Steel

Molding MethodCold Drawn Steel

StandardGB

Steel TypeCold Forming Sectional Steel

Surface TreatmentElectrogalvanizing/Hot-DIP Zinc/Powder Coating

Usage ScenariosPipe/Cable Tray/Air Duct

OriginChina

Production Capacity3000000meters/Year

🔷 Product Description

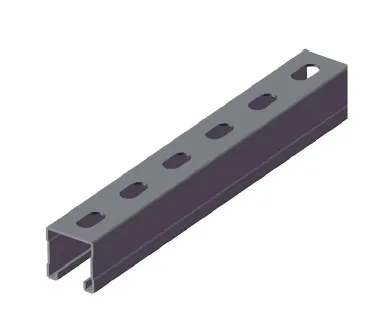

Perforated C-shaped Steel

Product Features:

The novel axial stiffener design enhances the bending resistance of C - shaped steel.
The curled edge has serrations, which are effective in shear resistance, slip resistance and impact resistance.
There are auxiliary marks on the back, which is convenient for on - site cutting and processing.
The back has strip holes, which is easy to adjust and install.
It can be used flexibly with reliable strength.

🔷 Detailed Photos

🔷 Product Parameters

Technical Requirements:

Material Standard: Q235 cold - rolled steel.
Surface Treatment: Electrogalvanizing/hot - dip galvanizing.

Item No.	Model	Wall Thickness (mm)	Section Height (mm)	Standard Length (m)
01001	CECK - 21	2.00	21	6
01002	CECK - 41	2.00	41	6
01003	CECK - 41	2.50	41	6
01004	CECK - 52	2.50	52	6
01005	CECK - 62	2.50	62	6
01006	CECK - 72	2.75	72	6

* Special requirements can be customized according to customer needs.

🔷 Company Profile

A manufacturing enterprise that provides industrial engineering supporting products. It mainly provides product R&D design, production and manufacturing, integration and sales services. It is the leader of high-tech factory clean enclosure system and building assembly system.

Staff are experienced cleanroom environmental management professionals, dedicated to creating innovative cleanroom solutions as comprehensive cleanroom system solution provider. Ful-service support is provided by professional staff of engineers, designers, sales support teams and maintenance teams.

FAQ

Q1: What is the main material used for the Perforated C-shaped Steel? A1: The products are manufactured using Q235 cold-rolled steel as the material standard.

Q2: What are the available surface treatment options? A2: We offer various treatments including Electrogalvanizing, Hot-dip galvanizing, and Powder Coating to ensure durability and corrosion resistance.

Q3: How does the curled edge design benefit the installation? A3: The curled edge features serrations that provide superior shear resistance, slip resistance, and impact resistance during use.

Q4: Is it easy to cut and adjust the steel on-site? A4: Yes, there are auxiliary marks on the back for precise cutting and strip holes for easy adjustment and installation.

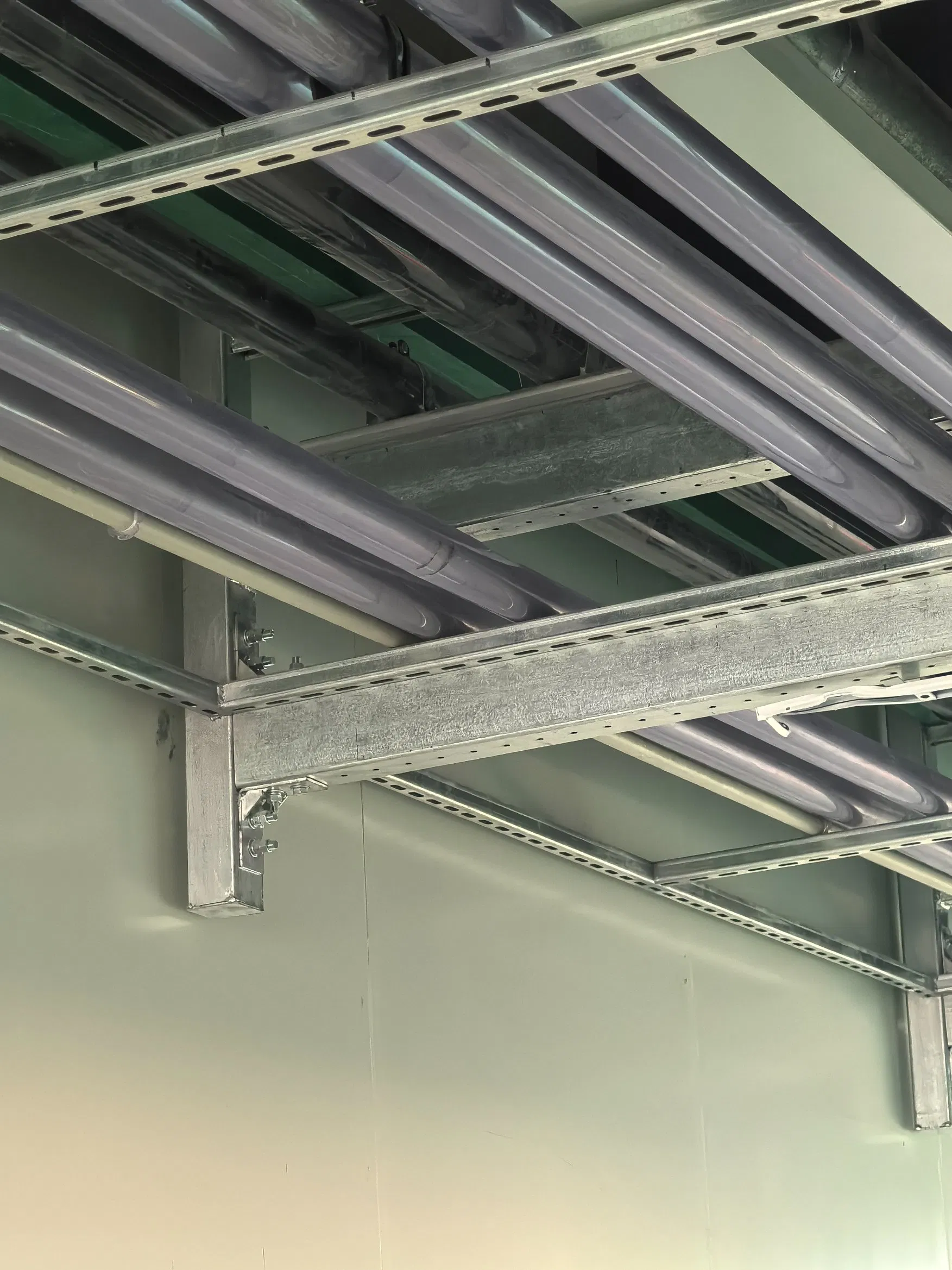

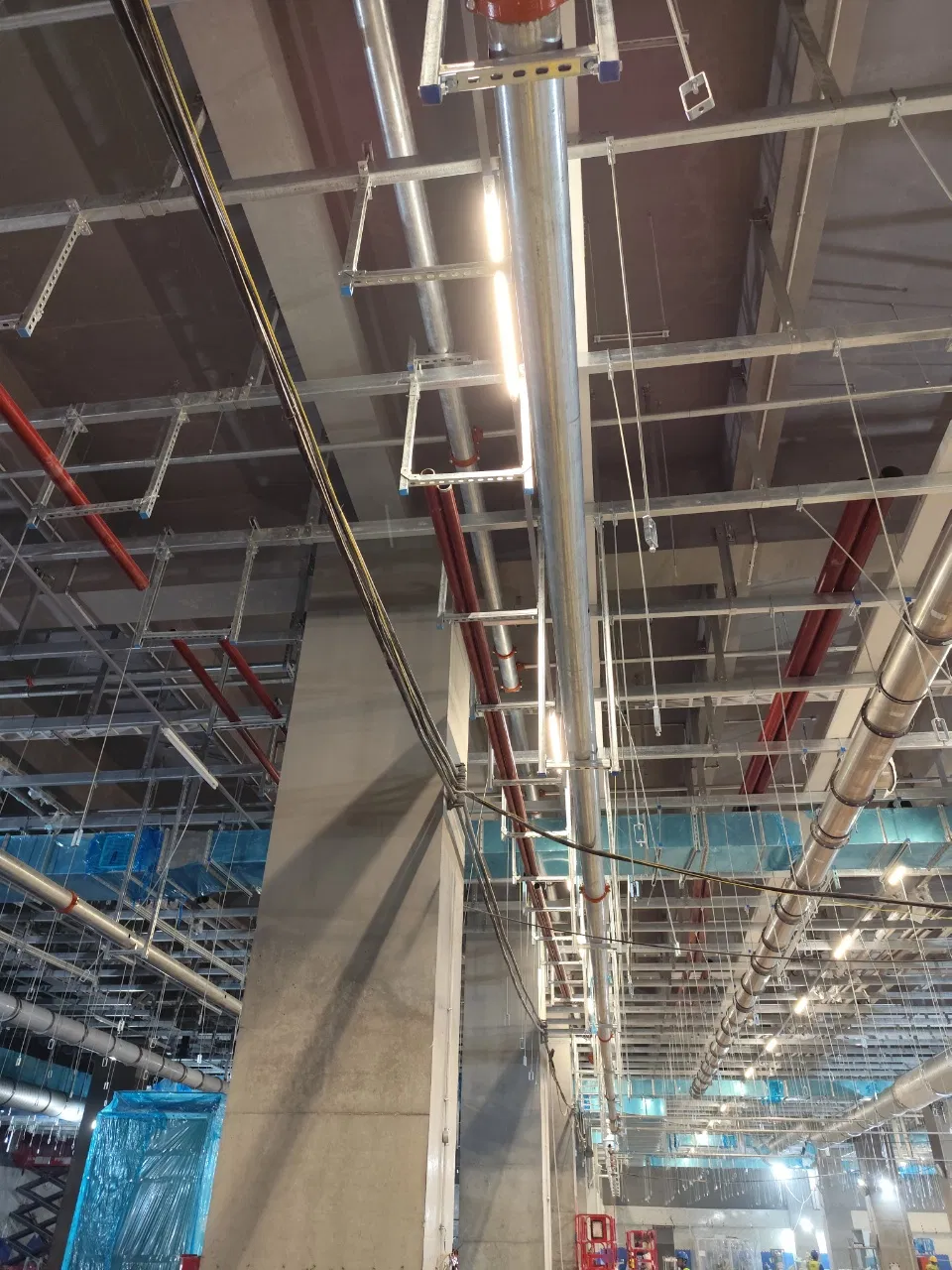

Q5: What are the typical application scenarios for these supports? A5: They are widely used for supporting pipes, cable trays, and air ducts in various industrial and construction projects.

Q6: Can the dimensions and specifications be customized? A6: Yes, special requirements regarding wall thickness, height, and length can be customized based on specific customer needs.
