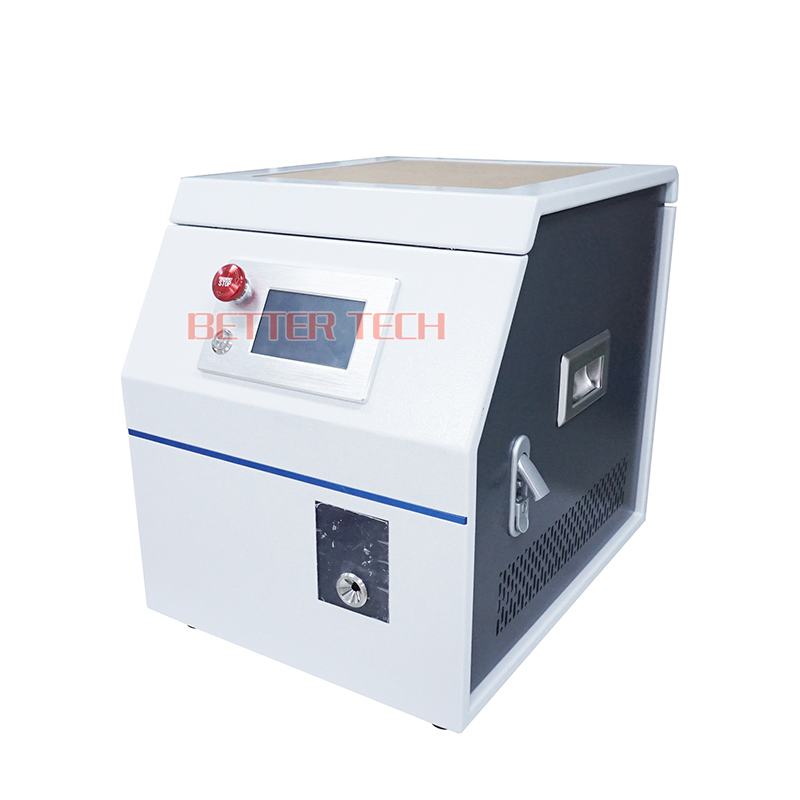

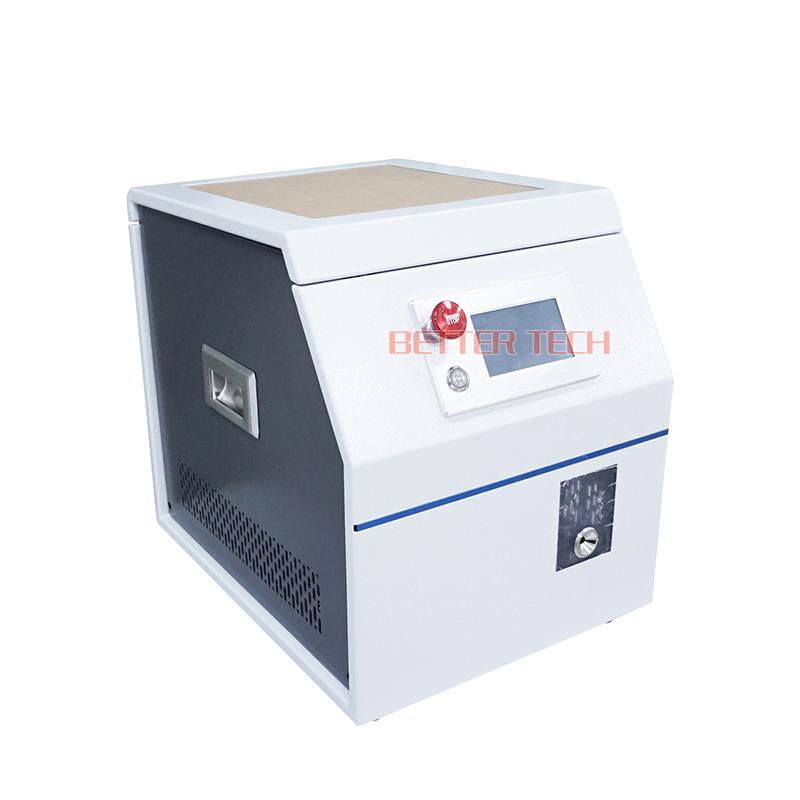

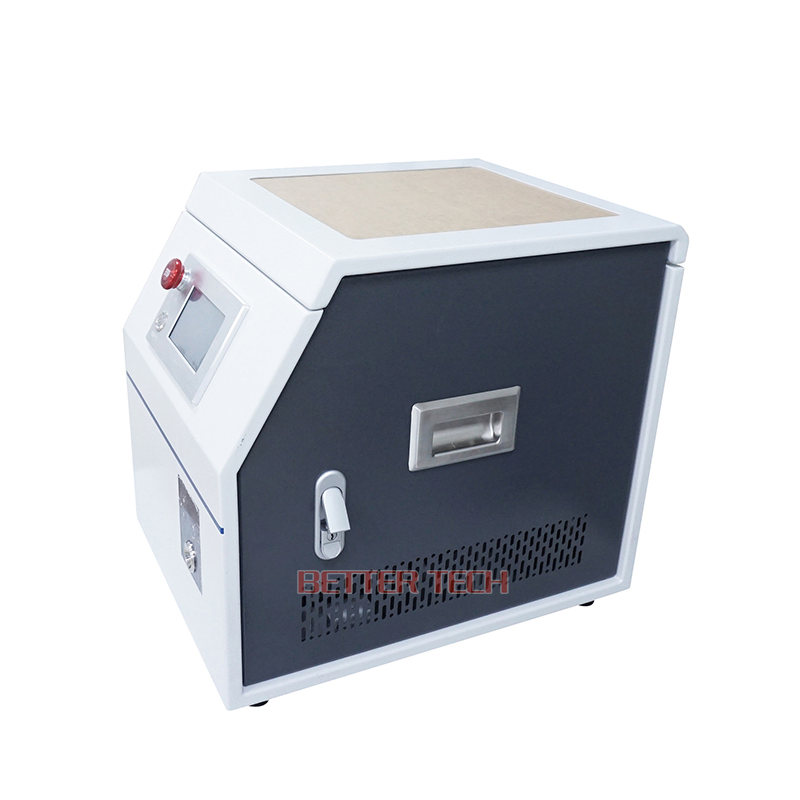

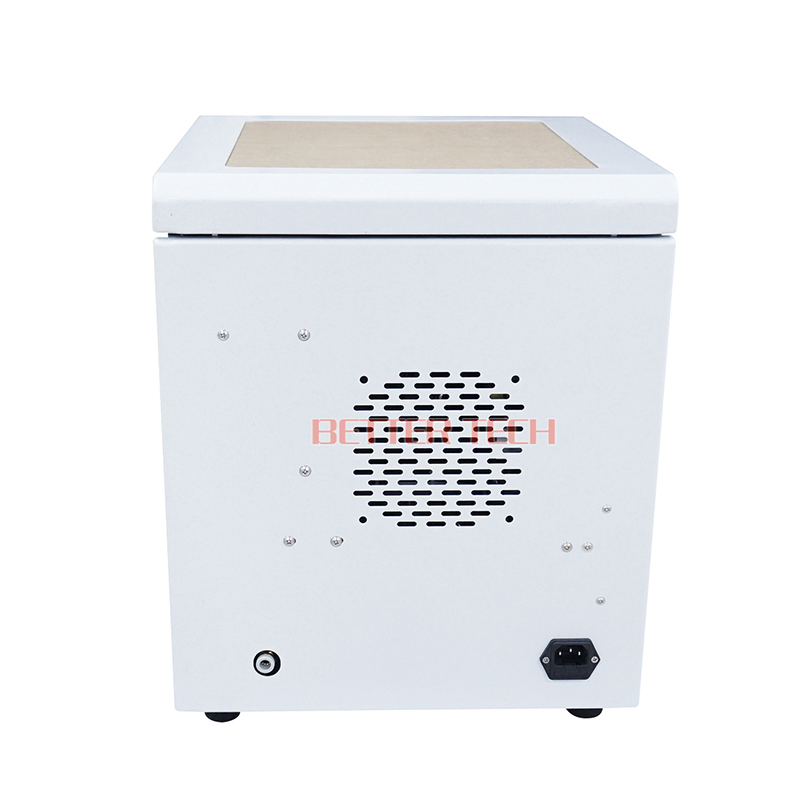

Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
1 / 5
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine
Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine

Pipe-Shaped Pre-Insulated Wire Terminal Crimper Terminal Crimping Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚡ Basic Info.
Model NO.
JWD-F9-3PC
Condition
New
Certification
CE
Warranty
12 Months
Automatic Grade
Semiautomatic
Weight
40kg
Capacity
Finished in 2.5 Seconds
Usage
Wire Crimping
Gas Source
0.5-0.8MPa (Clean/Dry Air)
Voltage
AC220V/50Hz Single Phase
🛠️ Product Description
ModelJWD-F9-3PC
Product NamePipe-shaped Pre-insulated Terminal Crimping Machine
CapacityCable Stripping, Terminal Inserting and Terminal Crimping are finished in 2.5 seconds
Applicable Specs0.5mm² - 2.5 mm² (conduit < 12mm); 4.0 mm² (conduit < 10mm)
Detect DeviceDetect lack of terminals
DimensionsL450mm x W350mm x H425mm

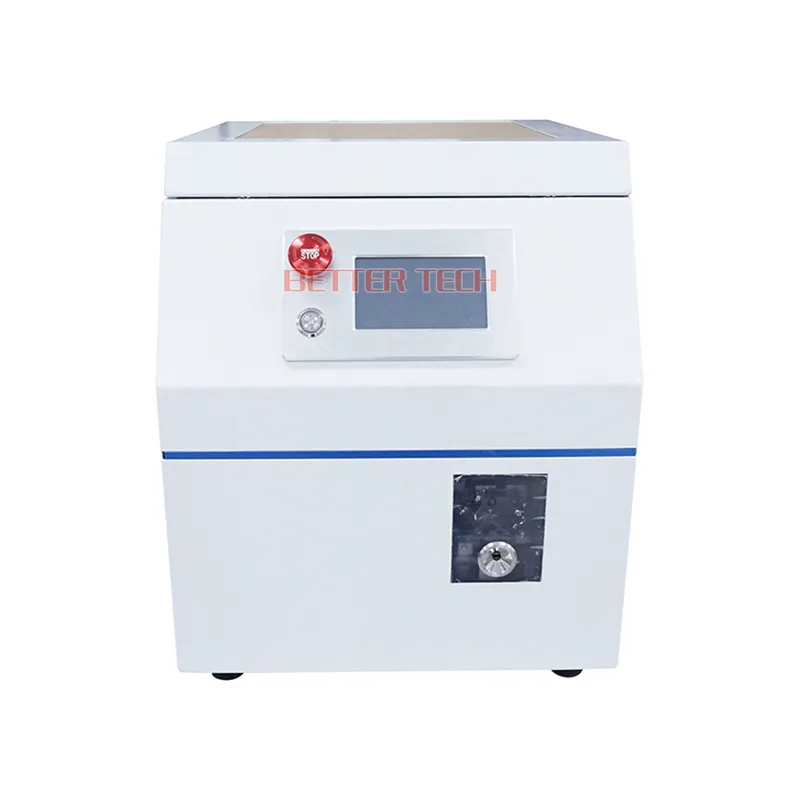

Terminal Crimping Machine
✓Suitable for crimping a variety of loose tubular terminals onto cables
✓Wire stripping and crimping can be finished at one time
✓Terminals crimped on all four sides, no need to replace crimping die
✓LCD display, automatically adjust stripping depth, length, and crimping height

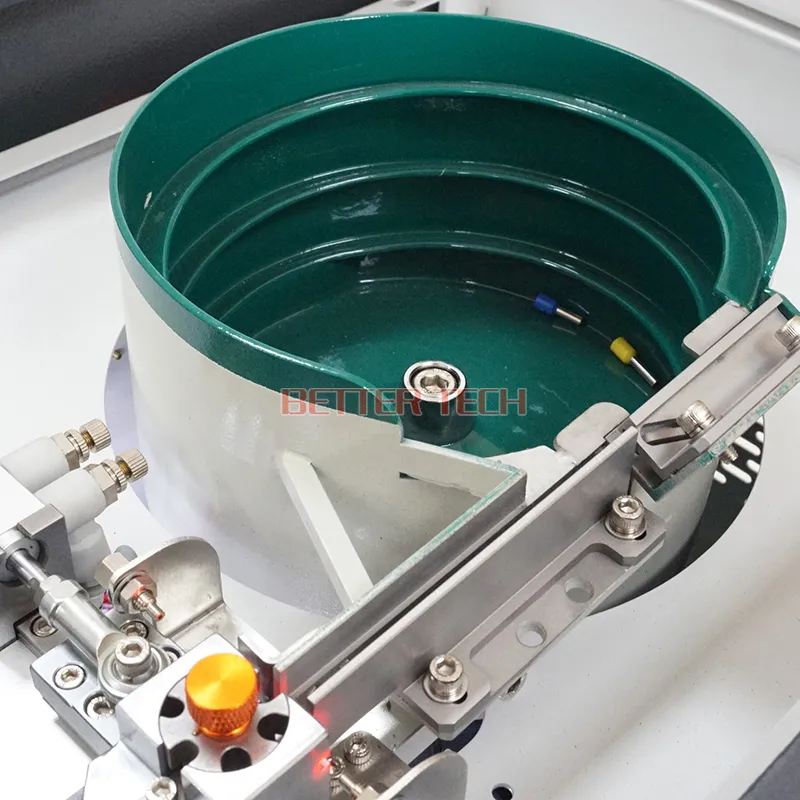

✓Vibrating plate feeding saves time and effort for quick terminal replacement
✓Fully sealed stripping and crimping, safe and reliable
📸 Detailed Photos

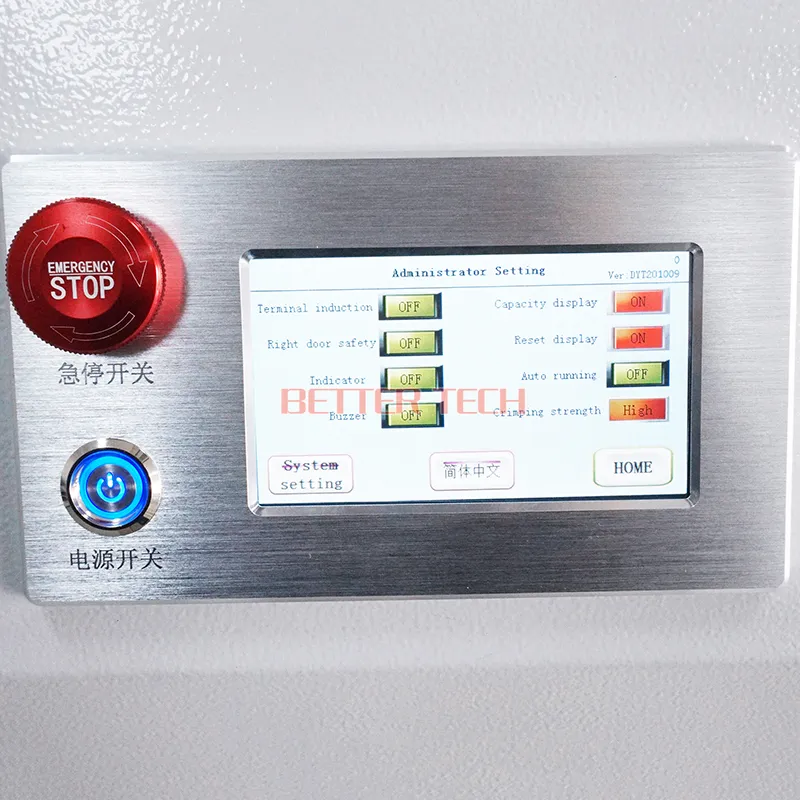

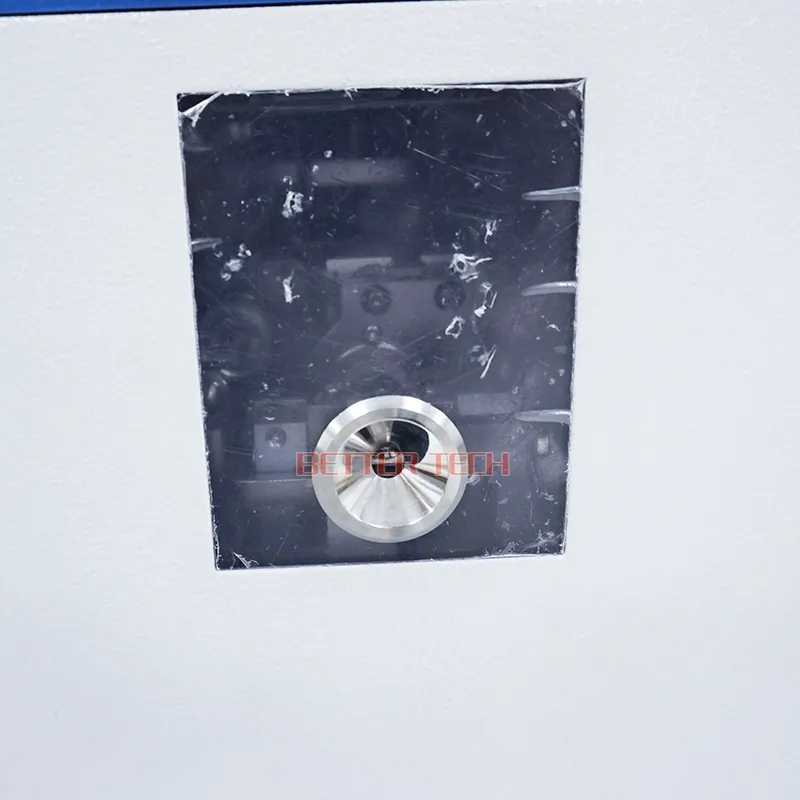

Detailed Photo 1 Detailed Photo 2

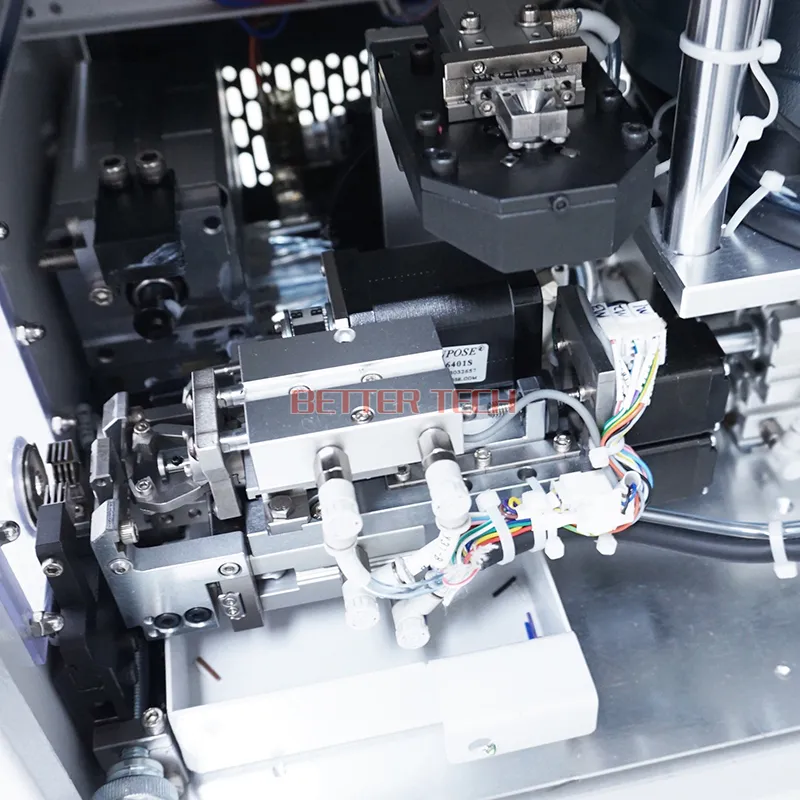

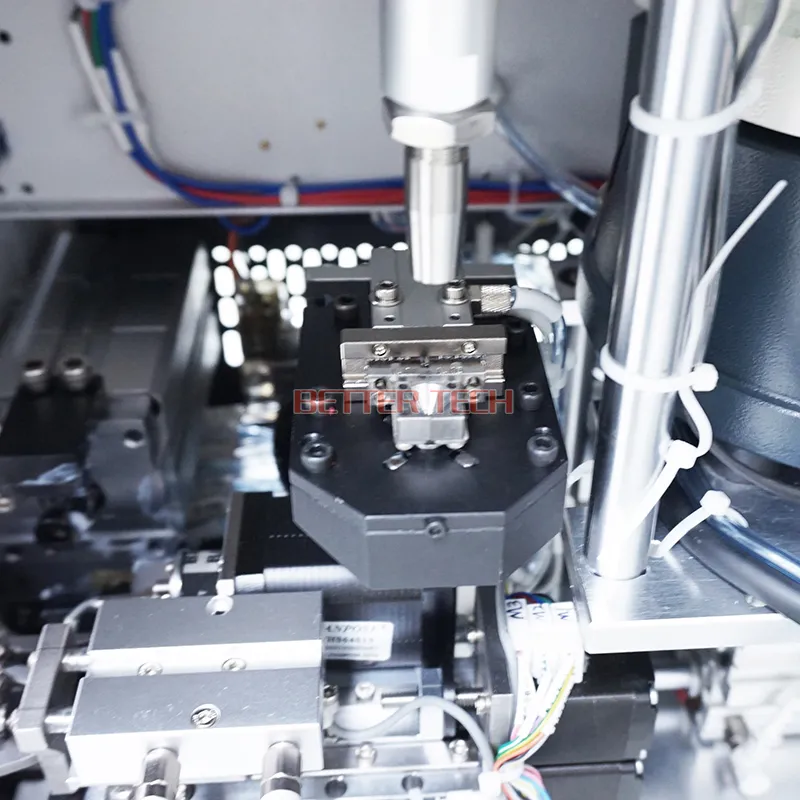

Detailed Photo 3 Detailed Photo 4 Detailed Photo 5
⚙️ Application
1Servo motor drive, high crimping accuracy and stable crimping quality
2Touch screen control, simple operation
3Designed for high precision processing of new energy wiring harness
4Adapt to different terminals with selectable and easy-to-replace molds

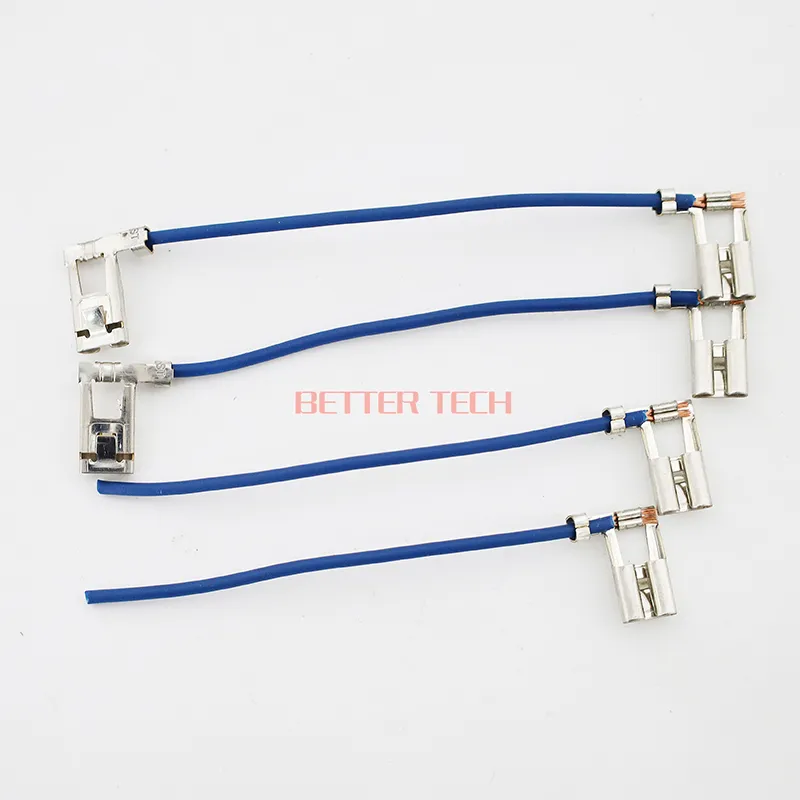

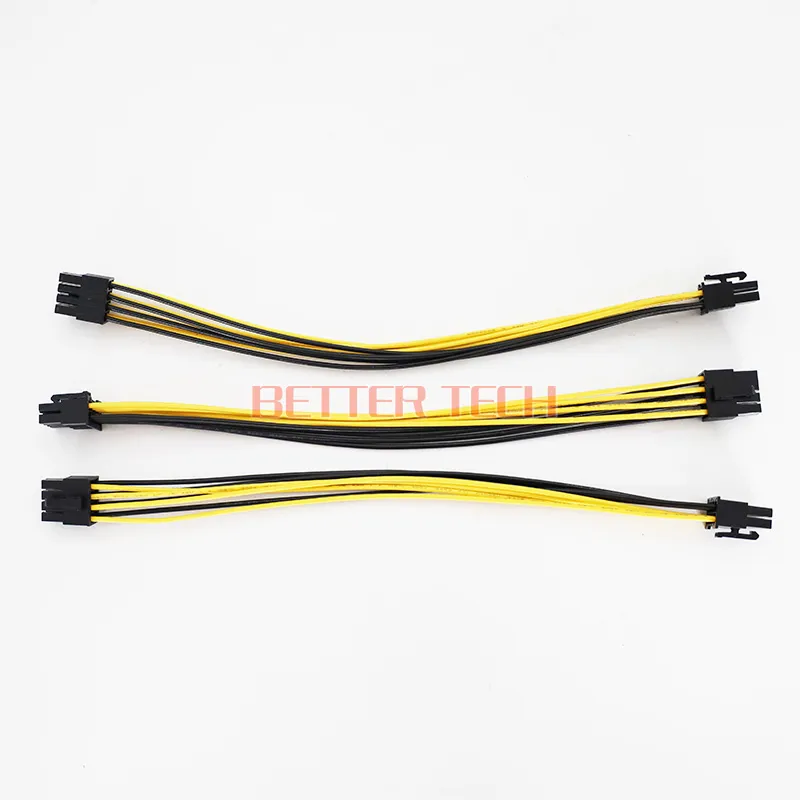

Application 1 Application 2

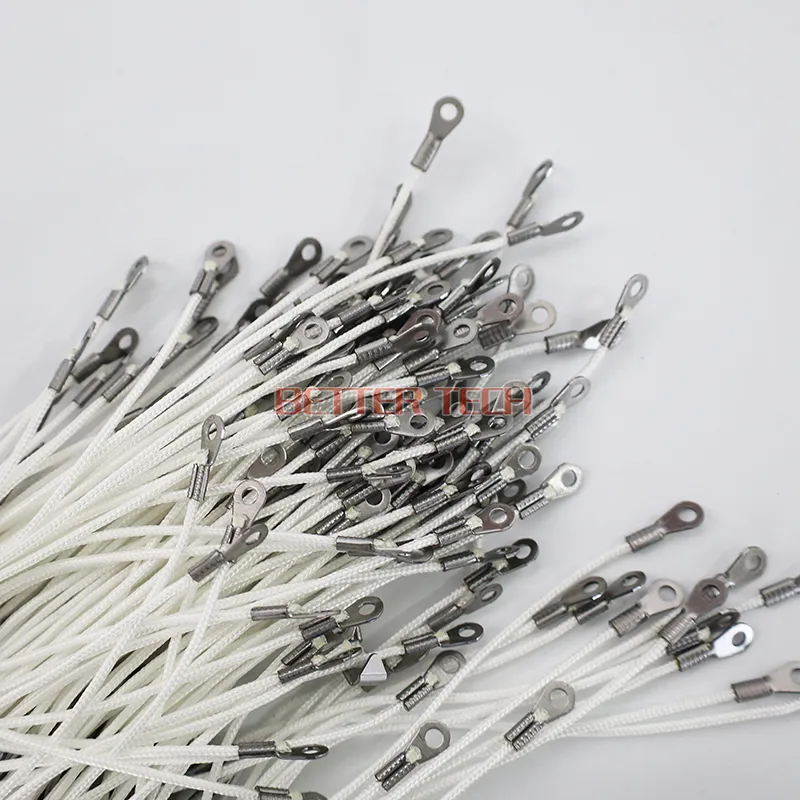

Application 3 Application 4

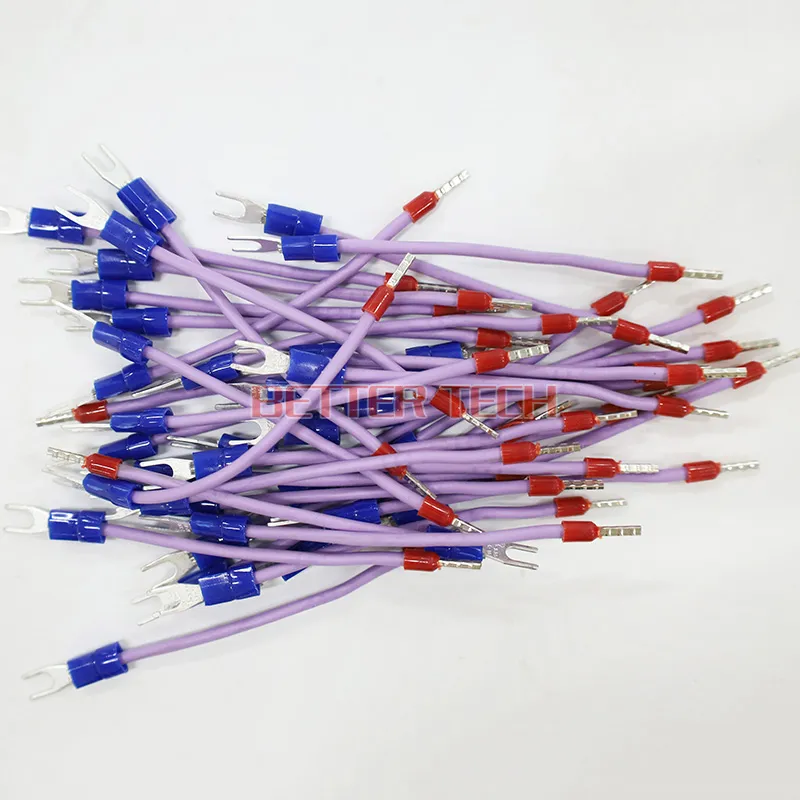

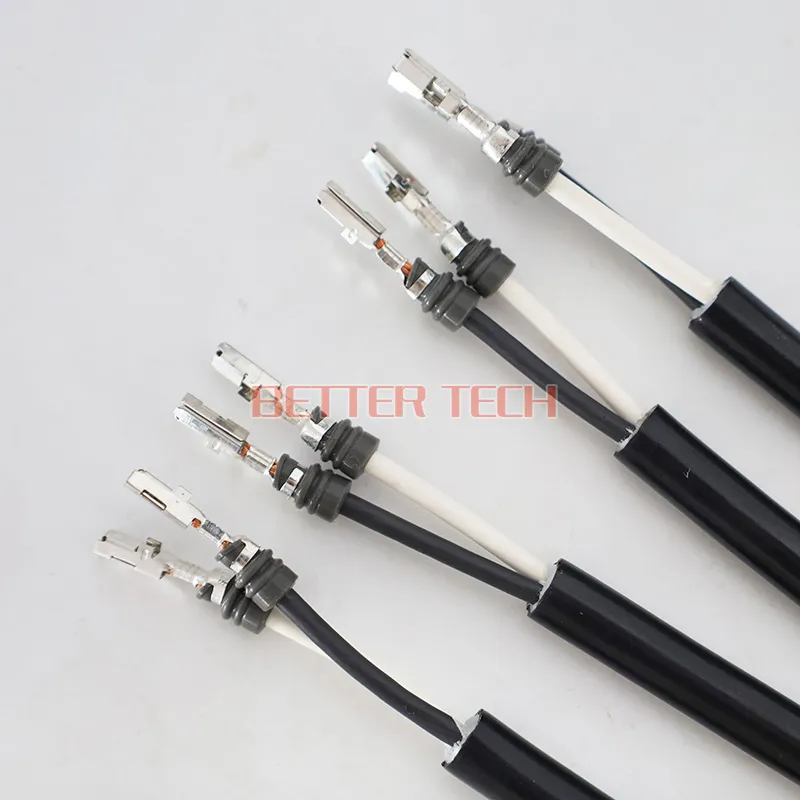

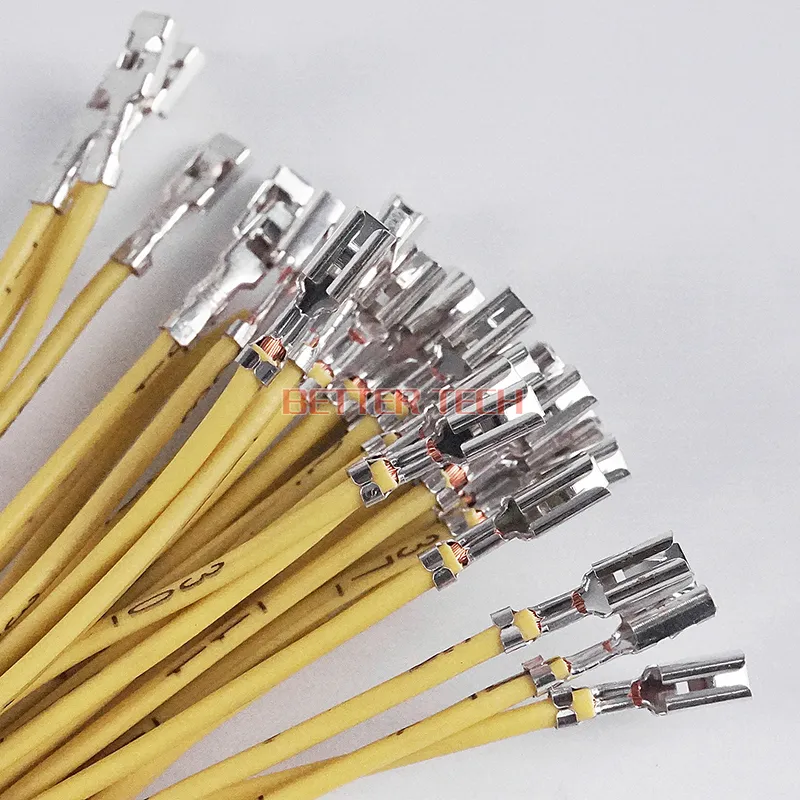

Application 5 Application 6
🏢 Company Overview

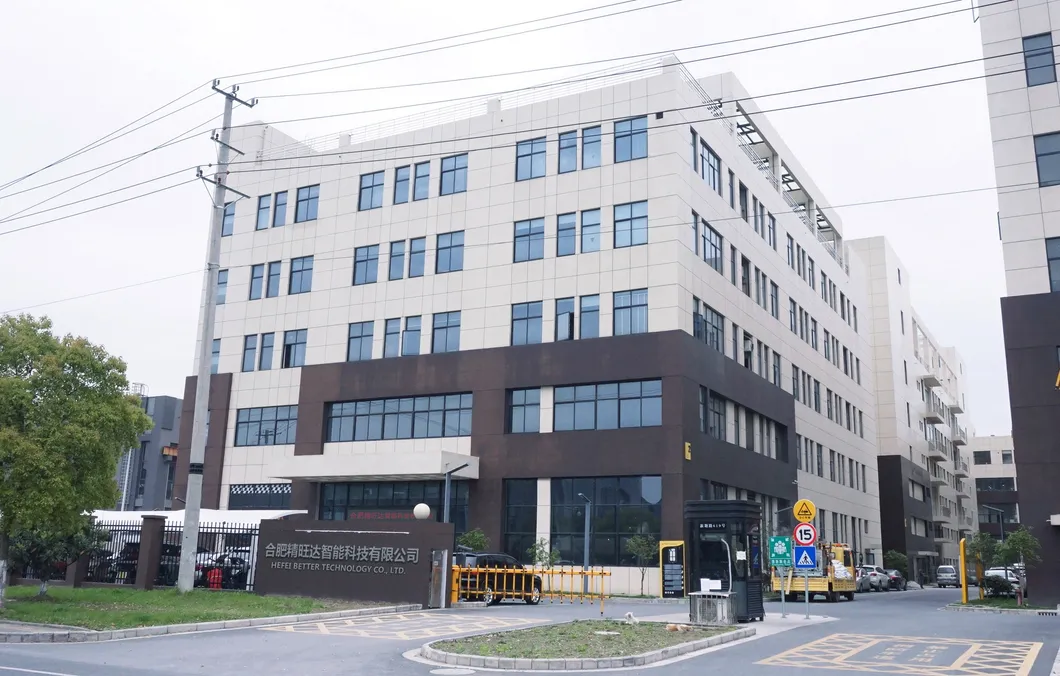

Manufacturing Facility

Specialized in the production of laser welding & cutting machines, ultrasonic welding & cutting equipment, cable winding tie machines, and mute terminal stripping crimping machines. Products are widely used in construction, clothing, medical, and other industries.

📦 Packaging & Shipping
Packaging
📜 Certifications

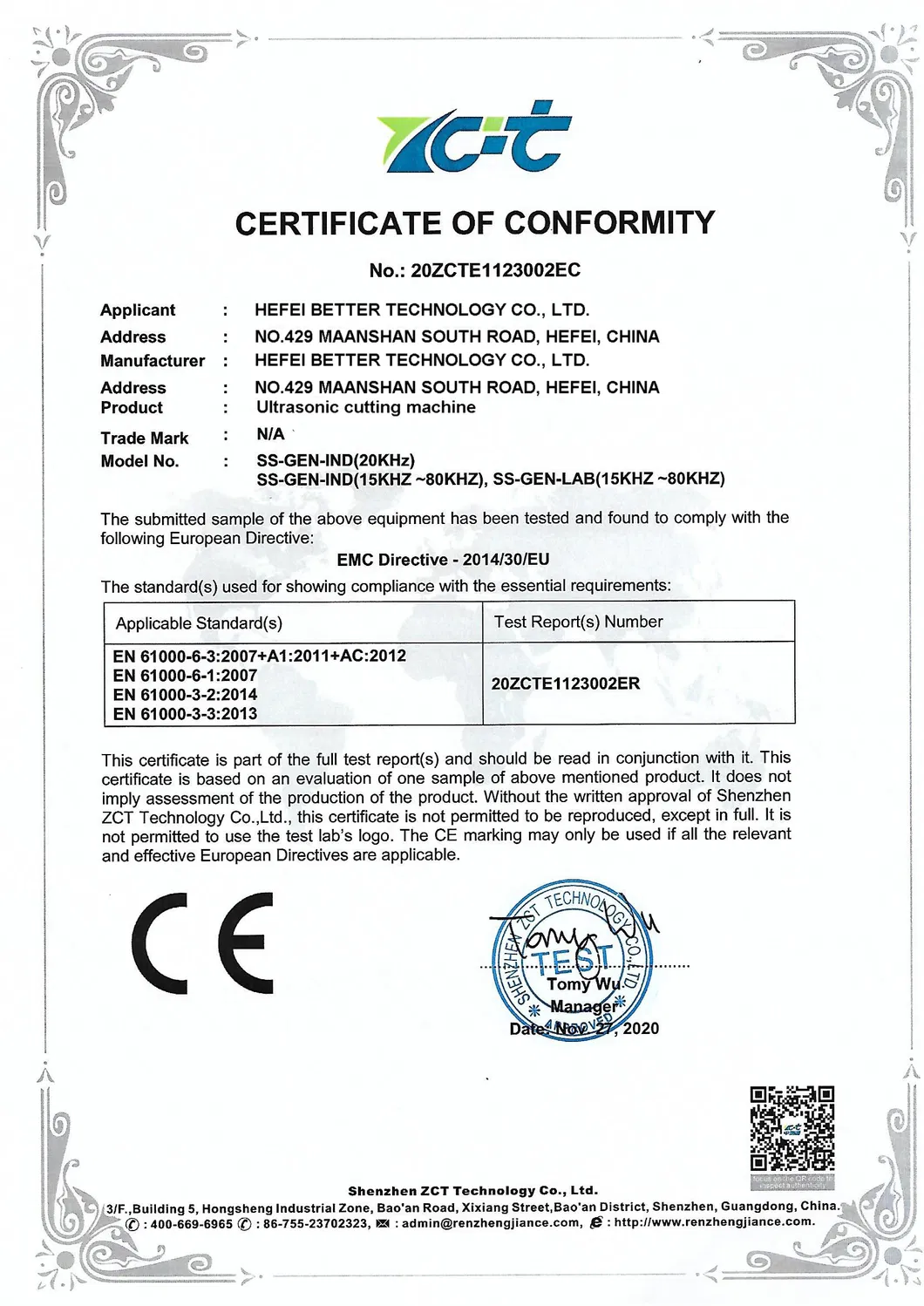

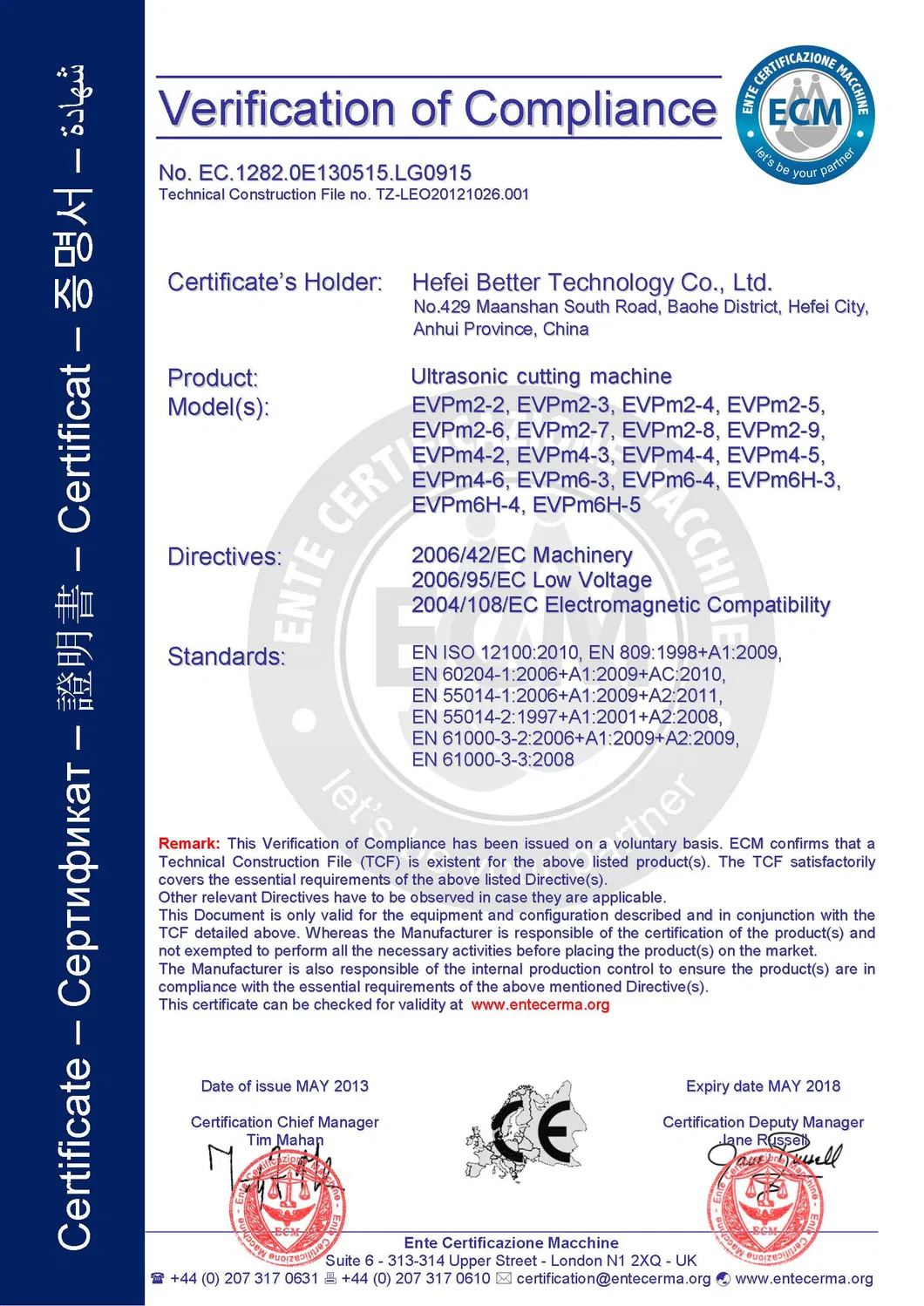

Certification 1 Certification 2 Certification 3
❓ FAQ
How long is the equipment warranty?
We offer a one-year guarantee for main parts. Within one year, if a component breaks, we provide it freely, though delivery fees are covered by the client.
What is the delivery lead-time?
Normally 5-30 days upon receipt of your orders and deposit.
What are your payment terms?
We accept L/C, T/T, D/P, Western Union, and PayPal. Details can be negotiated.
Can you provide OEM/ODM services?
Yes, we can customize equipment and provide OEM/ODM services according to your specific requirements.
What terminal sizes can this machine process?
It is suitable for terminals from 0.5mm² to 4.0mm². For 0.5-2.5mm², the length should be under 12mm; for 4.0mm², under 10mm.
Does the machine require manual die changes?
No, the terminals are crimped on all four sides simultaneously, eliminating the need to replace crimping dies for different sizes within the range.
