PE PVC HDPE Pipe Tapping Saddle

Customization:	Available
Material:	Ductile Iron
Connection:	Thread

Send Inquiry

Product Description

📋 Basic Specifications

Flange Standard

Pn10/16

Thread

Bsp

Outlet Diameter

1/2'', 3/4'', 1'', 2''

Working Pressure

Pn10, Pn16

Strap Material

SS304, SS316 with Rubber Insulation

Bolts and Nuts

SS304

Suit for

PE, PVC, Ci, Di Pipe

Surface Treatment

Epoxy Coating

Specification

2''-28''

Origin

China

🛠️ Product Description

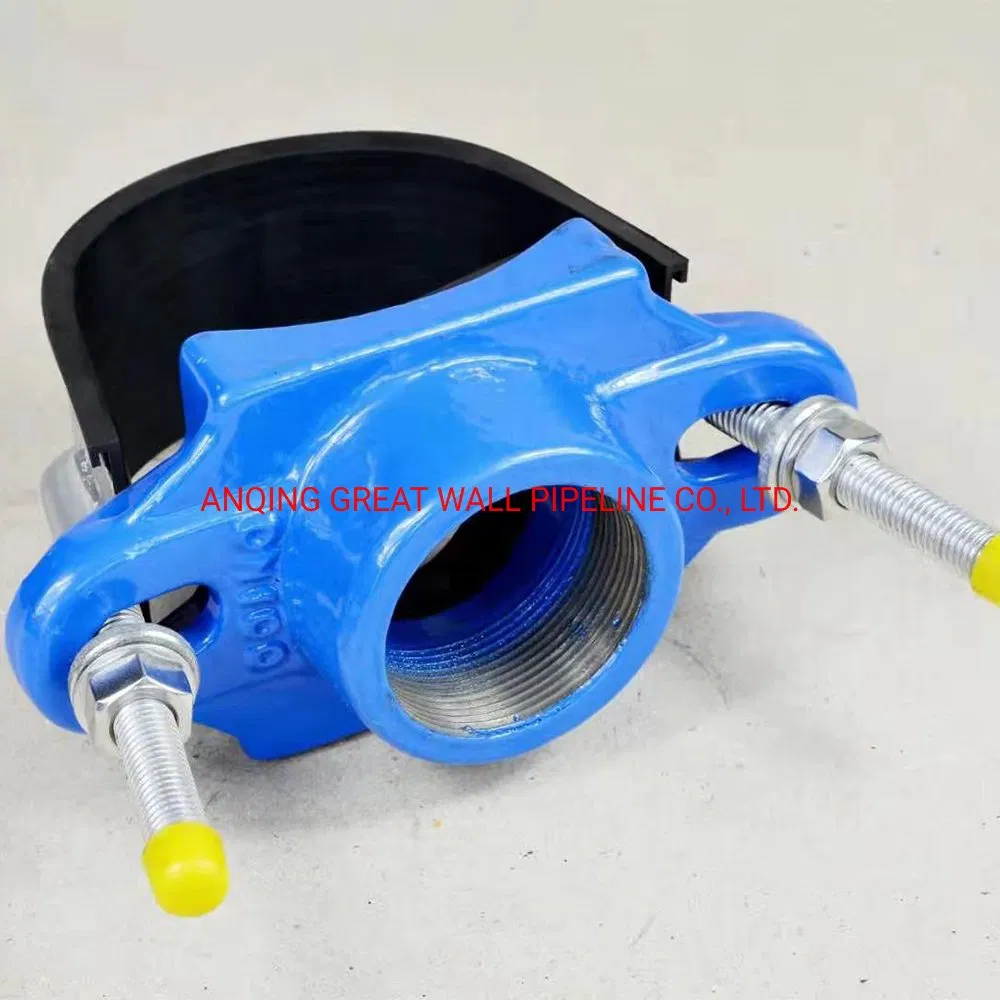

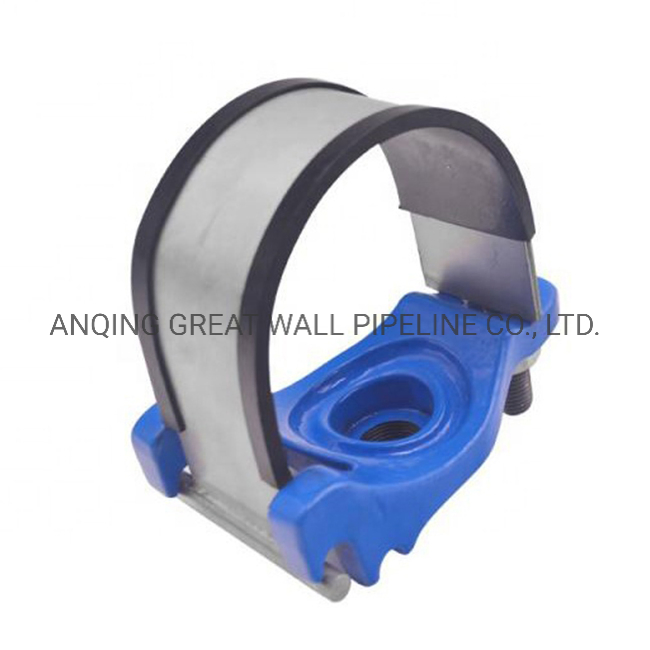

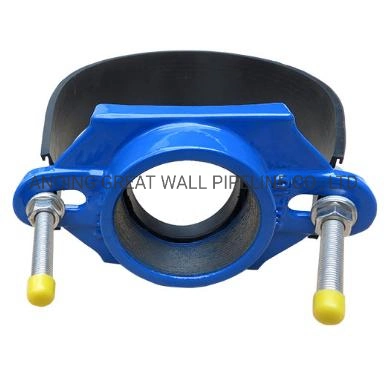

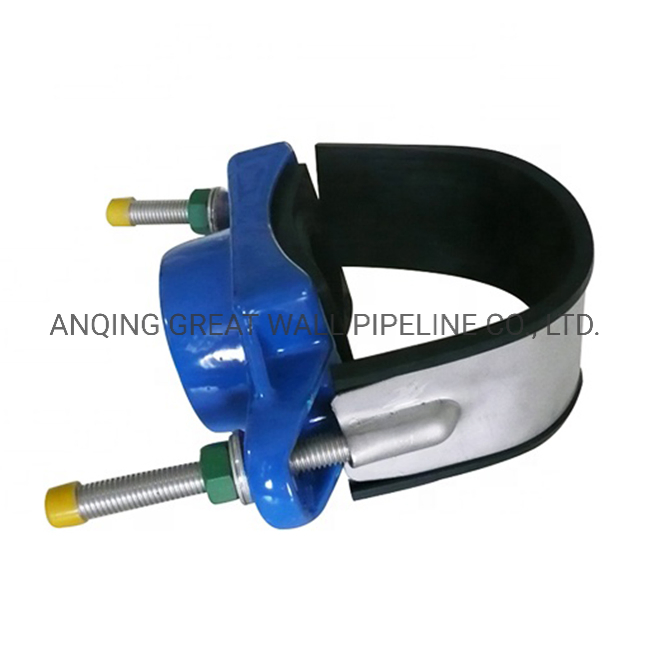

Single Strap Tapping Saddle with BSP threaded outlet / Flanged Outlet

1. Product Details

Strap Saddle provide a quick means of tapping pipe for branch connection 3/4''-2''
BSP Threaded Outlet (other standard thread acceptable)
Wide Range of O.D tolerance
Suit for PE, PVC, HDPE, CI, DI, Steel Pipe

2. Material Sheet

Component	Material
Body	Ductile Iron GG450-10
Strap	SS304 /316 with Rubber Insulation
Bolt & Nut	AISI 304
Gasket	EPDM

3. Sizes of Strap Saddle (BSP Threaded Outlet)

S/N	Pipe Diameter	Pipe OD (mm)	Outlet Diameter	Working Pressure
1	DN50	48-62	1/2'', 3/4'', 1'', 2''	PN16
2	DN65	57-78	1/2'', 3/4'', 1'', 2''	PN16
3	DN80	75-98	1/2'', 3/4'', 1'', 2''	PN16
4	DN100	97-118	1/2'', 3/4'', 1'', 2''	PN16
5	DN100	110-133	1/2'', 3/4'', 1'', 2''	PN16
6	DN125	126-148	1/2'', 3/4'', 1'', 2''	PN16
7	DN125	135-160	1/2'', 3/4'', 1'', 2''	PN16
8	DN150	158-177	1/2'', 3/4'', 1'', 2''	PN16
9	DN150	168-190	1/2'', 3/4'', 1'', 2''	PN16
10	DN200	182-206	1/2'', 3/4'', 1'', 2''	PN16
11	DN200	206-233	1/2'', 3/4'', 1'', 2''	PN16
12	DN200	233-254	1/2'', 3/4'', 1'', 2''	PN16
13	DN250	260-286	1/2'', 3/4'', 1'', 2''	PN16
14	DN250	285-310	1/2'', 3/4'', 1'', 2''	PN16
15	DN300	313-338	1/2'', 3/4'', 1'', 2''	PN10
16	DN350	344-372	1/2'', 3/4'', 1'', 2''	PN10
17	DN350	348-394	1/2'', 3/4'', 1'', 2''	PN10
18	DN400	394-420	1/2'', 3/4'', 1'', 2''	PN10
19	DN400	418-443	1/2'', 3/4'', 1'', 2''	PN10
20	DN400	442-475	1/2'', 3/4'', 1'', 2''	PN10
21	DN450	474-493	1/2'', 3/4'', 1'', 2''	PN10
22	DN500	500-532	1/2'', 3/4'', 1'', 2''	PN10
23	DN600	610-647	1/2'', 3/4'', 1'', 2''	PN10
24	DN700	710-738	1/2'', 3/4'', 1'', 2''	PN10

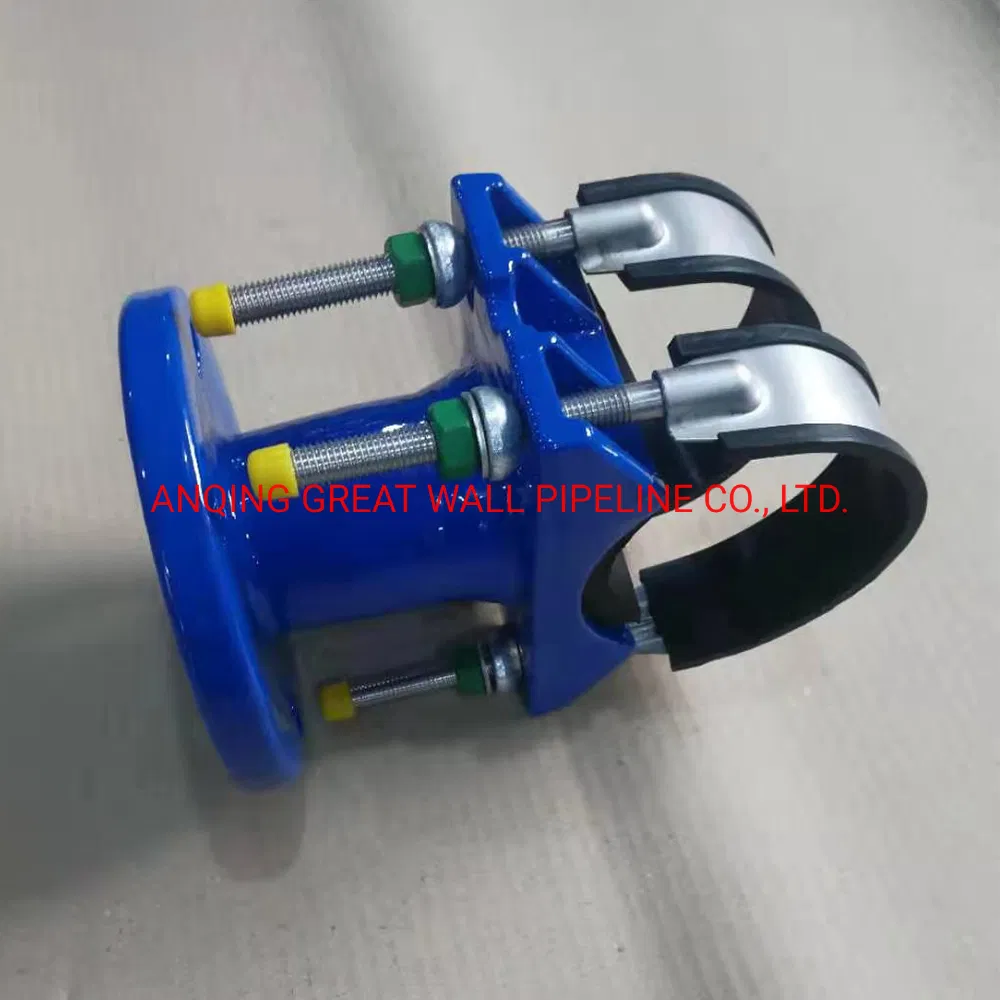

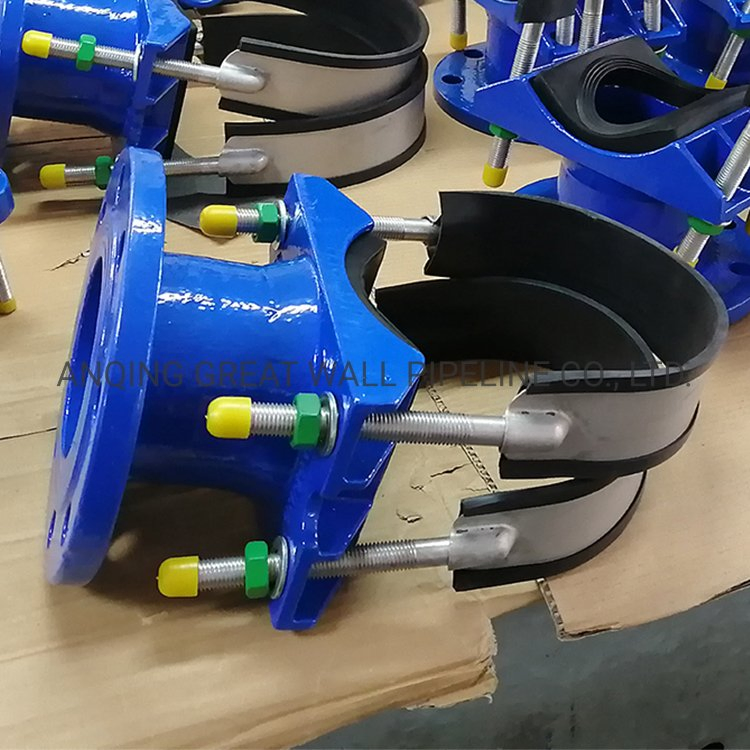

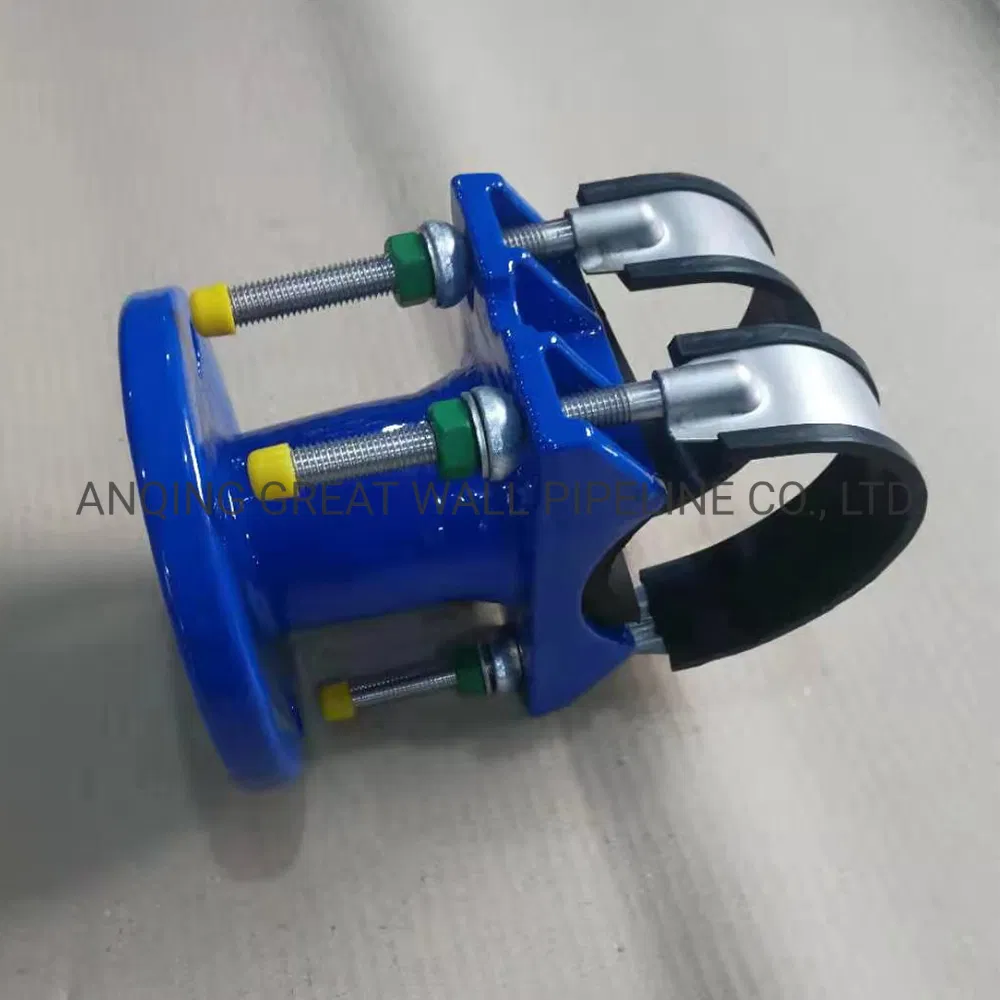

4. Sizes of Strap Saddle (PN10/16 Flanged Outlet)

S/N	Size (DN)	O.D Range (mm)	Sealing Material	N.W (Kgs)
1	DN150*32	158-177	EPDM	13.4
2	DN150*50	158-177	EPDM	15.1
3	DN150*65	158-177	EPDM	15.5
4	DN150*80	158-177	EPDM	15.9
5	DN150*100	158-177	EPDM	16.2
6	DN200*32	206-233	EPDM	16.5
7	DN200*80	206-233	EPDM	16.9
8	DN200*100	206-233	EPDM	17.2
9	DN200*150	206-233	EPDM	17.8
10	DN250*80	260-286	EPDM	17.4
11	DN250*100	260-286	EPDM	18.1
12	DN250*150	260-286	EPDM	18.8
13	DN250*200	260-286	EPDM	19.6
14	DN300*80	313-338	EPDM	20.5
15	DN300*100	313-338	EPDM	21.6
16	DN300*150	313-338	EPDM	24.1
17	DN300*200	313-338	EPDM	28.7
18	DN350*80	344-372	EPDM	23.4
19	DN350*100	344-372	EPDM	22.4
20	DN400*100	418-443	EPDM	23.7
21	DN400*150	418-443	EPDM	26.3

❓ Frequently Asked Questions

Q1: Which pipe materials are compatible with these tapping saddles? These saddles are suitable for PE, PVC, HDPE, CI (Cast Iron), DI (Ductile Iron), and Steel pipes.

Q2: What is the maximum working pressure supported? The tapping saddles are designed for working pressures of PN10 and PN16.

Q3: What materials are used for the straps and fasteners? The straps are made of SS304 or SS316 with rubber insulation, and the bolts and nuts are made of AISI 304 stainless steel.

Q4: Are different outlet thread standards available? Yes, while BSP is the standard thread outlet provided, other thread standards are acceptable upon request.

Q5: What is the benefit of the epoxy coating? The epoxy coating provides excellent surface treatment for corrosion resistance and long-term durability in underground or submerged environments.

Q6: What is the range of branch connection sizes? The strap saddles provide branch connections ranging from 1/2'' up to 2'' for threaded outlets and various larger sizes for flanged outlets.
