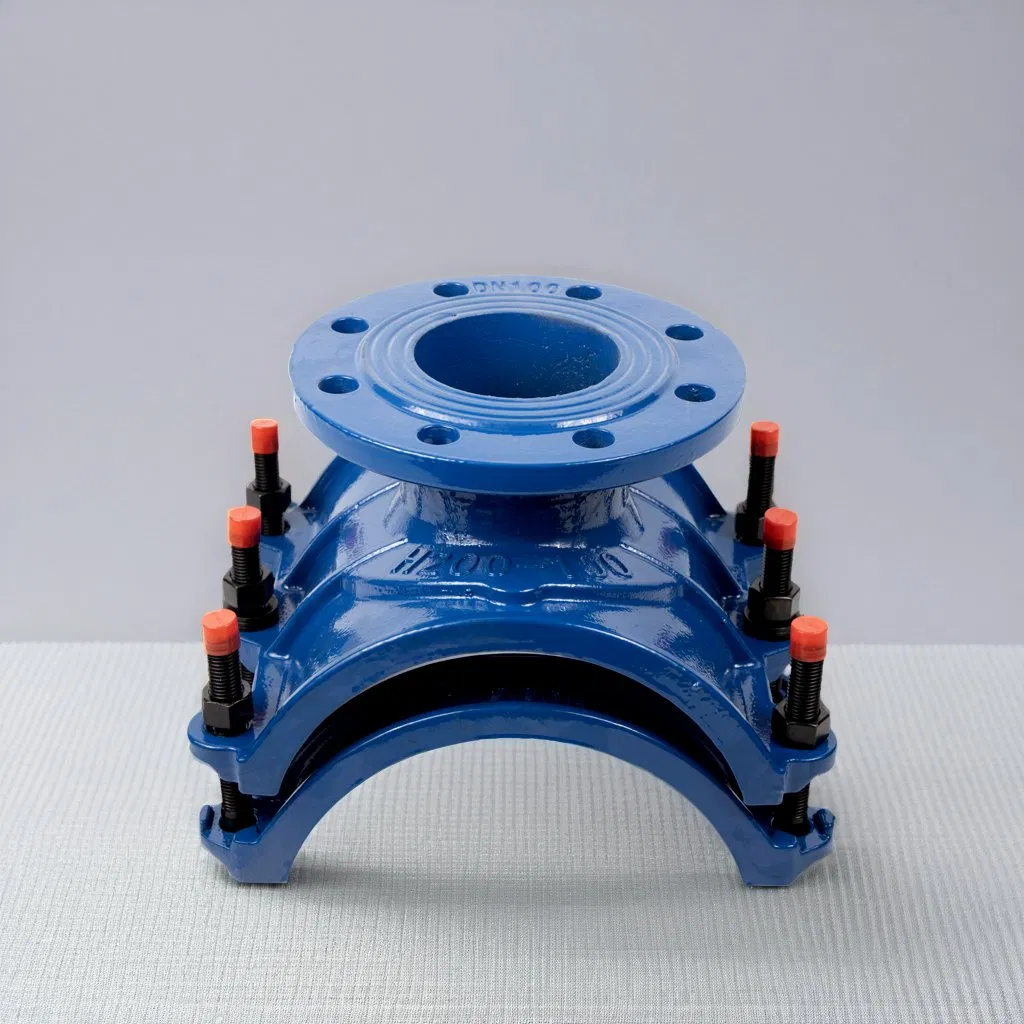

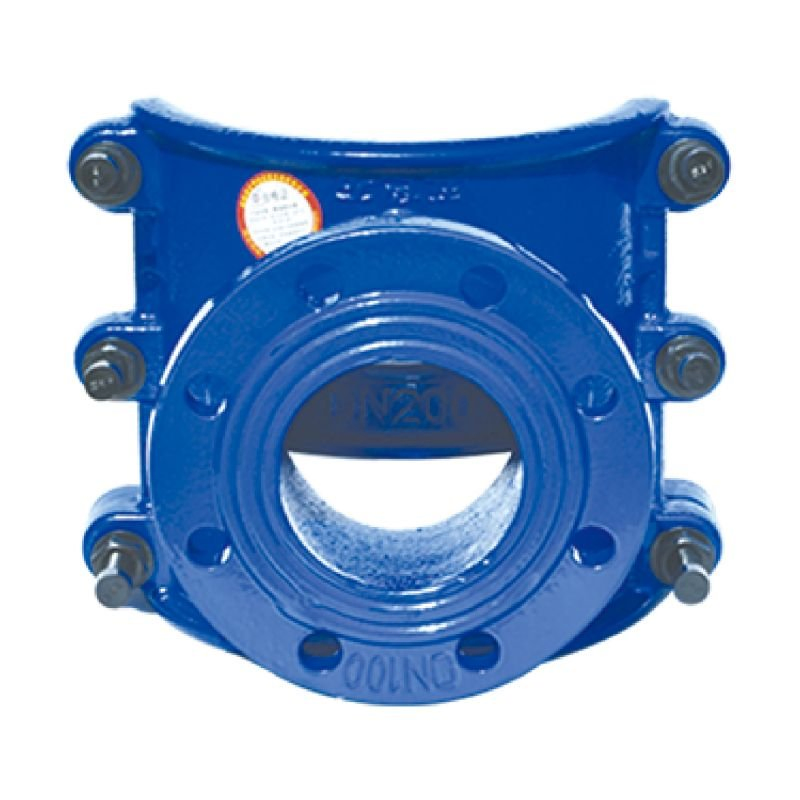

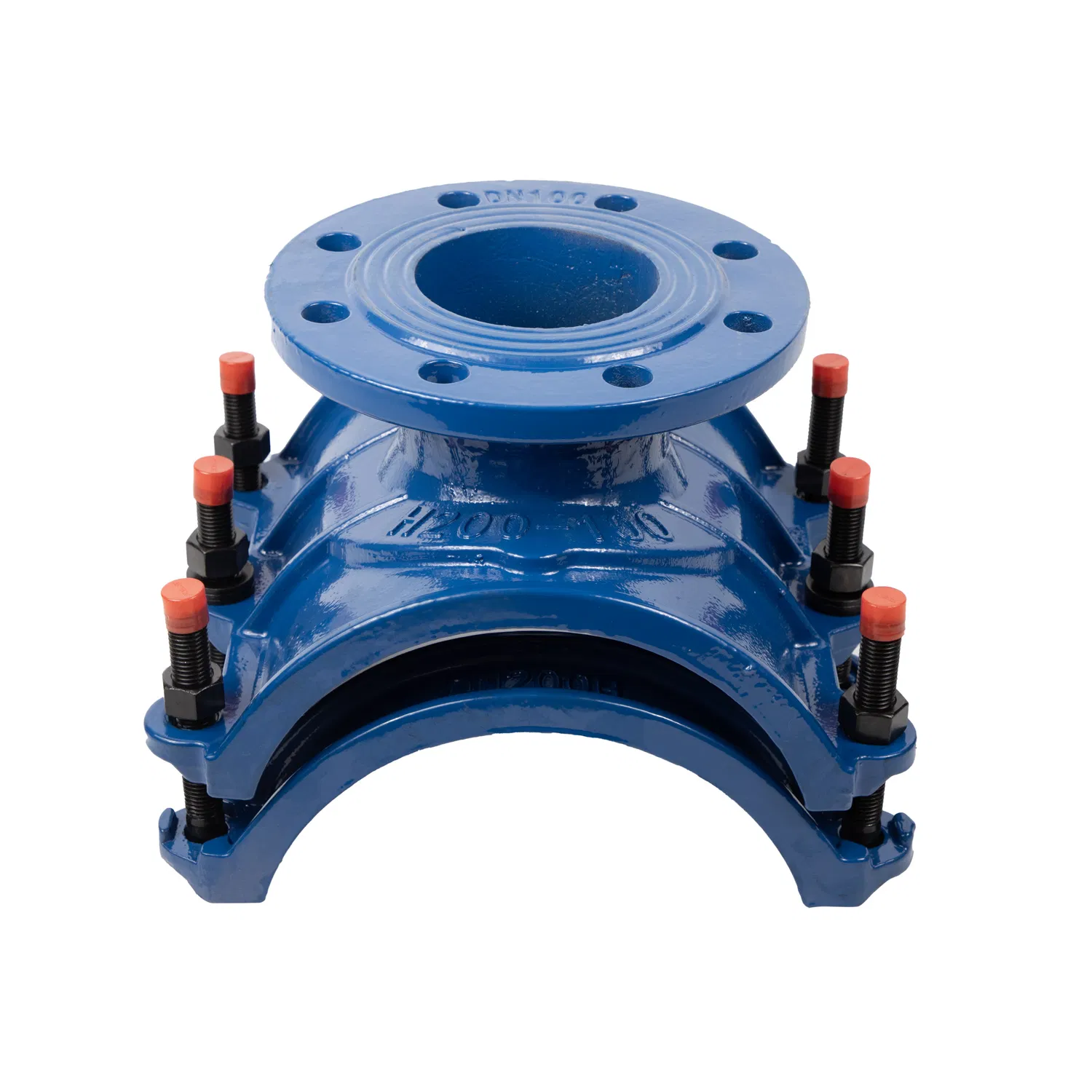

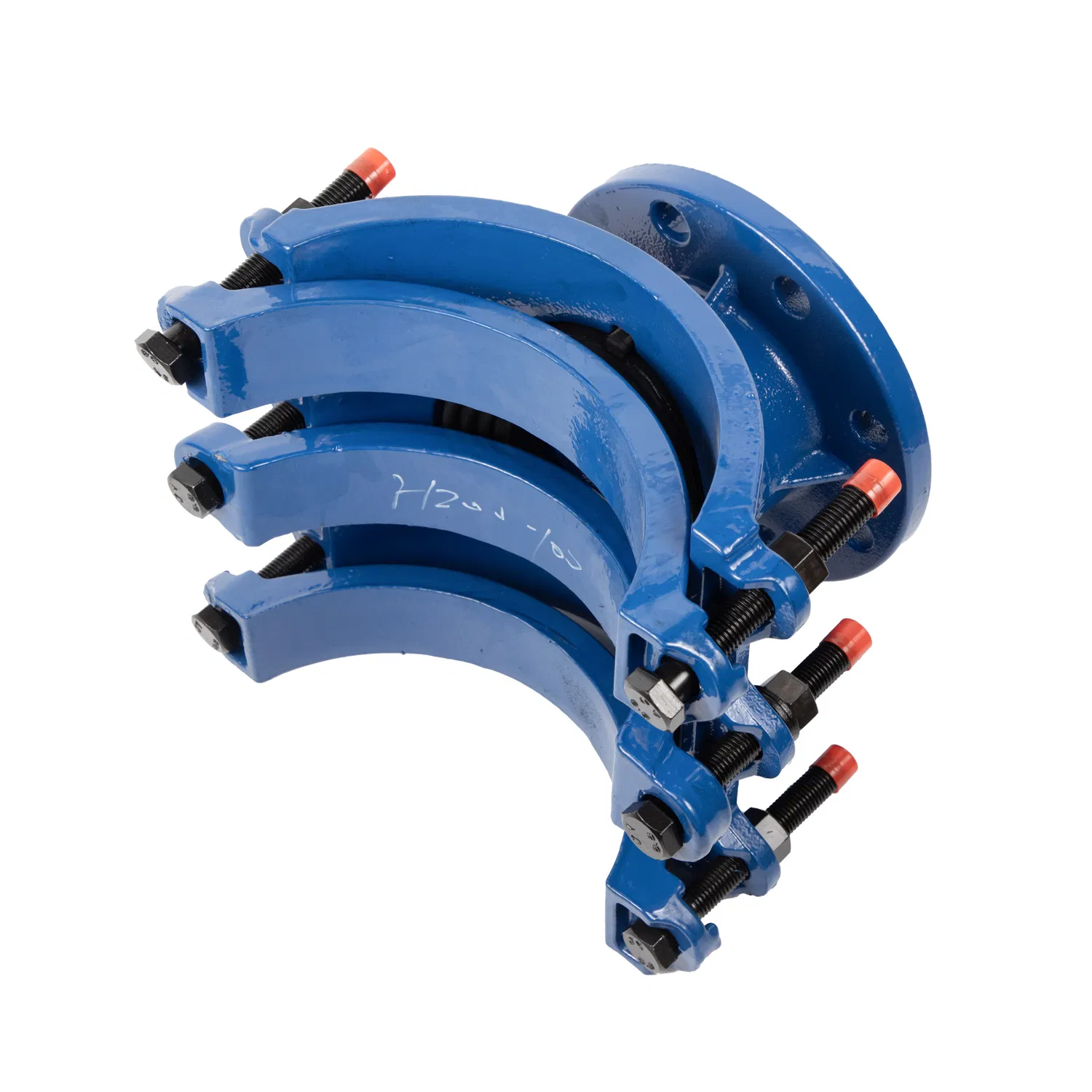

Own Brand Factory Pipe Tapping Saddle for Di Pipe
Own Brand Factory Pipe Tapping Saddle for Di Pipe
Own Brand Factory Pipe Tapping Saddle for Di Pipe
Own Brand Factory Pipe Tapping Saddle for Di Pipe
1 / 4
Own Brand Factory Pipe Tapping Saddle for Di Pipe
Own Brand Factory Pipe Tapping Saddle for Di Pipe
Own Brand Factory Pipe Tapping Saddle for Di Pipe
Own Brand Factory Pipe Tapping Saddle for Di Pipe

Own Brand Factory Pipe Tapping Saddle for Di Pipe

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
H100-80---H1000-600
Connection
Press Connection
Material
Alloy
Standard
Standard
Application
Water Pipeline
Working Pressure
2.5 MPa and Above
Feature
No Shutdown, No Welding, Instant Repair
Repair Tool
Ductile Iron
Transport Package
Plywood or Carton Box
Specification
230-800mm
★

Product Description

Pipe Tapping Saddle for DI Pipe

Pipe Tapping Saddle for Di Pipe

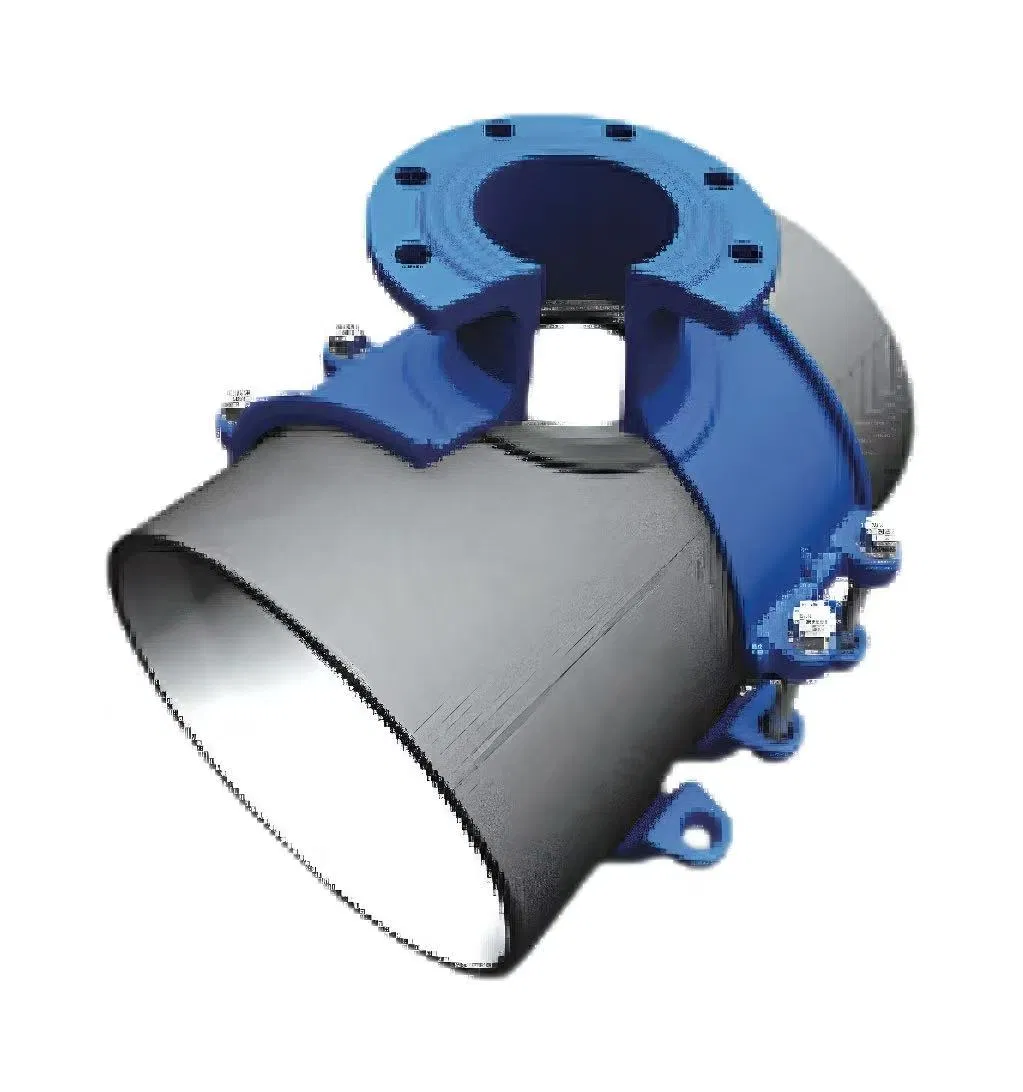

Pipe Tapping Saddle Specifications

Application Sence: Emergency repair for burst pipe in the pipe tapping saddle section.

⚙

Product Specification

Specification and Model L D1 D2 N K
H100-8023085160418
H150-100260105180818
H200-200370205295823
H300-3005003054001223
H500-4006204055151628
H800-6008006057252031
H1000-6008006057252031

* Partial data shown. Full range includes models from H100 to H1000.

✔

Key Product Features

1
Advanced double circular sealing groove and anti-pressure sealing lip patent technology ensure extremely high sealing reliability and prevent rubber bulging.
2
High-pressure sealing structure offers exceptional adaptability for plastic pipelines under deformation, twist, or misalignment.
3
Shell and rubber pad use a durable clamp connection that is environmentally friendly and long-lasting.
4
Supplied with high-strength fasteners (Stainless Steel or 8.8 Grade) and specialized skin-care grade installation lubricant.
5
Enhanced rubber seal width and upgraded materials significantly extend the service life of repair components.
🖼

Manufacturing & Quality

Production Facility

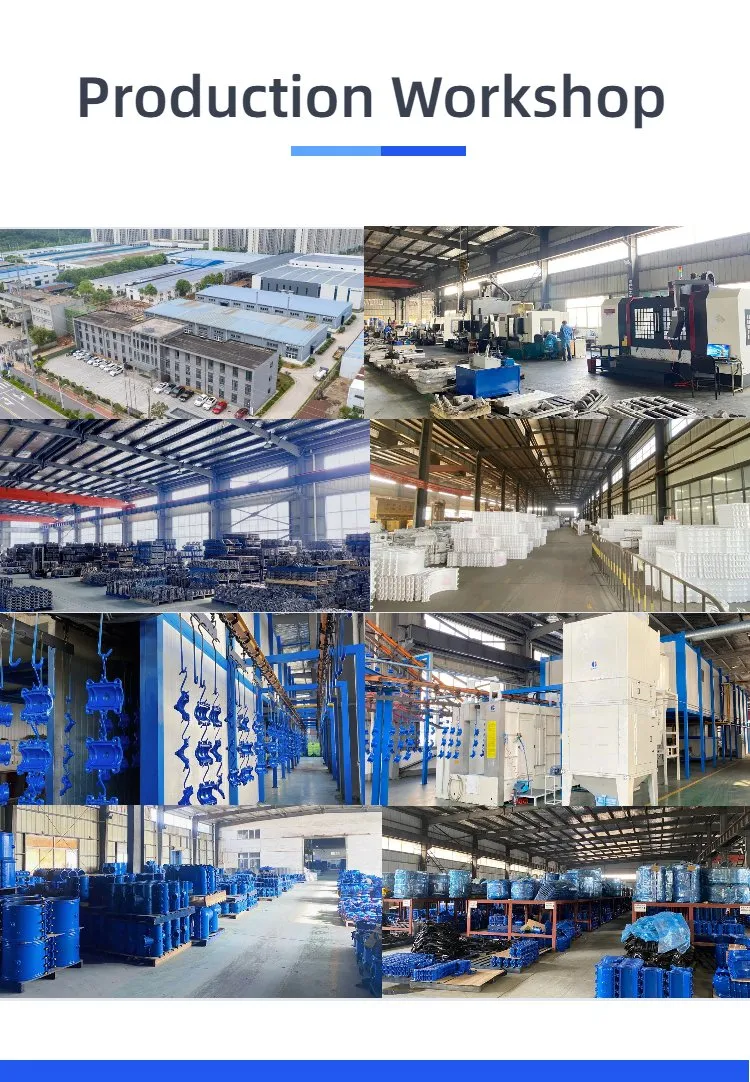

Workshop

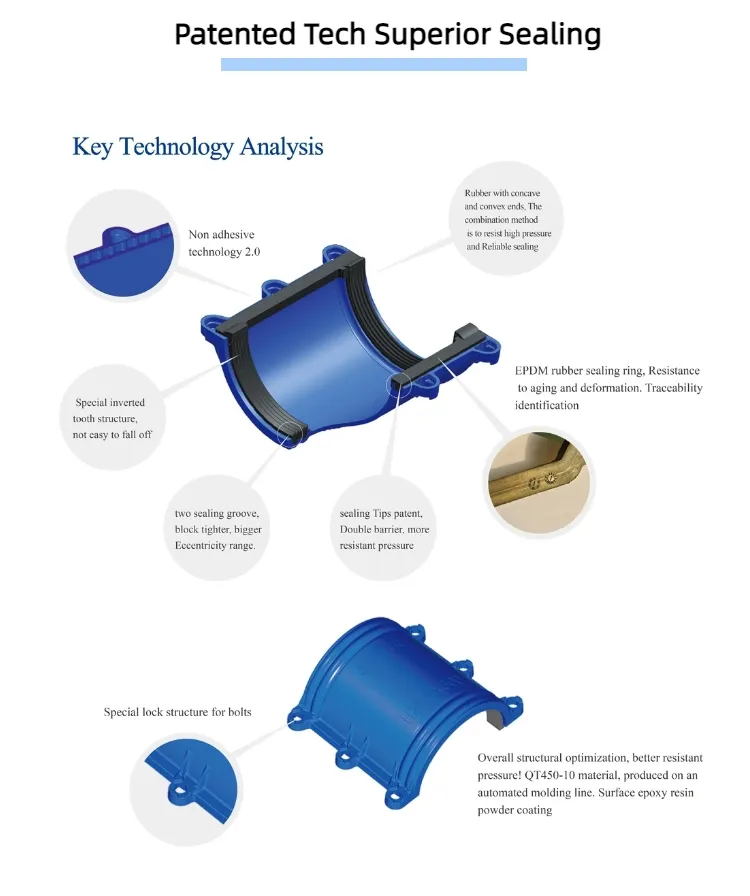

Advantages

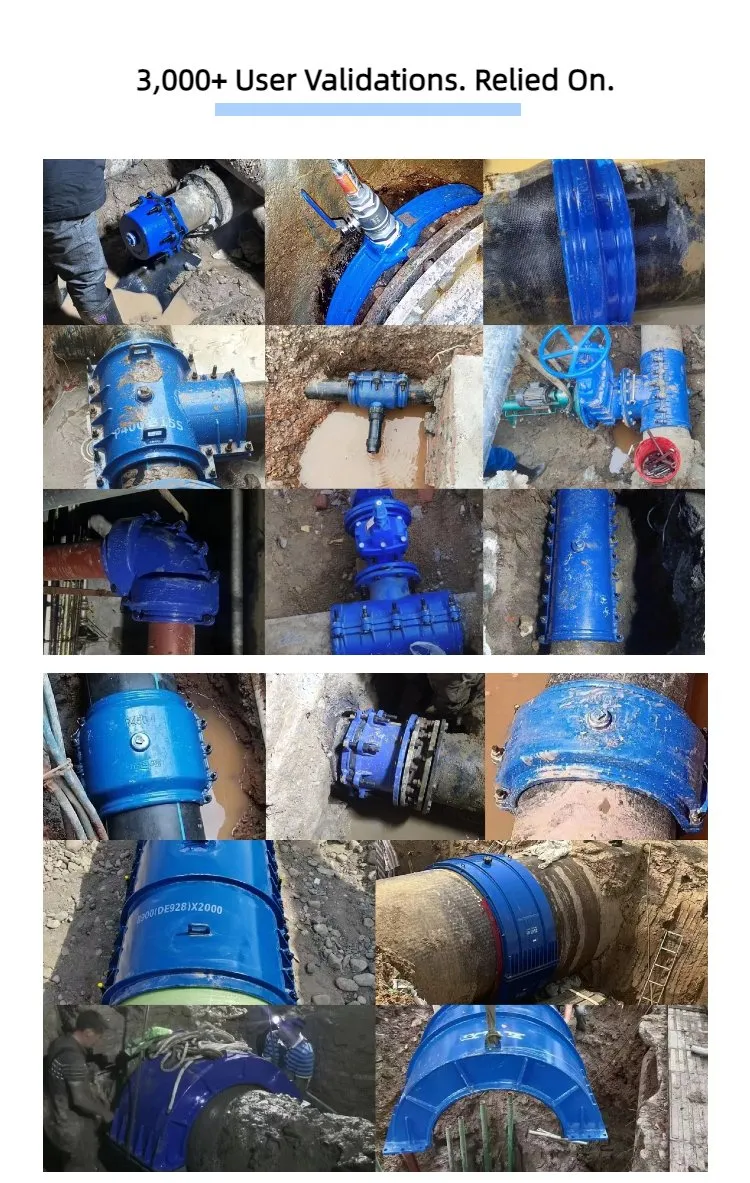

Application Cases
Customized Service

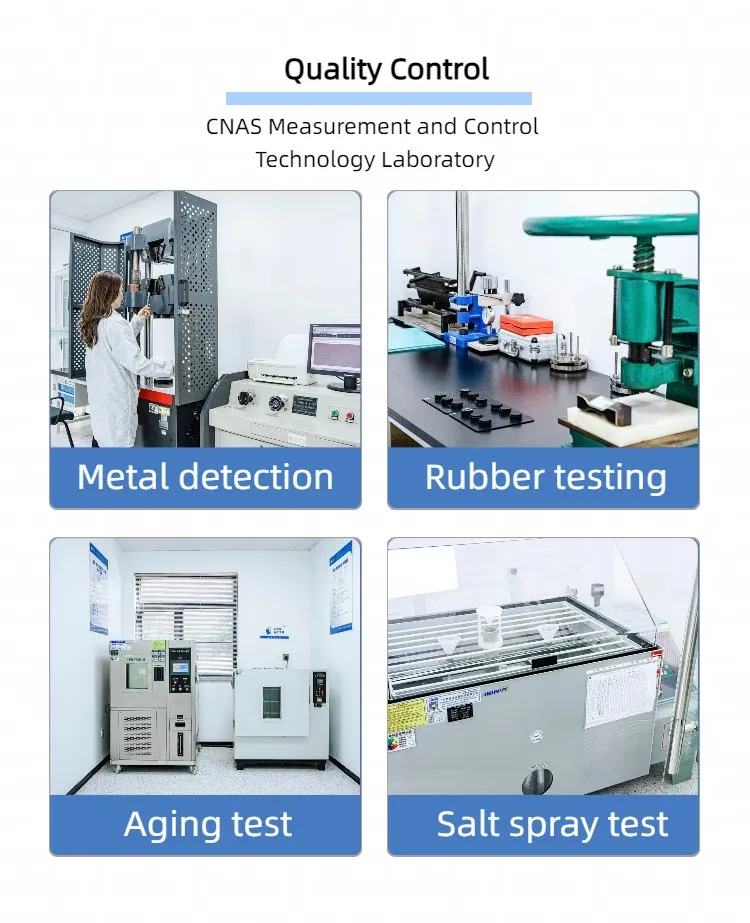

Quality Control
Final FAQ Visual
?

Frequently Asked Questions

What type of pipes can this tapping saddle be used on?
It is primarily designed for Ductile Iron (DI) pipes and demonstrates exceptional adaptability on various plastic pipelines as well.
Is it necessary to shut down the water supply during installation?
No, one of the key features is the "No Shutdown" repair capability, allowing for instant repair without stopping the pipeline flow.
What is the maximum pressure these saddles can handle?
The product is rated for working pressures of 2.5 MPa and above, thanks to its high-pressure sealing structure.
How does the sealing technology prevent leaks at high pressure?
We use a patented double circular sealing groove and anti-pressure sealing lip which creates a dual barrier to prevent rubber bulging or leakage.
What materials are the fasteners made of?
We provide either stainless steel standard fasteners or 8.8 grade high-strength fasteners to ensure long-term durability and safety.
Is the installation process environmentally friendly?
Yes, we use a clamp connection design and provide skin-care grade installation lubricants that are harmless to humans and the environment.
