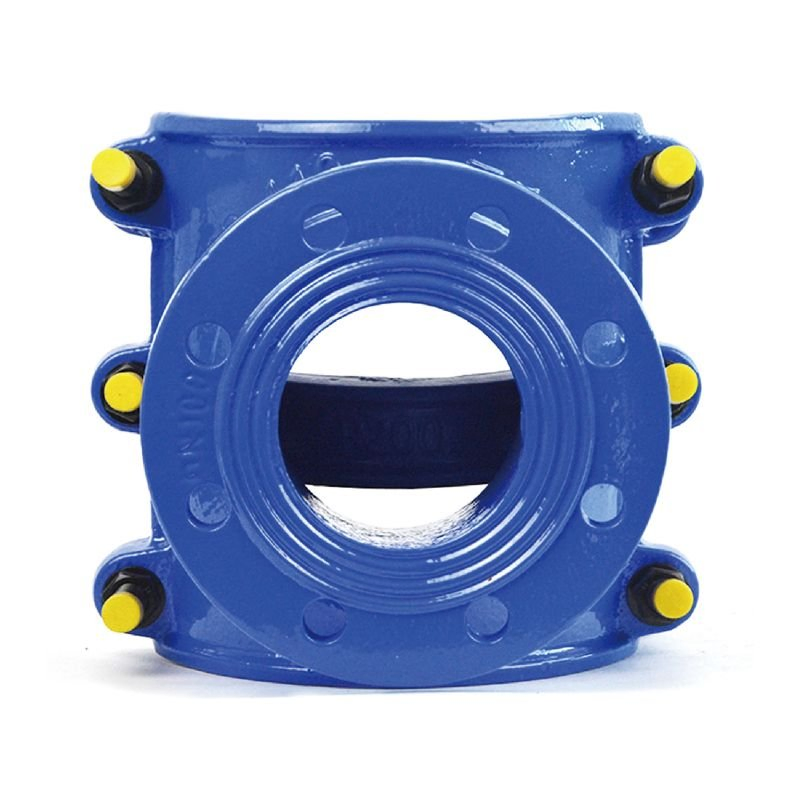

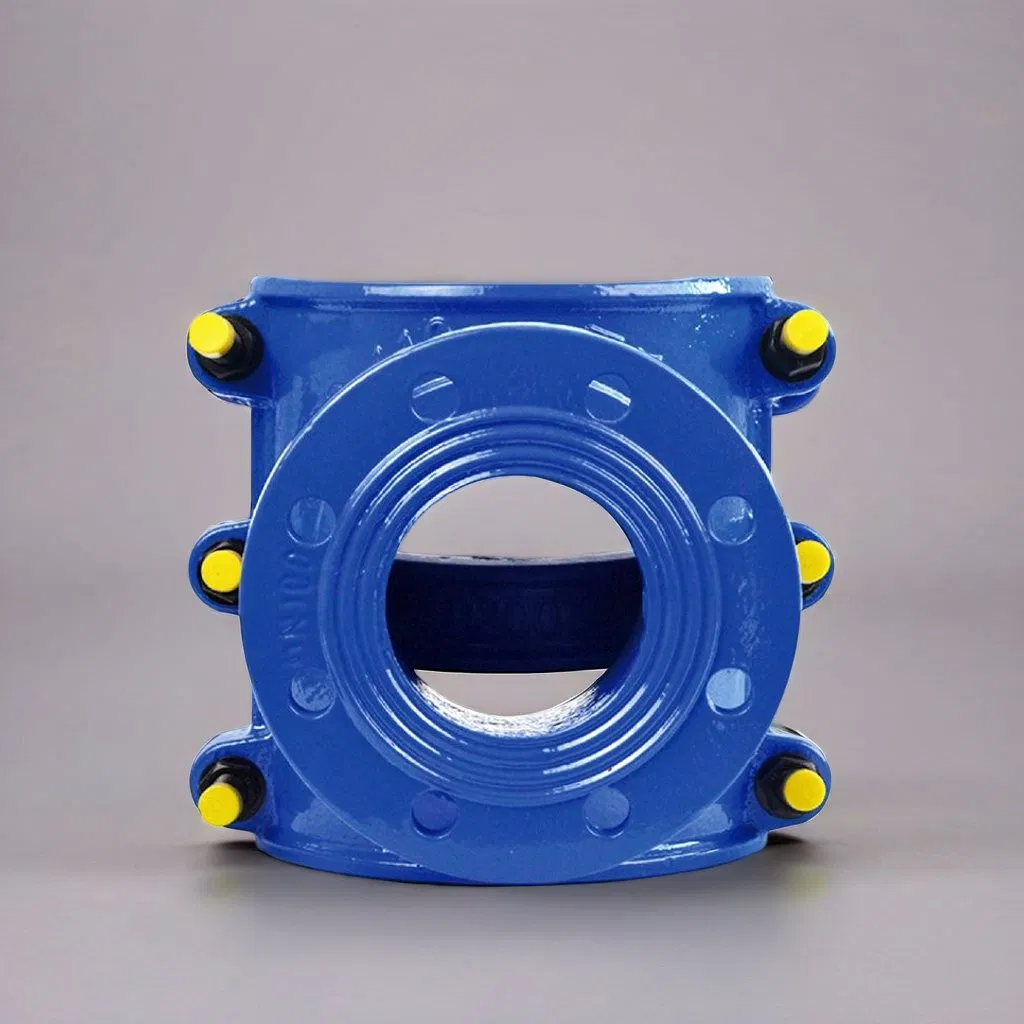

No Weld Pipe Repair Pipe Tapping Saddle for PE/PVC Pipe

1 / 2

No Weld Pipe Repair Pipe Tapping Saddle for PE/PVC Pipe

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

“梓染，

Basic Information

Model NO.P160-100--P500-200

ConnectionPress Connection

MaterialAlloy / Ductile Iron

StandardStandard

ApplicationWater Pipeline

Working Pressure2.5 MPa and Above

Flexible or RigidRigid

Capacity10000 pieces/Year

Product Description

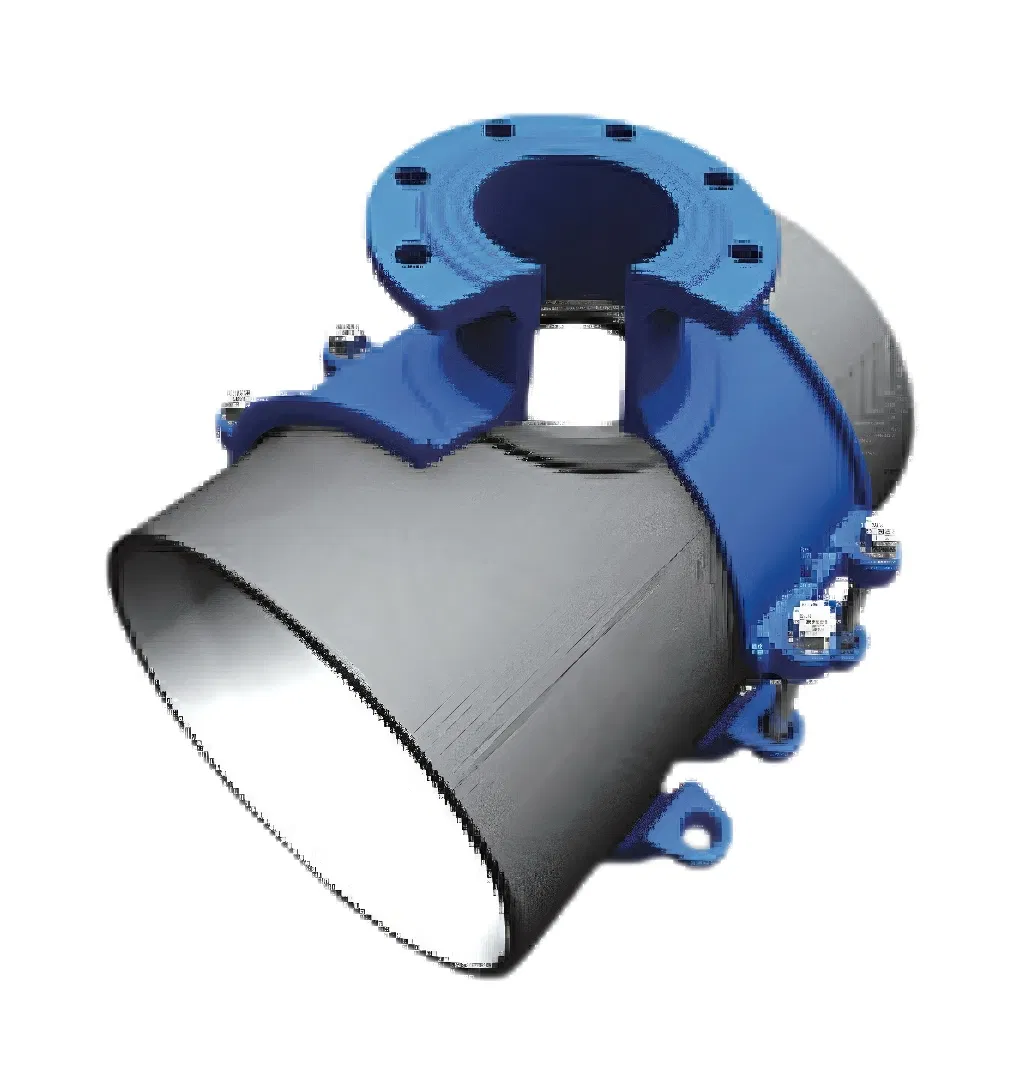

Pipe Tapping Saddle for PE/PVC Pipe

Suitable for emergency repair at PE/PVC pipe saddle tee locations. This solution ensures rapid deployment and high-pressure sealing without complex machinery.

Specification and Model	D1	D2	L	N	K
P160-100	100	180	270	8	18
P200-100	106	180	250	8	18
P200-150	150	240	310	8	23
P315-100	100	180	260	8	18
P315-150	155	240	320	8	23
P315-200	205	295	370	8	23
P400-100	102	180	260	8	18
P400-150	152	240	320	8	23
P400-200	205	295	370	8	23
P500-100	100	180	260	8	18
P500-200	205	295	370	8	23

★

Product Features

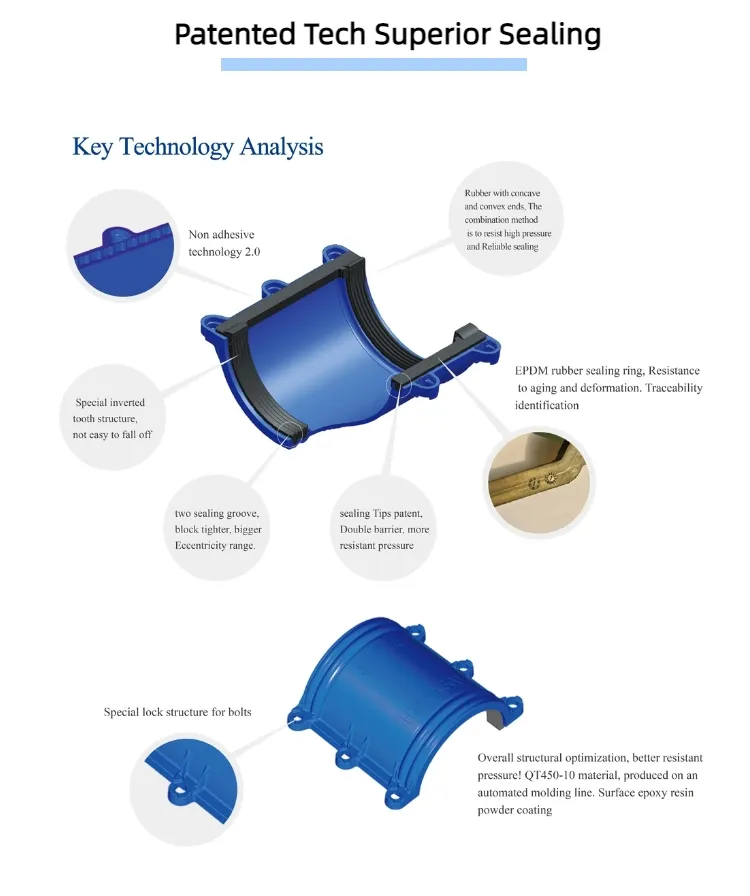

Patented Sealing Technology: Adopts double circular sealing grooves and anti-pressure sealing lips. This creates a dual barrier ensuring reliability and preventing rubber bulging under high pressure.
Exceptional Adaptability: High-pressure sealing structure offers reliable connections on plastic pipelines, handling pressure deformation, twist, and pipe misalignment.
Durable Construction: Clamp connection between shell and rubber pad is strong, durable, and environmentally friendly.
High-Strength Fasteners: Supplied with stainless steel or 8.8 grade high-strength fasteners. Includes skin-care grade installation lubricant.
Extended Service Life: Enhanced width and material of rubber seals combined with accessory upgrades significantly extend the lifespan of repair components.

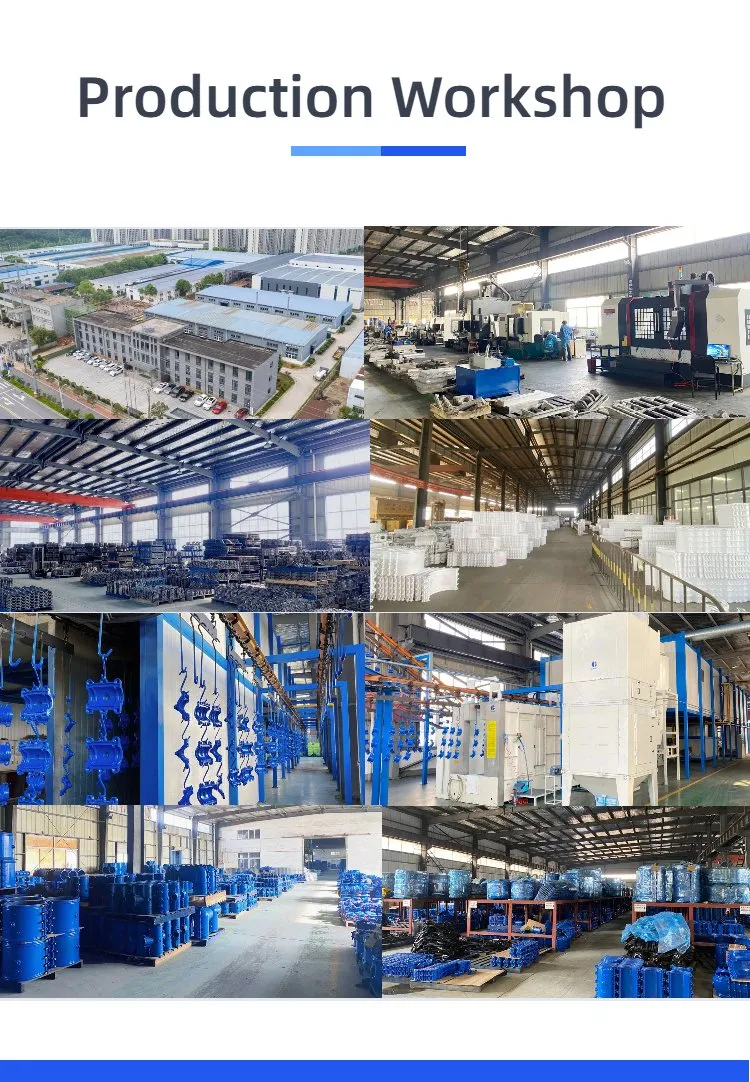

Manufacturing & Advantages

✓

Quality & Application Cases

Frequently Asked Questions

What type of pipes is this tapping saddle designed for?

It is specifically engineered for emergency repairs and tapping on PE and PVC pipelines.

Does the system require a shutdown for installation?

No, the primary feature is "No Shutdown" repair. It allows for instant repair without the need for welding or halting the water flow.

How does the sealing technology handle high water pressure?

It utilizes a dual circular sealing groove and anti-pressure lips that prevent the rubber from bulging, ensuring a reliable seal at 2.5 MPa and above.

What materials are used for the fasteners?

The saddles are supplied with either high-quality stainless steel standard fasteners or 8.8 grade high-strength fasteners.

Is the included installation lubricant safe?

Yes, we provide an environmentally friendly installation lubricant that meets skin-care grade standards and is harmless to humans.

Can this saddle accommodate misaligned pipes?

Yes, the high-pressure sealing structure is designed to be highly adaptable to twist deformation and significant misalignment during the joining process.
