Model NO.:9160
Application:Machine Parts, Transportation
Certification:CE, ISO
Surface Treatment:Yes
Technics:Production and Cutting Processes
Material:Rubber and Plastic Products
Type:Thermal Insulation Material
Temperature:-196°C to 120°C
Density:160-340 Kg/M³
Shape:Rectangle
| Version |
Unit |
9160 |
9220 |
9320 |
9340 |
| Density |
Kg/m³ |
160 |
220 |
320 |
340 |
| Thermal Conductivity |
W/(m.k) |
≤0.036 |
≤0.040 |
≤0.050 |
≤0.048 |
| Water absorption |
% |
≤2 |
≤2 |
≤1.8 |
≤1.6 |
| Closed cell |
% |
≥95 |
≥95 |
≥95 |
≥98 |
| Compressive strength |
Mpa |
≥1.6 |
≥4 |
≥6 |
≥9 |

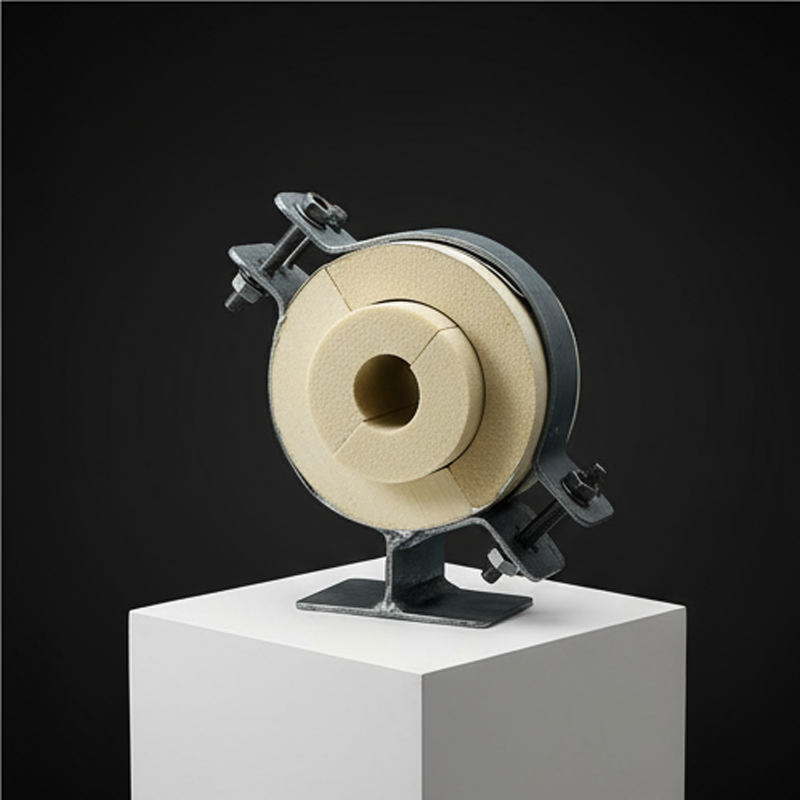

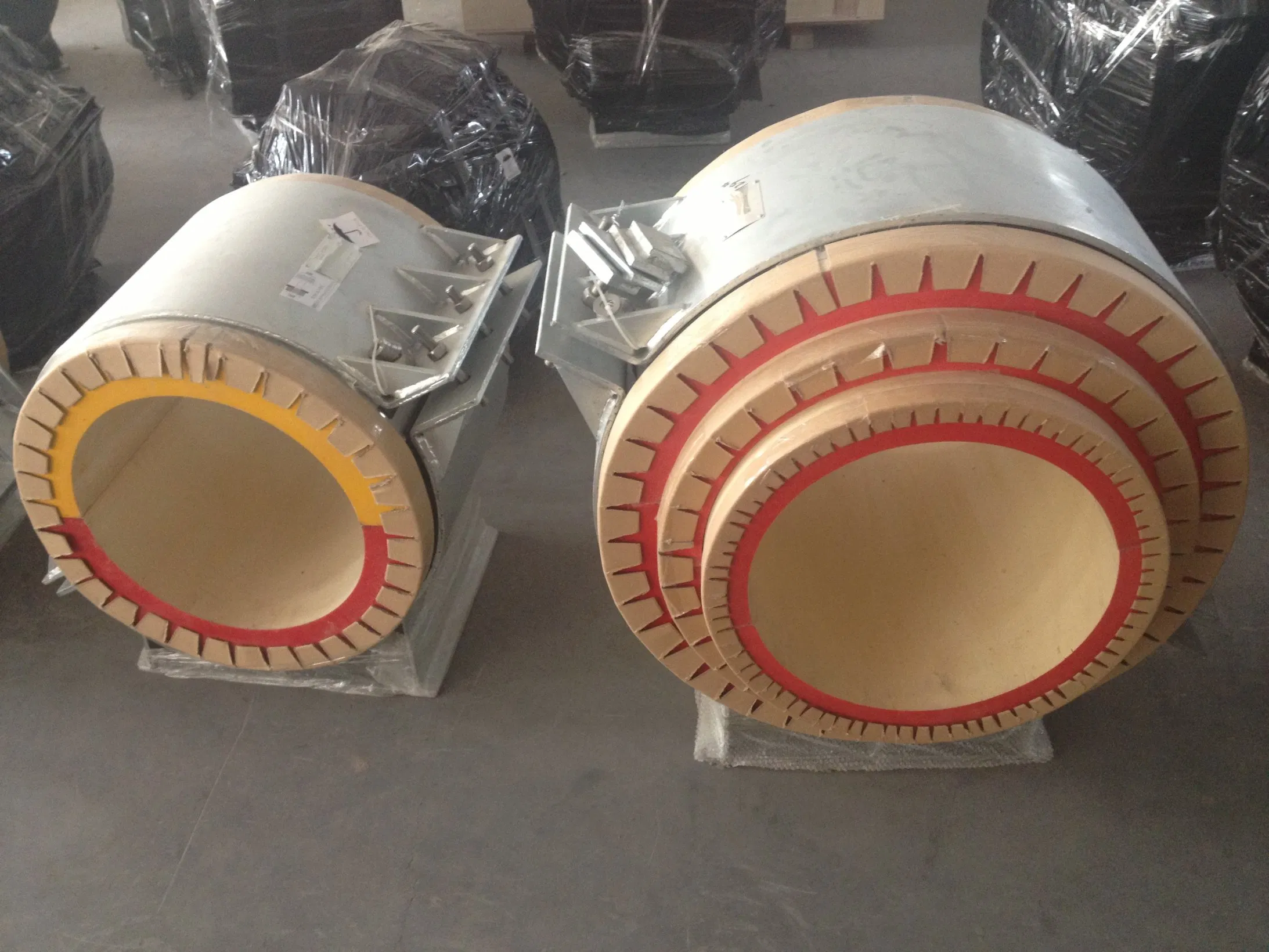

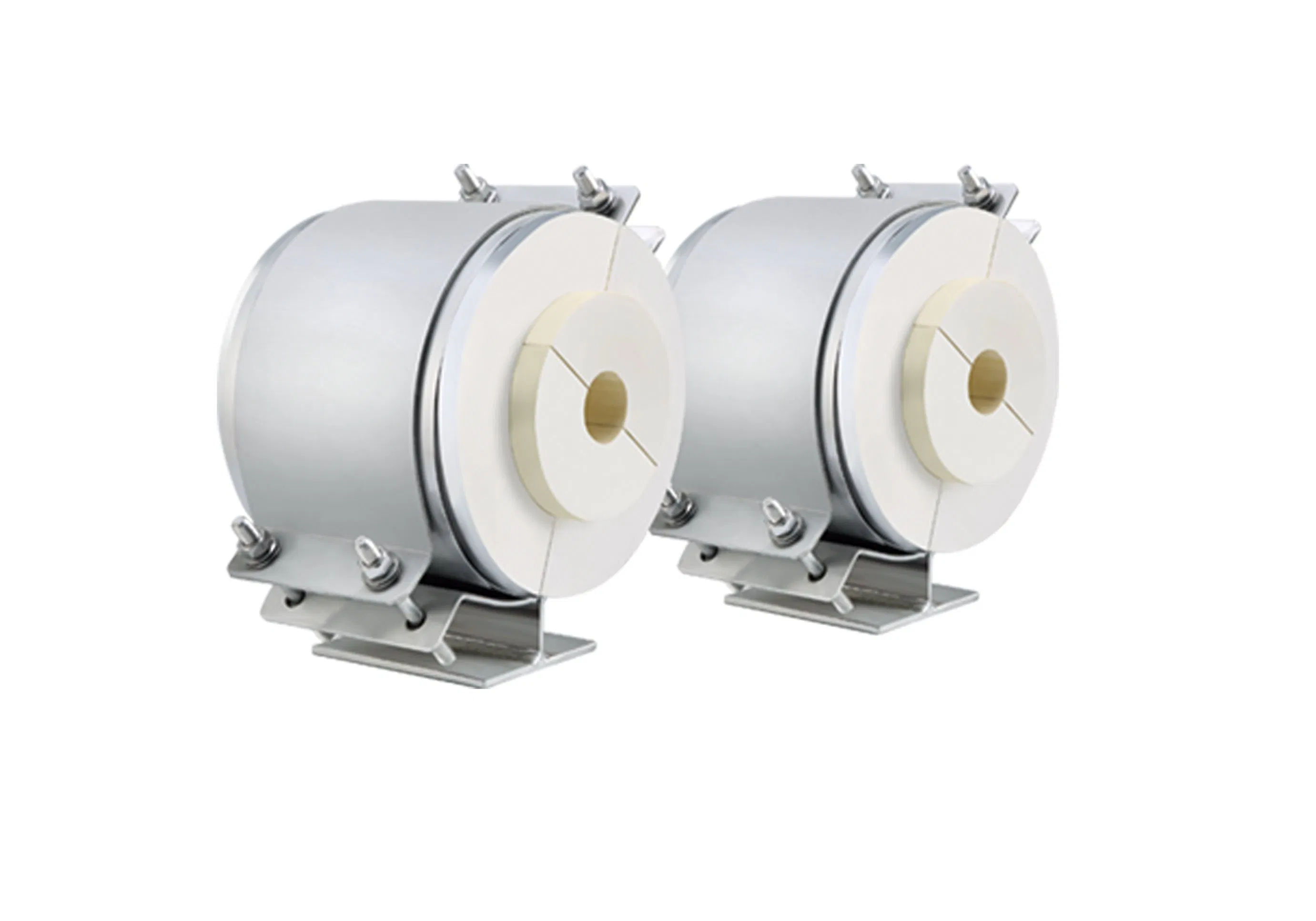

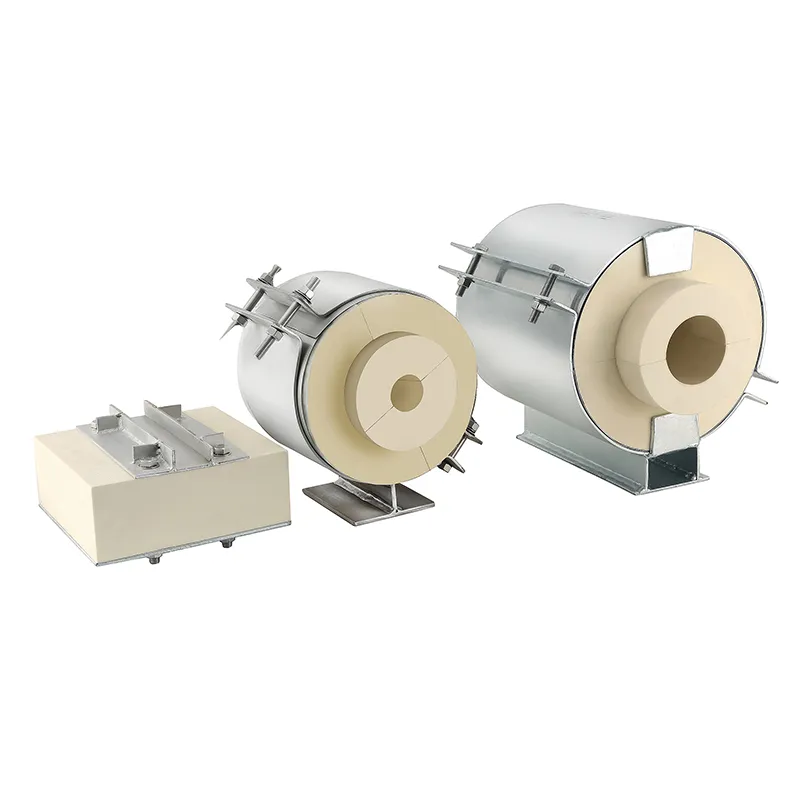

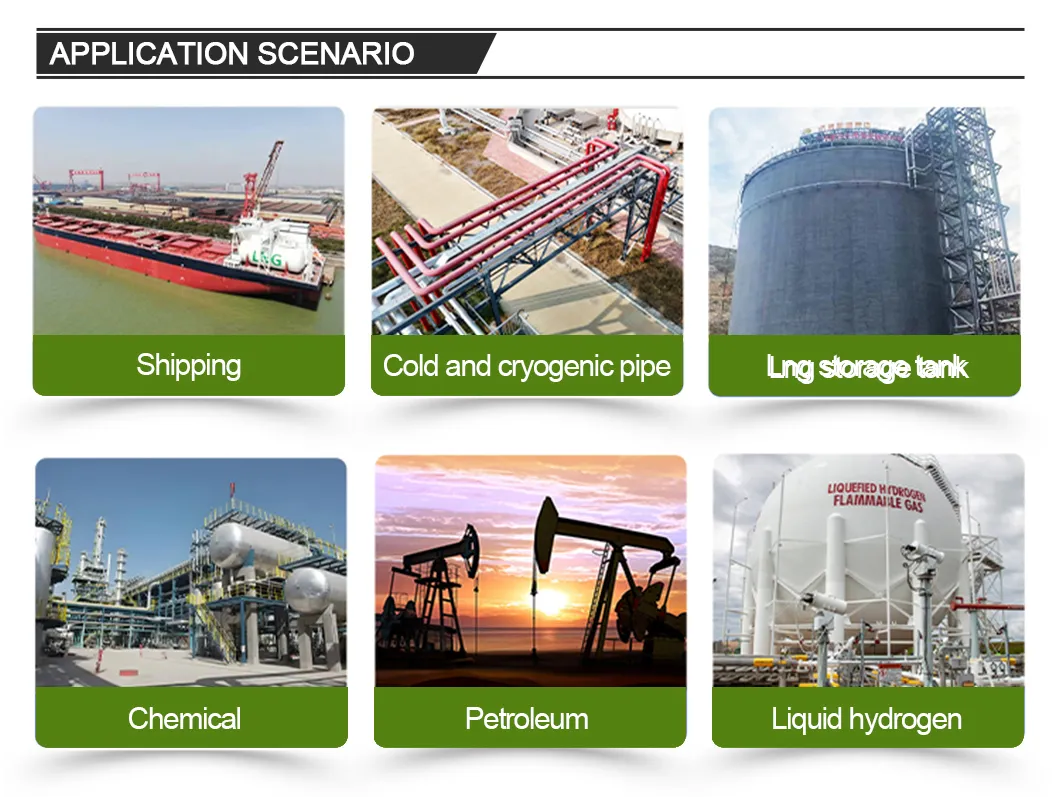

High-performance cold insulation is typically designed to provide optimal thermal insulation for various low-temperature applications, such as cryogenic pipelines in the petrochemical industry, LNG, and LPG pipelines. We offer innovative concepts and solutions for high-performance cold insulation, suitable for a wide range of pipe support applications in temperatures ranging from -196°C to 120°C.
The insulation system cold pipe support products feature a specially formulated insulation layer that outperforms other products in key performance indicators, including high mechanical properties, flame retardancy, and thermal conductivity. These products have been thoroughly and successfully tested in real-world environments.

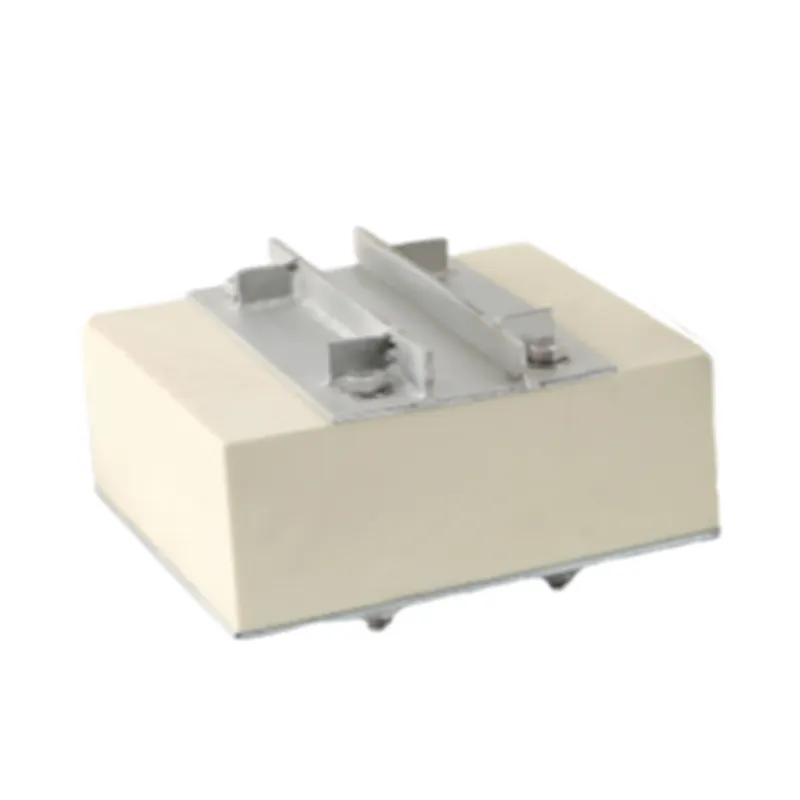

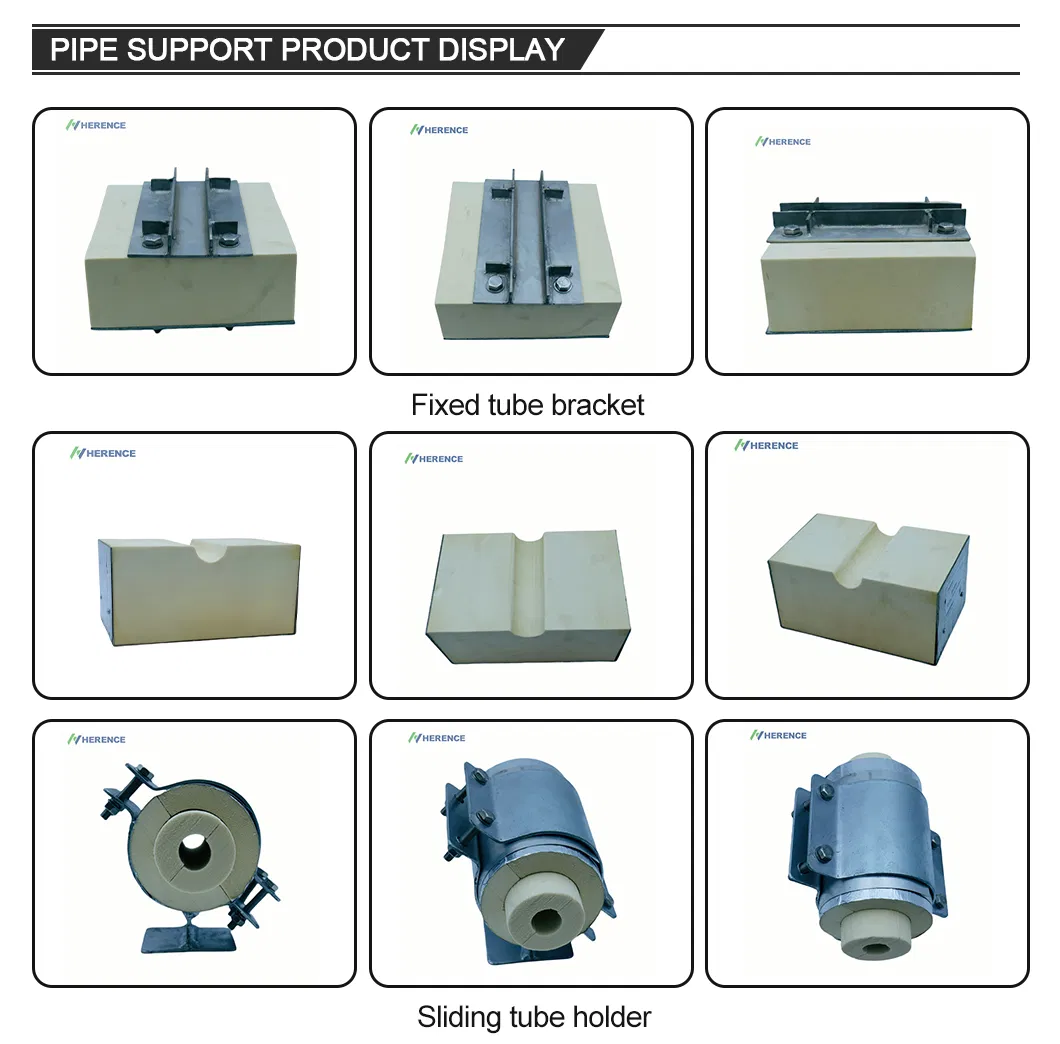

Fixed Tube Bracket

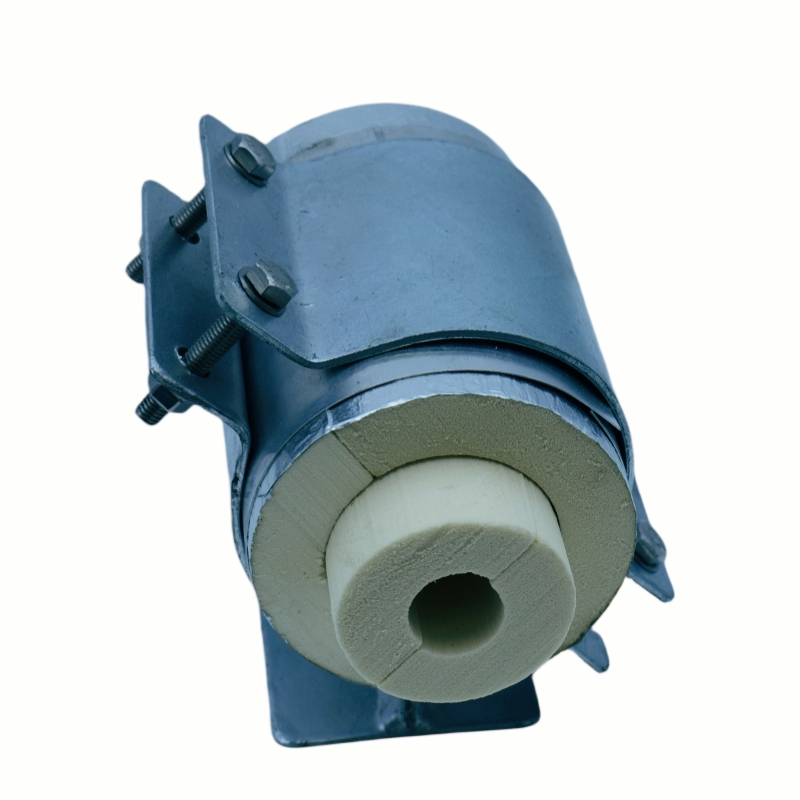

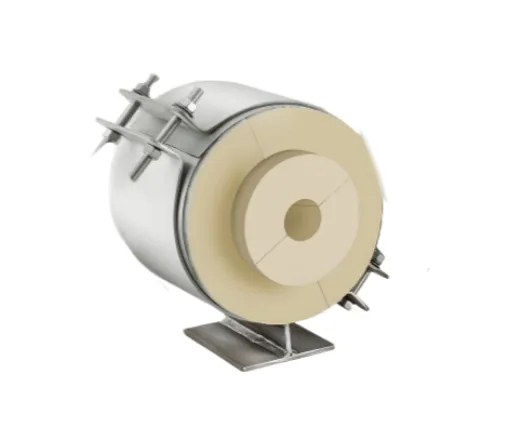

Sliding Tube Holder

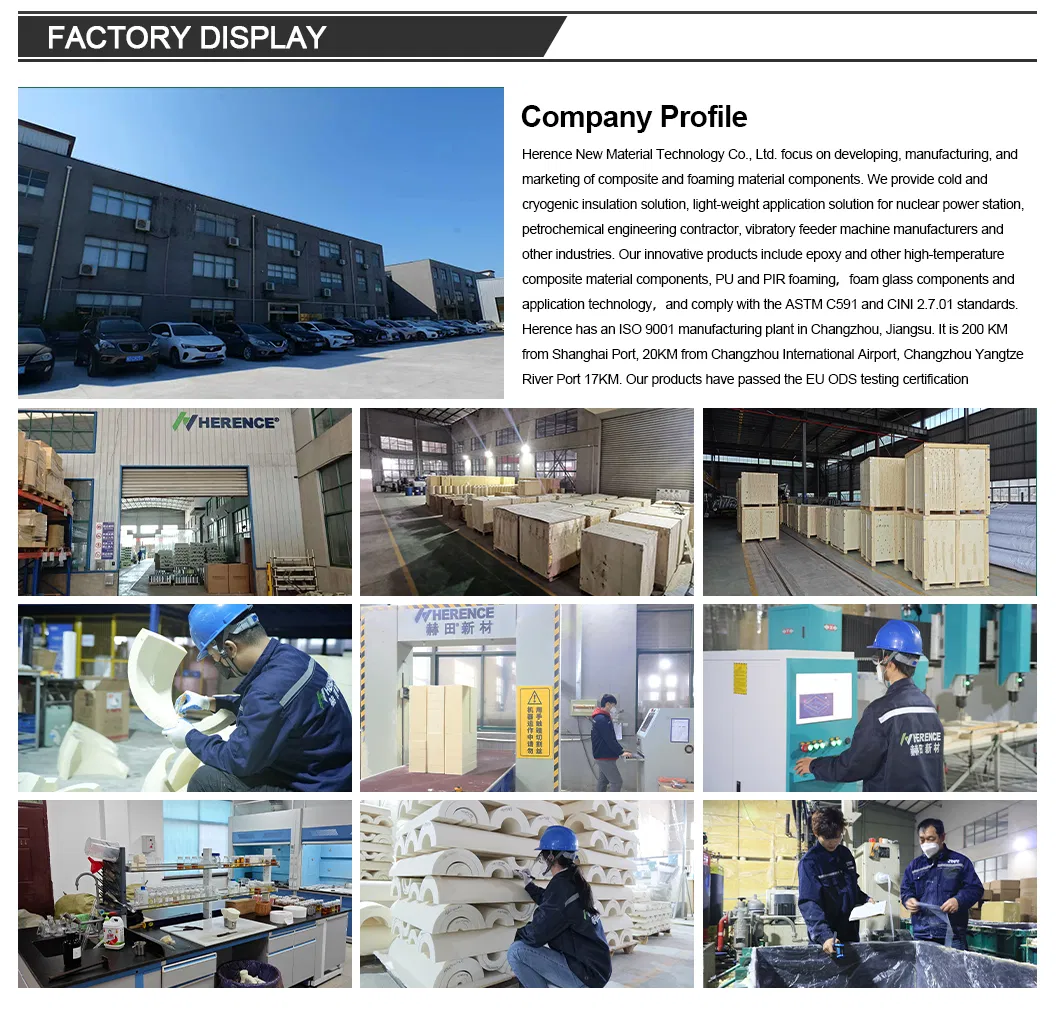

As an R&D-driven company dedicated to the development, manufacture and global promotion of advanced foamed and composite molded components, we specialize in providing cryogenic and ultra-cryogenic insulation solutions as well as lightweight-application solutions for a wide range of industries. We currently hold 2 invention patents and 23 utility-model patents. By continuously exploring and analyzing the specific needs of each sector, we design products that are highly targeted, exceptionally durable and meticulously detailed.
?
Frequently Asked Questions
Are you a manufacturing company or a trading company?
We are a professional manufacturer in China and have been in this field for more than 10 years.
What information is needed for a quote?
Flame retardant level, pressure, specification, and purchase quantity.
Is customization available?
Yes, we have a professional design team that can work according to your drawings and specifications.
What is the leading delivery time?
Typically, our lead time spans 15-30 days post receipt of advance payment, ensuring timely delivery.
How do you protect products during transport?
We use anti-collision wraps, special boxes for fragile parts, and arrange the layout carefully. We also inspect the products before shipment.
Can I get samples from your factory?
Yes. Samples can be sent for free if needed, but the freight can be negotiated or charged separately and it will be refunded after the order is confirmed.
